18DBNL-60 AND 24DBNL-60
VENTED DECORATIVE APPLIANCE
Convertible from Natural Gas to Propane/LP Gas
Information included for the following log models:
MO18DBNL-60
MO24DBNL-60
BRO18DBNL-60
BRO24DBNL-60
OWNER'S OPERATION AND INSTALLATION MANUAL
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
SH18DBNL-60
SH24DBNL-60

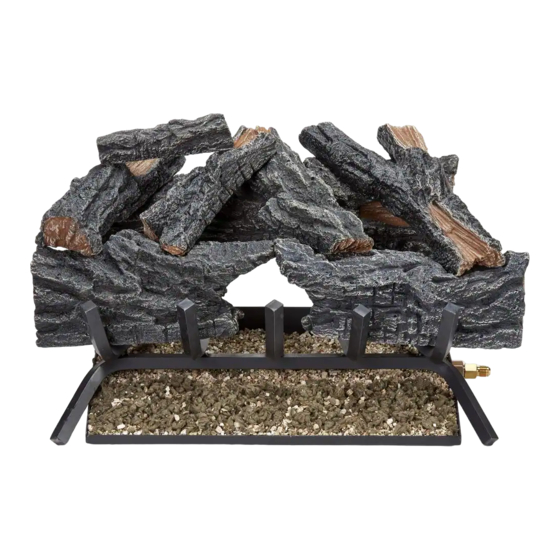

CS30DBNL-60 (Shown)
Tested &
Listed By
C
US
Z21.60 2012
Vented Decorative Appliances
for installation in Solid Fuel
Burning Fireplaces
Advertisement
Table of Contents
Related Manuals for EmberGlow 18DBNL-60 Series
Summary of Contents for EmberGlow 18DBNL-60 Series
- Page 1 18DBNL-60 AND 24DBNL-60 Tested & Listed By VENTED DECORATIVE APPLIANCE Z21.60 2012 Vented Decorative Appliances for installation in Solid Fuel Convertible from Natural Gas to Propane/LP Gas Burning Fireplaces Information included for the following log models: MO18DBNL-60 SH18DBNL-60 MO24DBNL-60 SH24DBNL-60 BRO18DBNL-60 CS30DBNL-60 (Shown) BRO24DBNL-60...
-
Page 2: Table Of Contents
Safety ............... 2-3 Cleaning and Maintenance ........21 Product Identification ........... 3 Service Hints ............. Local Codes ............4 Technical Service ..........Unpacking ............4 Troubleshooting ..........21 Product Features ..........4 Replacement Parts ........22-23 Installation .. -
Page 3: Safety
SAFETY Continued 5. You must operate this log set with fireplace screens 11. Do not run log set: in place and fully closed. Unless provided by other • where combustible materials, gasoline and other means, fireplace doors or screens shall have open- flammable vapors and liquids are used or stored ings for introduction of combustion air. -
Page 4: Local Codes
LOCAL CODES UNPACKING Install and use log set with care. Follow all local CAUTION: Do not remove the metal data plates from the codes. In the absence of local codes, use the burner pan. The data plates contain important warranty latest edition of The National Fuel Gas Code ANSI- and safety information. -
Page 5: Installation
INSTALLATION Continued The charts in Figure 2 indicate technical inform- CHECK GAS TYPE ation regarding the installation of your gas log set. Use only natural gas. If your gas supply is not nat- Please make sure that all of the specifications ural gas, you must convert the appliance to propane shown are applicable before installation is attempt- /LP. - Page 6 INSTALLATION Continued We recommend that you install a sediment trap in 4. Check all joints of gas supply piping system. Apply a noncorrosive leak detection fluid to all the supply line as shown in Figure 4. Locate sediment trap where it is within reach for cleaning. Install in piping joints.
- Page 7 INSTALLATION Continued Be sure to use the correct orifice for your appliance 4. (Refer to Figure 6 and Illustrated Parts page 22) Assemble the two 3/8” street elbows (part #9) The orifice kit included with this appliance contains 2 orifice to install in an air mixer fitting. Refer to the and 3/8“...
- Page 8 INSTALLATION Continued 5. Turn pressure selecting screw over and reinstall it in regulator cap (see Figure 10-11 ).This will adjust the pressure setting to the LP/Propane gas position. Make sure the pressure selecting screw is installed tightly into the regulator cap. 6.
- Page 9 LOG PLACEMENT MODEL: BRO18DBNL-60 Log Identification Back Log Stand-Offs in place Place log (1) onto back left area of Place log (3) at the front right of the the grate, perpendicular to log (2) grate with the “burned” area to the flame Place log (5) atop log (4), brace on Place “Y”...
- Page 10 LOG PLACEMENT MODEL: BRO24DBNL-60 Log Identification Back Log Stand-Offs in place Place log (1) onto back right Place “Y” shaped log (2) onto left area of the grate of the grate ahead of raised area Place log (3) onto back left area of Place log (4) at the front right of the grate with the “split”...
- Page 11 LOG PLACEMENT MODEL: BRO24DBNL-60 Cont. Place the two small logs (7) and (8) in front of the grate as shown...
- Page 12 LOG PLACEMENT MODEL MO18DBNL-60/MO24DBNL-60 Back Log Stand-Offs in place Log Identification MO18NG Place Main Front Log (1) onto Place shorter back log (2) onto front area of the grate Back Log Stand-Offs Place Cross-Log (3) at the left side Place Cross-Log (4) at the center Place Cross-Log (5) at the right side Place Cross-Log (6) from the center to the right side...
- Page 13 LOG PLACEMENT MODEL MO24DBNL-60Cont. Follow the first five steps from MO18NG on previous page. Log Identification MO24NG Place Cross-Log (4) at the center right Place “Y” Shaped Cross-Log (5) at the right side as shown Place Cross-Log (7) atop the center Left (4) to the center right (5) logs...
- Page 14 LOG PLACEMENT MODEL: SH18DBNL-60 Log Identification Back Log Stand-Offs in place Place main front log (1) onto Place shorter back log (2) onto front area of the grate raised area of the grate Place Cross-Log (3) at the left side Place Cross-Log (4) at the right side Place Cross-Log (5) at the center Place Cross-Log (6) from the center...
- Page 15 LOG PLACEMENT MODEL: SH24DBNL-60 Back Log Stand-Offs in place Log Identification Place shorter back log (2) Place main front log (1) onto raised area of the grate onto front area of the grate Place Cross-Log (4) at the center left Place Cross-Log (3) at the left side Place Cross-Log (6) at the right side Place Cross-Log (5) at the center right...
- Page 16 LOG PLACEMENT MODEL: SH24DBNL-60 cont. Place cross-log (7) atop cross-log (6) and to front center a s shown...
- Page 17 LOG PLACEMENT MODEL CS30DBNL-60 Log Identification Back Log Stand-Offs in place Place Right front log (1) onto Place left front log (2) onto front area of the grate front area of the grate Place back log (3) onto Place Cross-Log (4) at the center left raised area of the grate Place “Y”...
- Page 18 LOG PLACEMENT MODEL: CS30DBNL-60 Cont. Place Cross-Log (7) at the center right Place Cross-Log (8) at the top center across logs (5) and (7) Place log (8) in front of the set, on the fireplace floor (Make sure it is in front of the burner pan)
-
Page 19: Operation
OPERATION FOR YOUR SAFETY LIGHTING INSTRUCTION READ BEFORE LIGHTING WARNING: Keep flue open when operating unit. 1. STOP! Read the safety information on the left side of this page. 2. Make sure equipment shutoff valve is fully WARNING: If you do not follow these instruct- open. -
Page 20: Inspecting Burners
CURING LIGHTING INSTRUCTION THE LOGS Continued During the 2-3 hour appliance break-in period, you may 9. Slightly push in and turn control knob counterclockwise detect an odor from the appliance as the various paints to the ON position. and compounds used in the manufacturing of this log set cure. -
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE SERVICE HINTS When Gas Pressure is Too Low • Keep the area around the log set clean and clear of debris. • pilot will not stay lit • Occasionally, you may use a soft bristle brush to •... -
Page 22: Replacement Parts
TROUBLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Delayed ignition burner. 1. Pilot angle needs adjusting. 1. Adjust pilot angle for best flame contact with burner pan. 2.Wrong pilot orifice for gas type. 2. Replace pilot orifice. Burner flame is too low or 1. - Page 23 (18,24,30)DBNL - 60 PARTS LP Conversion Items...
- Page 24 (18,24,30)DBNL - 60 PARTS Continued KEY NO. PART NO. DESCRIPTION 18” QTY. 24” QTY. 30” QTY. Burner Pan SBNCJ00365A SBNCJ00366A Burner Pan SBNCJ00367A Burner Pan Burner Tube RCOCB00002A RCOCB00004A Burner Tube RCOCB00002A Burner Tube RMH-120-00420 Burner Spacer . 1. 1 RMH-120-90955 Orifice, Natural Gas (18”...
- Page 25 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 26 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 27 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
- Page 28 LIMITED WARRANTY Sure Heat Mfg. warran ts that the components of this appliance are warranted free from defects in material and workmanship for one (1) year from the date of purchase. Sure Heat Mfg.at its option, willrepair or replace this product or any component of the product found to be defective during the warranty period.
