- Page 1 Owner’s Manual Room Air Remote Controller www.marsdelivers.com...
-
Page 2: Table Of Contents
Owner’s Manual - Room Air Remote Controller Table of Contents Remote Controller Specifications ..........0 0 3 3 Handling the Remote Controller ..........0 0 4 4 Buttons and Functions ..............0 0 5 5 Remote Screen Indicators ............0 0 9 9 How to Use Basic Functions ............1 1 0 0 How to Use Advanced Functions ..........1 1 3 3... -
Page 3: Remote Controller Specifications
Owner’s Manual - Room Air Remote Controller Remote Controller Specifications RG51G(1)/CEFU1,RG51G(1)/EFU1,RG51G1(1)/EFU1, Model RG51G4(1)/EU1,RG51G5(1)/EU1 3.0V( Dry batteries R03/LR03×2) Rated Voltage Signal Receiving Range 20'-25' 23°F~140°F (-5°C~60°C) Environment Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE AUTO HIGH SELECT FAN SPEED POINT REMOTE TOWARD UNIT PRESS POWER BUTTON... -
Page 4: Handling The Remote Controller
Owner’s Manual - Room Air Remote Controller Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL The device could comply with the local national Your air conditioning unit may come with two regulations. batteries (some units). Put the batteries in the In Canada, it should comply with remote control before use. -

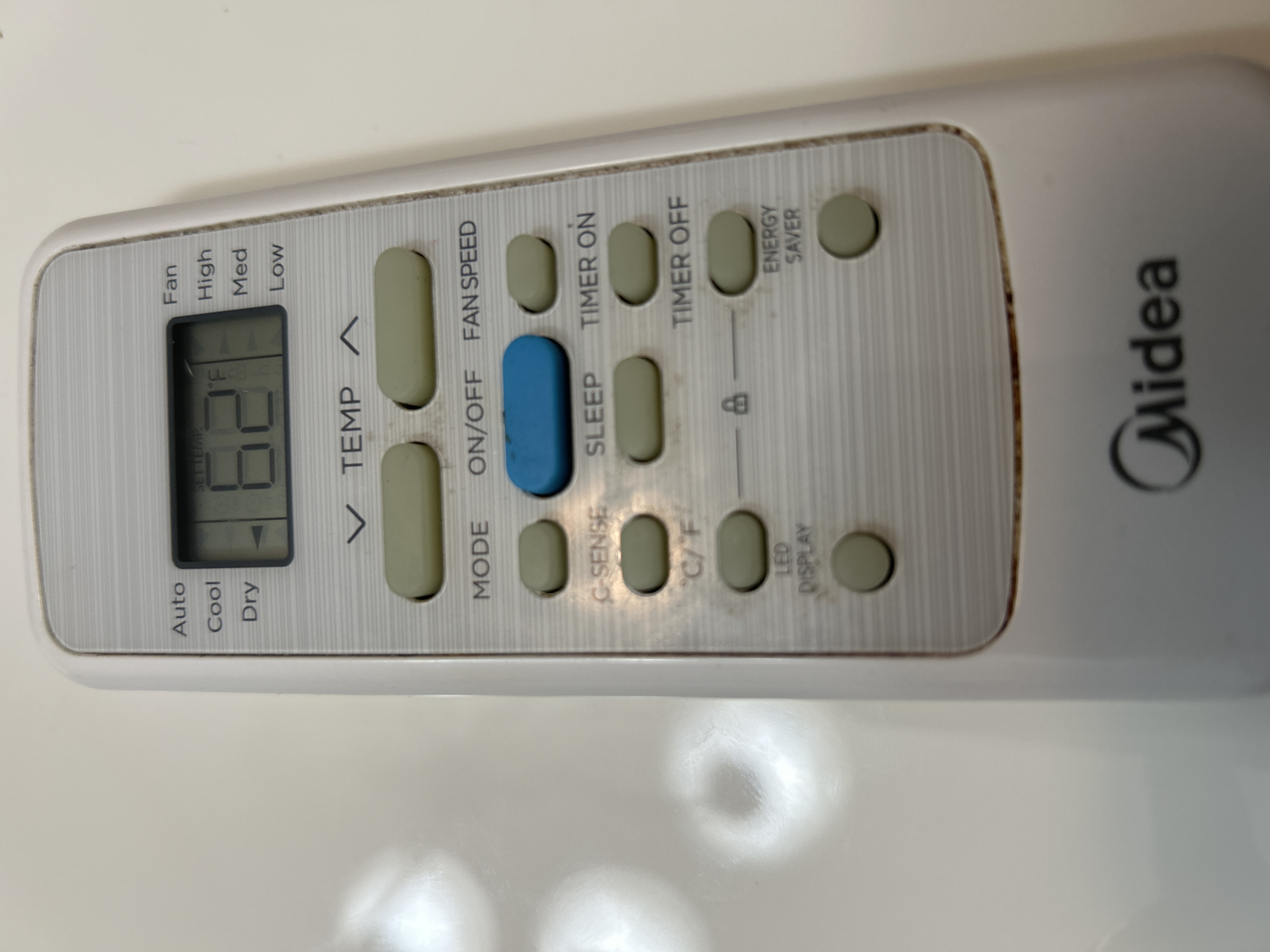

Page 5: Buttons And Functions
Owner’s Manual - Room Air Remote Controller Buttons and Funcitons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. - Page 6 Owner’s Manual - Room Air Remote Controller TEMP TEMP Decreases temperate Increases temperate in in 1°F (1°C) increments. 1°F (1°C) increments. Min. temperature is Max. temperature is 62°F (17°C). 86°F (30°C). ON/OFF Turns the unit on or off. MODE Scrolls through FAN SPEED...
- Page 7 Owner’s Manual - Room Air Remote Controller TEMP Decreases temperate TEMP in1°F (1°C) increments. Increases temperate Min. temperature is in1°F (1°C) increments. 62°F (17°C). Max. temperature is 86°F (30°C). ON/OFF Turns the unit on or off. MODE Scrolls through operation modes FAN SPEED as follows:...
- Page 8 Owner’s Manual - Room Air Remote Controller TEMP Decreases temperate TEMP in1°F (1°C) increments. Increases temperate Min. temperature is in1°F (1°C) increments. 62°F (17°C). Max. temperature is 86°F (30°C). ON/OFF Turns the unit on or off. MODE Scrolls through operation modes FAN SPEED Selects fan speeds in...
-
Page 9: Remote Screen Indicators
Owner’s Manual - Room Air Remote Controller Remote Screen Indicators Information is displayed when the remote controller is powered on. Mode display COOL AUTO AUTO HEAT COOL HIGH Displayed when data transmitted. Displayed when remote controller is ON. HEAT Displayed when TIMER ON time is set Displayed when TIMER OFF time is set Shows set temperature or room temperature, or time under TIMER... -
Page 10: How To Use Basic Functions
Owner’s Manual - Room Air Remote Controller How to Use Basic Functions Basic operation AUTO Mode ATTENTION! Before operation, please ensure the unit is plugged in and power is available. COOL Mode In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT operation based on the set temperature. - Page 11 Owner’s Manual - Room Air Remote Controller 1. Press the MODE button to select DRY. FAN Mode 2. Set your desired temperature using the button. TEMP TEMP 3. Press the button to start the unit. ON/OFF FAN SPEED cannot be changed NOTE: in DRY mode.
- Page 12 Owner’s Manual - Room Air Remote Controller Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER ON button to Press Temp. up or down button for Point remote to unit and wait initiate the ON time sequence.
- Page 13 Owner’s Manual - Room Air Remote Controller How to Use Advanced Functions I SENSE (some models) °C/°F (some models) Press I SENSE button When the I SENSE function is activated, Pressing this button will alternate the the remote display is the actual temperature display between the °C &...
- Page 14 Owner’s Manual - Room Air Remote Controller SHORTCUT function(some models) SHORT CUT Used to restore the current settings or resume previous settings. (For some models) Push this button when remote controller is on, the system will automatically revert back to the previous settings including operating mode, setting temperature, fan speed level and sleep feature (if activated).
- Page 15 Owner’s Manual - Room Air Remote Controller THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 16 1900 Wellworth Ave., Jackson, MI 49203 • Ph. 517-787-2100 • www.marsdelivers.com 9/2020...
