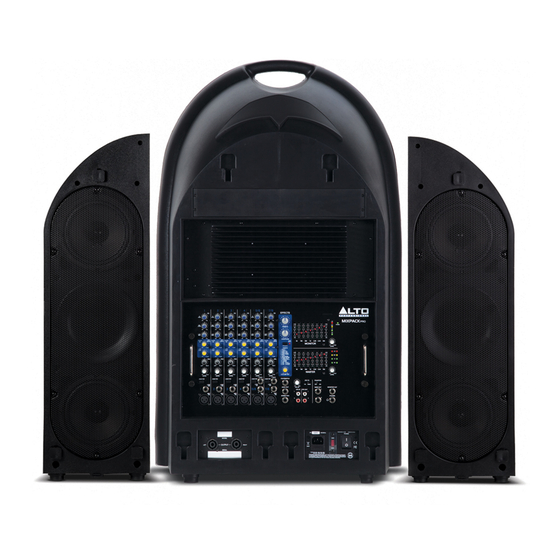

Alto Professional MIXPACK Quick Start Manual

Download this manual

QUICKSTART GUIDE

ENGLISH ( 3 – 6 )

Need help?

Do you have a question about the MIXPACK and is the answer not in the manual?

Page 1 QUICKSTART GUIDE ENGLISH ( 3 – 6 )
Page 2: Box Contents
BOX CONTENTS MIXPACK Power cable Quickstart Guide Safety Instructions & Warranty Information booklet CONNECTION DIAGRAM Microphones* Drum Machine* Speaker Speaker Headphones* NE W NE W NE W NE W NE W FUSE: 100V T8 AL AC250V 110-120V T8 AL AC250V...
Page 3 FEATURES 23 24 19 19 20 20 NE W NE W NE W NE W NE W FUSE: 100V T8 AL AC250V 110-120V T8 AL AC250V 220-240V T4 AL AC250V AC100V ~ 50/60Hz 110 -120V ~ 50/60Hz 220 -240V ~ 50/60Hz RATED POWER CONSUMPTION:600W POWER IN –...
Page 4 2TK IN – You can use a standard stereo RCA cable to connect an additional audio source to this input. The signal's volume can be adjusted with the 2TK IN LEVEL knob and sent to the monitor mix (CTRL ROOM and PHONES) or main mix (MAIN OUT). 2TK OUT –...
Page 5 EFFECTS TO HEAR THE EFFECTS ON A CHANNEL: Use the EFFECTS SELECTOR to choose one of the effects below, then turn up the AUX SEND 2 for that channel. PRESET DESCRIPTION PARAMETER Decay time: 360 ms WARM HALL Reverb, simulating the acoustics of a stage space. Pre-delay: 45 ms Decay time: 290 ms BRIGHT HALL...
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS MIXER SECTION: FREQUENCY RESPONSE: 10 Hz – 55 KHz (+ 3 dB) IMPEDANCE: 1.4 KΩ (mic input) 2.5 KΩ (channel insert return) > 10 KΩ (all other inputs) 1 KΩ (tape out) 120 Ω (all other outputs) SNR: >...
