QUICKSTART GUIDE

ENGLISH ( 2 – 4 )

Need help?

Do you have a question about the MIXPACK express and is the answer not in the manual?

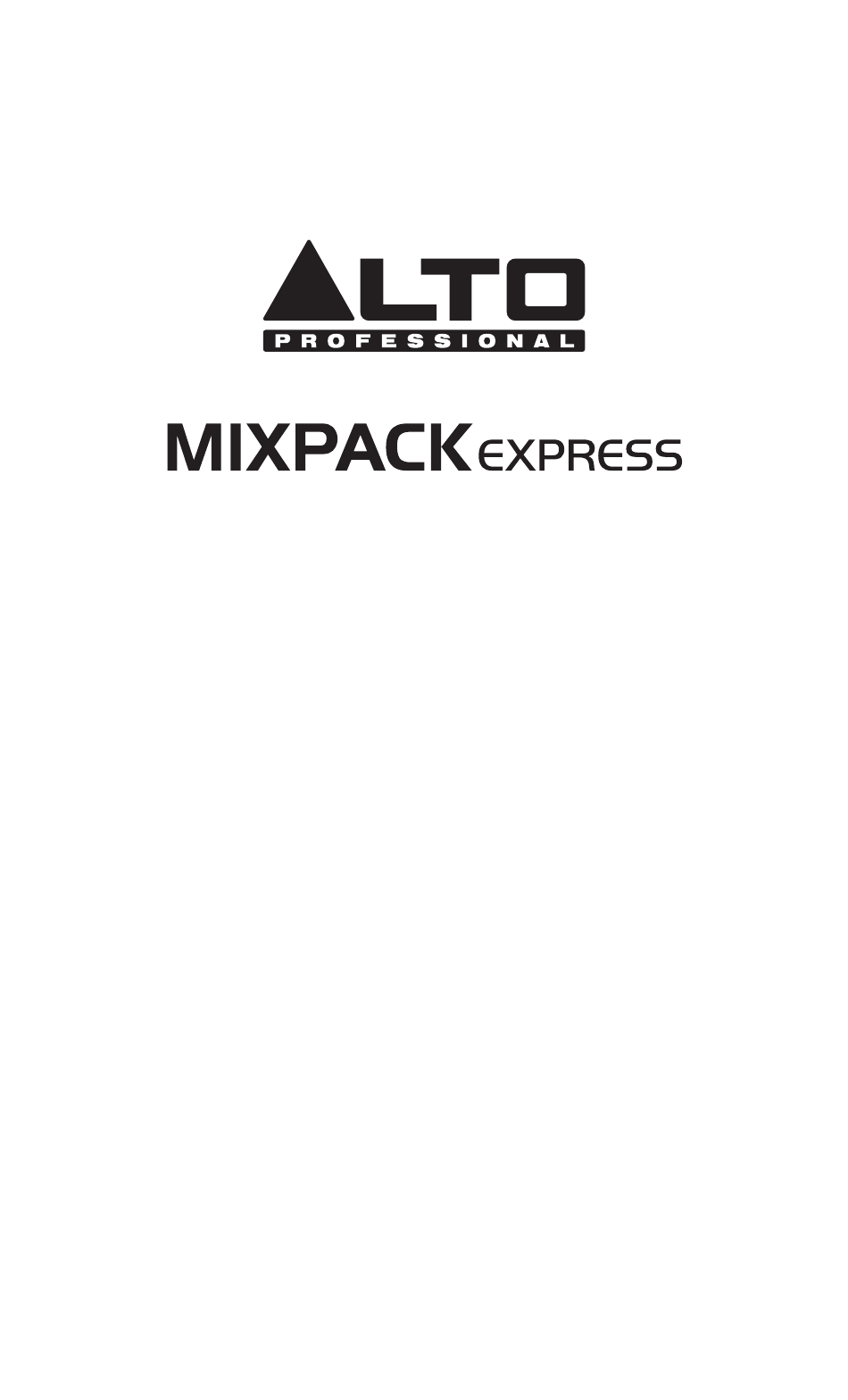

Page 1 QUICKSTART GUIDE ENGLISH ( 2 – 4 )
Page 2: Box Contents
BOX CONTENTS MIXPACK Express Power cable Quickstart Guide Safety Instructions & Warranty Information booklet CONNECTION DIAGRAM Power Microphones* Headphones* Speaker Speaker NE W Footswitch* Drum Machine* * not included Notes: Microphones, headphones, drum machine, footswitch, etc. are not included. To reduce electrical hum at high gain settings, keep the mixer's power supply away from your cables and the mixer's...
Page 3 FEATURES POWER IN – Use the included power cable to connect the mixer to a power outlet. While the power is switched off, plug the power cable into the mixer first, then plug the power cable into a power outlet. POWER SWITCH –...
Page 4 EFFECTS TO HEAR THE EFFECTS ON A CHANNEL: Use the EFFECTS SELECTOR to choose one of the effects below, then turn up the FX AUX1 POST for that channel. PRESET DESCRIPTION PARAMETER Decay time: 450 ms VOCAL 1 Reverb, simulating a room without delay time. Pre-delay: 0 ms Decay time: 240 ms VOCAL 2...
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS MIXER SECTION: FREQUENCY RESPONSE: 10 Hz – 55 KHz (+ 3 dB) IMPEDANCE: 3.9 KΩ (mic input) > 10 KΩ (all other inputs) 2.2 KΩ (tape out) 120 Ω (all other outputs) SNR: > 94 dB THD+N: 0.04% at 0 dBu, 1 KHz (mono input channels) 0.015% at 0 dBu, 1 KHz (stereo input channels) EQUALIZATION: High shelving: + 15 dB @ 12 KHz...
