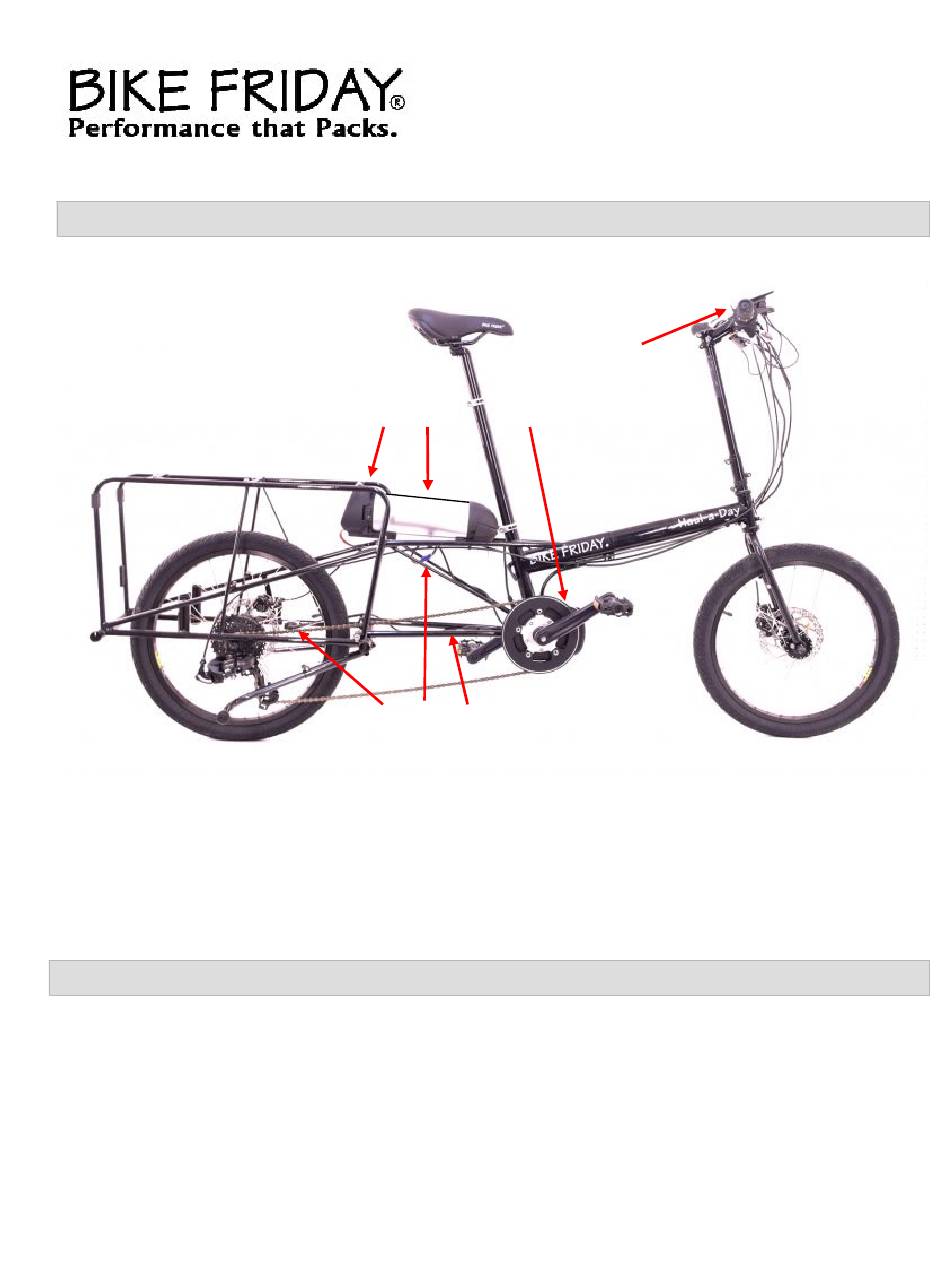

System Components:
a) Battery Carrier*
b) 36v Battery*
c) Mid-Drive Crankset & Motor Assembly
d) Handlebar Control Console
* Several 36v battery systems are available. Battery location, appearance, and associated
accessories will vary.
Description:
The Bike Friday Mid-Drive e-assist system includes a motor and torque sensor in the crankset. That
means the harder you pedal, the more the electric motor will assist. This helps you feel powerful and
capable, and still feels like riding a bike (vs a throttle-based motor vehicle)! A console on the
handlebar lets you fine-tune how much proportional assist is provided plus displays speed and other
ride details.
Mid-drive e-assist
Getting Started Guide
a
b
c
)
)
)
e
f
g
)
)
)
e) Speedometer Sensor
f) Power Cable Connection
g) Speedometer Cable Connection
d
)
1
Advertisement
Related Manuals for Bike Friday Mid-drive e-assist
Summary of Contents for Bike Friday Mid-drive e-assist
- Page 1 Description: The Bike Friday Mid-Drive e-assist system includes a motor and torque sensor in the crankset. That means the harder you pedal, the more the electric motor will assist. This helps you feel powerful and capable, and still feels like riding a bike (vs a throttle-based motor vehicle)! A console on the handlebar lets you fine-tune how much proportional assist is provided plus displays speed and other ride details.
- Page 2 Assembling Your e-assist Components: 1. Connect Speedometer Cable Locate the cable from the rear wheel speed sensor and connect it to the corresponding cable attached to the motor assembly. NOTE: There may be 2 identical ports on the speedometer cable (as shown). Connect to either - they are interchangeable.
- Page 3 3. Charge Battery(s) NOTE: Battery(s) may be delivered in a partially-discharged state due to shipping regulations. Please fully charge battery(s) before your first ride. See Battery Maintenance and Operation section for more information. Assembling Your e-assist Components (cont): 4. Install and connect battery(s): a.
- Page 4 Assembling Your e-assist Components (cont): 5. Operate Handlebar Control Console a. Power on/off - NOTE: battery(s) must first be powered on (see above): With the bike stationary, and your feet off the pedals, tap to power on system (Hold to power off) b.
- Page 5 Tips for Riding an e-bike: ● Before each ride, check that brakes are functioning correctly, and that all frame connections and/or quick-release levers are secure. ● Start in a lower assist power setting, especially when the bike is new to you. ●...
-
Page 6: Battery Information
Battery Information: Bottle Battery Details: ● Use key to install/remove battery from frame. ● To turn on/off, toggle rocker switch. ● Check charge state by pressing button on front of battery. ○ 5 LEDs change color to indicate percentage of battery charged. - Page 7 Battery Information (cont.): Grin Technologies LiGo Battery Details: Grin's modular LiGo battery was born in response to the massive transportation restrictions placed on larger lithium e-bike packs. Batteries under 100 watt-hours are largely exempted from the dangerous goods shipping restrictions and are even allowed aboard passenger aircraft with your carry-on luggage when disconnected and powered off.
- Page 8 Battery Information (cont.): Battery Maintenance Guidelines: E-bike batteries will rapidly become unusable if stored for extended periods of time in a depleted state. Conversely, with proper care and maintenance your battery will provide years of usable life. ● Before periods of disuse longer than several weeks: ○...
-
Page 9: Troubleshooting
Troubleshooting: If system will not power on: ● Check that all cable connections are fully seated, and free of moisture and corrosion. (some are hidden inside controller bag) ● Ensure batteries are powered on and charged sufficiently. If system powers on, but does not provide assistance: ●... - Page 10 Common problems NOT covered by the warranty: ● "Axle spin out"- spinning out the axle inside of your dropouts if your wheel wasn’t fastened tightly. ● Water damage to the battery or corrosion of the connectors from water exposure ● Improper care of battery- Our batteries are sophisticated pieces of electronics that will provide years of reliable service if properly cared for OR can be easily damaged due to misuse.
