Summary of Contents for Bike Friday TravelTrailer

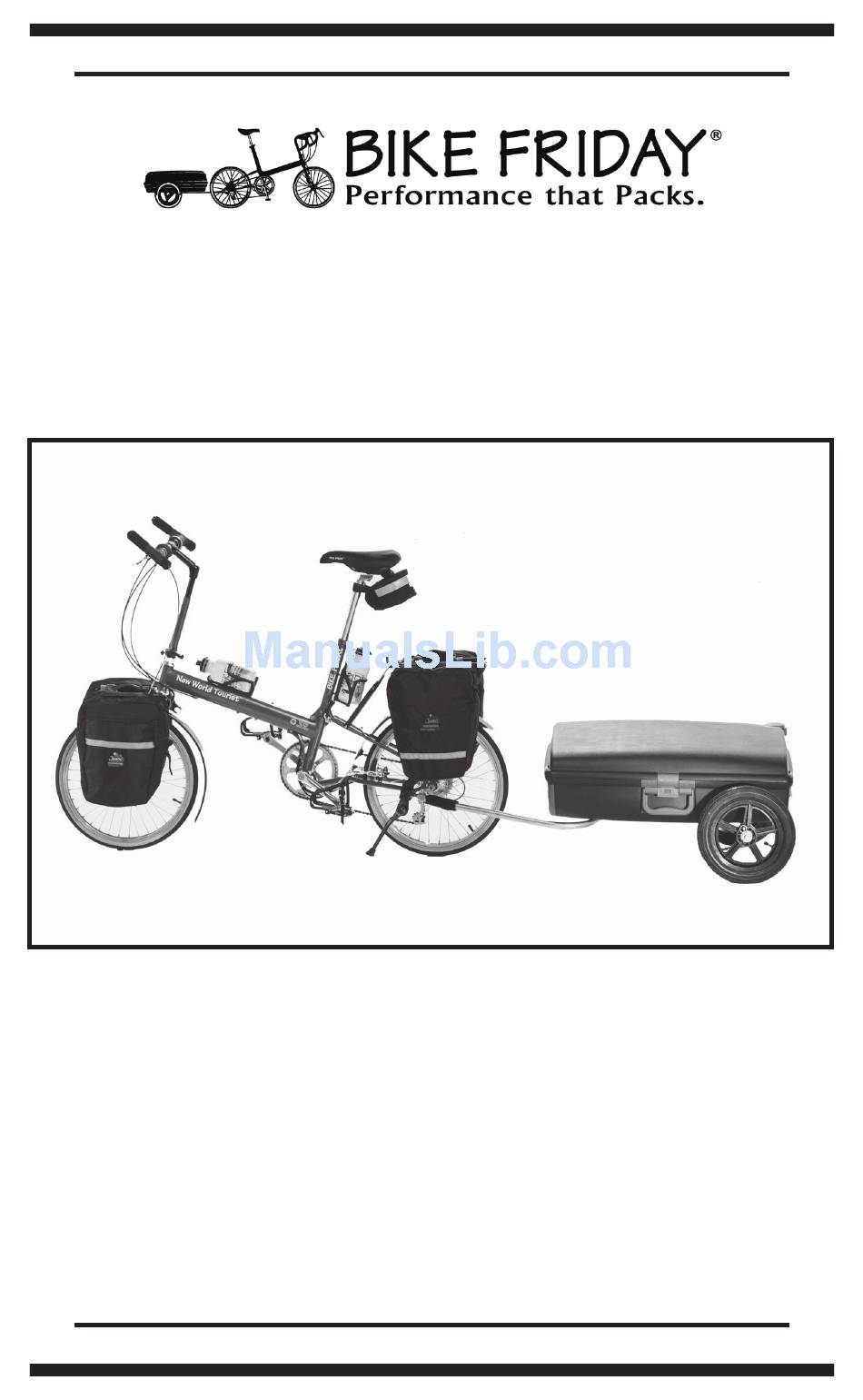

- Page 1 Using Your Bike Friday ® : TravelTrailer Green Gear Cycling , Inc. ® 3364 W 11th Ave. Eugene, OR 97402 800-777-0258 USA & Canada +1-541-687-0487 Int’l • +1-541-687-0403 Fax www.bikefriday.com • info@bikefriday.com 4-14-15...
- Page 2 If You Need Help . . . If you need technical assistance with any Green Gear Cycling product or are unclear on the proper operation of your Bike Friday, please call us and a Service Technician will help you get back on the road.
- Page 3 Travel Trailer Assembly Your Trailer Parts: If you purchased a TravelTrailer with your bike, you should have two trailer wheels and two yellow felt bags with the tongue and axle. The bottom of your TravelCase should have three holes drilled in it if you ordered the trailer Fig 1.
- Page 4 Accessories: TravelTrailer 4. Attach Trailer Axle Connect the Axles Slip the open ends of the axles over the “T” of the T-piece. Each axle will have a threaded bolt with a thumb nut and a flat washer. Pass the threaded bolts through the holes on the case.
- Page 5 Accessories: TravelTrailer 7. Install the Trailer Wheels Remove the trailer pin fromone axle. Insert the axle bolt through recessed bearing side of the wheel. Once the bolt is in the wheel; the head of the bolt should be flush with the wheel, it should not stick out.
- Page 6 Accessories: TravelTrailer 1Axle mount hitches 1. Mount Other TravelCase (Tandem) Lean the stacker unit back and remove the two thumb nuts and washers. Place the other TravelCase on the stacker so that the two threaded studs go into the axle holes in the case. On Fig.
- Page 7 Accessories: TravelTrailer 1. Stacker Strap (Tandem) The supplied nylon strap holds the upper TravelCase in place. Slip the small loop over the trailer tongue and run the strap through the TravelCase pull handle. Fig. 1 Stacker setup. 14. Connect Trailer Hitch...
-
Page 8: Limited Warranty
Warranty Information Bike Friday Guarantee We at Green Gear Cycling Inc. (Bike Friday) want you, the customer, to be happy with your new bicycle. If for any reason you are dissatisfied you may return the bicycle to us within 30 days for a full refund, less return shipping charges.
