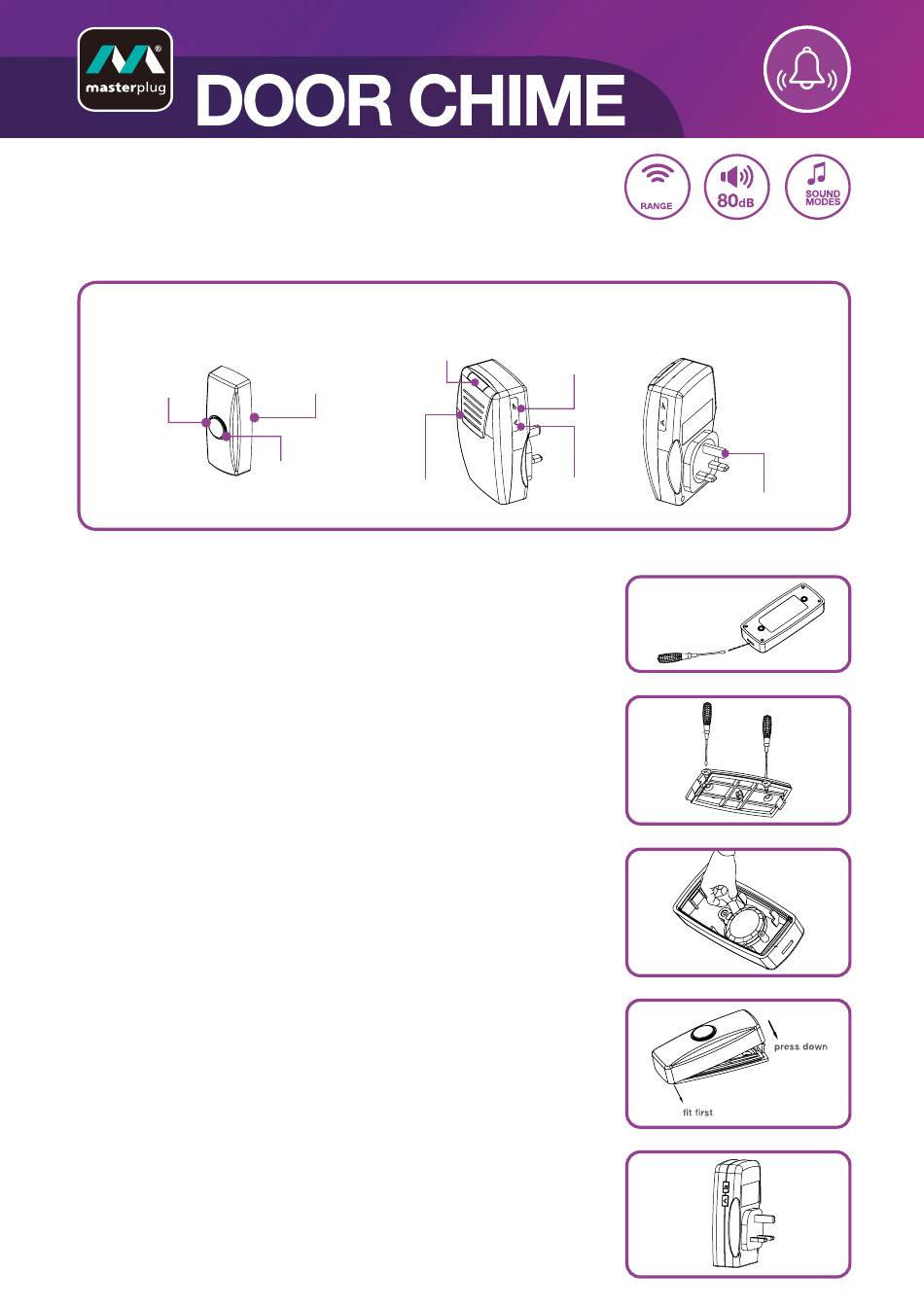

Masterplug BDCPL100 Manual

Door chime and push button with a 100m range.

Accessories

x2 Fixing Screws
●
x2 Rawl Plugs
●
Double Sided Sticky Pad
●
Push Button Battery (3V CR2032)
●
Push Button
Push
Button

Installation:

1. First, identify a suitable area for the push button to be positioned. Ideally, this should be sheltered
from rain or excess heat. It would be recommended that the button is fitted to the door frame
itself, so you are able to screw directly into the woodwork, making the installation simple.
2. Place a small flathead screwdriver into the slotted hole and gently twist to remove push button
back.
3. Offer the push button backing up to the wall and drill holes. If fitting to masonry, use a 6mm drill
bit, as per the depressions and securing by using the supplied rawl plugs and screws. If fitting
directly to the woodwork, use a 2mm drill bit and screw directly into frame or use the provided
sticky pad.
4. Pull plastic tab from under battery to power the push button.
5. Refit the push button to the secured backing by offering up the button of the push button and
gently pushing back together.
6. Identify a suitable position for the door chime within the recommended range and plug in.
The socket is easily accessible. The door chime and push button is only suitable for mounting at
heights <2m.
Receiver
LED
Indicator
CR2032 Battery
Included
LED
Indicator
Speaker
100M
Volume
Melody
Control
6
Standard UK
3 Pin Plug
