Masterplug Work Power ELS134 Series Quick Start Manual

four gang trailing socket
WORK
POWER

FEATURES

• Heavy duty construction
• Rewireable
• Chunky solid cable entry guards
• Manufactured to BS1363-2

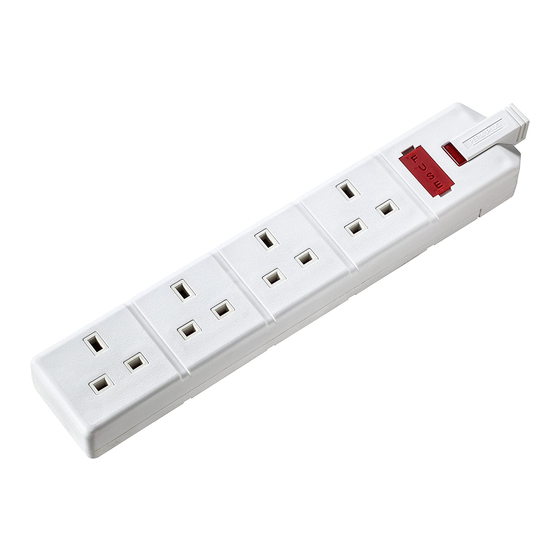

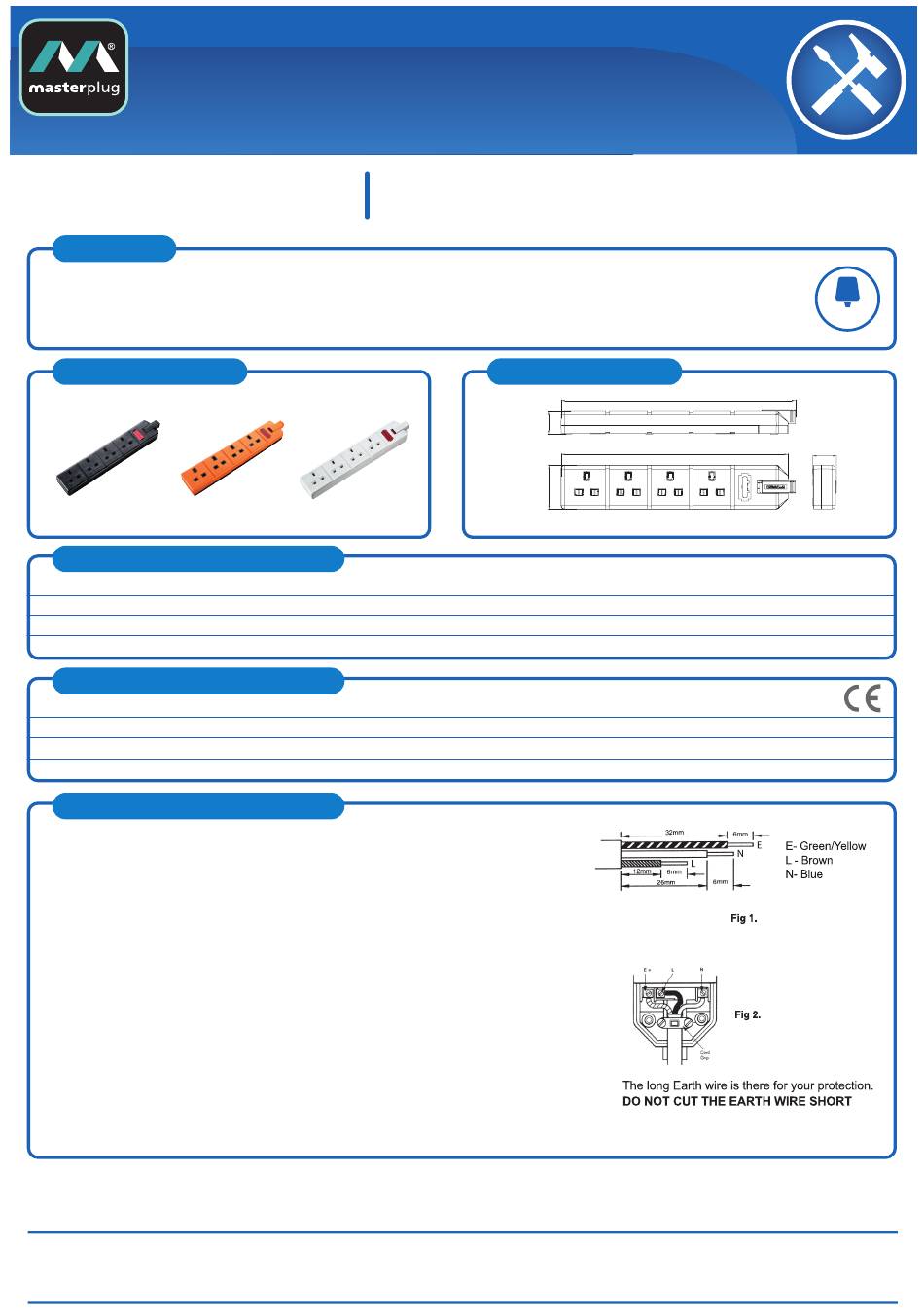

PRODUCT IMAGES

ELS134B ELS134O

PRODUCT INFORMATION

Part Number
Colour options (x)
Product Dimensions
Sockets

TECHNICAL SPECIFICATIONS

Standard(s)
Maximum Load (Wattage)
IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN

SAFETY WARNING

PLEASE READ CAREFULLY AND USE IN ACCORDANCE WITH OUR SAFETY
INSTRUCTIONS BELOW
The total maximum load must not exceed 13A/3120 Watts. Ensure that the plug to be
used in this unit is fitted with a fuse of the correct amperage as recommended by the
appliance manufacturer. The total power consumed by the appliance plugged into this
unit must not exceed 3120 Watts.
1. Use only 1.25mm² (13 amp) or 1.5mm² 3 core flexible cable. Use of smaller cable
could result in overheating.
2. Prepare cable as shown in Figure 1
3. Remove cover and cord grip
4. It is important to connect the correct coloured wire to the appropriate terminal as
shown in Figure 2 and ensure that all terminal screws are securely tightened.
5. Ensure that the cable sheath is securely clamped using the cord grip as shown in
Figure 2.
6. Replace the cover and tighten securely. The other end of the cable must be fitted
with a 13 amp plug fused at 13 amps (recommended Permaplug HDPT13).
An unfused plug must not be used.
Masterplug Help Line
03300 249 279
ideal for power tools, DIY and workshop use
• Ideal for use with power tools, portable lighting and electrical appliances
• Four gang trailing socket made from industrial grade plastic
• Fitted with 13A replaceable fuse
• Easy access screw fixings for removing the back cover when rewiring
ELS134W
ELS134x
Black (B), Orange (O), White (W)
Height 31mm x Width 310mm x Depth 60mm
4
This product is certified to applicable British safety standards
BS 1363-2
13A: 3120 Watts, 240 Volts
Supplied by
Luceco PLC
Stafford Park 1 Telford TF3 3BD ENGLAND
LINE DRAWING
163
31
310
60
