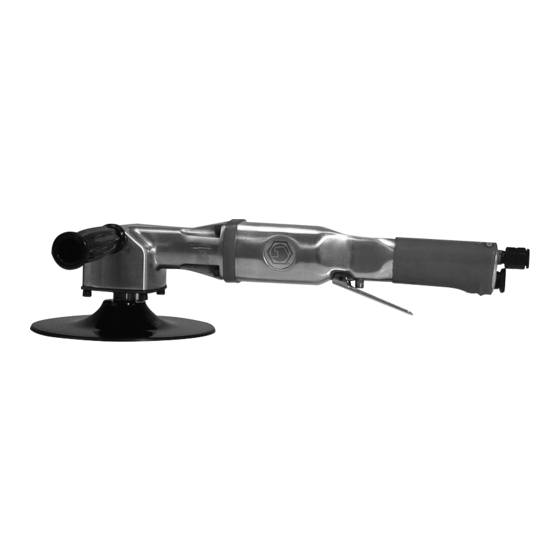

Matco Tools RL425 Operating Instructions

Matco Tools RL425 Operating Instructions

Advertisement

• Operating Instructions

• Warning Information

• Parts Breakdown

Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to cause cancer, birth defects or
other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and
cement and other masonry products,
and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to these
chemicals: work in a well ventilated
area, and work with approved safety
equipment, such as those dust masks that
are specially designed to filter out
microscopic particles.
Free Speed . . . . . . . . . . . . . . . . . . . .4500 rpm
Spindle Size . . . . . . . . . . . . . . . . . . . .5/8"-11
Min. Hose Size (I.D.) ... . . . . . . . . . . . . . . . .3/8"
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . .1/4"
Rec. Air Pressure . . . . . . . . . . . . . . . . . .90 psi
Avg. Air Consumption . . . . . . . . . . . . . . .6 cfm
Paper Size . . . . . . . . . . . . . . . . . . . . . . . . .7"
Pad Size . . . . . . . . . . . . . . . . . . . . . . . . . . .7"
Length . . . . . . . . . . . . . . . . . . . . . . . . . . .16"
Net Weight . . . . . . . . . . . . . . . . . . . . .6.5 lbs.
RL425

SPECIFICATIONS

7" HORIZONTAL
1
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
RL425
SANDER
Rev. 09/11/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL425 and is the answer not in the manual?

Questions and answers

Summary of Contents for Matco Tools RL425

  • Page 1 Air Inlet ......1/4" RL425 Rec. Air Pressure ....90 psi Avg.
  • Page 2 See instructions for • Do not remove any labels. Replace any correct set-up. damaged labels. • Air powered tools can vibrate in use. Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful RL425 Rev. 09/11/03...
  • Page 3 RL425 7" Angle Sander ™ Item# Description Item# Description Part # Qty. Part # Qty. RS71626 Front End Plate Air Inlet RS71601 RS71627 Clamp Nut Exhaust Bushing RS71602 Spacer Motor Housing RS71628 RS71603 RS21109 Ball Bearing Handle Cover RS71605 RS71630...
  • Page 4 Note: Some states do not allow the exclusion or areas. When finished sanding, lift it off the work limitation of incidental or consequential damages so before stopping the motor. the above limitation or exclusion may not apply to you. RL425 Rev. 09/11/03...
