UltimateAir RecoupAerator 2000DX Owner's Manual & Installation

Energy recovery ventilator
Hide thumbs

Advertisement

Quick Links

Download this manual






178 Mill Street
Athens, Ohio 45701
740.594.2277
ultimateair.com
info@ultimateair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the RecoupAerator 2000DX and is the answer not in the manual?

Questions and answers

Related Manuals for UltimateAir RecoupAerator 2000DX

Summary of Contents for UltimateAir RecoupAerator 2000DX

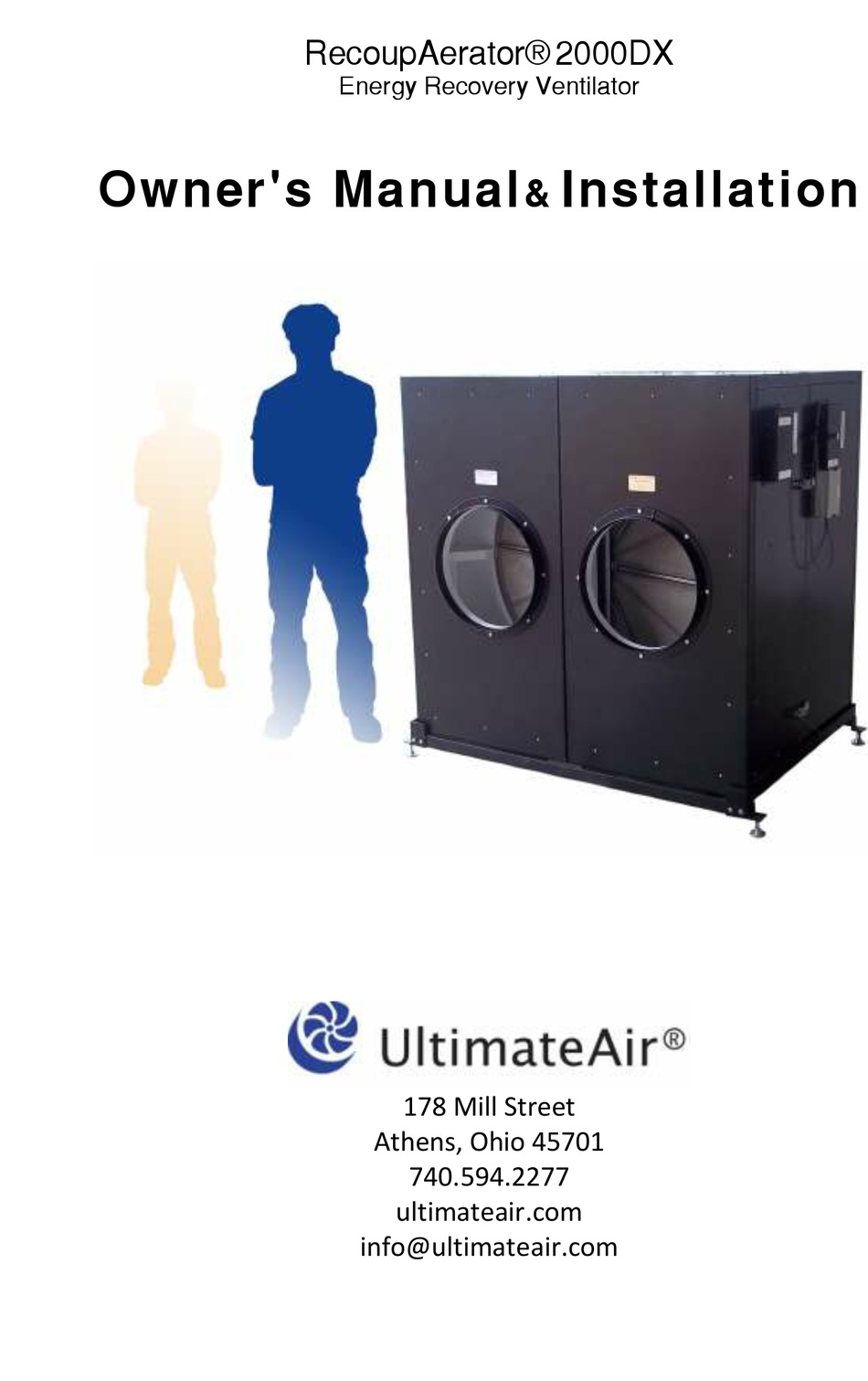

  • Page 1         178 Mill Street Athens, Ohio 45701 740.594.2277 ultimateair.com info@ultimateair.com...
  • Page 2  Thank you for your purchase of a RecoupAerator 2000DX, the most advanced energy recovery ventilation system available today! Your RecoupAerator 2000DX is designed to bring fresh, filtered air into your building while simultaneously exhausting stale air. The 2000DX is an Energy Recovery Ventilator (ERV), meaning the RecoupAerator recovers and transfers air temperature and moisture from the stale outgoing air to the incoming fresh air.
  • Page 3   The RecoupAerator 2000DX is a modular unit with separate housings for the fans and heat recovery wheel. The Fan Housing contains the intake and exhaust fans and their associated controls while the Wheel Housing contains the heat recovery wheel and its respective drive components.
  • Page 4  Case: 16 gauge baked powder coat sheet steel insulated with 1.5 inch EPS with flame retarder additive. Blowers: Two maintenance free EBM backward inclined motorized ECDC impellers with permanently lubricated sealed ball bearings and thermal overload protection. Wheel motor: Maintenance free ECDC motor with permanently lubricated sealed ball bearings and thermal overload protection.
  • Page 5  ULTIMATEAIR MODEL: 2000 DX US Units Metric Units 200 – 2000 CFM 340 – 3740 CMH FLOW 92% - 95% 44% - 53% Patented rotary random matrix polymer CORE MERV 8 - 12 EU 6 - 7 FILTRATION 208-240VAC, 25 Amp, 50/60 Hz, Single phase ELECTRICAL 64 H x 64 W x 42 D (inch);...
  • Page 6  Power Flow Watt/CFM command watt 129.5 0.54 0.64 Med - Hi 1295 1210 1.07 100% 2730 1795 1.52 High...
  • Page 7  Install the 2000DX in a position where ventilation ducts can be easily run to each of the four duct connection points and there is adequate room to access each door on the unit for maintenance purposes. (See Airflow Diagrams for duct connection locations and airflow designations, these are also labeled on the unit.) It is recommended that there be at least 36”...
  • Page 8      The 2000DX is supplied ready to be hard wired to a building power system. Terminal blocks are supplies in the electronics cover of the Fan Housing to connect power to. To connect the power wiring, remove the four sheet metal screws holding on the electronics cover. Be careful when removing the cover on the Fan Housing, as the control knob is in some configurations affixed to the cover.
  • Page 9    The DX2000 is set to provide a constant pressure inside the main duct despite the flow changes. The main control board DCC7545 and a feedback pressure transducer: Veris PXDLX01S are used to accomplish the function. Both the DCC7545 and the transducer are powered by the 24VAC power.
  • Page 10        The DCC7545 is programmed to maintain constant duct pressure Set the Pressure Control Point  JP5=0 Range 0.5IN W.C. o JMP2=0 JMP3=0 0.08 IN W.C. o JMP2=0 JMP3=1 0.125 IN W.C. o JMP2=1 JMP3=0 0.25 IN W.C. o JMP2=1 JMP3=1 0.5 IN W.C.
  • Page 11        ...
  • Page 12    When the RecoupAerator is wired directly to the optional CO2 monitor, the air flow will be controlled by the CO2 level input. The CO2 monitor will respond approximately as follows: <800 ppm CO2: lo flow 240 CFM 800-1000 ppm CO2: med flow 720 CFM...
  • Page 13 178 Mill Street Athens, Ohio 45701 740.594.2277 ultimateair.com info@ultimateair.com For more information and/or ordering replacement parts, please contact UltimateAir Inc. Revised: 9.19.2013 by MB...
