Summary of Contents for VonHaus 05/038

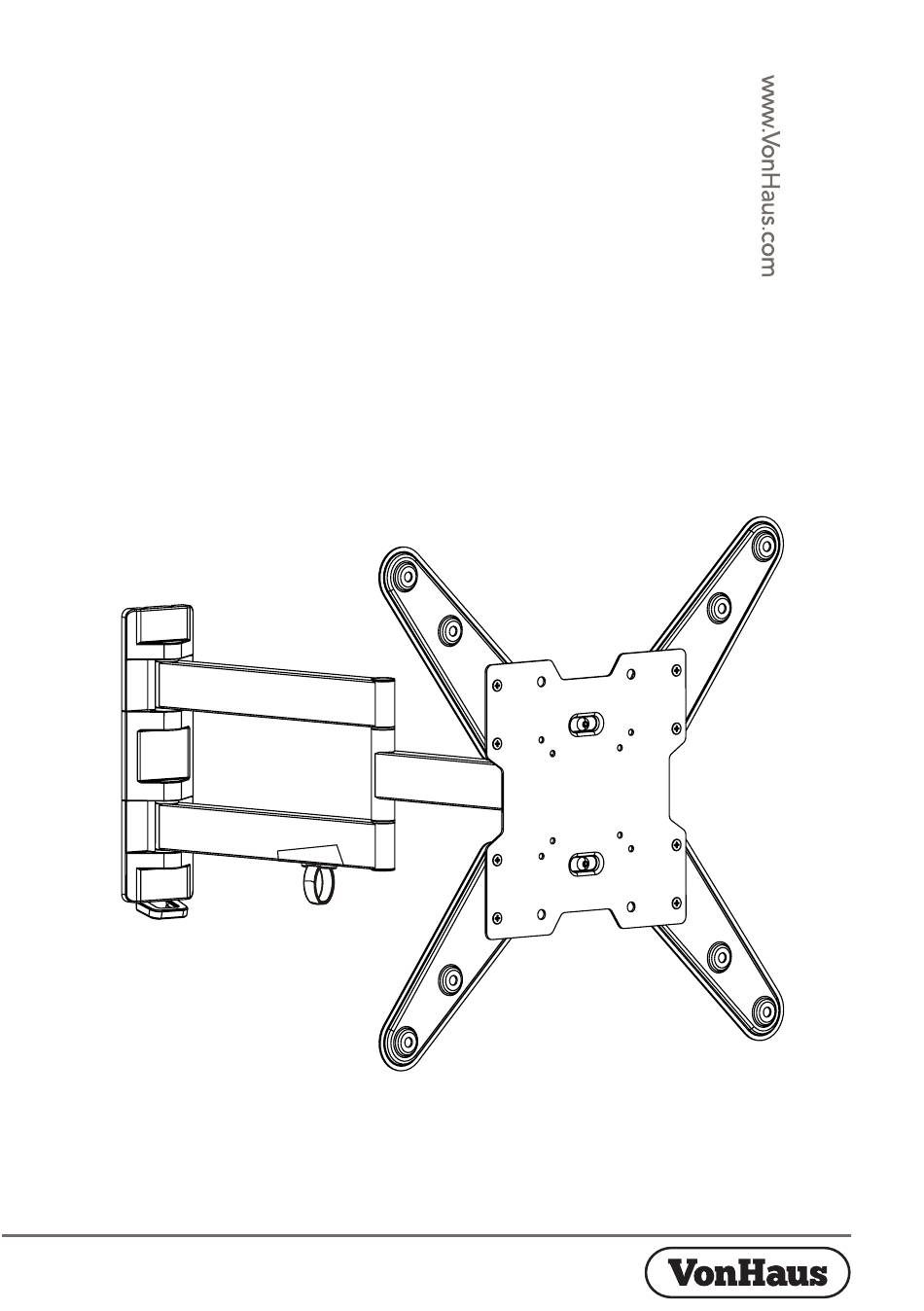

- Page 1 CANTILEVER TV BRACKET 05/038 - Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Tools Required, Hadwear Components, Before Assembly Masonry Wall Installation Wooden Wall Stud Installation Installing the Decorative Covers, VESA Asapters Installing VESA Plate Adjustments Warranty... - Page 3 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE This unit is intended for indoor use only. most types of wall. It should not be Do not use this unit for any purpose that mounted on steel stud or old cinder block is not explicitly specified in this manual.
-
Page 4: Tools Required, Hadwear
TOOLS REQUIRED NOTE: Tools not included Suitble Drill Cross Head Power Drill Hammer Spirit Level Stud Finder Pencil Screwdriver HARDWEAR PACKAGE M M5x14 (x4) M6x14 (x4) M8x20 (x4) M6x30 (x4) M8x30 (x4) D6 Washer (x4) D8 Washer (x4) Small Spacer (x8) Large Spacer (x4) PACKAGE W ST6.3x55 (x4) - Page 5 COMPONENTS VESA Adaptor (x2) VESA Adaptor (x2) Wall Template (x1) Arm Assembly Decorative Cover (x2) Centre Decorative Cover (x1) Cable Cover (x1) Cable Clip (x1) M4 (x1) M6 (x8) Hex Key (x1) BEFORE ASSEMBLY Remove the VESA Plate from the Mount...
-
Page 6: Masonry Wall Installation
MASONRY WALL INSTALLATION Solid walls Take the Wall Plate (A) and use a pencil to mark the 4 points to be drilled. Secure the Wall Plate (A) by inserting the 4 Lag/ Drill 4 holes in the positions marked using a suitable Coach Screws (W-A), each with a Washer (W-C), sized drill bit. -
Page 7: Wooden Wall Stud Installation
WOODEN WALL STUD INSTALLATION Stud walls Stud Finder Approx outlet as 16 - 24” guide apart Take the Wall Plate (A) and use a pencil to mark the 4 points to be drilled. Secure the Wall Plate (A) by inserting the 4 Lag/ Drill 4 holes in the positions marked using a suitable Coach Screws (W-A), each with a Washer (W-C), sized drill bit. - Page 8 INSTALLING THE DECORATIVE COVERS VESA ADAPTERS VESA 300x300mm, 400x400mm VESA 400x200mm...
-
Page 9: Installing Vesa Plate
INSTALLING VESA PLATE... - Page 10 ADJUSTMENTS...
-
Page 11: Warranty
This does www.Vonhaus.com/warranty. not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a statement as proof of the purchase date. - Page 12 Thank you for purchasing the Cantilever TV Bracket VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd BL2 2HH...
