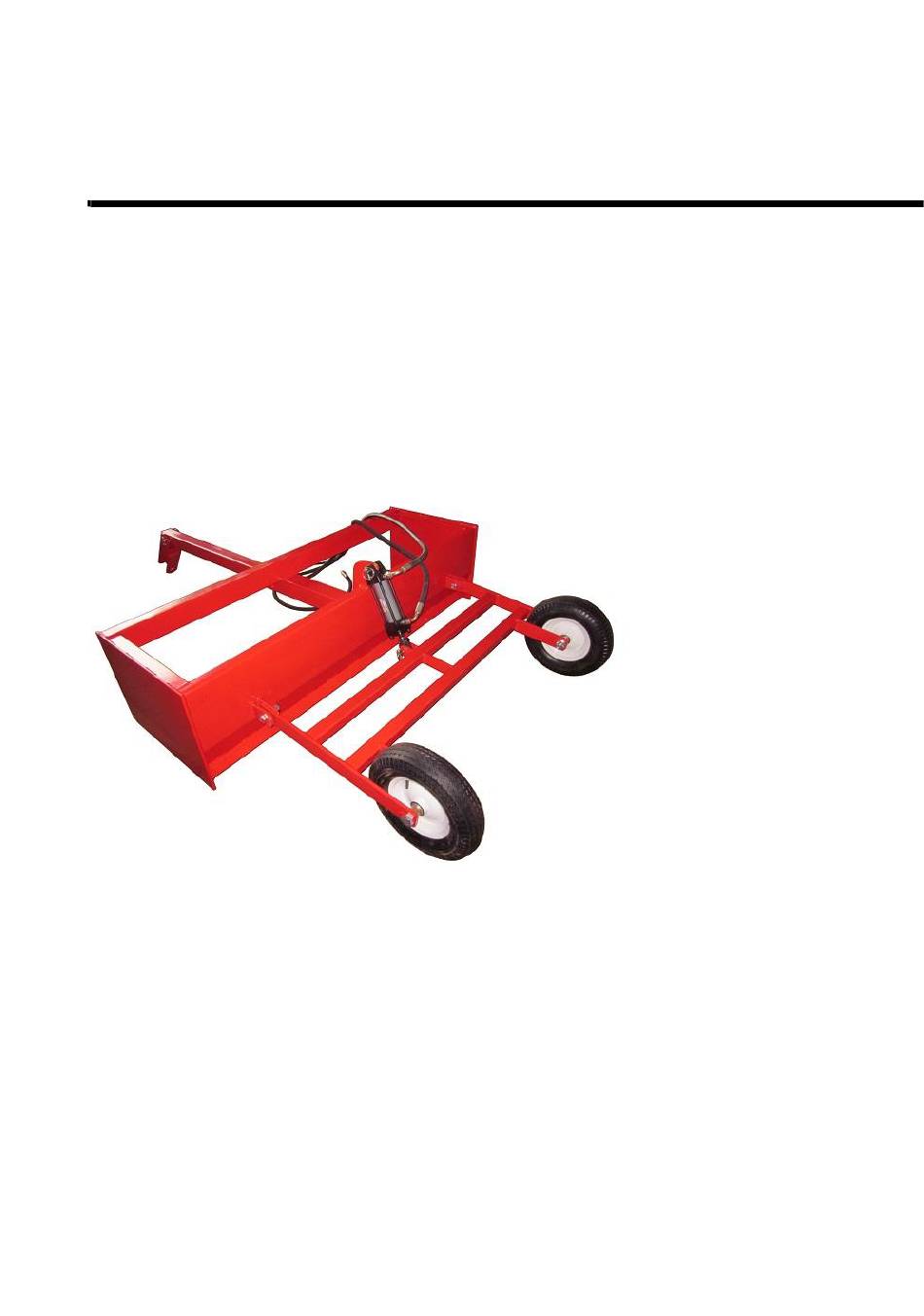

- Page 1 Pull Type Drag Scraper BB5H, BB6H, & BB7H Please Read This Manual BEFORE Using This Implement...
- Page 2 CAUTION THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1. Select an area for assembly that is clean and free of any debris which might cause persons working on the assembly to trip. 2.
- Page 3 EQUIPMENT SAFETY GUIDELINES 1. Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating this equipment. Consult your doctor about operating this machine while taking prescription medications. 2. Review the safety instructions with all users annually. 3.
- Page 4 7. Do not operate close to ditches or creeks. Slow down when operating over rough ground. 8. When adjusting the angle of the moldboard assembly, be sure that your feet are never under the rear blade. 9. Be careful to avoid catching the rear blade on stumps or other immovable objects.
- Page 5 Parts Assembly Item Description Scraper Box Frame Tilt Axle Towbar Hitch Clevis Scraper Blade Bolt M16*45 4/5/6 Φ16 Flat Washer 4/5/6 Spring WasherΦ16 4/5/6 Nut M16 4/5/6 Pin Φ22*130 Pin Lock Ring Pin Φ19*105 Oil Cylinder Cylinder Joint Seal Ring Hydraulic Hose 3.5m Hydraulic Hose 3.2m...
