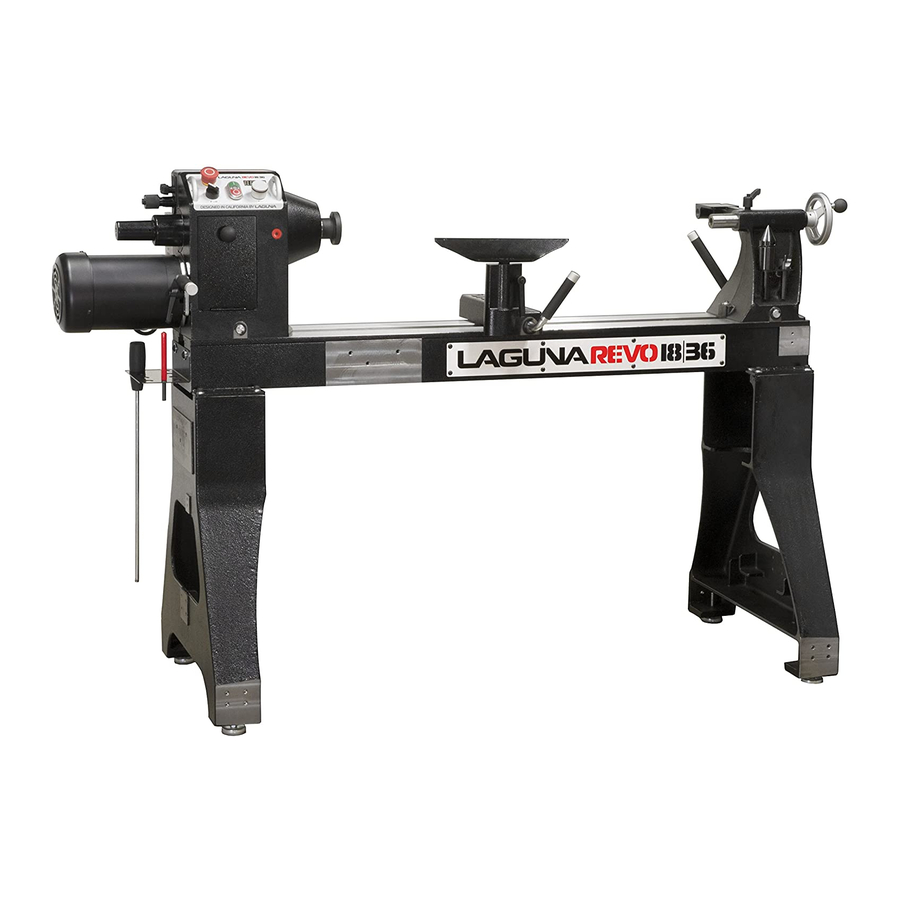

REVO 1836
Woodturning lathe
(Operating Instructions EN)
Producent
Laguna Tools Inc
2072 Alton Pkwy
Irvine, CA 92606,
USA
Phone: +1 800-234-1976
Website: www.lagunatools.com
PDF ONLINE
www.igmtools.info
Distributor
IGM nástroje a stroje s.r.o.
Ke Kopanině 560, 252 67, Tuchoměřice
Czech Republic, EU
Tel: +420 220 950 910
Email: sales@igmtools.com
www.igmtools.com
2021-12-17
151-1836 LAGUNA Woodturning Lathe Manual EN v1.9 A4ob
Advertisement
Table of Contents
Related Manuals for IGM Laguna Revo 1836
Summary of Contents for IGM Laguna Revo 1836
- Page 1 2072 Alton Pkwy Irvine, CA 92606, Phone: +1 800-234-1976 Website: www.lagunatools.com PDF ONLINE www.igmtools.info Distributor IGM nástroje a stroje s.r.o. Ke Kopanině 560, 252 67, Tuchoměřice Czech Republic, EU Tel: +420 220 950 910 Email: sales@igmtools.com www.igmtools.com 2021-12-17 151-1836 LAGUNA Woodturning Lathe Manual EN v1.9 A4ob...
- Page 2 www.igmtools.com...
-
Page 3: Table Of Contents
Directives and Standards on page 2 of this manual. 1.1 Warranty IGM Tools & Machinery strives to always deliver high-quality machinery. The warranty is governed by the valid terms and conditions of IGM Tools & Machinery available at www.igmtools.com. -
Page 4: Technical Data
Tail stock viewed from the front VFD with cover open Tail stock travel 115 mm Tail stock removal Self-ejecting Tail stock taper Faceplate 76 mm Bed material Steel Weight (net/ship) 194 kg / 206 kg 3.3 Noise emissions Pic. 10 Equivalent A-weighted Sound pressure level according to EN ISO 3746: 75.66 dB(A). -
Page 5: Electrical Connections
• Keep children away. All visitors should be kept Everyday eyeglasses only have impact resistant • Never stand on tool serious injury could at a safe distance from the work area. lenses, they are not safety glasses. occur if the tool is tipped or if the cutting tool is unintentionally contacted. -
Page 6: Receiving Your Machine
2. Open the box and remove the parts sent with 5.2 Receiving the lathe the lathe including the first leg. Before you unpack your new machine you will Note: The legs are heavy and caution must be need to first inspect the packing, invoice and exercised. -
Page 7: Locating Your Machine
Face plate Tool rack Rotating centre Adjustable feet Tail stock bracket Knock out rod Drive centre Removal tool Head stock bracket Tool rest comes Tail stock knob fitted to banjo Pic. 24 Bed with headstock and tail stock removed 5.3 Locating your machine Before you remove your machine from the packaging, select the area where you will use your machine. -
Page 8: Cleaning The Machine
described procedure, seek professional Tool rest disassembled Tail stock knob assistance. Fit the 4 levelling feet to the lathe legs with the lock nut on the underside of the leg. Once both legs have been fitted turn the assembly up to the correct position. Pic. -
Page 9: Fitting The Face Plate
Forward / Reverse switch rotation of the spindle. Speed display The forward / reverse switch selects the direction of the rotation of the spindle. The The speed display shows the RPM of the forward / reverse switch must only be used spindle. - Page 10 The Variable speed adjustment knob adjusts the spindle speed. Turns clockwise to increase the speed, turns counter-clockwise to decrease the speed. 6.8 High / low speed The lathe has two sets of pulleys for high (135 - 3500 rpm) and low (50 - 1300 rpm) speed ranges.
- Page 11 slide clearance of the headstock and the tail 4. With the power disconnected from the stock must be checked and adjusted should it machine, check that the wiring to the plug is be needed prior to adjusting the centre point correct.
- Page 12 Elektrické zapojení / Elektrické zapojenie / Electrical drawing / Elektromos csatlakoztatás / Połączenie elektryczne Optional Headstock Guard Index Part Number Item Description Specification 1 PLAREVO1836-201 Plunger 2 PLAREVO1836-202 Retaining Collar 3 PLAREVO1836-203 Guard 4 PLAREVO1836-204 Set Screw 1/4-20UNCx1/4" www.igm.cz -12-...
- Page 13 Socket Head Button Screw M8x50 16 PLAREVO1836-199 Set Screw M8x6 17 PLAREVO1836-1110 Nylon Insert Lock Nut M18x2.5 18 PLAREVO1836-1114 Lock Washer 5/16" 19 PLAREVO1836-319 Tool rest Extension 20 PLAREVO1836-320 Socket Head Button Screw 3/8-16UNCx1-1/4" 21 PLAREVO1836-1115 Lock Washer 3/8" www.igm.cz -13-...
- Page 14 Rozpad náhradních dílů / Zoznam náhradných dielov / Exploded View Drawings and Parts List / Csere alkatrészek listája / Podział części zamiennych www.igm.cz -14-...
- Page 15 Power Cord 220V PLARE- Power Cord 110V VO1836-110-150-180 81 PLAREVO1836-181 Knob 82 PLAREVO1836-182 Leveling Foot 83 PLAREVO1836-183 Bushing 84 PLAREVO1836-184 Wave Washer 6205 85 PLAREVO1836-185 6x6x30 86 PLAREVO1836-186 8x7x25 87 PLAREVO1836-187 8x7x60 88 PLAREVO1836-188 E-Ring 89 PLAREVO1836-189 E-Ring www.igm.cz -15-...
- Page 16 Socket Head Cap Screw M6x12 7 PLAREVO1836-407 Phillips Flat Head Screw M5x12 8 PLAREVO1836-320 Socket Head Button Screw 3/8-16UNCx1-1/4" 9 PLAREVO1836-409 Set Screw 3/16-24UNCx3/8" Optional Comparator Index Part Number Item Description Specification 1 PLAREVO1836-501 Center 2 PLAREVO1836-502 Lock Handle www.igm.cz -16-...
- Page 17 5/16-18UNCx1/2" 28 PLAREVO1836-1113 Flat Washer D8xD18x2t 29 PLAREVO1836-829 Screw M4x10 30 PLAREVO1836-830 Flat Washer D1/2"xD26x2.5t 31 PLAREVO1836-831 Quick Fitting- Inlet Optional Industrial Flood Light Index Part Number Item Description Specification 1 PLAREVO1836-601 Work Light 2 PLAREVO1836-602 Screw M4x15 www.igm.cz -17-...
- Page 18 1 PLAREVO1836-701 3" Riser Blocks 2 PLAREVO1836-702 Socket Head Cap Screw 3/8-16UNCx3-1/2" 3 PLAREVO1836-1115 Lock Washer 3/8" 4 PLAREVO1836-1146 Socket Head Button Screw 1/4-20UNCx3/8" 5 PLAREVO1836-705 Support Bracket 6 PLAREVO1836-706 Support Bracket 7 PLAREVO1836-707 Socket Head Cap Screw 3/8-16UNCx3/4" www.igm.cz -18-...
- Page 19 -19-...
- Page 20 IGM nástroje a stroje s.r.o., Ke Kopanině 560, Tuchoměřice, 252 67, Czech Republic, EU +420 220 950 910, www.igmtools.com © 2021 IGM nástroje a stroje s.r.o.
