ROSSMA IIOT-AMS Tilt Counter
OPERATION MANUAL

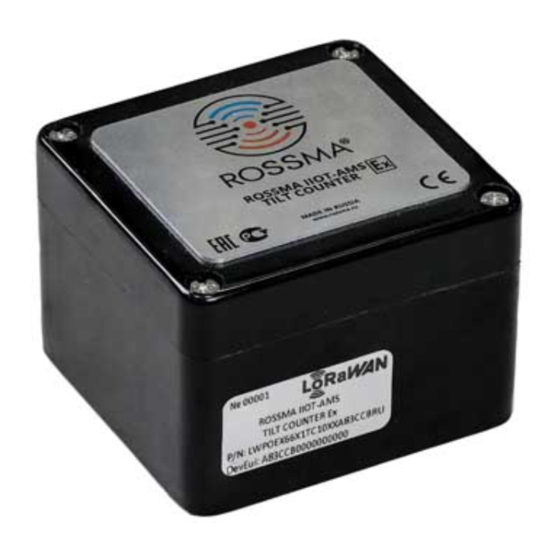

Switching device ROSSMA IIOT-AMS Tilt Counter registers the slope of the switching device
casing to an angle more than 15 degrees and performs slope counting. Designed for operation
with devices and mechanisms, where it is necessary to check the presence of movable parts tilt
(slope). The switching device operates offline and provides wireless communication in
LoRaWAN or NBiOT network.
www.rossma.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IIOT-AMS Tilt Counter and is the answer not in the manual?

Questions and answers

Related Manuals for ROSSMA IIOT-AMS Tilt Counter

Summary of Contents for ROSSMA IIOT-AMS Tilt Counter

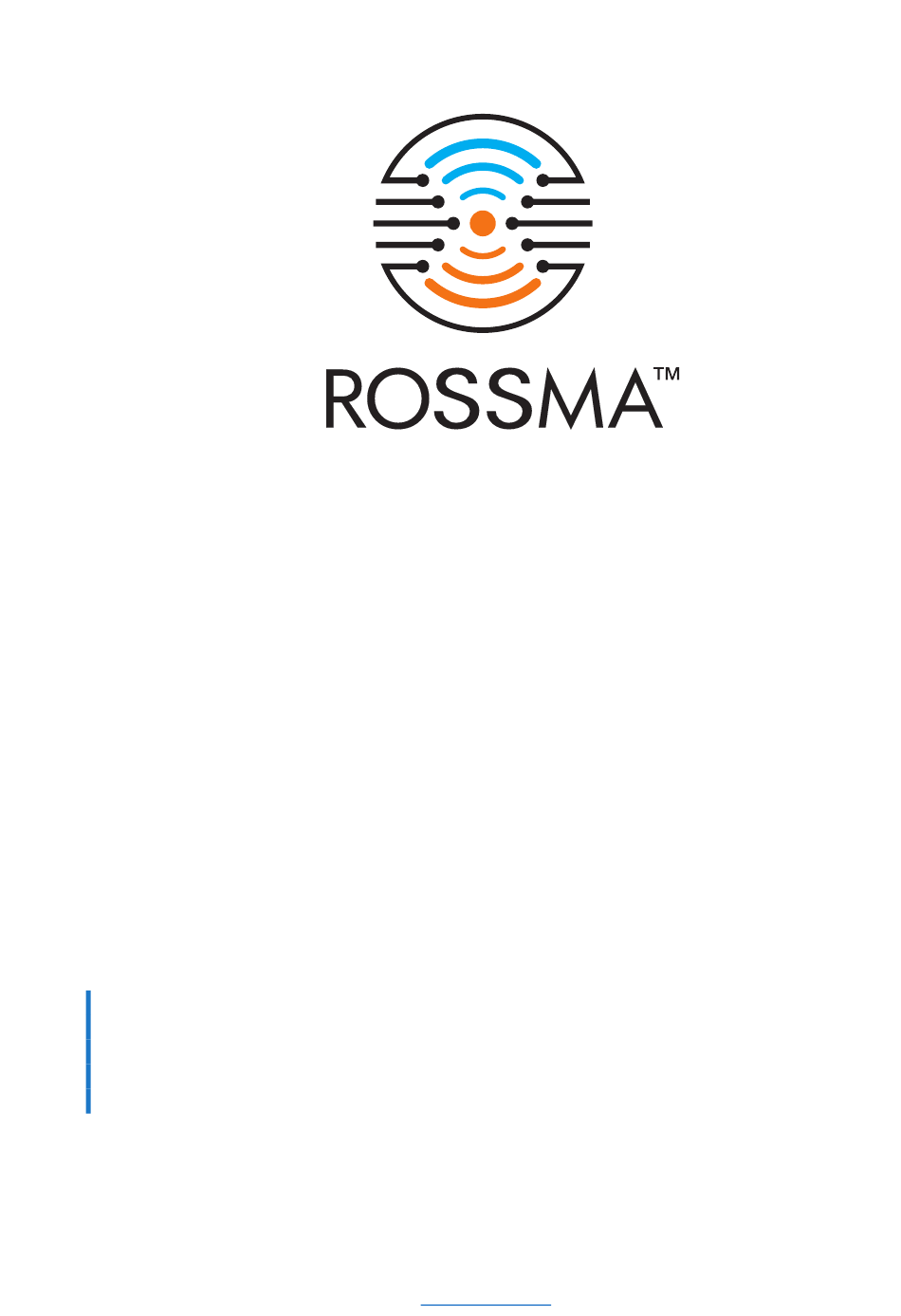

  • Page 1 ROSSMA IIOT-AMS Tilt Counter OPERATION MANUAL Switching device ROSSMA IIOT-AMS Tilt Counter registers the slope of the switching device casing to an angle more than 15 degrees and performs slope counting. Designed for operation with devices and mechanisms, where it is necessary to check the presence of movable parts tilt (slope).
  • Page 2 ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL DATA ON THE DOCUMENT Title Switching device ROSSMA IIOT-AMS TILT COUNTER Document type Operation manual Document code MAN-RIAP-TC-01 Last revision number and date 13.01.2020 THIS DOCUMENT IS VALID FOR THE FOLLOWING DEVICES LINE NAME...

  • Page 3: Table Of Contents

    ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL CONTENTS INTRODUCTION ..............................3 DESCRIPTION AND OPERATION PRINCIPLE ....................4 SWITCHING DEVICE DESCRIPTION ..........................4 DATA COLLECTION AND TRANSMISSION ALGORITHM ..................... 4 FUNCTIONALITY ................................ 5 MARKING .................................. 5 DATA ON CERTIFICATION ............................6 TECHNICAL CHARACTERISTICS ........................6 WORKING WITH THE SWITCHING DEVICE ....................

  • Page 4: Introduction

    ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL INTRODUCTION This manual applies to ROSSMA IIOT-AMS TILT COUNTER measuring and switching device (hereinafter switching device) produced by ROSSMA LLC and defines installation and connection procedure, as well as control commands and functional description.

  • Page 5: Description And Operation Principle

    It is also possible to connect an external power supply. The switching deviceis delivered with a 3.6 V power supply. The power cell of the ROSSMA IIOT- AMS TILT COUNTER switching device is a built-in battery with a capacity of 1200/6000/9000/14000/19000/20000 mAh, designed for a service life of up to 10 years when counting readings and transmitting data once a day.

  • Page 6: Functionality

    ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL When Prompt for Confirmation option is disabled, the switching device sends the current data to the network with the specified discreteness. There is no package delivery check in this mode. There are no untransmitted packages in the switching device memory.

  • Page 7: Data On Certification

    Number of inputs: X1-single channel, X4-four inputs, etc. Switching device version: specifies the hardware platform and firmware version. Manufacturer OUI: Unique identifier of ROSSMA in IEEE. Region of delivery: RU-Russian Federation, EU-European Union. DATA ON CERTIFICATION Manufactured according to УАБИ.001.83301259.2017 ТУ specification.

  • Page 8: Working With The Switching Device

    DIN rail adapter(it is specified when ordering). 3. WORKING WITH THE SWITCHING DEVICE CONTACTS DESCRIPTION Clamp fastening screw ACT indicator programming socket Indicator Lora Reset button Sensor Turning on the device Fig.1 ROSSMA IIOT-AMS TILT COUNTER revision 13.01.2020 .

  • Page 9: Initial Start-Up

    ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL Fig.2 ROSSMA IIOT-AMS TILT COUNTER Mounting type for tilt mechanism INITIAL START-UP Before using the switching device, you must connect the battery plug to the terminal on the board. The switching device supports two methods of activation in the LoRaWAN network - ABP and OTAA.

  • Page 10: Communications Protocol

    ROSSMA IIOT-AMS TILT COUNTER/ OPERATION MANUAL 4. COMMUNICATIONS PROTOCOL DATA PACKAGE FORMAT Data package format for ROSSMA IIOT-AMS TILT COUNTER : cc000000000000000000000000000000000000000000000000000000000000000000000000000000 000de110 where: cc - package type (0xCC = status) 0000 - Number of tilts after data transmission. Sensor 1.

  • Page 11: Storage And Transportation Rules

    LoRaWAN network. 5. STORAGE AND TRANSPORTATION RULES ROSSMA IIOT-AMS switching devices shall be stored in the factory package in heated rooms at temperature from 5 ° С to 40 ° С and with relative humidity not more than 85%.

  • Page 12: Delivery Set

    - Switching devices with traces of oxidation or other signs of liquids ingress into the device housing. If a warranty case occurs, contact the service center of the ROSSMA manufacturer at: 614064, Perm, Chkalova Str., 9 Lit. "И". Phone: 7 (342) 233-93-99.
