- Page 1 DRAG BOX User Guide LW.LH/10.21...
- Page 2 Altrad Generation Hire & Sale Shaping The Future Of Construction & Industry. Altrad Generation is one of the largest suppliers of Scaffolding, Temporary Fencing and Access. Also supplying to multiple sectors in Groundworks, Safety, Edge Protection and within Ireland, formwork and falsework.
-
Page 3: Table Of Contents
Contents Drag Box Introduction ................................3 Assemble ................................3-4 Install...................................5 Adding a Top Box..............................6 Extraction ...................................6 Safety & Tips ................................7 Ancillaries ...................................8 Disclaimer & Copyright Disclaimer ..................................9 Copyright ...................................9... -
Page 4: Drag Box

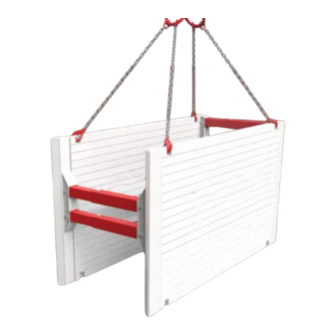

Shoring Equipment Systems including the assembly, installation and extraction of the Drag Box. The correct sizes and weights of the components will also be shown so that use of equipment can be planned ahead. It is necessary that users enforce the appropriate safety practices of excavations and trenching throughout installation. - Page 5 Drag Box Assemble Insert pins into designated holes and secure Insert the struts into the pockets and lock in with R Clips. place with Pins and Clips. Lock in place with Clips and Pins. Lower the second panel, pockets facing downwards onto the upraised struts you have just installed and lock in place.
-
Page 6: Install
Lay the first pipe Dig in front of the box After installing a section of pipe, pull the drag box with the bucket through the trench. Continue until pipe laying is complete. Backfill and compact to underside of bottom frame, and remove. Repeat for top frame and backfill to ground level, then extract sheets. -
Page 7: Adding A Top Box
Drag Box Adding a Top Box Fit the panel connectors to the top box Lift the box so these panel connectors hang down Locate the panel connectors in the top of the base panel Then pin through connectors and panel Secure with these with ‘R’... -
Page 8: Safety Tips
Drag Box Safety Tips • Please refrain from using the box on unstable ground and within close proximity to structures due to increase in Earth Pressure. • Plan all excavations ahead of time to ensure that the correct lifting operations can be used. -
Page 9: Ancillaries
Drag Box Ancillaries Standard Drag Box 5.0m x 1.8m 5.0m x 2.5m 7.0m x 2.5m Panel Length (mm) 5000 5000 7000 Panel Height (mm) 1800 2500 2500 Panel Thickness (mm) Minimum External Trench Width (mm) Maximum Internal Trench Width (mm) -
Page 10: Disclaimer & Copyright
Disclaimer & Copyright Disclaimer Whilst Generation (UK) Ltd has taken every reasonable effort to ensure the information contained within this publication is correct and complete at the time of printing, you should be aware that there will be periodical changes and Generation (UK) Ltd does not accept any liability for any inconvenience, loss or damage caused as a result of any inaccuracy or omission within this publication. - Page 11 Notes sales@altradgeneration.com...
