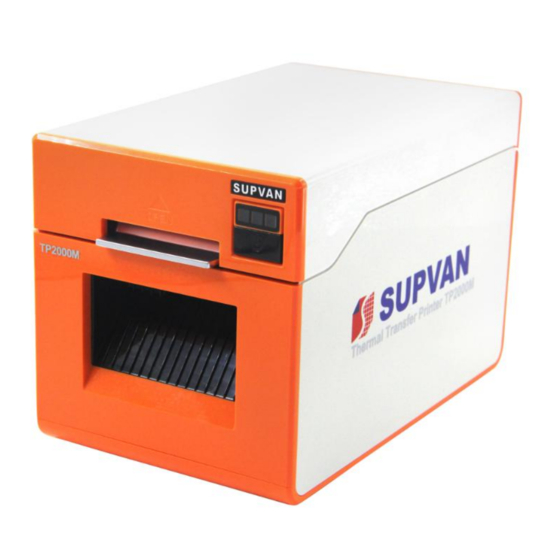

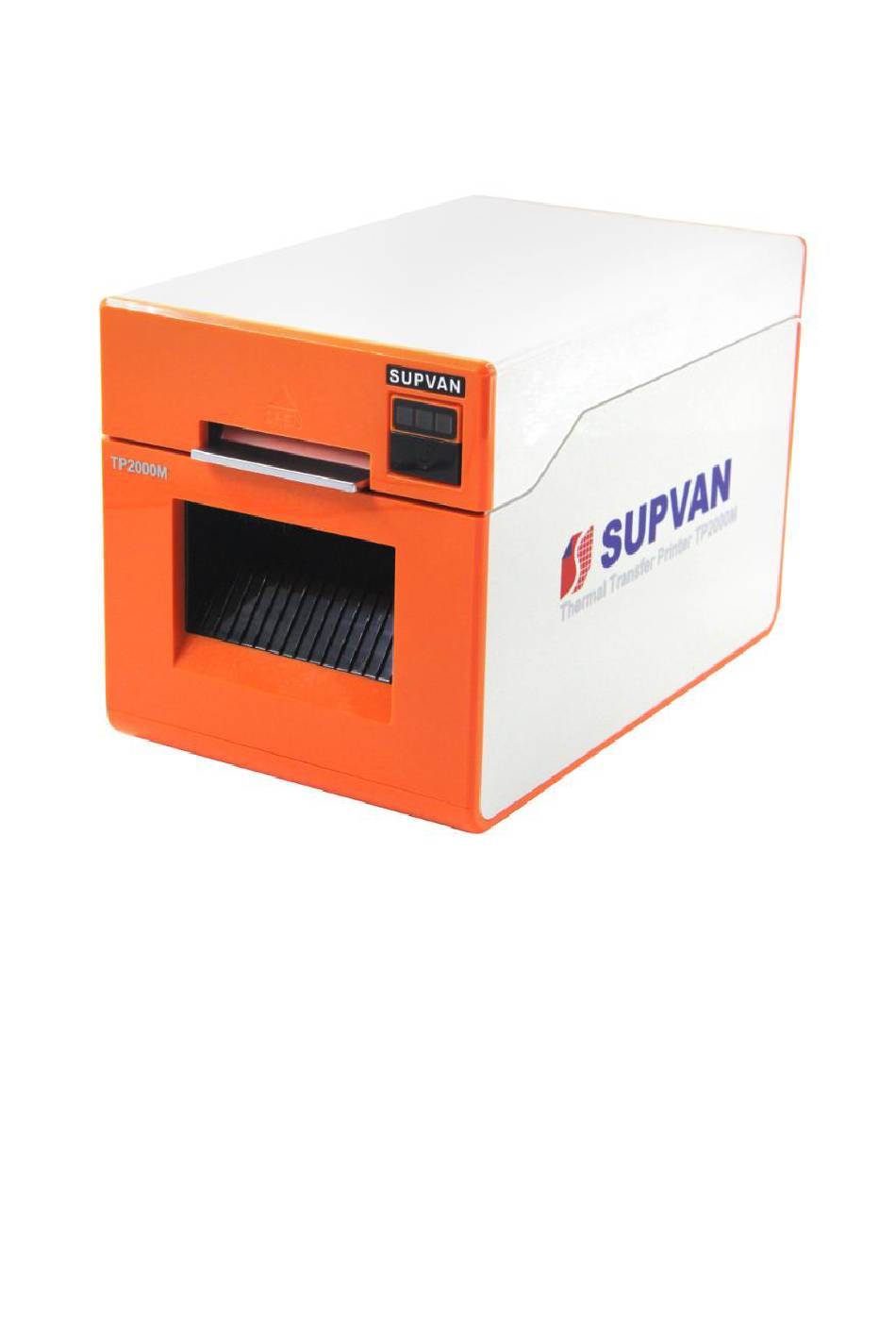

- Page 1 SUPVAN Shrink Tube Printer TP2000M User Manual Supvan Technology (Beijing) Co., Ltd.
-
Page 2: Caution And Warning
7. Please use the ribbon provided by SUPVAN company.; 8. In order to ensure the printing effect and prevent the print head from burning out, it is recommended to use this product in an environment with a temperature of 5°C～35°C and a humidity of 45%RH～85%RH;... -
Page 3: Included Items
Included items 2.1 Before using this printer, please check if the package contains the following items TP2000M CD-ROM Adapter Ribbon Power line USB cable 2.2 Figure... - Page 4 1 Red light：Flash when an error occurred during printing or printer about to be turn off； 2 Yellow light：Always on after the USB line is connected； 3 Green light：Always on when turn on printer； 4 Switch ：Turn on/off printer； 5 USB socket:Connect use line 6 Power socket ：Connect power line.
- Page 5 Consumables installation 4.1 Install shrink tube 4.2 Install ribbon...
- Page 6 Software 5.1 Software installation 1)Right click installation file,Select “Run as administrator” 2)Install step by step according to the prompt box until you installed successfully . 5.2 Software use...
- Page 7 1) Double click to open the software 2) First select “TP series printer” for TP2000M 3)Select shrink tube size that you want to print 4）Now,You can edit data by software...
- Page 8 For example ,We want print Φ16 shrink tube ,length 60mm 4.1.Set length first 4.2 Input text by “A”,then we input “SUPVAN”...
- Page 9 4.3 We press “Print “button to print 4.4 You can set print range ,print density and copies.
-
Page 10: Specification
Specification Printing method Thermal transfer Resolution 300dpi Display No LCD devices Printing speed 35 mm/s Cutting Function Cutting Automatic Half-cutting Printer Specification Max printable range 55mm Ribbon Spec 55mm*45m, single color Ribbon Color Black, White Φ7.0-φ30mm Heat Shrink Tube Size Heat Shrink Tube Color White, Yellow, Black... -
Page 11: Troubleshooting
Connection Interface USB 2.0 Full speed Recommended Operating Temperature: 10-40℃ Environment Humidity: 10% - 90% RH Power Supply 15V 3A Outer Dimensions 263mm X 165mm X 178mm Weight 2.4 KG Recommended Specifications Win8 / Win7/ Vista/ Windows XP Compatible drivers/APPs are available on website once product publish Trouble shooting Light... - Page 12 Note Under normal conditions, the green and yellow lights are always on after power on； Please visit our website to get more information： www.supvan.com.cn Information Reason Solution Check whether the power cord and Printer Reconnect adapter line and adapter cord are cannot be power line .
