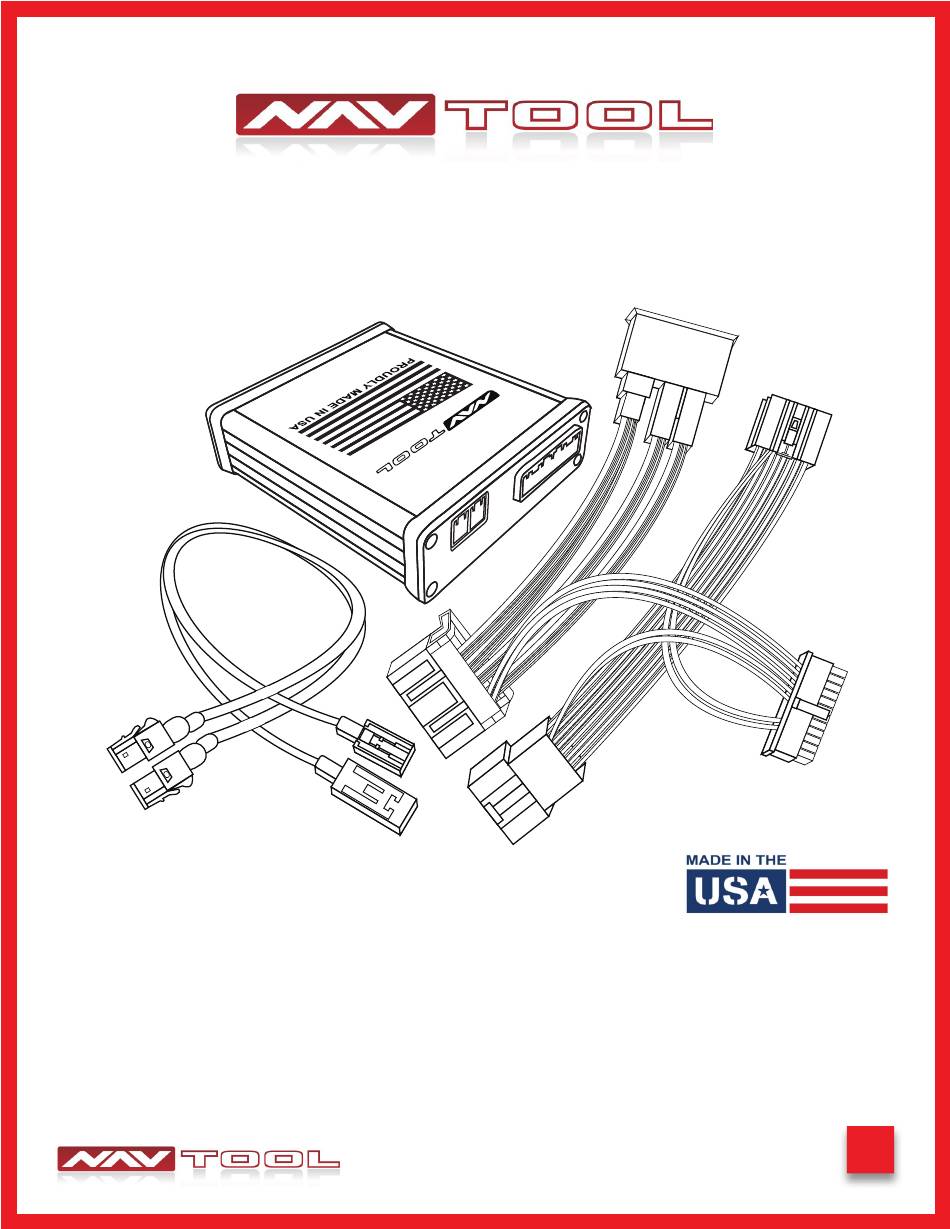

Installation Manual
Buick Regal 2011-2013
Interface with HDMI Mirroring
Part #: NAVTOOL6.0-LG1
NOTICE: Navtool recommends having this installation performed by a certified technician.
Logos and trademarks used here in are the properties of their respective owners.
1
Buick Regal 2011-2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the NAVTOOL6.0-LG1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NavTool NAVTOOL6.0-LG1

  • Page 1 Installation Manual Buick Regal 2011-2013 Interface with HDMI Mirroring Part #: NAVTOOL6.0-LG1 NOTICE: Navtool recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners. Buick Regal 2011-2013...
  • Page 2 WELCOME Table of Contents IMPORTANT WARNING Installation Instructions This product includes instructions for Precautions installation, which must be carefully followed. The instructions are worded in such a manner to assume that What’s In The Box the installer is capable of completing these types of electronic installations.
  • Page 3 • Using protective blankets to cover front seats, interior of the vehicle and center console. • Always install a fuse 6-12 inches away from NavTool interface, 5 amp fuse should be used. • Always secure NavTool interface with Velcro or double side tape to prevent rattling of the interface.
  • Page 4 What’s In The Box? USB Configuration Cable NavTool Interface NavTool LVDS Cables (Part # NT-USB-CNG) (Part # NAVTOOL6.0-LG1) (Part # NT-GMBLU-LVDS) NavTool Vehicle Specific NavTool AUX Activator NavTool Interface Harness Plug and Play Harness (Part # NT-AUX-ACT) (Part # NT-WHNT6)
  • Page 5 Interface Connectors Description NavTool Interface (Part # NAVTOOL6.0-LG1) USB Port for Apple CarPlay and Android Auto Main Connector for Universal Interface Harness Configuration Port HDMI Port LVDS Cables Input and Output Data LED HDMI LED Power LED Main Connector for Universal Interface Harness- This port is dedicated for a connection of a universal wiring harness LVDS Cables Input and Output- This port is dedicated for the LVDS cables.
  • Page 6 Universal Harness Description Rear Camera Input/ Video Input 1 Front Camera Input/ Video Input 2 NavTool Interface Harness (Part # NT-WHNT6) Left Camera Input/ Video Input 3 Right Camera Input/ Video Input 4 Connector for Vehicle Specific Harness 12V Output Wire...
  • Page 7 Quick Connection Guide NavTool Interface See Page 8 (Part # NAVTOOL6.0-LG1-NBT) Click NavTool Supplied Harness (Part # NT-WHNT6) Click Click NavTool Supplied Cable Factory Wire (Part # NT-GMQUAD-BLU) Back of Car Radio Buick Regal 2011-2013...
  • Page 8 Quick Connection Guide NavTool Interface Click Click See Page 7 See Part 1 Factory LVDS Cable *2- Cable that previously used to be connected to blue connector in the back of the radio Click Close Up View of Radio Connectors...
  • Page 9 Mac computers must use the latest version of the Google Chrome browser. Google computers must use the latest version of the Google Chrome browser. TO CONFIGURE THE INTERFACE, GO TO HTTPS://CONFIG.NAVTOOL.COM Connect the interface to the computer using supplied USB Configuration Cable (Part # NT-USB-CNG)
  • Page 10 Installation Instructions STEP 2 Continued Step 1: Instrument Panel Upper Center Trim Panel Step 2: • Use a flat bladed plastic trim panel in order to release the Front Floor Console Extension Panel retainer clips securing the upper center trim panel to the instrument panel assembly.
  • Page 11 Installation Instructions STEP 2 Continued Step 5: Step 6: Instrument Panel Molding Radio Control Module Bracket Fasteners (Qty: 4) • Use a flat-bladed plastic trim tool to release the Instrument Panel Lower Center Trim Panel instrument panel molding from the instrument panel. •...
  • Page 12 Installation Instructions STEP 3 Step 1: Connect supplied plug and play harness (Part # NT-GMQUAD-BLU) to the back of the radio. Step 2: Connect factory connectors into the supplied vehicle specific plug and play harness. Continued on Step 4 Vehicle Specific Plug and Play Harness (Part # NT-GMQUAD-BLU) Factory Wire...
  • Page 13 Installation Instructions STEP 5 Step 1: Connect the 4 pin plug from the vehicle specific supplied harness (Part # NT-GMQUAD-BLU) to the 4 pin microphone input connector on the NavTool Interface Harness (Part # NT-WHNT6). NavTool Supplied Harness (Part # NT-WHNT6)
  • Page 14 Factory LVDS Cable STEP 7 Step 1: Connect NavTool supplied LVDS cable into the blue port on the back of the radio. Step 2: Connect NavTool supplied LVDS cable into the brown port shown in the image below. NavTool Interface...
  • Page 15 • If you are adding side or front cameras, install them and plug them into the appropriate camera RCAs. • If you are installing any HDMI or streaming devices, connect it to the HDMI port of the NavTool. Buick Regal 2011-2013...
  • Page 16 After the interface is installed and you activate the NavTool, if your screen is blinking or you see a NavTool image for a second and it goes to a black screen, you must cut a wire on the harness. Cut pin 10...
  • Page 17 Testing and Settings STEP 1 • Start the car, observe NavTool LED lights should be one blinking blue and two steady lit green LED lights. HDMI LED Data LED Power LED • At this time, your car radio should boot up into its initial state, and the radio should be working.
  • Page 18 After the interface is installed and you activate the NavTool, if your screen is blinking or you see a NavTool image for a second and it goes to a black screen, you must cut a wire on the harness. (See Page 16) Fig.
  • Page 19 Set vehicle in reverse gear to test the operation of the factory rear view camera. Press and hold one of the four corners of the touch screen for 3 seconds to turn OFF the NavTool inter- face. Press and hold the corner of the touch screen for a few seconds until the bottom menu appears on the screen, release the finger and hold the corner of the screen again to return to the factory menu.
  • Page 20 Testing and Settings STEP 6 • Test HDMI input if you are connecting any HDMI video source. To bring up the bottom menu, press and hold one of the four touch screen corners for 3 seconds. • Touch the HDMI button on the screen to enter the HDMI input of the interface. •...
  • Page 21 If all steps above are checked off, you will save time, money and have an extremely happy customer. All above steps eliminate any unnecessary customer comebacks to your shop. If you require any further assistance please call our tech support line, email or go online WWW.NAVTOOL.COM 1-877-628-8665 techsupport@navtool.com Buick Regal 2011-2013...
  • Page 22 Interface Menus and Settings NavTool Interface Screen Press and hold one of the four corners of the touch screen to activate or deactivate NavTool interface. After you activated the interface, you will be brought to this screen that you can navigate using the factory touch screen.
  • Page 23 Apple CarPlay/Android Auto screen. Apple CarPlay/Android Auto Module Not Installed You will get this message when selecting this option on the NavTool interface that is not equipped with Apple CarPlay/ Android Auto module. HDMI Tap the HDMI button to enter this option.
  • Page 24 Interface Menus and Settings Back-Up Camera Tap the Back-Up Camera button to enter this option. After selecting the back-up camera input, you will be brought to your back up camera screen. This will not work if a back-up camera is not installed. (Note: This input will not display factory installed rear-view camera) To exit Back-Up Camera, tap the touch screen to bring up the bottom menu.
  • Page 25 Interface Menus and Settings Settings Tap the Settings Menu button to enter this option. After selecting the settings option, a menu will expand showing different interface settings you can change. Settings Options Menu The Settings Menu button will change to a down arrow once clicked on.
  • Page 26 Interface Menus and Settings Camera Settings Tap the Camera Settings button to enter this option. Camera Settings Menu Tap to select a particular camera input. Tap repeatedly to change the option to what you want for that particular camera input. Factory camera: Select this option if your vehicle is equipped with a factory installed rear view camera.
  • Page 27 Interface Menus and Settings For most installations, there is no need to enter below menus Parking Line Settings (These line adjustments are only for aftermarket cameras, they do not affect factory cameras) Tap the Parking Line Settings button to enter this option. You can only access this setting when you are on the particular camera input.
  • Page 28 Set this feature to ON if you want to directly enter into the Apple CarPlay/Android Auto mode when activating the interface, Set this feature to OFF if you want to enter NavTool menu upon and bypasing the NavTool menu. Do not select this mode if you activation of the interface.
  • Page 29 How to Connect Rear Screens to Car With AV Input Examples of equiptment used if connecting or installing additional rear screens Car Monitor NavTool Interface HDMI to AV Adaptor 1 in 2 Out HDMI Splitter HDMI Sources Buick Regal 2011-2013...
  • Page 30 How to Connect Rear Screens to Car With HDMI Input Examples of equiptment used if connecting or installing additional rear screens Car Monitor NavTool Interface Car HDMI Input 1 in 2 Out HDMI Splitter HDMI Sources Buick Regal 2011-2013...
  • Page 31 User Manual Setting Radio to Auxiliary Plug the NavTool supplied AUX Activator (Part # NT-AUX-ACT) into vehicle’s 3.5mm AUX jack. See image below. AUX Input Located inside the center console below the arm rest NavTool supplied AUX Activator (Part # NT-AUX-ACT) Set Radio to AUX Audio Input: •...
  • Page 32 • Press and hold one of the four corners with your thumb for 3 seconds to activate the interface. The preferred corner is the top right. (see Fig.1) You should hear a chirp, and after that, the interface will start, and the NavTool menu will appear on the screen.
  • Page 33 Set this feature to ON if you want to directly enter into the Apple CarPlay/Android Auto mode when activating the interface, Set this feature to OFF if you want to enter NavTool menu upon and bypasing the NavTool menu. Do not select this mode if you activation of the interface.
  • Page 34 User Manual Interface Settings Parking Line Settings Typically adjusted by installer. Camera Settings Typically adjusted by installer. Contrast Tap the Contrast button to enter this option. After selecting contrast, you can adjust the contrast of the inter- face. The white bar in the middle shows the interface contrast setting.
