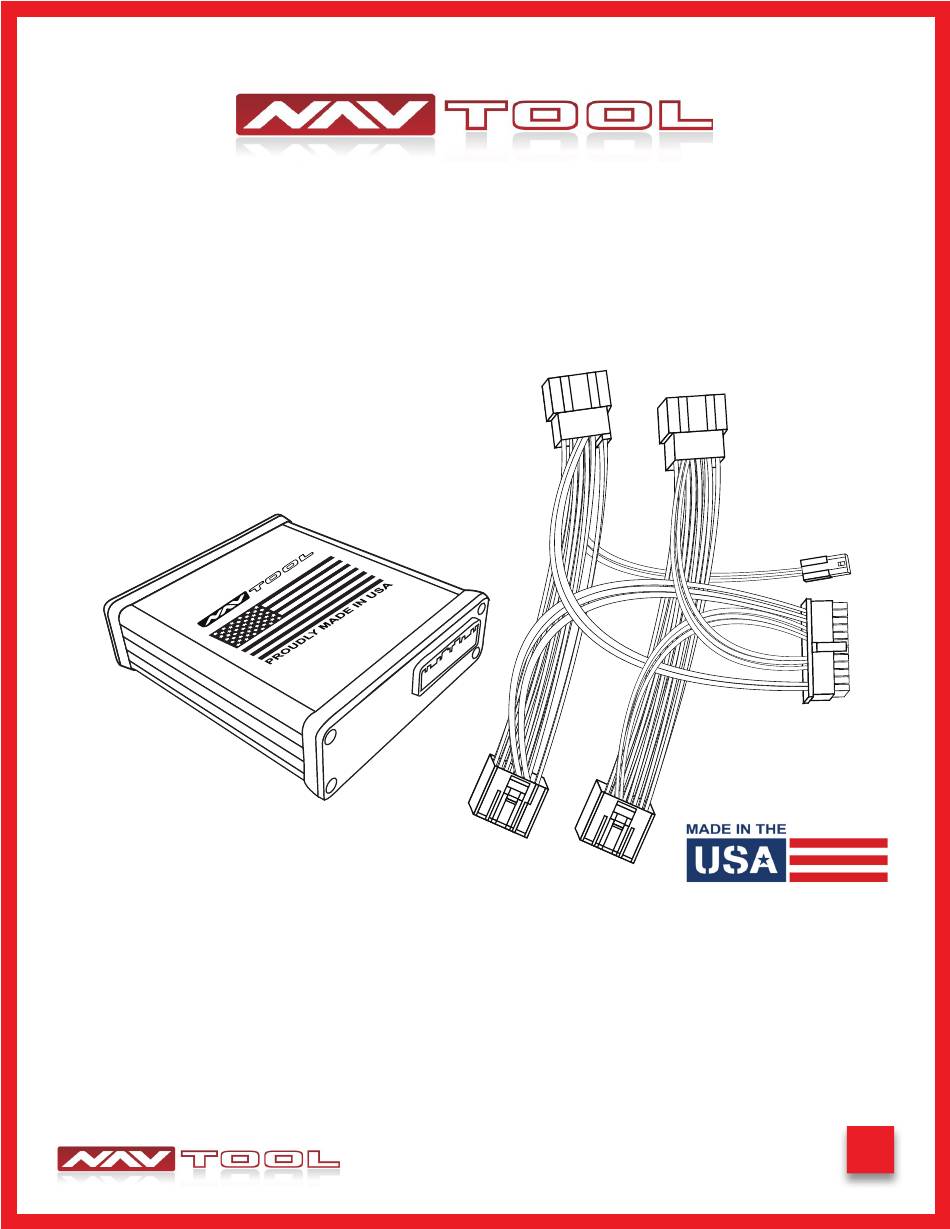

Installation Manual
GMC Acadia 2013-2017
Must be equipped with factory rear view camera
Interface with HDMI Input
Part #: NAVTOOL6.0-AR2-HDMI
NOTICE: Navtool recommends having this installation performed by a certified technician.
Logos and trademarks used here in are the properties of their respective owners.
1
GMC Acadia 2013-2017
Advertisement
Related Manuals for NavTool GMC Acadia 2013
Summary of Contents for NavTool GMC Acadia 2013
- Page 1 Must be equipped with factory rear view camera Interface with HDMI Input Part #: NAVTOOL6.0-AR2-HDMI NOTICE: Navtool recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners. GMC Acadia 2013-2017...
- Page 2 Print pages C1-C2 and give them to the customer NEED HELP? Open the camera app on your smart- phone and point your rear camera at the QR-Code to scan it. Finally, tap the pop up banner to open support website. GMC Acadia 2013-2017...
- Page 3 • Using protective blankets to cover front seats, interior of the vehicle and center console. • Always install a fuse 6-12 inches away from NavTool interface, 5 amp fuse should be used. • Always secure NavTool interface with Velcro or double side tape to prevent rattling of the interface.
- Page 4 What’s In The Box? NavTool Interface USB Configuration Cable Push Button (Part # NAVTOOL6.0-AR2-NBT) (Part # NT-USB-CNG) (Part # NT-PUSH-BTN) Vehicle Specific NavTool Interface Harness Plug and Play Harness (Part # NT-WHNT6) (Part # NT-GM1) GMC Acadia 2013-2017...
- Page 5 If the green LED is not ON, the interface HDMI port will not work. USB Port- Not Used HDMI Port- HDMI port is dedicated for connecting video sources such as iPhone mirroring, Android Mirroring, Apple TV, Roku, FireStick, Chromecast, PlayStation, Xbox, or similar devices. GMC Acadia 2013-2017...
- Page 6 +12V Manual Activation Input- This connection is used for a push button. +12V Output- 500 mA output can be used to drive a relay. This output provides +12V at all times when the vehicle is running. GMC Acadia 2013-2017...
- Page 7 NavTool Interface Harness (Part # NT-WHNT6) Click AUX Input depends on the type of jack installed in your car from the factory Vehicle Specific Plug and Play Harness Factory Radio Harness (Part # NT-GM1) Back View of Car Navigation GMC Acadia 2013-2017...
- Page 8 Mac computers must use the latest version of the Google Chrome browser. Google computers must use the latest version of the Google Chrome browser. TO CONFIGURE THE INTERFACE, GO TO HTTPS://CONFIG.NAVTOOL.COM Connect the interface to the computer using supplied USB Configuration Cable (Part # NT-USB-CNG) Manual Activation Wire as Reverse Trigger should be set to off.
- Page 9 Limited, Enclave, Traverse VIN R/V Service Manual 9592910&pubSectionName=Driver Information and Entertainment&language=1&pubO… • Disconnect the electrical connector. • Disconnect the antenna cable. /6/22, 7:02 PM Image ID# : 2888401 © 2022 General Motors. All rights reserved. ttps://gsitlc.ext.gm.com/gsi/showSvg.do?image=2888401&pubName=Acadia Limited, Enclave, Traverse VIN R/V Service Manual 9592910&pubSectionName=Driver Information and Entertainment&language=1&pubO… GMC Acadia 2013-2017...
- Page 10 Reconnect previously removed radio connectors into the back of the radio. STEP 4 Connect supplied universal wiring harness (Part # NT-WHNT6) into plug and play harness (Part # NT-GM1). (Part # NT-GM1) (Part # NT-WHNT6) (For complete image, see Quick Connection Guide on page 7) GMC Acadia 2013-2017...
- Page 11 AUX Input depends on the type of jack installed in your car from the factory End view of harness NT-GM1 (For complete image, see Quick Connection Guide on page 7) GMC Acadia 2013-2017...
- Page 12 • If you are adding side or front cameras, install them and plug them into the appropriate camera RCAs. • If you are installing any HDMI or streaming devices, connect it to the HDMI port of the NavTool. GMC Acadia 2013-2017...
- Page 13 Testing and Settings STEP 1 • Start the car, observe NavTool LED lights should be one blinking blue and two steady lit green LED lights. HDMI LED Data LED Power LED • At this time, your car radio should boot up into its initial state, and the radio should be working.
- Page 14 • To test aftermarket left and right cameras, use left and right turn signals. Left and right cameras should display depending on the turn signal activated. After everything is tested and working, reassemble the vehicle. (The remainder of this page is intentionally left blank) GMC Acadia 2013-2017...
- Page 15 If all steps above are checked off, you will save time, money and have an extremely happy customer. All above steps eliminate any unnecessary customer comebacks to your shop. If you require any further assistance please call our tech support line, email or go online WWW.NAVTOOL.COM 1-877-628-8665 techsupport@navtool.com GMC Acadia 2013-2017...
- Page 16 How to Connect Rear Screens to Car With AV Input Car Monitor NavTool Interface HDMI to AV Adaptor 1 in 2 Out HDMI Splitter HDMI Sources GMC Acadia 2013-2017...
- Page 17 How to Connect Rear Screens to Car With HDMI Input Car Monitor NavTool Interface Car HDMI Input 1 in 2 Out HDMI Splitter HDMI Sources GMC Acadia 2013-2017...
- Page 18 User Manual For Consumer Thank you for purchasing NavTool. If you have any questions, please call toll-free at 877-628-8665. The color/navigation screen will display a factory image when you first start your vehicle. • Set the radio to AUX input to hear the HDMI audio. See page C2 for details.
- Page 19 FM, or XM, if equipped, Disc, or AUX (Auxiliary). Must set a radio to auxiliary/AUX before activating NavTool to hear audio from car speakers. See page 11 step 6 for AUX connection. • Audio will not play through car speakers if AUX input is not connected or radio is not set to AUX input.
