Summary of Contents for Topcon X-52

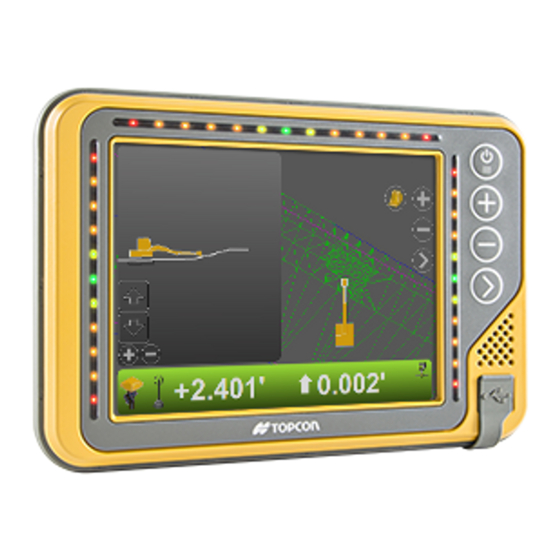

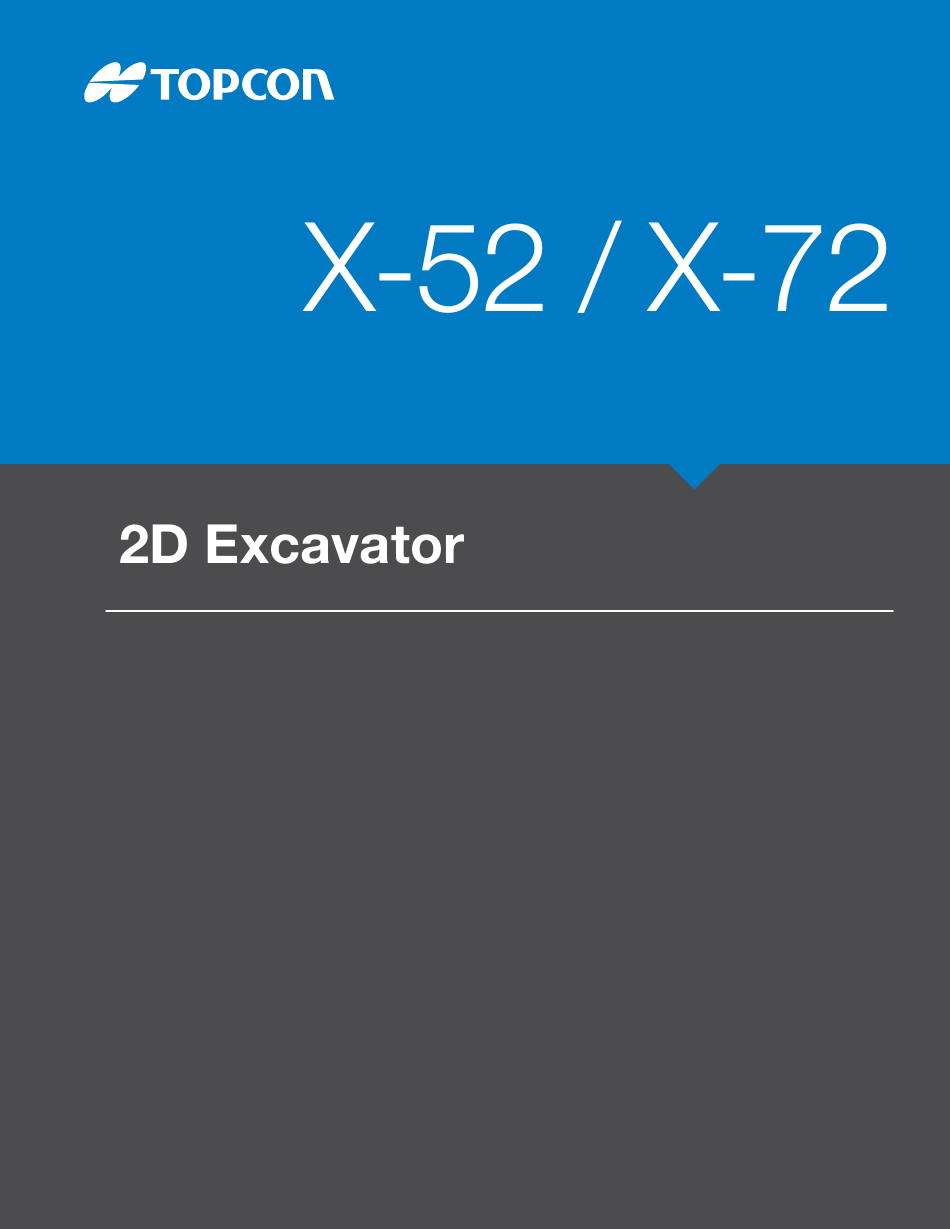

  • Page 1 Indicate System Installation and Calibration Manual...
  • Page 2 X-52/X-72 2D Excavator Indicate System Installation and Calibration Manual Part Number 1022461‐01 ©Copyright July, 2017 All contents in this manual are copyrighted by Topcon. All rights reserved. The information contained herein  may not be used, accessed, copied, stored, displayed, sold, modified, published, distributed, or otherwise  reproduced without express written consent from Topcon.

  • Page 3: Table Of Contents

    Introduction ..........1 X-52 and X-72 System Components ....... . 1 MC-X1 Connectivity and Configuration .
  • Page 4 Open Source Support ..........49 Table of Contents X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 5: Preface

    “Manual”) have been prepared by Topcon Positioning Systems, Inc. (“TPS”) for owners of Topcon products, and are designed to assist owners with the use of the product and its use is subject to these terms and conditions (the “Terms and Conditions”).
  • Page 6 Improper use of the product can lead to injury to persons or property and/or malfunction of the product. The product should only be repaired by authorized TPS warranty service centers. Users should review and heed the safety warnings in an Appendix. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 7 Supplementary information that can have an adverse effect on system operation, system performance, data integrity, measurements, or personal safety. Notification that an has the to result in system damage, loss of data, action potential loss of warranty, or personal injury. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 8: Introduction

    Introduction This manual discusses how to install and calibrate Topcon’s X-52 and X-72 2D Excavator Systems utilizing the MC-X1 Controller. The TS-i3 sensors used in the Topcon excavator systems measure the pitch and roll angle of various machine elements. Each sensor accurately measures a gravity-referenced angle of the body, boom, stick, and attachment, sending this angle data to a GX-55/GX-75 display to provide precise grade.
  • Page 9 Figure 3 shows the basic cabling connections for the 2D excavator system. When installing components, use the Topcon supplied fuse or fused power from the machine of the same rating. System ground must be connected to the frame side of the ground disconnect switch, not directly to the negative battery terminal.

  • Page 10: Mc-X1 Connectivity And Configuration

    1. Open the web browser on the display or your computer. 2. Type 192.168.0.1 into the address bar to connect to the web interface of the MC-X1 (Figure 5). Figure 5. Access Topcon Sitelink3D Gateway Web Interface X-52/X-72 2D Excavator Installation and Calibration Manual...

  • Page 11: Connecting To The Mc-X Web Interface

    From the left menu on the screen, click Settings General. The device information is listed in the General Device Configuration screen (Figure 7). Figure 7. General Device Information X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Connecting to the MC-X Web Interface...

  • Page 12: Upgrading Mc-X1 Firmware

    Do not close the web browser or power off the system during the firmware upload process. 5. Once firmware loading is complete, a reboot prompt appears. 6. Click Reboot. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Upgrading MC-X1 Firmware...

  • Page 13: Resetting The Mc-X1

    3. Click Erase. Figure 10. Firmware 4. Locate and click the Reboot shortcut link at the top of the screen, or click SettingsReboot on the left side of the screen. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Resetting the MC-X1...

  • Page 14: Installation

    When entering sensor information, make note of each sensor’s serial number and its orientation. TS-i3 sensor orientation for boom, stick, and hitch is only left or right. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Installation...

  • Page 15: Hitch Sensor

    Mount the sensor between the attachment pivot pin and the linkage pin as shown in Figure 12. Sensor orientation (Left/Right) • Correct Quick-release Coupler Correct Mounting Attachment Orientation Mounting Orientation Figure 12: Quick-release and Attachment Sensor Mounting X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 TS-i3 Sensors...

  • Page 16: Dogbone Sensor (Optional Mounting Location)

    TS-i3 sensors are only mounted on the left or right of the DogBone. The recommended location of the sensor is on the left side of the DogBone. Correct Mounting Orientation Figure 13: DogBone Sensor Mounting Example X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 TS-i3 Sensors...

  • Page 17: Tilt Bucket Sensor

    The following brands of supported Tilting/Rotating attachments include; ® • Rototilt ® Engcon • ® • Steelwrist Each manufacturer has specific installation documentation which is required for setup and calibration. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 TS-i3 Sensors...

  • Page 18: Stick Sensor

    The mounting location shall be on the left or right side of the stick (from the cab point of view). Correct Side Location Figure 15: TS-i3 Stick Sensor Mounting X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 TS-i3 Sensors...

  • Page 19: Boom Sensor

    Figure 16: Boom Sensor Mounting Secondary Boom Sensor If a second boom is installed, see the previous section “Boom Sensor” on page 12 for secondary boom sensor mounting locations. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 TS-i3 Sensors...

  • Page 20: Body Sensor

    2. After assembling the bracket, clean the painted surface of the machine’s stick in the area where the bracket will be mounted. Remove the backing from the double-sided tape and mount the bracket onto the stick orientation as shown in Figure 18. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 LS-B10W...

  • Page 21: Mc-X1 Controller

    MC-X1 Controller Install the MC-X1 Controller onto the machine’s body using the magnet mounts provided, and connect the cable to the GX-55 or GX-75 Display. S-B10W Laser Receiver Setup X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 MC-X1 Controller...

  • Page 22: Machine Measurements And Configuration

    Incorrect measurements or data entry errors have a direct affect on excavating accuracy. Take each measurement twice to ensure accuracy. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Machine Measurements and Configuration...

  • Page 23: Gr-I3

    For GR-i3 without internal IMU, only the Boom/Body (2) screen is applicable. IMU Sensor (GR-i3 with Internal IMU Only) Boom/Body (1) (GR-i3 with Internal IMU Only) Boom/Body (2) Pivot Height X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Taking Machine Measurements...

  • Page 24: Body And Boom

    Boom Sensor ID Stick Hitch The Hitch Sensor may be mounted on the Dogbone or the Hitch Sensor ID Hitch/Coupling. Hanging Attachment may be selected if there is no sensor. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Taking Machine Measurements...

  • Page 25: Dogbone

    DogBone DogBone Lengths Attachments Note: Length 3 is the length X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Taking Machine Measurements...
  • Page 26 X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Taking Machine Measurements...

  • Page 27: Ls-B10W

    • the physical orientation of the sensor mounting Step 1: Configure the Machine File and the excavator options. 1. In 3D-MC, tap Topcon Menu ButtonControlMachine setup. 2. Select a current machine file and tap Edit, or tap New to create a new machine file.
  • Page 28 Figure 21: Select Body and Boom Sensor ID 2. Tap the appropriate Sensor ID box and select the serial number (last two digits) of the sensor corresponding to the machine element. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Entering Sensor Information...
  • Page 29 7. Tap Next to access the Excavator Attachments screen. a. Tap New to access the Excavator Attachment Setup screen. b. Enter or select the appropriate data as needed. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Entering Sensor Information...

  • Page 30: Audible Guidance

    Repeat Steps a through e for each attachment. Audible Guidance 1. Tap Next to access the Audible Guidance screen. 2. Enter the desired Tone and Duration settings. Figure 25: Audible Guidance X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Audible Guidance...

  • Page 31: Lightbars

    1. Tap Next to access the Light Bars screen. 2. Enter the desired settings. Figure 26: Lightbars Configuration Complete 1. Tap Next to access the Configuration Complete! screen. 2. Enter the desired settings. Figure 27: Configuration complete! X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Lightbars...

  • Page 32: Calibration

    Once the sensors are named, assigned to a machine element, and the orientation is selected, calibrate each sensor using 3D-MC. A sensor calibration can be performed at any time. 1. In 3D-MC, tap Topcon Menu Button  Control  Machine setup. 2. Select the appropriate machine file, and tap Edit.
  • Page 33 7. Curl the stick and bucket in as close as possible to reduce tipping errors. 8. Rotate the body parallel to the tracks (Position 1) as shown in Figure 29. Body Sensor X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 34 Once the body sensor roll value is calibrated, rotate the machine until the body Roll is 0.0. The remaining sensors require 0.0 Roll to be calibrated. 12. Tap Ok to return to the Excavator Frame/Sensor screen. Body Sensor X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 35: Boom Sensor

    8. Tap Set next to Pitch, enter the value as zero, and tap Set again (Figure 33). Figure 33: Set Pitch Value to Zero 9. Tap OK to return to the Excavator Frame/Sensors screen. Boom Sensor X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 36: Secondary Boom Sensor (Optional)

    Bucket Pivot Pin is directly under the Stick Pivot Pin. A magnet and plumb bob is recommended for this step. 4. Position the stick at -90° (Figure 35 on page 30). Secondary Boom Sensor (Optional) X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 37 Figure 35: Stick at -90° 5. Tap Set next to Pitch, enter the Pitch value as -90.0°, and tap Set again (Figure 36). Figure 36: Set Pitch Value to -90.0 Stick Sensor X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 38: Excavator Hitch

    3. Set the DogBone pivot pin and the bucket pivot pin vertical with either a plumb bob or a survey instrument. Then set the DogBone horizontal using a builder’s level. 4. Once the DogBone is square and level, tap Set next to Pitch, enter 0.00, and tap Set. Excavator Hitch X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 39 8. Tap OK; the Excavator DogBone screen appears with a stick angle difference displayed. Figure 39: Determine Stick Angle Difference 9. If this is the last sensor physically connected to the machine, see “CAN Termination” on page 39. Excavator Hitch X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 40: On Hitch/Coupling

    Figure 40: On Hitch/Coupling 2. Align the bucket pivot, and the bucket teeth. 3. In 3D-MC, tap Topcon Menu ButtonControl Machine setup, select the applicable machine file for the job, and tap Edit. 4. Tap Next to navigate to the Excavator Hitch screen.

  • Page 41: Attachment Edge

    Perform the following attachment edge calibration procedures for all attachment types. These calibrations must also be performed for each individual attachment when using multiple attachments. 1. In 3D-MC, tap Topcon Menu ButtonControlMachine setup. 2. Tap Next until the Excavator attachments screen appears 3.

  • Page 42: Multiple Attachments

    34. Tilt Bucket 1. In 3D-MC, tap Topcon Menu ButtonControlMachine setup. Select the applicable machine file for the job and tap Edit. The Configuration name/type screen appears. 2. Tap Next until you reach the Excavator Attachments screen, and then tap New to create a new Tilting bucket, or tap Edit to calibrate an existing Tilting bucket.
  • Page 43 If using the Dual-axis TS-i3d, the orientation is label up / arrow front, label up / arrow back, label up / arrow left, or label up / arrow right. Dual-axis TS-i3d Single-axis TS-i3 Figure 45: Select Tilt Sensor Orientation Excavator Hitch X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 44 Dual: Ensure the tilt axis (or pin) is horizontal and the tilt is level. Tap Ok. – The Pitch will be set to 0.0, and the relationship between the Tilt Pivot and the Hitch sensor is recorded. Excavator Hitch X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...
  • Page 45 13. Tap Ok to finish this calibration. To calibrate the bucket edge, see “Attachment Edge” on page 34. If setting up multiple buckets of any kind, see “Multiple Attachments” on page 35. Excavator Hitch X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 46: Tilting Rotating Bucket

    A value of 4 (heavy filtering) will dampen sensor reaction, while a value of 1 (light filtering) will cause faster sensor reaction. 1. In 3D-MC, tap Topcon Menu ButtonControlMachine setup. Select the applicable machine file and tap Edit. Tap Next to navigate to the Excavator Frame/Sensors screen, Excavator Stick screen, or the Excavator Hitch screen.

  • Page 47: Calibrating The Ls-B10W

    1. Position the machine on a stable surface free of obstructions, and rotate the body to 0.0° roll. 2. Orient the stick so that the LS-B10W is positioned vertically. 3. In 3D-MC, tap Topcon Menu ButtonControlMachine setup. Select the applicable machine file for the job, and tap Edit.
  • Page 48 If the stick sensor is replaced with a new tilt sensor, you must recalibrate the LS-B10W Laser Receiver. To test the LS-B10W calibration, see “LS-B10W Test” on page 45. Calibrating the LS-B10W X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 49: Setup Verification

    4. Lower the bucket to the string and tap OK on the Measure second point screen of the Measure Surface feature. The sloping surface created by 3D-MC should match the slope of the string line as set by the laser. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Setup Verification...

  • Page 50: Troubleshooting

    Note that for the hitch and boom sensors, there are optional secondary sensors that should be checked if they are used. If you are unable to determine the problem after following the procedures below, contact Topcon support. Hitch Sensor 1.

  • Page 51: Stick Sensor

    1. Position the bucket above the string line so that the bucket teeth or edge are at their closest point to the string. 2. Place the bucket teeth or edge on the string, and zero the bucket in 3D-MC. X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 Troubleshooting...

  • Page 52: Ls-B10W Test

    2. Set flat string line, and measure the distance from the laser plane to the string line using a grade rod with laser receiver. Figure 55: Laser Plane to String Line Measurement Distance from laser plane to string line:_________________________ X-52/X-72 2D Excavator Installation and Calibration Manual P/N: 1022461-01 LS-B10W Test...
  • Page 53 3. Create a 0% Known Slope Surface in 3D-MC by tapping the Topcon Logo button  Tools  Known Slope, ensure grade is 0.00%, and tap OK. 4. Place the LS-B10W in the laser plane, and press the Zero to laser button.

  • Page 54: Safety Warnings And Regulatory Information

    2. Use extreme caution on the job site. Working around heavy construction equipment can be dangerous. 3. DO NOT attach Topcon brackets, cables, or hose connections while the machine is running. 4. DO NOT allow any Topcon components to limit the visibility of the operator.

  • Page 55: Rf Radiation Hazard Warning

    (EIRP) is not more than that necessary for successful communication. X-52/X72 2D Excavator Installation and Calibration Manual P/N: 1022461-01...

  • Page 56: Déclaration De Conformité Ic

    Functional Range: 9-32 Vdc Open Source Support The Topcon TotalCare website contains the licenses and notices for open source software used in this product. With respect to the free/open source software, if you have any questions or wish to receive a copy of the source code to which you are entitled under the applicable free/open source license(s), such as the GNU Lesser/General Public License, please visit http://topconcare.com/en/support/.
  • Page 57 Specifications subject to change without notice. All rights reserved. Draft 0 /17 ©2017 Topcon Corporation...
