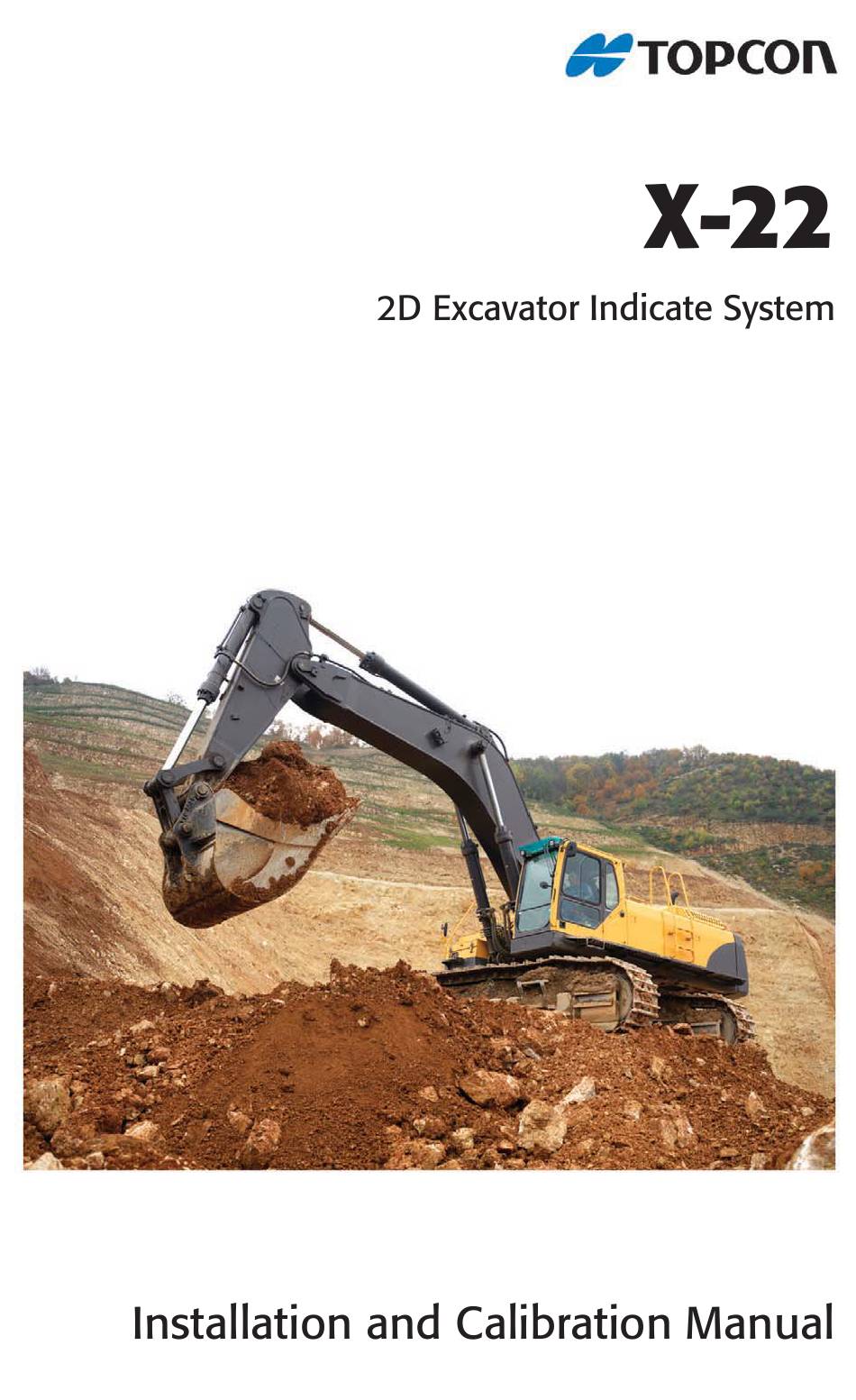

Topcon X-22 Installation And Calibration Manual

Topcon X-22 Installation And Calibration Manual

2d excavator indicate system
Hide thumbs Also See for X-22:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-22 and is the answer not in the manual?

Questions and answers

Related Manuals for Topcon X-22

Summary of Contents for Topcon X-22

  • Page 3 Rev A ©Copyright Topcon Positioning Systems, Inc. June, 2011 All contents in this manual are copyrighted by Topcon. All rights reserved. The information contained herein may not be used, accessed, copied, stored, displayed, sold, modified, published, distributed, or otherwise reproduced...
  • Page 4 Terms and Conditions Thank you for buying this Topcon product. This manual has been prepared to assist you with the care and operation of the product and its use is subject to these Terms and Conditions and those more fully set forth in the Operator’s/User’s Manual.

  • Page 5: Table Of Contents

    Step 4: Attach the X-22 Display ....... 2-15 Step 5: Measure the Excavator ........2-17 Step 6: Entering the Sensors on the X-22 Display ..2-17 Step 7: Attach the Sensors to the Excavator ..... 2-19 Step 8: Calibrate the Sensors ........2-23 Calibrating the Boom Sensor ......
  • Page 6 Table of Contents Check that X-22 is Measuring Correctly ....2-28 Backup ............... 2-28 Applications ............... 2-28 Arm (Stick) Sensor with Laser Detector ....2-29 Handling Damaged Sensors ........2-29 Important Information On Use ......... 2-30 Charger ..............2-30 Sensors ............... 2-31 X-22 Display and Power Supply .......

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Congratulations on your new X-22 System. System Components Measuring and installation equipment is also available separately (not shown). P/N 7010-1019...
  • Page 8 Notes: X-22 Installation and Calibration Manual...

  • Page 9: Installation And Calibration

    Calibration Getting Started Before you can start using your X-22 System for excavation, you need to set it up. Read on to find out how to install X-22 on your excavator in nine simple steps. Step 1: Charge the Sensors The first thing you must do is charge the sensors for several hours (i.e.

  • Page 10: Step 2: Attach The Brackets

    A weld plates can be purchased separately, if drilling is not possible. Bracket for Boom Sensor The bracket for the boom sensor must be attached to the side of the boom that faces the cab. Figure 2-2. Boom Sensor Bracket Location X-22 Installation and Calibration Manual...
  • Page 11 Installation and Calibration The bracket for the boom sensor must be attached to a face of the boom that does not slant in relation to the boom bolt. The following picture shows how the boom is widest down by the boom bolt and gets narrower towards the center.
  • Page 12 Figure 2-4, Figure 2-4. Boom Sensor Bracket Orientation or as shown in Figure 2-5. Figure 2-5. Boom Sensor Bracket Orientation X-22 Installation and Calibration Manual...

  • Page 13: Bracket For Arm (Stick) Sensor With Laser Detector

    Installation and Calibration Bracket for Arm (Stick) Sensor with Laser Detector The bracket for the arm (stick) sensor must be attached to the side of the arm (stick) that faces the cab. Position the bracket so that the sensor is roughly vertical when the laser hits it.

  • Page 14: Bracket For Bucket Sensor

    The best place to attach the bracket for the bucket sensor depends on the size of the excavator and if the joints are tight or loose. It is easiest to make X-22 measure accurately if the bucket sensor is attached directly on the bucket/quick coupler. This is especially the case if the joints are loose.
  • Page 15 Installation and Calibration If the bucket sensor is attached on the inside of the quick coupler/bucket, the sensor direction of the NOTICE bucket sensor must be changed from Normal to Reverse. Select Main Menu Setup Sensors and mark the bucket Hardware sensor.
  • Page 16 (dog-bone), the direction of the bucket NOTICE sensor must be altered from Normal to Reverse. Select Main Menu Setup Hardware Sensors and mark the bucket sensor. Then select Details. Select Sensor direction, and press Edit. X-22 Installation and Calibration Manual...
  • Page 17 Installation and Calibration Alternative 4: The outside of the control arm (dog-bone) If the excavator is too small to fit the bracket with the bucket sensor on the inside of the control arm and the joints are tight, the bracket can be attached on the outside of the control arm.

  • Page 18: Bracket For Tilt Bucket Sensor (Optional)

    The long axis must move as shown in the pictures below when the bucket is tilted to the side, or else NOTICE the sensor will not measure correctly. Figure 2-11. Sideways Installation Figure 2-12. Sideways Installation X-22 Installation and Calibration Manual 2-10...
  • Page 19 Installation and Calibration Example of sideways installation on a tilt bucket: Figure 2-13. Sideways Installation P/N 7010-1019 2-11...
  • Page 20 Note that the short axis must move as shown in the pictures below when the bucket is tilted to the side, or else the sensor will not measure correctly. Figure 2-14. Lengthways Installation Figure 2-15. Lengthways Installation X-22 Installation and Calibration Manual 2-12...

  • Page 21: Step 3: Attach The Mast For The Pitchrollcompass

    Step 3: Attach the Mast for the PitchRollCompass A mast is supplied with X-22 for the PitchRollCompass sensor. We recommend mounting the mast on the back of the machine’s counterweight. Position the bracket on top of the mast, parallel with the tracks of the machine.
  • Page 22 M8x30 Allen screws provided. Figure 2-17. Mast and Mast Ring Installation Position the mast (or mast ring) so that it holds the NOTICE mast steady and vertical on the excavator. X-22 Installation and Calibration Manual 2-14...

  • Page 23: Step 4: Attach The X-22 Display

    Installation and Calibration Step 4: Attach the X-22 Display You can easily attach the X-22 Display to the side window in the cab using the suction cup provided. Clean the glass before attaching the suction cup. This prevents air from getting into the suction cup.
  • Page 24 The X-22 Display’s on/off switch is on the bottom of the unit. Bottom View On/Off Power Cable Switch Connector USB Port for Coordinator RAM Mount Back View Coordinator Slot Figure 2-19. X-22 Display Features X-22 Installation and Calibration Manual 2-16...

  • Page 25: Step 5: Measure The Excavator

    Step 6: Entering the Sensors on the X-22 Display Once the sensors are fully charged and have been taken out of the charger, they have to be entered on the X-22 Display. Select Main Sensors. If the sensors have been menu...
  • Page 26 It is important to take all the sensors out of the charger before starting to enter them on the X-22 NOTICE Display. The radio for the sensors is switched off when they are in the charger. Each sensor has a unique serial number, which can be found on the back of the sensor preceded by “SN:”.

  • Page 27: Step 7: Attach The Sensors To The Excavator

    Installation and Calibration Figure 2-21. Serial Number Label Step 7: Attach the Sensors to the Excavator Now you are ready to attach the sensors to the excavator. Slide the boom sensor into the bracket you have attached to the boom, the arm (stick) sensor into the bracket on the arm and the bucket sensor into the bracket on the control stick.
  • Page 28 Figure 2-22. Install Sensors onto Brackets The sensors only go into the brackets one way. Slide the sensor into the bracket with the charging NOTICE pins on the sensor pointing away from the bracket. X-22 Installation and Calibration Manual 2-20...
  • Page 29 Installation and Calibration Slide the PitchRollCompass sensor into the bracket on top of the mast. If needed, loosen the fastening screws of the mast base, and rotate the mast until sensor is pointing straight ahead. Then tighten the fastening screws so that the mast stays in this position. Figure 2-23.
  • Page 30 Figure 2-24. PitchRollCompass Sensor Orientation X-22 Installation and Calibration Manual 2-22...

  • Page 31: Step 8: Calibrate The Sensors

    Main Menu and you are asked to calibrate the sensors. Follow the on-screen instructions. It is important to calibrate the sensors accurately. If calibration is not done correctly, X-22 will not NOTICE measure as accurately as it should.

  • Page 32: Calibrating The Stick Sensor

    Attach a magnet in the center of each bolt at the ends of the control arm (dog-bone). Pull the line with the spirit level on it tight and attach the ends to the magnets. The spirit level shows when the control stick is level. X-22 Installation and Calibration Manual 2-24...

  • Page 33: Calibrating The Tilt Bucket Sensor (Optional)

    Installation and Calibration Figure 2-26. Calibrate Control Arm (Dog-bone) Sensor Directly on the quick coupler / bucket If the bucket sensor has been attached directly on the quick coupler / bucket, the sensor is calibrated by positioning the bucket vertically. Calibrating the Tilt Bucket Sensor (Optional) If the excavator has a tilt bucket, the tilt bucket sensor is calibrated by positioning the tilt bucket horizontally.

  • Page 34: Finding Your Way Around The Software

    To enter the excavator’s buckets, select Main Menu Setup Buckets New. It is important to measure the buckets accurately. If the dimensions are wrong, X-22 will not measure as NOTICE accurately as it should. Each bucket also has to be calibrated. Follow the instructions on the X-22 Display.

  • Page 35: How To Return To The Main Menu

    If you press Back several times, you ultimately return to the Main Menu. Figure 2-27. Press the Bottom Left Button to Return to Main Menu Refer to the X-22 User’s Manual for more NOTICE information on using the X-22 software.

  • Page 36: Before You Start To Dig

    Applications You can perform a wide range of digging work with X-22. In the user manual, you will find an overview of the different types of work and how X-22 can be used.

  • Page 37: Arm (Stick) Sensor With Laser Detector

    Installation and Calibration Arm (Stick) Sensor with Laser Detector You should be aware that the laser detector of the arm (stick) sensor has some limitations. It is designed for rotary lasers with laser diodes of 1mW or more, and 630nm wavelength (visible red light). It cannot be guaranteed that the laser detector will work with other rotary lasers, nor if the sun shines directly onto it.

  • Page 38: Important Information On Use

    35°F to +95°F Not waterproof For indoor use only Never put wet sensors in the charger. NOTICE Make sure the contacts on the sensors and the NOTICE charger are free of debris before charging. X-22 Installation and Calibration Manual 2-30...

  • Page 39: Sensors

    Installation and Calibration Sensors The sensors are waterproof, but are not designed for digging in water. The wireless connection does not work in water either, so remove the bucket sensor and stick sensor if you intend to dig in water. Operating temperature -20°C to +60°C -4°F to +140°F Charging temperature...

  • Page 40: X-22 Display And Power Supply

    X-22 Display and Power Supply The kit contains a power cable for the X-22 Display with a cigarette lighter plug, which can be used for both 12V and 24V supply. Operating temperature 0°C to +50°C 35°F to +122 Storage temperature -20°C to +70°C...
  • Page 41 Installation and Calibration Figure 2-28. Entering Measurements P/N 7010-1019 2-33...
  • Page 42 Machine Dimension Measurement Boom Articulated boom Machine Dimension Measurement Arm (Stick) X-22 Installation and Calibration Manual 2-34...
  • Page 43 Installation and Calibration Machine Dimension Measurement Control Arm (Dog-bone) Machine Dimension Measurement Bucket bolt to control arm bolt P/N 7010-1019 2-35...
  • Page 44 Machine Dimension Measurement Arm (Stick) axis to control arm (dog-bone) bolt Machine Dimension Measurement Link X-22 Installation and Calibration Manual 2-36...
  • Page 45 Installation and Calibration Machine Dimension Measurement Roll length Machine Dimension Measurement Height to boom pin P/N 7010-1019 2-37...
  • Page 46 Machine Dimension Measurement Pitch length Machine Dimension Measurement Bucket Web X-22 Installation and Calibration Manual 2-38...
  • Page 47 Installation and Calibration Machine Dimension Measurement Bucket Front Machine Dimension Measurement Bucket Width P/N 7010-1019 2-39...
  • Page 48 Machine Dimension Measurement Bucket bolt to tilt axis Machine Dimension Measurement Bucket tip to tilt axis X-22 Installation and Calibration Manual 2-40...
  • Page 49 Installation and Calibration Machine Dimension Measurement Bucket bolt to laser sensor Machine Dimension Measurement Arm (Stick) axis to laser sensor P/N 7010-1019 2-41...

  • Page 50: Measure Additional Buckets

    Name of Bucket: Bucket Dimension Measurement Front Width Bucket bolt to tilt axis Bucket tip to tilt axis Name of Bucket: Bucket Dimension Measurement Front Width Bucket bolt to tilt axis Bucket tip to tilt axis X-22 Installation and Calibration Manual 2-42...
  • Page 51 Installation and Calibration Name of Bucket: Bucket Dimension Measurement Front Width Bucket bolt to tilt axis Bucket tip to tilt axis Name of Bucket: Bucket Dimension Measurement Front Width Bucket bolt to tilt axis Bucket tip to tilt axis P/N 7010-1019 2-43...
  • Page 52 Notes: X-22 Installation and Calibration Manual 2-44...

  • Page 53: Troubleshooting

    The sensors are not responding, what should I If you are having problems making contact with the sensors, proceed as follows: Turn the X-22 Display off and put all the sensors in the charger for a few minutes. The sensors will then be reset while they are being charged.
  • Page 54 If the system is not measuring accurately, a dimension or calibration value is probably wrong. Select Verify from the menu in the digging window, and press Troubleshooting. X-22 will then help you identify the problem and rectify it. Follow the on-screen instructions. The compass is measuring incorrectly, what...
  • Page 55 Troubleshooting heading measurements from the compass will now disappear and you will have to keep track of the heading yourself. In situations where there are large fluctuations in the magnetic field around the machine all the time, the compass calibration will not be able to compensate for the disturbances.
  • Page 56 Notes: X-22 Installation and Calibration Manual...

  • Page 57: Appendix A Specifications

    Specifications X-22 Sensor The following section provides specifications for the X-22 Sensor. Table A-1. X-22 Sensor General Specifications General Details Enclosure Xenoy CL 100 Polycarbonate Resistant to hydraulic fluids, diesel and UV exposure IP67 Color Topcon Yellow Dimensions W: 112 mm x H: 48 mm x D: 68 mm W: 4.4 in.
  • Page 58 X-22 Display The following section provides specifications for the X-22 Fanless 8.9” WSVGA TFT Multifunctional Touch Panel PC. Table A-2. X-22 Sensor General Specifications Display Screen LCD Size 8.9” Display Type WSVGA TFT Resolution 1024 x 600 Color 256K Pixel Pitch 0.1905mm (H) x 0.189mm (V)
  • Page 59 Table A-2. X-22 Sensor General Specifications (Continued) Rear Panel I/O Serial Port 1 x RS-232, 1 x RS-232 or Optional RS-422/ 485 Ethernet 2 x RJ-45 (Realtek RTL8101L LAN) WIFI Optional USB WiFi 802.11 b/g (Occupies One USB Port) 1 x DB-15...
  • Page 60 Notes: X-22 Installation and Calibration Manual...

  • Page 61: Appendix B Safety Warnings

    3. DO NOT attach system brackets while the machine is running. 4. DO NOT allow any X-22 system component to limit the visibility of the operator. 5. Use Ty-wraps, to keep hoses and wires secured and away from possible wear or pinch points.

  • Page 62: Sensor Warnings

    NOTICE excessively or from becoming detached at the weld during operation. 9. To prevent vandalism or theft, do not leave removable Topcon components on the machine at night. Remove the components each evening and store appropriately in the carrying case.

  • Page 63: Usage Warnings

    The owner should periodically test this product to ensure it provides accurate measurements. Inform Topcon immediately if this product does not function properly. Only allow authorized Topcon warranty service centers to service or repair this product.
  • Page 64 Notes: X-22 Installation and Calibration Manual...
