Gorilla Treasure Trove II Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

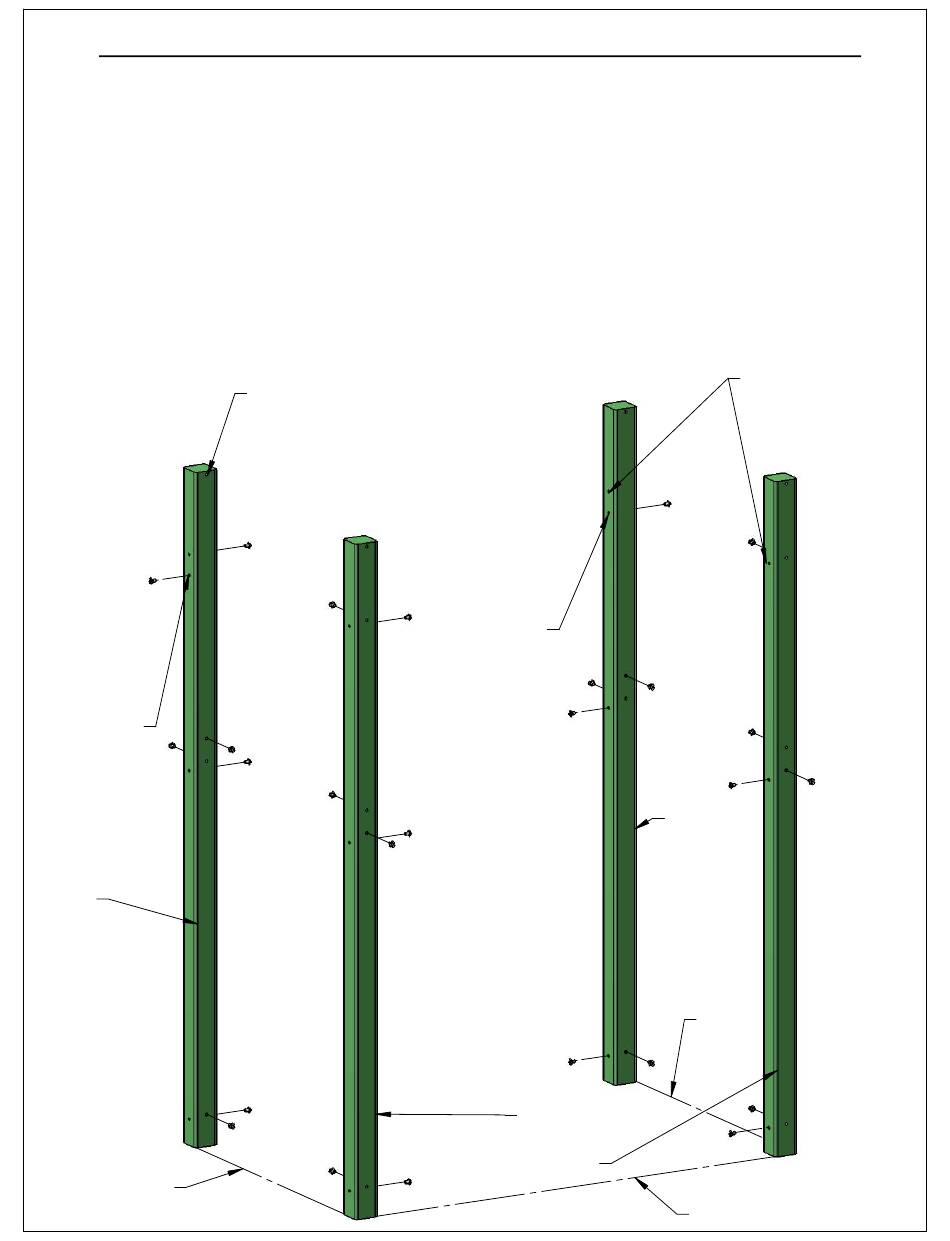

STEP 1: ATTACHING T-NUTS TO THE CORNER POSTS
1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED
TODIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS.
2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS.
3: LAY OUT EACH OF THE 4 X 4 X 96" CORNER POSTS IN THE AREA YOU INTEND ON BUILDING THE FORT SIDE OF
THE PLAYSET.
4: USE THE DIAGRAM BELOW TO CORRECTLY IDENTIFY AND ORIENT THE NECESSARY DIRECTION THE POSTS
SHOULD FACE.
5: USE A HAMMER TO SEAT THE T-NUTS AFTER INSERTING THEM INTO THE HOLES SHOWN IN THE DIAGRAM BELOW.
6: THE BARREL OF THE T-NUT SHOULD GO IN THE HOLE FIRST. HAMMER THE T-NUT UNTIL IT IS FLUSH/ALMOST FLUSH
TO THE CORNER POSTS.
7: PLACE A PLASTIC PLUG INTO ALL THE CORNER POST TOP HOLES. USE A DAB OF SILICONE ON THE PLUGS
TO SEAL THE HOLES.
MIDDLE
CORNER
POSTS
HAVE AN
EXTRA HOLE
HERE THAT
THE FRONT
POSTS DO
NOT HAVE.
4 X 4 X 96"
MIDDLE
CORNER
POST
LEFT SIDE OF FORT
HOLES AT THE TOP OF THE CORNER
POSTS SHOULD BE FACING THIS DIRECTION.
PLACE A PLASTIC PLUG INTO EACH OF
THE TOP HOLES IN ALL THE CORNER
POSTS. USE A DAB
OF SILICONE ON EACH PLUG
TO SEAL THE HOLES.
MIDDLE
CORNER
POSTS
HAVE AN
EXTRA HOLE
HERE THAT
THE FRONT
POSTS DO
NOT HAVE.
4 X 4 X 96"
FRONT
CORNER
POST
NO T-NUT IN THESE
HOLES (FOR SWING
BEAM MOUNT USING
CARRIAGE BOLTS.)
4 X 4 X 96"
MIDDLE
CORNER
POST
RIGHT
SIDE OF
FORT
FRONT OF FORT
46
