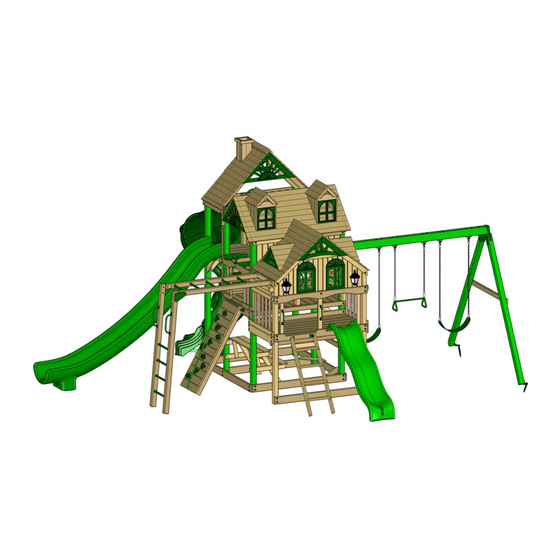

Timber Shield Post Option
BOXES: X3, 120
*51-0089-W*
51-0089-W
Empire
Model: 1500LW
(BOXES: 1501, 1504, 1506,
1514, 1528, 1529, 1535, 1535F,
1537, Rad Ride 7 Box, 14' Scoop
Slide (bagged) & Slide Box)
Copyright © 2017 Gorilla Playsets
All Rights Reserved
190 Etowah Industrial Court
Canton, GA 30114
www.gorillaplaysets.com
™
™
playsets
playsets

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Empire and is the answer not in the manual?

Questions and answers

Keli Schram
June 12, 2025

In step 3 the 2x6x47.5 in bottom panel board... what is the code stamped on that board... we can't find the board... not sure if it's missing or a mistake in what the stamp should say

0
1 comments:
Mr. Anderson
August 18, 2025

The code stamped on the 2x6x47.5 inch bottom panel board for the Gorilla Empire is 2-6-4750-ESPB.

This answer is automatically generated

0

Related Manuals for Gorilla Empire

Summary of Contents for Gorilla Empire

  • Page 1 BOXES: X3, 120 (BOXES: 1501, 1504, 1506, 1514, 1528, 1529, 1535, 1535F, 1537, Rad Ride 7 Box, 14’ Scoop Slide (bagged) & Slide Box) Copyright © 2017 Gorilla Playsets All Rights Reserved *51-0089-W* 190 Etowah Industrial Court Canton, GA 30114 www.gorillaplaysets.com...
  • Page 2 Please inspect and inventory all parts immediately upon accepting delivery. Use the inventory pages in the manual to make sure you have received all necessary parts. The quickest method to get any parts that are missing or damaged is to use our “Quick Response Center”...
  • Page 3 Gorilla will, at its discretion, replace any above ground part within the stated warranty period that is defective in workmanship or materials. This decision is subject to verification of the defect, which, at Gorilla’s discretion, may be accomplished by submitting photographs or by delivery of the defective part to Gorilla Playsets •...

  • Page 4: Safety Guidelines

    As with any home project, good judgment and respect for power tools will greatly reduce the risk of injury. Gorilla recommends you follow all tool manufacturers’ safety guidelines. Always wear eye protection and safety gloves to prevent injury. In several phases of construction two people may be required for lifting and securing of lumber.
  • Page 5 Product registration - emPire - Gorilla Playsets manufactures ™ 3 Easy Ways To REgisTER the finest quality products that are designed for outstanding Complete the online registration form at: oPtion 1 http://www.gorillaplaysets.com/register strength and durability. We back our products with unparalleled...
  • Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 7 IMPORTANT – PLEASE READ Congratulations! You have just purchase one of the finest residential wooden swing sets available today. As with any wooden product that spends its entire life outside, in varying elements, it is important to know what to expect with your new swing set so that your family can enjoy it for many years.
  • Page 8 Please review these safety rules regularly with your children. WARNING: Children must NOT use this play set until it has been completely assembled and inspected by an adult to ensure it has been properly installed. Gorilla Playsets 190 Etowah Industrial Court Canton, GA. 30114...
  • Page 9 Model: 1500LW Timber Shield Post Option BOXES: X3, 120 (BOXES: 1501, 1504, 1506, 1514, 1528, 1529, 1535, 1535F, 1537, Rad Ride 7 Box, 14’ Scoop Slide (bagged) & Slide Box) REV: 4.17.2017...

  • Page 10: Table Of Contents

    TABLE OF CONTENTS Safety Guidelines………………………………………..……......Pages 4-7 Leveling Fort, General Information and Definitions..........Pages 7-9 How to Install T-nuts, Board Identification, Predrill Lag Screw Directions and Swing Beam Loading..................Pages 10-14 Site Plan, Required Tool List and Kit Contents ……………………….....Pages 15-16 Hardware, Lumber and Accessory Checklists……………………………..Pages 17-56 Adding T-Nuts to Corner Posts (Middle Level Deck)...………..………...…....
  • Page 11 TABLE OF CONTENTS Hanging Swings……………………………………………………….…….……..Step 65 Upper Level Wood Roof Assembly.………………………..……....Steps 66-70 Middle Level Wood Roof Assembly..............Steps 71-76 Lower Level Wood Roof Assembly..............Steps 77-84 Wall Panel Boards....................Step 85 Plastic Sunburst..................... Step 86 Sandbox Seats and Name Plate................Step 87 Picnic Table....................
  • Page 12 Safety and Maintenance Tips for Your New Play Set: NOTE: Your children’s safety is our #1 concern. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Please review these safety rules regularly with your children. •...
  • Page 13 Safety and Maintenance Tips for Your New Play Set: (continued) Playgrounds should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries. • Hardware that is loose, worn or that has protrusions or projections. •...
  • Page 14 Play Set Surfacing Recommendations: Below are some of the recommendations that the U.S. Consumer Product Safety Commission (CPSC) offers from its Handbook for Public Playground Safety. The guide can be downloaded in full at www.cpsc.gov/PageFiles/122149/325.pdf 1. Protective Surfacing - Since almost 60% of all injuries are caused by falls to the ground, protective surfacing under and around all playground equipment is the most critical safety factor on playgrounds.
  • Page 15 2. Fall Zones - A fall zone, covered with a protective surfacing material, is essential under and around equipment where a child might fall. This area should be free of other equipment and obstacles onto which a child might fall. Stationary climbing equipment and slides should have a fall zone extending a Minimum of 6’...
  • Page 16 General Info to Review Before Installation • Depending on your experience, assembly of the playset can take as little as 6 hours up to 24 hours, depending on size, after inventory of parts; therefore, we recommend you set aside a full two days for assembly. •...
  • Page 17 This page is a list of definitions and explanations used throughout our instructions to aid you in the assembly of your play set. Offset Holes- Throughout the installation procedures we will refer to parts with offset holes. This refers to the orientation of the holes on the board. An offset hole is one that is closer to one side than it is the other or in other words, it is not centered on the board.
  • Page 18 Common Installation Practice Installing T-nuts When installing T-nuts into the wood, use a smooth faced hammer to set the face of the T-nut flush into the wood. Corner Post T-nut Insert the barrel of the T-nut into the predrilled hole. Using a smooth faced hammer, drive the T-nut until the face of the T-nut is flush to the wood.
  • Page 19 HOW A T-NUT WORKS THE FIRST STEP IN OUR ASSEMBLY INSTRUCTIONS IS TO INSERT T-NUTS INTO THE CORNER POSTS. A T-NUT IS A FASTENER WHICH IS THREADED ON THE INSIDE AND IT FUNCTIONS JUST LIKE A STANDARD HEX NUT. YOU INSERT THE T-NUTS INTO THE PREDRILLED HOLES IN THE CORNER POSTS.
  • Page 20 BOARD IDENTIFICATION 1. On the end of each board there should be a small white tag that is stapled or stuck into place. Remove the staples and/or tag after the board is installed. 2. This white identifcation tag displays the thickness, width, length and an abbreviated description of the part.
  • Page 21 PRE-DRILL LAG SCREW DIRECTIONS Pre-drilling holes for lag screws will make it easier to drive the screws in by hand. "Jobber" length drill bits are available in sizes that are longer than standard drill bits and those are ideal for the job. When using the drill bit you will have to "spot" drill the post and then remove the board you are attaching to finish drilling the hole.

  • Page 22: Swing Beam Loading

    SWING BEAM LOADING Weight Limits for Accessories: The weight limit for a Swing Belt is 225 lbs. (Although 150lbs is the maximum recommended swinging weight capacity for the swing position.) The weight limit for a Trapeze Bar is 125 lbs. Maximum Allowable swinging weight for a three position swing: 1) The maximum allowable swinging weight at each Swing Belt position is 150 lbs.
  • Page 23 Everest / Empire Please familiarize yourself with the manual, parts/components and general construction process of your new playset before getting started. SITE PLAN: 9'-10 " Swing Belts (2) Trapeze (1) 10'-1 " 3'-11 " 2'-6 " 2'-11 2 " 5'-6 "...
  • Page 24 REQUIRED TOOL LIST: ___ Standard or Cordless Drill w/ Phillips Bit (#2 square bit provided) ___ Drill Bits 1/8”, 3/8”, 9/64”, 11/64” and a 1” Paddle style bit. ___ ½” Wrench and Socket ___ ½” Deep Well Socket ___ 9/16” Deep Well Socket ___ 9/16”...
  • Page 25 1501 HARDWARE PAGE: 1 OF 2 REV A: 9/10/2014 JH #8 X 1" WOOD SCREW QTY: 2 #14 X 1-1/4" #8 X 1-3/4" PAN HEAD SCREW WOOD SCREW QTY: 4 QTY: 4 #8 X 2" WOOD SCREW QTY: 189 #8 X 2-1/2" WOOD SCREW QTY: 52 #8 X 3"...
  • Page 26 5/16" X 3-1/2" 3/8 X 3-1/2" HEX LAG HEX LAG SCREW SCREW QTY: 12 QTY: 12 1501 HARDWARE PAGE: 2 OF 2 REV A: 9/10/2014 JH #2 SQUARE DRIVE BIT QTY: 1 3/8 x 7" 3/8 x 6-1/2" 3/8 x 3-1/2" 3/8 x 9"...
  • Page 27 1504 HARDWARE PAGE: 1 OF 1 PRELIMINARY 9/18/2012 J.H. #8 X 2" WOOD SCREW QTY: 71 #8 X 2-1/2" WOOD SCREW QTY: 12 #8 X 3" WOOD SCREW QTY: 5 #10 x 3-1/2" WOOD SCREW #14 x 3" QTY: 2 PAN HEAD SCREW QTY: 3 5/16"...
  • Page 28 1506N HARDWARE #8 X 1-1/4" PAGE: 1 OF 1 WOOD SCREW QTY: 6 REV B: 8/18/2015 J.H. #8 X 1-1/2" WOOD SCREW QTY: 104 #8 X 2" WOOD SCREW QTY: 28 #8 X 2-1/2" WOOD SCREW QTY: 10 #8 X 3" WOOD SCREW QTY: 2 5/16"...
  • Page 29 1514 HARDWARE PAGE: 1 OF 1 PRELIMINARY 9/19/2012 J.H. END OF SCREW #10 X 2" SELF LOOKS SPLIT DRILLING SCREW SIMILAR TO A QTY: 18 DRILL BIT. #14 x 1-1/4" PAN HEAD SCREW QTY: 4 5/16" TEE NUT QTY: 8 3/8"...
  • Page 30 1528 HARDWARE #8 X 1" PAGE 1 OF 1 WOOD SCREW QTY: 2 1/16/2015 SO. #8 X 1-1/4" WOOD SCREW QTY: 25 #8 X 1-1/2" WOOD SCREW QTY: 110 #8 X 2" WOOD SCREW QTY: 25 #8 X 2-1/2" WOOD SCREW QTY: 12 #2 SQUARE DRIVE BIT...
  • Page 31 1529 HARDWARE #8 X 1-1/4" PAGE 1 OF 1 WOOD SCREW QTY: 22 1/16/2015 S.O. #8 X 1-1/2" WOOD SCREW QTY: 34 #8 X 1-3/4" WOOD SCREW QTY: 8 #8 X 2" WOOD SCREW QTY: 6 #8 X 2-1/2" WOOD SCREW QTY: 4 #2 SQUARE DRIVE BIT...
  • Page 32 11-0087 #8 X 3" 1535 Hardware WOOD SCREW QTY: 3 PAGE 1 OF 1 REV: C 4/12/2017 S.O. #8 X 2-1/2" WOOD SCREW QTY: 2 #8 X 2" WOOD SCREW QTY: 84 3/8" WASHER #8 X 1-1/2" QTY: 24 WOOD SCREW QTY: 130 #8 X 1-1/4"...
  • Page 33 11-2027 SUB BRACKET HARDWARE 3/8" X 2-1/2" 3/8" WASHER LAG SCREW QTY: 4 12/09/2015 QTY: 4 USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
  • Page 34 PICTURE DESCRIPTION QTY. 1501 2 X 4 X 13" ANGLE SUPPORT 2-4-1300-AS 2 X 4 X 14-3/4" PICNIC TABLE TOP SUPPORT 2-4-1475-PTTS NOT USED 2 X 4 X 17" LADDER STEP 2-4-1700-LS 2 X 4 X 18" ANGLE SUPPORT 2-4-1800-AS NOT USED 2 X 4 X 24"...
  • Page 35 PICTURE DESCRIPTION QTY. 2 X 4 X 47-1/2" SAFETY/END PANEL BOARD 2-4-4750-SBEP 2 X 4 X 58" SWING BEAM CROSS MEMBER 2-4-5800-CM NOT USED 2 X 4 X 66" LADDER RIGHT SIDE 2-4-6600-LRS NOT USED 2 X 4 X 66" LADDER LEFT SIDE 2-4-6600-LLS...
  • Page 36 PICTURE DESCRIPTION QTY. 2 x 4 x 70" REAR TOP PANEL BOARD 2-4-7000-RTPB 2 x 6 x 47-1/2" END SANDBOX/ BOTTOM PANEL BOARD 2-6-4750-ESPB 2 x 6 x 70" FRONT FACE BOARD 2-6-7000-FFB 2 x 6 x 70" SANDBOX BOARD 2-6-7000-SB 4 x 4 x 47-1/2"...
  • Page 37 PICTURE DESCRIPTION QTY. NOT USED 5/4 X 3 X 18-3/4" LADDER BACK 125-3-1875-LB 5/4 X 3 X 23-7/8" ROCK WALL 125-3-2387-RWC 2 NOT USED 5/4 X 3 X 28-1/4" PANEL SLATS 125-3-2825-PS 5/4 X 4 X 40-3/8" DECK SPACER 125-4-4038-DS 5/4 X 6 X 22"...
  • Page 38 PICTURE DESCRIPTION QTY. 5/4 X 6 X 43" PICNIC TABLE & SEAT BOARD 125-6-4300-PTTS 5/4 X 6 X 47-3/8" DECK BOARD 125-6-4737-DB...
  • Page 39 PICTURE DESCRIPTION QTY. 1504 2 X 4 X 18" ANGLE SUPPORT- UPPER LEVEL RAD RIDE SIDE 2-4-1800-ULRDAS 2 X 4 X 18" ANGLE SUPPORT- UPPER LEVEL REAR 2-4-1800-ULRAS 2 X 4 X 21-1/2" ANGLE SUPPORT- UPPER LEVEL SWING SIDE 2-4-2150-ULSAS 2 X 4 X 30-7/16"...
  • Page 40 PICTURE DESCRIPTION QTY. 1 NOT USED 2 X 6 X 30-7/16" SIDE BOTTOM PANEL BOARD 2-6-3043-SBPB 2 X 6 X 42-1/2" REAR BOTTOM PANEL BOARD 2-6-4250-RBPB 2 X 6 X 70" BACK PANEL BOARD 2-6-7000-BPB5 4 X 4 X 23-1/2" SLIDE BLOCK 4-4-2350-SB 4 X 4 X 30-1/2"...
  • Page 41 PICTURE DESCRIPTION QTY. 4 NOT USED 5/4 X 3 X 34-1/2" PANEL SLAT 125-3-3450-PS 5/4 X 4 X 25" RAD RIDE DECK SPACER 125-4-2500-RRDS 5/4 X 4 X 29-1/2" UPPER DECK SPACER 125-4-2950-UDS 5/4 X 4 X 35-1/2" REAR DECK SPACER 125-4-3550-RDS 5/4 X 4 X 63"...
  • Page 42 PICTURE DESCRIPTION QTY. 1506 1 X 4 X 30-1/2" ROOF FINISHER 1-4-3050-RF 1 X 4 X 30-1/2" ROOF STARTER 1-4-3050-RS 1 X 5 X 30-1/2" ROOF BOARD 1-5-3050-RB 1 X 6 X 30-1/2" ROOF PEAK 1-6-3050-RP NOT USED 2 X 4 X 18" CLOSE OUT BOARD 2-4-1800-COB...
  • Page 43 PICTURE DESCRIPTION QTY. 2 X 4 X 51-1/8" ROOF SUPPORT RIGHT 2-4-5113-RSR 4 X 4 X 33-5/16" UPPER LEVEL CENTER POST 4-4-3331-ULCP 4 X 4 X 59-1/2" LOWER LEVEL CENTER POST 4-4-5950-LLCP 4 X 4 X 60-1/4" LAG POST WOOD ROOF LEFT 4-4-6025-LPWL RIGHT HAS...
  • Page 44 PICTURE DESCRIPTION QTY. 1514 4 X 4 X 70" MONKEY BAR RUNNER-LEFT 4-4-7000-MBRL 4 X 4 X 70" MONKEY BAR RUNNER-RIGHT 4-4-7000-MBRR 4 X 4 X 86-1/4" MONKEY BAR LADDER 4-4-8650-MBL 4 X 4 X 70" LOWER LEVEL UNDER DECK SUPPORT 4-4-7000-MBS...
  • Page 45 PICTURE DESCRIPTION QTY. 1528 1 X 4 X 29.29" LEFT ROOF FINISHER FRONT 1-4-2929-RFFL 1-4-2929-RFFR RIGHT 1 X 4 X 76-7/8" ROOF STARTER REAR 1-4-7688-RSR 1 X 4 X 76-7/8" ROOF STARTER FRONT 1-4-7688-RSF 1 X 4 X 76-7/8" ROOF FINISHER REAR 1-4-7688-RFR 3 NOT USED...

  • Page 46: Wall Panel Boards

    PICTURE DESCRIPTION QTY. 1 X 4 X 12-1/4" WALL PANEL BOARD 1-4-1225-WPB 1 X 4 X 15-3/4" WALL PANEL BOARD 1-4-1575-WPB 1 X 4 X 19-5/16" WALL PANEL BOARD 1-4-1931-WPB 5/4 X 5 X 10.81" ROOF PANEL PEAK SUPPORT 125-5-1081-RPPS 5/4 X 6 X 10"...
  • Page 47 PICTURE DESCRIPTION QTY. 2 X 4 X 22.75" WALL PANEL SUPPORT LEFT (1 HOLE ON ON CENTER) 2-4-2275-WPSL RIGHT 2-4-2275-WPSR 2 X 4 X 35.15" LEFT ROOF SUPPORT (1 HOLE OFFSET) 2-4-3515-RSL 2-4-3515-RSR RIGHT NOT USED 2 X 4 X 69.75" ROOF FINISHER SUPPORT (2 HOLES ON...
  • Page 48 PICTURE DESCRIPTION QTY. 1535 1 X 2 X 10" WINDOW BATTEN 1-2-1000-WB 1 X 2 X 17-1/2" WINDOW BATTEN 1-2-1750-WB 1 X 4 X 10-1/4" WINDOW PANEL BOARD 1-4-1025-WPB 1 X 4 X 11-1/8" WINDOW PANEL BOARD 1-4-1113-WPB 1 X 4 X 16-1/2" WINDOW PANEL BOARD 1-4-1650-WPB...
  • Page 49 PICTURE DESCRIPTION QTY. 1 X 4 X 26" WINDOW PANEL BOARD 1 X 4 X 2600-WPB 1 X 4 X 27" WINDOW PANEL BOARD 1-4-2700-WPB 1 X 4 X 28" WINDOW PANEL BOARD 1-4-2800-WPB 1 X 5 X 38-7/8" ROOF BOARD 1-5-3888-RB 1 X 5 X 38-7/8"...
  • Page 50 PICTURE DESCRIPTION QTY. 5/4 X 4 X 63" DECK SPACER 125 X 4 X 6300-DS 5/4 X 4 X 69-7/8" DECK BOARD 125-4-6988-DB 5/4 X 6 X 12-7/8" ROOF PEAK SUPPORT 125-6-1281-RPS 5/4 X 6 X 69-7/8" DECK BOARD 125-6-6988-DB 2 X 4 X 14"...
  • Page 51 PICTURE DESCRIPTION QTY. 2 X 4 X 29-1/2" SUN SUPPORT 2-4-2950-SS 2 X 4 X 35-1/2" CENTER DECK SUPPORT 2-4-3550-CDS 2 X 4 X 35-1/2" TOP PANEL BOARD 2-4-3550-TPB 2 X 4 X 39" PANEL AND DECK SUPPORT 2-4-3900-PDS 2 X 4 X 46-3/8" REAR ROOF SUPPORT LEFT 2-4-4635-RRSL...
  • Page 52 PICTURE DESCRIPTION QTY. 2 X 4 X 47-7/8" FRONT ROOF SUPPORT RIGHT 2-4-4788-FRSR 2 X 4 X 57" LADDER SIDE LEFT 2-4-5700-LSL 2 X 4 X 57" LADDER SIDE RIGHT 2-4-5700-LSR 2 X 4 X 70" TRANSITION STEP 2-4-7000-DS 2 X 4 X 70" TOP PANEL BOARD 2-4-7000-TPB...
  • Page 53 PICTURE DESCRIPTION QTY. 2 X 6 X 70" FRONT TOP PANEL BOARD 2-6-7000-FTPB 2 X 6 X 70" SANDBOX BOARD 2-6-7000-SB 4 X 4 X 35-1/2" MONKEY BARS MOUNT 4-4-3550-MBM 4 X 4 X 28-1/2" CONNECTOR POST 4-4-2850-CP 4 X 4 X 32" CENTER POST 4-4-3200-CP 4 X 4 X 87-1/2"...
  • Page 54 PICTURE DESCRIPTION QTY. 2 X 13 X 46-1/2" ROOF PANEL RIGHT ASSEMBLY 2-13-4652-RPRA 1535F 2 X 6 X 70" SANDBOX BOARD 2-6-7000-SB 2 X 6 X 78" SIDE SANDBOX BOARD LEFT 2-6-7800-SBL 2 X 6 X 78" SIDE SANDBOX BOARD RIGHT 2-6-7800-SBR...
  • Page 55 PICTURE DESCRIPTION QTY. 4 X 4 X 108" PLASTIC COATED CORNER POST- FRONT 4 X 4 X 120" PLASTIC COATED CORNER POST- MIDDLE 4 X 4 X 120" PLASTIC COATED CORNER POST- REAR 4 X 4 X 108" PLASTIC COATED SWING LEG 4 X 6 X 120"...
  • Page 56 PICTURE DESCRIPTION QTY. WIKI WAVE SLIDE 03-0015-G SUPER SCOOP SLIDE 03-0007-G RIDE SLIDE 03-0002...
  • Page 57 PICTURE DESCRIPTION QTY. ROCK WALL ROPE SWING W/CHAINS 04-0002 TRAPEZE W/CHAINS 04-0006 SUB BRACKET 11-5017...
  • Page 58 PICTURE DESCRIPTION QTY. SWING PLATE 11-5002 CLIMBING ROCK (5 ROCKS ARE IN BAG) 07-0008 A-FRAME SWING BRACKET 11-5010 HARDWARE BOXES HARDWARE BOXES: 1501,1504, 1506, 1514, 1528, 1535, 1535F, 11-2027 INSTRUCTIONS...
  • Page 59 PICTURE DESCRIPTION QTY. GREEN BRACKET 11-5013 SPRING CLIP 11-4003 IRON DUCTILE SWING HANGER 11-4012...
  • Page 60 PICTURE DESCRIPTION QTY. UNASSEMBLED DORMER (1529 BOX) UNASSEMBLED CHIMNEY (1529 BOX SLIDE BOX ) TELESCOPE 07-0001...
  • Page 61 PICTURE DESCRIPTION QTY. PLASTIC SUNBURST 07-0028-G FRONT PLASTIC ARCH 07-0027-G DORMER WINDOW 07-0029-G SOLAR WALL LIGHT 09-2003...
  • Page 62 PICTURE DESCRIPTION QTY. MANUFACTURER (NOT SHOWN) LOGO PLATE GROUND STAKE (PAIR) 07-0016-P TIC TAC TOE (UNASSEMBLED) 07-0010 STEERING WHEEL 07-0004...
  • Page 63 PICTURE DESCRIPTION QTY. SAFETY HANDLE (2 HANDLES ARE IN ONE BAG) 07-0005 PLASTIC DORMER SUNBURST 07-0031-G UNASSEMBLED DORMERS (1537 BOX) BINOCULARS 07-0003 CHALKBOARD 07-0018...
  • Page 64 PICTURE DESCRIPTION QTY. CROWN 07-0019 PLASTIC WINDOW 07-0013-G 8-5/8"W X 6-1/2"H MONKEY BAR PLATE 11-5014 1-5/16" DIA. X 19-3/4L MONKEY 11-5104 16" SAFETY HANDLE 08-0001...
  • Page 65 STEP 1: ATTACHING T-NUTS TO THE CORNER POSTS 1: THIS STEP IS CRITICAL TO BUILDING THE FORT PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS. 2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS. 3: LAY OUT EACH OF THE 4 X 4 X 108"...

  • Page 66: Swing Beam Plate

    STEP 2: SWING BEAM PLATE 1: PLACE THE SWING BEAM PLATE ON TOP OF THE SWING BEAM MOUNT, LINING UP THE PILOT HOLES. 2: FASTEN THE SWING BEAM PLATE TO THE SWING BEAM MOUNT USING 3/8" X 3-1/2" CARRIAGE BOLTS ON TOP AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH. USE BOLT CAPS TO COVER ANY EXPOSED THREADS.
  • Page 67 STEP 3: ASSEMBLING THE RIGHT SIDE FRAME 1: LAY THE RIGHT SIDE CORNER POSTS ON THE GROUND IN THEIR PROPER ORIENTATION. 2: LAY THE 2 X 6 X 78" SIDE SANDBOX BOARD- RIGHT ON TOP OF THE RIGHT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS.
  • Page 68 STEP 4: ASSEMBLING THE LEFT SIDE FRAME 1: LAY THE LEFT SIDE CORNER POSTS ON THE GROUND IN THEIR PROPER ORIENTATION. 2: LAY THE 2 X 6 X 78" SIDE SANDBOX BOARD - LEFT ON TOP OF THE LEFT SIDE CORNER POSTS AT THE BOTTOM OF THE CORNER POSTS.
  • Page 69 STEP 5: DECK SUPPORTS YOU WILL NEED AN EXTRA PERSON FOR THIS STEP 1: WITH HELP, STAND UP THE LEFT AND RIGHT SIDE ASSEMBLIES. 2: FASTEN THE 2 X 4 X 70" DECK SUPPORTS TO THE HOLES AT 54-3/4" WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16"...
  • Page 70 STEP 6: FRONT FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 70" SANDBOX BOARD ON THE FRONT OF THE CORNER POSTS. THE HOLES IN THE SANDBOX BOARD SHOULD BE OFFSET UP. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED IN THE CORNER POSTS.
  • Page 71 STEP 7: REAR FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 70" SANDBOX BOARD ON THE BOTTOM REAR OF THE CORNER POSTS. THE HOLES IN THE SANDBOX BOARD MUST BE OFFSET UP. 2: USE 5/16 X 4-1/2" HEX BOLTS AND 5/16" WASHERS TO ATTACH THE TOP HOLES OF THE SANDBOX BOARD TO THE T-NUTS INSTALLED IN THE CORNER POSTS.
  • Page 72 STEP 8: LEVELING THE PLAY SET AND LAGS 1: INSTALL LAG SCREWS ONLY IN THE FOUR 2 X 6 BOARDS AT DECK HEIGHT AT THIS TIME. SQUARE EACH OF THESE FOUR BOARDS TO THE CORNER POSTS AND THEN INSTALL THE LAG SCREWS.
  • Page 73 STEP 9: BOTTOM PANEL BOARDS 1: PLACE THE 2 X 4 X 14" BOTTOM PANEL BOARD ON TOP OF THE 2 X 6 PANEL BOARD AND FASTEN TO THE CORNER POSTS WITH 5/16" X 3-1/2" LAG SCREWS WITH 5/16" WASHERS. 2 X 4 X 14"...
  • Page 74 STEP10: ANGLE SUPPORTS 1: TWO 2 X 4 X 13" ANGLE SUPPORTS ARE MOUNTED UNDER THE DECK ON THE RIGHT SIDE OF THE PLAY SET TO THE 2 X 6 BOTTOM PANEL BOARD. THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT.
  • Page 75 STEP 11: DECK SPACERS 1: PLACE THE 5/4 X 4 X 40-3/8" DECK SPACER AT ONE END OF THE FORT. CENTER THE BOARD BETWEEN THE CORNER POSTS AND ATTACH IT WITH 2" WOOD SCREWS THROUGH THE PREDRILLED HOLES INTO THE DECK SUPPORT BELOW.
  • Page 76 STEP 12: CENTER DECK SUPPORT 1: FIND THE 2 X 4 X 70" CENTER DECK SUPPORT WITHOUT HOLES. 2: FROM THE UNDERSIDE OF THE DECK SPACERS THAT WERE PREVIOUSLY INSTALLED, PLACE THE CENTER DECK SUPPORT AT THE CENTER OF THE DECK SPACERS (USE THE HOLE ON CENTER AS A GUIDE) AND DRAW A LINE ON THE OUTSIDE OF THE FORT TO REPRESENT A CENTER LINE.
  • Page 77 STEP 13: DECK BOARDS 1: START WITH A 5/4 X 6 X 47-3/8" DECK BOARD AT ONE END OF THE FORT. CENTER THE BOARD BETWEEN THE FRONT FACE BOARD AND THE REAR BOTTOM PANEL BOARD AND ATTACH IT WITH 2" WOOD SCREWS THROUGH THE PREDRILED HOLES AND INTO THE DECK SUPPORTS BELOW.
  • Page 78 STEP 14: CONNECTOR POSTS 1: TWO 4 X 4 x 28.5" CONNECTOR POSTS WILL BE USED TO EXTEND THE FRONT CORNER POSTS TO ACCEPT THE LOWER LEVEL PLATFORM. 2: MAKE SURE TO INSTALL THE T-NUTS INTO THE CONNECTOR POSTS SIDE HOLES AS SHOWN IN THE DRAWING BELOW BEFORE MOUNTING IT TO THE FRONT POSTS.
  • Page 79 STEP 15: LOWER LEVEL CORNER POST T-NUTS 1: THIS STEP IS CRITICAL TO BUILDING THE LOWER LEVEL PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS. 2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS. 3: LAY OUT EACH OF THE 4 X 4 X 87-1/2"...
  • Page 80 STEP 16: LOWER LEVEL PANEL BOARDS 1: PLACE THE 2 X 4 X 35.5" TOP PANEL BOARD FLUSH TO THE CONNECTOR POST. ATTACH THE COUNTERSUNK HOLE OF THE TOP PANEL BOARD TO THE T-NUT INSTALLED IN THE CONNECTOR POST USING ONE 5/16" X 4-1/2" HEX BOLT AND ONE 5/16"...
  • Page 81 STEP 17: LOWER LEVEL FRONT FRAME ASSEMBLY 1: PLACE THE 2 X 6 X 70" FRONT TOP PANEL BOARD ON THE FRONT OF THE LOWER LEVEL CORNER POSTS. THE HOLES IN THE FRONT TOP PANEL BOARD SHOULD BE OFFSET UP. 2: USE 5/16 X 4-1/2"...
  • Page 82 STEP 18: LEVELING THE LOWER LEVEL FRAME 1: INSTALL LAG SCREWS ONLY IN THE THREE 2 X 6 BOARDS AT DECK HEIGHT AT THIS TIME. SQUARE EACH OF THESE THREE BOARDS TO THE LOWER LEVEL CORNER POSTS AND THEN INSTALL THE LAG SCREWS. THIS IS TO MAKE THE STRUCTURE RIGID FOR THE LEVELING AND SQUARING PROCESS.
  • Page 83 STEP 19: LOWER LEVEL DECK SUPPORTS 1: FASTEN THE 2 X 4 X 39" PANEL AND DECK SUPPORTS TO THE HOLES AT 45" WITH 5/16" X 4-1/2" HEX BOLTS AND 5/16" WASHERS FROM THE INSIDE OF THE FORT. 5/16" WASHER 5/16"...
  • Page 84 STEP 20: LOWER LEVEL UNDER DECK SUPPORTS 1: PLACE THE 4 X 4 X 70" LOWER LEVEL UNDER DECK SUPPORT DIRECTLY UNDERNEATH THE LOWER LEVEL DECK SUPPORTS. ATTACH THE UNDER DECK SUPPORT TO THE LOWER LEVEL CORNER POSTS WITH 3/8" X 5" LAG SCREWS AND 3/8" WASHERS. 2: PLACE THE 2 X 4 X 70"...
  • Page 85 STEP 21: LOWER LEVEL DECK SPACER AND DECK BOARD 1: PLACE THE 5/4 X 4 X 63" DECK SPACER AT THE FRONT OF THE LOWER LEVEL FORT. CENTER THE BOARD BETWEEN THE LOWER LEVEL CORNER POSTS AND FLUSH TO THE FRONT FACE BOARD AND ATTACH IT WITH 2" WOOD SCREWS THROUGH THE PREDRILLED HOLES INTO THE LOWER LEVEL DECK SUPPORT BELOW.
  • Page 86 STEP 22: CENTER DECK SUPPORT 1: FIND THE 2 X 4 X 35.5" CENTER DECK SUPPORT WITHOUT HOLES. 2: FROM THE UNDERSIDE OF THE DECK SPACER AND DECK BOARD THAT WERE PREVIOUSLY INSTALLED, PLACE THE CENTER DECK SUPPORT AT THE CENTER OF THE DECK SPACER AND DECK BOARD (USE THE HOLE ON CENTER AS A GUIDE) CENTER THE 2 X 4 X 70"...
  • Page 87 STEP 23: LOWER LEVEL DECK BOARDS 1: START WITH A 5/4 X 6 X 69.875" DECK BOARD AT THE BACK OF THE LOWER LEVEL FORT. CENTER THE BOARD BETWEEN THE BOTTOM PANEL BOARDS AND ATTACH IT WITH #8 X 2" WOOD SCREWS THROUGH THE PREDRILLED HOLES AND INTO THE DECK SUPPORTS BELOW.
  • Page 88 STEP 24: PANEL SUPPORTS 2: PLACE THE 2 X 4 X 39" PANEL AND DECK SUPPORT ON TOP OF THE 2 X 6 BOTTOM PANEL BOARD WITH OFFSET HOLES DOWN AND FASTEN TO THE CORNER POSTS WITH 5/16" X 3-1/2" LAG SCREWS AND 5/16"...
  • Page 89 STEP 25: LADDER ASSEMBLY 1: LAY ONE 2 X 4 X 57” LADDER SIDE ON A FLAT SURFACE WITH CHANNELS FACING DOWN. PLACE THE BARREL OF A T-NUT IN THE HOLE AT THE TOP OF THE LADDER SIDE, AND SECURE WITH A HAMMER.
  • Page 90 STEP 26: LADDER TO FORT 1: PLACE THE LADDER INTO POSITION ON THE FRONT SIDE OF THE LOWER LEVEL FORT AS SHOWN BELOW.CENTER THE LADDER HORIZONTALLY ON THE 2 X 6. CENTER THE 90 BRACKETS VERTICALLY ON THE 2 X 6. USE THE HOLES IN THE LADDER BRACKETS AS A TEMPLATE TO DRILL 3/8"...

  • Page 91: Lower Level Steps

    STEP 27: LOWER LEVEL STEPS 1: PLACE THE TOP OF ONE 2 X 4 X 70" LOWER LEVEL STEP FLUSH WITH THE TOP OF THE MAIN LEVEL DECK BOARDS. LOWER LEVEL STEPS HAVE TWO HOLES THAT ARE CENTERED. 2: ATTACH THE UPPER LEVEL STEP TO THE POSTS WITH TWO 5/16" X 3-1/2" LAG SCREWS AND TWO 5/16"...
  • Page 92 STEP 28: MAIN LEVEL CENTER POST 1: LOCATE THE 4 X 4 X 32" CENTER POST AND PLACE IT CENTERED BEHIND THE HOLE IN THE TOP PANEL BOARD. 2: HAMMER A T-NUT INTO THE HOLE IN THE BACK SIDE OF THE CENTER POST. FASTEN THE CENTER POST TO THE TOP PANEL BOARD WITH A 5/16"...
  • Page 93 STEP 29: ROCK WALL 1: FIND TWO 2 X 4 X 66" ROCK WALL SIDES. 2: POSITION THE ROCK WALL SIDES SO THAT THE HOLES IN THE BOARDS ARE BOTH FACING THE SAME WAY. 3: INSERT T-NUTS INTO THE INSIDE OF THE ROCK WALL SIDES AND SET WITH A HAMMER. T-NUT 2 X 4 X 66"...
  • Page 94 STEP 30: ROCK WALL 1: FIND ELEVEN 5/4 X 6 X 23-7/8" ROCK WALL BOARDS, AND ONE 5/4 X 6 X 23-7/8" BOTTOM ROCK WALL BOARD(1 HOLE). 2: STARTING FROM THE TOP, PLACE ONE ROCK WALL BOARD ON TOP OF THE ROCK WALL SIDES, FLUSH TO THE TOP OF THE ROCK WALL SIDES, AND ATTACH WITH TWO 2"...
  • Page 95 STEP 31: ROCK WALL 1: FASTEN THE 90 GREEN BRACKET TO THE ROCK WALL SIDES WITH 5/16 X 1-1/2" HEX BOLTS AND 5/16" WASHERS. 2: DO NOT FULLY TIGHTEN THE HEX BOLTS INTO THE T-NUTS AT THIS TIME. GREEN BRACKET 5/16"...
  • Page 96 STEP 32: ROCK WALL 1: FIND TEN ROCKS AND THIRTY 1-1/4" PAN HEAD SCREWS AND WASHERS. 2: MOUNT THE ROCKS IN A STAGGERED MANNER ON THE ROCK WALL BOARDS. THREE PAN HEAD SCREWS WITH WASHERS WILL SECURE EACH ROCK TO THE WALL. NOTE: THE IMAGE SHOWN BELOW IS A GENERIC ARRANGEMENT OF ROCKS ON THE ROCK WALL.
  • Page 97 STEP 33: ATTACHING THE ROCK WALL 1: PLACE THE ROCK WALL INTO POSITION CENTERED ON THE LEFT SIDE OF THE MAIN LEVEL FORT AS SHOWN BELOW. THE GREEN BRACKETS SHOULD BE 2-1/4" ABOVE THE BOTTOM OF THE BOTTOM PANEL BOARD. USING THE 90 GREEN BRACKETS AS A TEMPLATE; DRILL A 3/8” HOLE THROUGH THE BOTTOM PANEL BOARD.
  • Page 98 STEP 33A: ANGLE SUPPORTS 1: TWO 2 X 4 X 13" ANGLE SUPPORTS ARE MOUNTED UNDER THE DECK ON THE ROCK WALL SIDE OF THE PLAY SET TO THE 2 X 6 BOTTOM PANEL BOARD. THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH OR LOWER THAN THE TOP OF THE DECK SUPPORT.
  • Page 99 STEP 34: UPPER LEVEL CORNER POST T-NUTS 1: THIS STEP IS CRITICAL TO BUILDING THE UPPER LEVEL PROPERLY. IF ANY MISTAKES ARE MADE HERE, YOU WILL NEED TO DIS-ASSEMBLE AND THEN RE-ASSEMBLE TO MAKE YOUR CORRECTIONS. 2: MAKE SURE HOLES ARE FREE OF ANY OBSTRUCTIONS. USE A BOLT TO CLEAN OUT ANY DEBRIS. 3: USE THE DIAGRAM BELOW TO CORRECTLY IDENTIFY AND ORIENT POSTS PROPERLY.
  • Page 100 STEP 35: LAG POSTS 1: TWO 4 X 4 60-1/4" LAG POSTS WILL BE USED TO EXTEND THE MIDDLE CORNER POSTS TO ACCEPT THE UPPER LEVEL ROOF. 2: MAKE SURE TO INSTALL THE T-NUTS INTO THE LAG POSTS TOP HOLES AS SHOWN IN THE DRAWING BELOW BEFORE MOUNTING IT TO THE MIDDLE POSTS.

  • Page 101: Upper Level Deck

    STEP 36: REAR CORNER POSTS & DECK SUPPORTS & SIDE TOP PANEL BOARDS TIP: BEFORE YOU INSTALL THESE BOARDS LEAVE THEM ALL A LITTLE LOOSE. WHEN YOU HAVE FASTENERS IN ALL THE BOARDS GO BACK AND TIGHTEN THEM ALL UP. 1: ATTACH THE BOTTOM OF THE REAR CORNER POSTS TO THE SIDE SANDBOX BOARDS WITH 5/16"...

  • Page 102: Upper Level Deck

    STEP 37: UPPER LEVEL - RAILING & UNDER DECK SUPPORT 1: PLACE THE 2 X 4 X 70" UPPER LEVEL STEPS/RAILING BOARD (3 HOLES ON CENTER) AT THE TOP OF THE REAR CORNER POSTS. THIS BOARD WILL GET ATTACHED TO THE 2ND HOLE DOWN FROM THE TOP OF THE POSTS.
  • Page 103 STEP 38: LOWER LEVEL REAR CENTER POST 1: HAMMER A T-NUT INTO THE 4 X 4 X 59-1/2" LOWER LEVEL CENTER POST HOLE. 2: ATTACH THE LOWER LEVEL CENTER POST TO THE MIDDLE HOLE OF THE 2 X 6 X 70" BACK PANEL BOARD.
  • Page 104 STEP 39: CENTER DECK SUPPORT ASSEMBLY NOTE: IT IS BEST TO PLACE THESE BOARDS UPON A FLAT SURFACE BEFORE ATTACHING THEM TOGETHER. 1: PLACE ONE 2 X 4 X 34" UPPER LEVEL CENTER DECK SUPPORT (OFFSET UP) ON THE RIGHT SIDE OF THE 4 X 4 X 30-1/2"...
  • Page 105 STEP 40: CENTER DECK SUPPORT ASSEMBLY INSTALLATION AND LAGS 1: PLACE THE CENTER DECK SUPPORT ASSEMBLY ON TOP OF THE 4 X 4 X 70" UPPER LEVEL UNDER DECK SUPPORT. THE 4 X 4 X 59-1/2" LOWER LEVEL CENTER POST SHOULD FIT INSIDE THE CENTER DECK SUPPORT ASSEMBLY. 2: MAKE THE CENTER DECK SUPPORT ASSEMBLY LEVEL WITH THE CENTER DECK SUPPORTS.
  • Page 106 STEP 41: SLIDE BLOCK 1: PLACE THE 4 X 4 X 23-1/2" SLIDE BLOCK AGAINST THE UPPER DECK SUPPORT ON THE LEFT SIDE (LADDER SIDE) OF THE PLAY SET. THE TOP OF THE BLOCK SHOULD BE FLUSH TO THE TOP OF THE DECK SUPPORT.
  • Page 107 STEP 42: ANGLE SUPPORT - UPPER LEVER REAR 1: PLACE A 2 X 4 X 18" ANGLE SUPPORT -UPPER LEVEL REAR AGAINST THE 4 X 4 X 70 UPPER LEVEL UNDER DECK SUPPORT ON EACH SIDE AT THE REAR OF THE PLAY SET. 2: THE TOP OF THE ANGLE SUPPORT SHOULD BE FLUSH TO THE TOP OF THE UNDER DECK SUPPORT.
  • Page 108 STEP 43: SIDE REAR ANGLE SUPPORTS 1: (SEE DETAIL A) PLACE THE 2 X 4 X 18" ANGLE SUPPORT UPPER LEVEL RAD RIDE SIDE UNDER THE 4 X 4 X 23-1/2" SLIDE BLOCK ON THE LEFT SIDE OF THE FORT. THE ANGLE SUPPORT SHOULD BE FLUSH TO THE LEFT SIDE OF THE LEFT REAR CORNER POST.
  • Page 109 STEP 44: UPPER LEVEL DECK SPACERS 1: MAKE SURE THE LOWER LEVEL CENTER POST HAS AN EQUAL OPENING ON EACH SIDE. 2: PLACE THE 5/4 X 4 X 29-1/2" UPPER DECK SPACERS BETWEEN THE LOWER LEVEL CENTER POST AND THE MIDDLE CORNER POSTS. ATTACH EACH UPPER DECK SPACER TO THE DECK SUPPORTS WITH #8 X 2"...
  • Page 110 STEP 45: SLIDE POST ASSEMBLY 1: PREDRILL TWO 1/8" PILOT HOLES CENTERED VERTICALLY ON THE NOTCH IN THE 4 X 4 X 43-1/2" RAD RIDE CENTER POST. 2: PLACE ONE END OF THE 5/4 X 4 X 25" RAD RIDE DECK SPACER INTO THE NOTCH IN THE RAD RIDE CENTER POST.
  • Page 111 STEP 46: SLIDE POST INSTALLATION 1: PLACE THE END OF THE DECK SPACER AGAINST THE CORNER POST. THE OUTSIDE OF THE DECK SPACER SHOULD BE FLUSH TO THE OUTSIDE OF THE CORNER POST. FASTEN THE DECK SPACER TO THE DECK SUPPORT WITH #8 X 2" WOOD SCREWS. 2: MAKE THE DECK SPACER LEVEL WITH THE DECK BOARD BEHIND IT.
  • Page 112 STEP 47: UPPER LEVEL REAR DECK SPACER 1: PLACE THE 5/4 X 4 X 35-1/2" REAR DECK SPACER ON TOP OF THE DECK SUPPORTS. THE END SHOULD BE FLUSH TO THE CORNER POST. THE OUTSIDE OF THE DECK SPACER SHOULD BE FLUSH TO THE OUTSIDE OF THE CORNER POST/CENTER POST.
  • Page 113 STEP 48: UPPER LEVEL DECK BOARDS 1: PLACE FOUR 5/4 X 6 X 69-7/8" UPPER DECK BOARDS ACROSS THE DECK SUPPORTS AS SHOWN. EQUALLY SPACE THE DECK BOARDS 5/16" FROM ONE ANOTHER AND FROM THE DECK SPACER. 2: SECURE EACH UPPER DECK BOARD TO THE DECK SUPPORTS WITH FIVE #8 X 2" WOOD SCREWS.
  • Page 114 STEP 49: UPPER LEVEL CENTER POST 1: PLACE THE 4 X 4 X 33-5/16" UPPER LEVEL CENTER POST AGAINST THE 4 X 4 X 59-1/2" LOWER LEVEL CENTER POST. FLUSH THE TOPS AND SIDES OF THE POSTS TOGETHER. 2: ATTACH THE 4 X 4 X 33-5/16" UPPER LEVEL CENTER POST TO THE 4 X 4 X 59-1/2" LOWER LEVEL CENTER POST WITH 3/8"...
  • Page 115 STEP 50: RAILING 1: PLACE THE 2 X 4 X 70" REAR TOP PANEL BOARD (RAILING) AGAINST THE MIDDLE POSTS, FLUSH WITH THE TOP END OF THE CENTER POST. 2: THE TOP OF THE RAILING SHOULD BE 33" ABOVE THE DECK BOARDS. 3: ATTACH THE RAILING TO THE LAG POSTS AND UPPER LEVEL CENTER POST WITH 5/16"...
  • Page 116 STEP 51: RADICAL RIDE TUBE SLIDE 1: ASSEMBLE THE RADICAL RIDE TUBE SLIDE ACCORDING TO THE DIRECTIONS INCLUDED WITH THE SLIDE. 2: PLACE THE SLIDE FACEPLATE AT THE OPENING AT THE REAR OF THE PLAY SET. THE SIDE OF THE FACE PLATE SHOULD BE 3/4"...
  • Page 117 STEP 52: UPPER LEVEL BOTTOM PANEL BOARDS 1: PLACE THE 2 X 6 X 30-7/16" SIDE BOTTOM PANEL BOARD (OFFSET UP) ON THE SWING BEAM SIDE (RIGHT SIDE) OF THE PLAYSET. ATTACH THE TOP HOLES OF THE BOARD TO THE POSTS WITH 5/16"...
  • Page 118 STEP 53: UPPER LEVEL STEPS 1: PLACE THE TOP OF ONE 2 X 4 X 70" UPPER LEVEL STEP FLUSH WITH THE TOP OF THE UPPER LEVEL DECK SPACERS. UPPER LEVEL STEPS HAVE THREE HOLES THAT ARE CENTERED. 2: ATTACH THE UPPER LEVEL STEP TO THE POSTS WITH THREE 5/16" X 3-1/2" LAG SCREWS AND THREE 5/16"...
  • Page 119 STEP 54: UPPER LEVEL REAR CENTER POST 1: PLACE THE 2 X 4 X 35-5/8" UPPER LEVEL REAR CENTER POST AGAINST THE REAR RAILING ON THE UPPER LEVEL. HAMMER A T-NUT INTO THE TOP HOLE IN THE UPPER LEVEL REAR CENTER POST.
  • Page 120 STEP 55: UPPER LEVEL PANEL SLATS 1: 5/4 X 3 X 34-1/2" PANEL SLATS WILL BE INSTALLED ON THE RIGHT AND REAR-RIGHT SIDES OF THE PLAY SET. THE PANEL SLATS WILL BE INSTALLED ON THE INSIDE OF THE BOTTOM PANEL BOARDS AND RAILINGS.
  • Page 121 STEP 56: MAIN LEVEL PANEL SLATS 1: PLACE THE 5/4 X 3 X 28-1/4" PANEL SLATS INTO THE OPENINGS AS SHOWN BELOW. SPACE THE SLATS AS INDICATED BY THE DIMENSIONS SHOWN. THERE ARE FOUR SLATS ON THE LEFT SIDE, SIX SLATS ON THE RIGHT SIDE OF THE MAIN LEVEL. 2: PLACE EACH SLAT AS SHOWN BELOW ON THE INSIDE OF THE PANEL BOARDS AND ATTACH EACH PANEL SLAT TO THE FORT WITH TWO #8 X 2"...
  • Page 122 STEP 57: LOWER LEVEL PANEL SLATS 1: PLACE THE 5/4 X 3 X 28-1/4" PANEL SLATS INTO THE OPENINGS AS SHOWN BELOW. SPACE THE SLATS AS INDICATED BY THE DIMENSIONS SHOWN. THERE ARE FIVE SLATS ON THE LEFT SIDE, FIVE SLATS ON THE RIGHT SIDE AND TWO SLATS ON THE FRONT OF THE LOWER LEVEL.
  • Page 123 STEP 58: IRON DUCTILE SWING HANGERS 1: LINE UP THE HOLES OF THE IRON DUCTILE SWING HANGERS WITH THE HOLES IN THE SWING BEAM. IF YOUR BEAM IS BOWED SLIGHTLY PLACE THE BOW SIDE UP; THE SWING HANGERS WILL BE ON THE BOTTOM. 2: FASTEN EACH SWING HANGER TO THE SWING BEAM USING 7"...
  • Page 124 STEP 59: ATTACH SWING LEGS TO BRACKET 1: PLACE THE 4 X 4 X 108" SWING LEGS FLUSH TO THE TOP OF THE SWING LEG BRACKET. 2: FASTEN THE SWING LEGS TO THE SWING LEG BRACKET WITH 3/8 X 3-1/2" LAG SCREWS AND 3/8" WASHERS. SWING LEGS FLUSH TO TOP OF SWING LEG BRACKET...

  • Page 125: Swing Beam Assembly

    STEP 60: REST SWING BEAM ON FORT 1: REST THE SWING BEAM ASSEMBLY ON TOP OF THE UPPER RAILING BOARDS OF THE FORT. 2: THE END OF THE SWING BEAM WITH 2 HOLES SHOULD OVERHANG THE SWING BEAM SIDE OF THE FORT.
  • Page 126 STEP 61: MOUNT SWING BEAM TO SWING BEAM LEGS 1: FASTEN THE SWING BEAM TO THE SWING BEAM BRACKET USING 7" CARRIAGE BOLTS WITH ONE TORQUE WASHER AND THE SUB BRACKET ON TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS WITH 3/8" WASHERS FROM UNDERNEATH.
  • Page 127 STEP 62: MOUNT SWING BEAM TO FORT 1: PLACE A 3/8" X 9" CARRIAGE BOLT THROUGH A TORQUE WASHER. INSERT THE CARRIAGE BOLT INTO THE HOLE AT THE END OF THE SWING BEAM OVER THE SWING BEAM MOUNT. ALIGN THE SQUARE SHANK OF THE CARRIAGE BOLT WITH THE SQUARE HOLE IN THE TORQUE WASHER. HAMMER THE CARRIAGE BOLT TO SET THE TORQUE WASHER INTO THE SWING BEAM.
  • Page 128 STEP 63: LEVEL SWING BEAM 1: PLACE A LEVEL ON TOP OF THE SWING BEAM AND ADJUST THE BEAM LEGS IN OR OUT AS NEEDED TO MAKE THE SWING BEAM LEVEL. IMPORTANT NOTE: THE LEGS ARE DESIGNED TO ACCOMODATE SWING BEAMS ON UNEVEN GROUND (DOWN SLOPE).
  • Page 129 STEP : SWING LEG CROSS-MEMBER 1: POSITION THE 2 X 4 X 58" SWING LEG CROSS-MEMBER AGAINST THE SWING BEAM LEGS. 2: LEVEL CROSS-MEMBER AND MARK THE LOCATION OF THE SECURING HOLES INSIDE THE CROSS-MEMBER HOLES. 3: USE 3/8 X 3-1/2" LAG SCREWS WITH 3/8" WASHERS TO SECURE THE CROSS-MEMBER TO THE SWING BEAM LEGS. 4: CHOOSE TWO HOLES IN THE SUB BRACKET THAT DO NOT INTERFERE WITH THE OTHER LAG SCREWS IN THE SWING LEG.
  • Page 130 STEP 65: HANGING THE SWINGS 1: START BY ATTACHING ONE SPRING CLIP TO EACH IRON DUCTILE ON THE SWING BEAM. 2: ATTACH ONE CHAIN PER ACCESSORY TO EACH SPRING CLIP. 3: ADJUST HEIGHT AS NEEDED. SPRING CLIP SWING CHAIN...
  • Page 131 STEP 66: ROOF SUPPORT ASSEMBLY 1: LOCATE FOUR 2 X 4 X 51-1/8" ROOF SUPPORT (LEFT), FOUR 2 X 4 X 51-1/8" ROOF SUPPORT (RIGHT) AND FOUR 5/4 X 6 X 10" ROOF PEAK SUPPORT PIECES. 2: FIND A FLAT SURFACE TO WORK ON. LAY THE ROOF SUPPORTS DOWN ON THE FLAT SURFACE WITH THE COUNTERSUNK HOLES FACING UP.
  • Page 132 STEP 66A: UPPER LEVEL ROOF SUPPORTS 1: PLACE TWO OF THE ROOF SUPPORT ASSEMBLIES ON THE UPPER LEVEL DECK. 2: THE (TRIANGLE) ROOF PEAK SUPPORT SHOULD FACE THE INSIDE. 3: ATTACH EACH ROOF SUPPORT ASSEMBLY TO THE LAG POSTS OR REAR CORNER POSTS WITH 5/16"...
  • Page 133 STEP 67: UPPER LEVEL ROOF 1: PLACE THE 1 X 4 X 30-1/2" GROOVE ONLY ROOF STARTERS AT THE PEAK OF THE UPPER LEVEL ROOF. THE HOLES IN THE ROOF STARTERS SHOULD BE CENTERED ON THE ROOF SUPPORTS, AND THE SMOOTH TOP SIDE OF THE ROOF STARTERS SHOULD BE PLACED AS CLOSE TO EACH OTHER AS POSSIBLE WITHOUT THE BOARDS OVERLAPPING.
  • Page 134 STEP 68: UPPER LEVEL ROOF 1: PLACE THE 1 X 6 X 30-1/2" ROOF PEAK ON TOP OF THE ROOF STARTER BOARDS. 2: FASTEN THE ROOF PEAK TO THE ROOF STARTER BOARDS WITH FOUR #8 X 1-1/4" WOOD SCREWS. #8 X 1-1/4" WOOD SCREW 1 X 6 X 30-1/2"...
  • Page 135 STEP 69: UPPER LEVEL ROOF 1: PLACE THE TONGUE OF A 1 X 5 X 30-1/2" ROOF BOARD INTO THE SLOT OF THE ROOF STARTER. ALIGN THE ENDS OF THE BOARDS. FASTEN THE ROOF BOARD TO THE ROOF SUPPORTS WITH #8 X 1-1/2"...

  • Page 136: Plastic Sunburst

    STEP 70: PLASTIC SUNBURST 1: MOUNT THE PLASTIC SUNBURST TO THE ROOF SUPPORTS ON THE FRONT AND REAR OF THE ROOF. THE PLASTIC SUNBURST MUST BE UP AGAINST THE OVERHANGING ROOF BOARDS. FASTEN THE PLASTIC SUNBURST TO THE ROOF SUPPORTS USING TWO #8 X 2-1/2" WOOD SCREWS ON THE TOP AND SIX #8 X 2"...
  • Page 137 STEP 71: ROOF SUPPORT ASSEMBLIES 1: LOCATE TWO 2 X 4 X 35.15" ROOF SUPPORT (LEFT), TWO 2 X 4 X 35.15" ROOF SUPPORT (RIGHT) AND TWO 5/4 X 6 X 10" ROOF PEAK SUPPORT PIECES. 2: FIND A FLAT SURFACE TO WORK ON. LAY THE ROOF SUPPORTS DOWN ON THE FLAT SURFACE WITH THE COUNTERSUNK HOLES FACING DOWN.
  • Page 138 STEP 72: ROOF SUPPORTS (MAIN LEVEL) 1: PLACE TWO OF THE ROOF SUPPORT ASSEMBLIES ON THE MAIN LEVEL DECK. 2: THE (TRIANGLE) ROOF PEAK SUPPORT SHOULD FACE THE INSIDE. 3: ATTACH EACH ROOF SUPPORT ASSEMBLY TO THE MAIN LEVEL CORNER POSTS WITH 5/16 X 4-1/2"...
  • Page 139 STEP 73: ROOF STARTER REAR 1: PLACE THE 1 X 4 X 76-7/8" ROOF STARTER BOARD AT THE PEAK OF THE ROOF. THE HOLES IN THE ROOF STARTER SHOULD BE CENTERED ON THE ROOF SUPPORTS, AND THE FLAT TOP END OF THE ROOF STARTER SHOULD BE PLACED FLUSH TO THE PEAK OF THE ROOF SUPPORTS. 2: FASTEN THE ROOF STARTER REAR TO THE ROOF SUPPORTS WITH 1-1/2"...
  • Page 140 STEP 74: ROOF REAR SECTION 1: PLACE THE 1 X 5 X 76-7/8" ROOF BOARDS ON TOP OF THE ROOF SUPPORTS, FITTING THE TONGUE END INTO THE GROOVE END OF THE ROOF STARTER REAR. THIS SIDE OF THE ROOF GETS FOUR BOARDS. 2: FASTEN THE ROOF BOARDS TO THE ROOF SUPPORTS WITH 1-1/2"...
  • Page 141 STEP 75: ROOF FRONT SECTION 1: PLACE THE 1 X 4 X 76-7/8" ROOF STARTER FRONT BOARD AT THE PEAK OF THE ROOF OVERLAPPING THE ROOF STARTER REAR. THE HOLES IN THE ROOF STARTER FRONT SHOULD BE CENTERED ON THE ROOF SUPPORTS, AND THE FLAT TOP END OF THE ROOF STARTER FRONT SHOULD BE PLACED FLUSH TO THE TOP EDGE OF THE ROOF STARTER REAR.
  • Page 142 STEP 76: DORMERS 1: USE THE INSTRUCTIONS PROVIDED IN THE APPENDIX TO BUILD THE DORMERS. AFTER INSTALLING THE SEVENTH ROOF BOARD, INSTALL THE DORMER MOUNTING BLOCK 9-3/4" FROM THE SIDE EDGE OF THE ROOF TO THE SIDE EDGE OF THE DORMER MOUNTING BLOCK, AND 15" FROM THE BOTTOM EDGE OF THE SEVENTH ROOF BOARD TO THE TOP EDGE OF THE DORMER MOUNTING BLOCK.
  • Page 143 STEP 77: LOWER LEVEL FRONT ROOF SUPPORT ASSEMBLY 1: LOCATE ONE 2 X 4 X 47.88" FRONT ROOF SUPPORT (LEFT), ONE 2 X 4 X 47.88" FRONT ROOF SUPPORT (RIGHT) AND ONE 5/4 X 6 X 12.81" ROOF PEAK SUPPORT. 2: FIND A FLAT SURFACE TO WORK ON.
  • Page 144 STEP 78: LOWER LEVEL REAR ROOF SUPPORT ASSEMBLY 1: LOCATE ONE 2 X 4 X 47.35" REAR ROOF SUPPORT (LEFT), ONE 2 X 4 X 47.35" REAR ROOF SUPPORT (RIGHT) AND ONE 5/4 X 6 X 10.81" ROOF PEAK SUPPORT. 2: FIND A FLAT SURFACE TO WORK ON.
  • Page 145 STEP 79: MOUNTING LOWER LEVEL ROOF SUPPORTS 1: PLACE THE REAR ROOF SUPPORT ASSEMBLY AGAINST THE MAIN LEVEL FRONT CORNER POST AND REST ON TOP OF THE LOWER LEVEL CONNECTOR POSTS. THE (TRIANGLE) ROOF PEAK SUPPORT SHOULD FACE BACK TOWARDS THE MAIN LEVEL ROOF. 2: MAKE SURE THE BOTTOM ENDS OF THE REAR ROOF SUPPORT ASSEMBLY ARE FLUSH TO THE MAIN LEVEL CORNER POSTS SIDE FACES.
  • Page 146 STEP 80: ROOF PANEL ASSEMBLIES TO FORT 1: MOUNT THE ROOF PANEL ASSEMBLY (LEFT) AND ROOF PANEL ASSEMBLY (RIGHT) ON TOP OF THE LOWER LEVEL ROOF SUPPORTS ASSEMBLIES (FRONT & REAR). MAKE SURE EACH ROOF PANEL ASSEMBLY BEVEL END IS FLUSH TO THE MAIN LEVEL ROOF. 2: UNDERNEATH THE ROOF PANEL ASSEMBLIES, THE FRONT AND REAR BATTEN SHOULD BE FLUSH BETWEEN THE ROOF SUPPORT ASSEMBLIES (FRONT AND REAR).
  • Page 147 STEP 81: ROOF 1: PLACE THE 1 X 5 X 38.875" ROOF BOARDS ON TOP OF THE ROOF SUPPORTS, FITTING THE TONGUE END INTO THE GROOVE END OF THE ROOF PANEL ASSEMBLY. EACH SIDE OF THE ROOF GETS 7 ROOF BOARDS. 2: FASTEN THE ROOF BOARDS TO THE ROOF SUPPORTS WITH 1-1/2"...
  • Page 148 STEP 82: WALL PANEL SUPPORTS 1: PLACE THE 2 X 4 X 22.75" WALL PANEL SUPPORT LEFT ANGLED END ON TOP OF THE GABLE ASSEMBLY LEFT SIDE AND THE OPPOSITE END WITH THE COUNTERSUNK HOLE FLUSH AGAINST THE LEFT FRONT CORNER POST. MAKE SURE THE ANGLED END OF THE WALL PANEL SUPPORT IS FLUSH TO THE INSIDE OF THE ROOF PANEL.
  • Page 149 STEP 83: ROOF FINISHERS 1: PLACE THE 1 X 4 X 29.29" ROOF FINISHER FRONT LEFT ANGLED END ON TOP OF THE ROOF PANEL ASSEMBLY LEFT SIDE. PLACE THE 1 X 4 X 29.29" ROOF FINISHER FRONT RIGHT ANGLED END ON TOP OF THE ROOF PANEL ASSEMBLY RIGHT SIDE.
  • Page 150 STEP 84: ROOF BATTEN 1: PLACE THE 1 X 2 X 32" ROOF BATTEN UP AGAINST THE FRONT ROOF PANEL, CENTERED BETWEEN THE ROOF SUPPORTS, FLUSH THE BOTTOM EDGE OF THE ROOF BATTEN TO THE BOTTOM EDGE OF THE SEVENTH ROOF BOARD, MAKE SURE IS PARALLEL TO THE ROOF SUPPORTS.

  • Page 151: Wall Panel Boards

    STEP 85: WALL PANEL BOARDS 1: START MOUNTING THE 1 X 4 X 19.31" WALL PANEL BOARD AGAINST THE LEFT SIDE OF THE LOWER LEVEL ROOF SUPPORT ASSEMBLY REAR AND THE WALL PANEL SUPPORT LEFT. THE SIDE EDGE OF THE WALL PANEL BOARD MUST BE PARALLEL AND 1/4"...
  • Page 152 STEP 86: PLASTIC SUNBURST 1: MOUNT THE PLASTIC SUNBURST TO THE ROOF SUPPORTS ON THE LEFT AND RIGHT SIDE OF THE ROOF, THE PLASTIC SUNBURST MUST BE UP AGAINST THE OVERHANGING ROOF BOARDS. FASTEN THE PLASTIC SUNBURST TO THE ROOF SUPPORTS USING TWO #8 X 2-1/2"...

  • Page 153: Sandbox Seats And Name Plate

    STEP 87: SANDBOX SEATS AND NAME PLATE 1: PLACE THE 5/4 X 6 X 22" SANDBOX SEATS ONTO THE TOP OF THE SANDBOX BOARDS AS SHOWN BELOW. 2: ATTACH THE SANDBOX SEATS TO THE SANDBOX BOARDS WITH #8 X 2" WOOD SCREWS. 3: LOCATE THE NAME PLATE FOR YOUR PLAY SET.

  • Page 154: Picnic Table

    STEP 88: PICNIC TABLE 1: LOCATE TWO 2 X 4 X 14-3/4" PT TOP SUPPORTS, TWO 2 X 4 X 27-1/2" PT SEAT SUPPORTS, TWO 2 X 4 X 32-1/2" PT LEGS AND TWO 5/4 X 3 X 13-1/4" PICNIC TABLE SLATS. 2: FOR THE LEFT SIDE ASSEMBLY, PLACE A 2 X 4 X 14-3/4"...
  • Page 155 STEP 88A: PICNIC TABLE 1: MEASURE UP 26-3/8" FROM THE BOTTOM OF THE CORNER POSTS ON THE LEFT SIDE OF THE PLAYSET. MAKE MARKS ON THE INSIDE OF THE CORNER POSTS WITH A PEN OR PENCIL AT 26-3/8". 2: PLACE THE TOP OF THE RIGHT SIDE ASSEMBLY FLUSH TO THE MARK ON THE LEFT-MIDDLE CORNER POST. ATTACH THE RIGHT SIDE ASSEMBLY TO THE INSIDE OF THE CORNER POST WITH #8 X 3"...
  • Page 156 STEP 88B: PICNIC TABLE 1: LOCATE FOUR 5/4 X 6 X 43" PT TOP AND SEAT BOARDS. 2: CENTER THE HOLES IN THE BOARDS OVER THE TOP OR SEAT SUPPORTS. 3: FASTEN THE PT TOP AND SEAT BOARDS TO THE TOP OR SEAT SUPPORTS WITH #8 X 2-1/2" WOOD SCREWS. 5/4 X 6 X 43"...

  • Page 157: Safety Boards

    STEP 89: SAFETY BOARDS 1: MEASURE 24" FROM THE BOTTOM OF THE CORNER POSTS ON THE RIGHT SIDE OF THE MAIN FORT. MARK THESE POSITIONS ON THE OUTSIDE OF THE CORNER POSTS. ATTACH THE 2 X 4 X 47-1/2" SAFETY BOARD WITH OFFSET HOLES ON THE CORNER POSTS WITH 5/16 X 3-1/2"...
  • Page 158 STEP 90: ASSEMBLING THE MONKEY BAR LADDER 1: SEE FRONT SIDE BELOW. START WITH 4 X 4 X 86-1/2"L LADDER SIDES. WITH THE LARGE HOLES FACING YOU INSTALL A TEE NUT INTO THE TWO SMALL HOLES AT THE END OF EACH SIDE. 2: SEE FRONT SIDE BELOW.
  • Page 159 STEP 91: ASSEMBLING THE MONKEY BAR ASSEMBLY 1: PLEASE NOTE: THERE IS A LEFT AND RIGHT MONKEY BAR RUNNER (SEE BOTTOM LEFT PICTURES BELOW). 2: START WITH THE 4 X 4 X 70" MONKEY BAR RUNNERS. WITH THE FIVE LARGE HOLES FACING YOU INSTALL A 5/16"...
  • Page 160 STEP 92: ATTACHING THE LADDER TO THE MONKEY BAR ASSEMBLY 1: LOCATE TWO 8-5/8" W X 6-1/2"H MONKEY BAR PLATES, EIGHT 5/16" X 3-1/2"L HEX BOLTS AND EIGHT 5/16" FLAT WASHER. LOOSELY ATTACH THE LADDER ASSEMBLY TO THE MONKEY BAR ASSEMBLY WITH THE MONKEY BAR PLATES.
  • Page 161 STEP 93: MONKEY BAR MOUNT 1: CENTER THE MONKEY BAR ASSEMBLY ON TOP OF THE 4 X 4 X 35.5" MONKEY BAR MOUNT. THE COUNTERSUNK HOLES IN THE MONKEY BAR ASSEMBLY SHOULD FACE UP. 2: THE END OF THE MONKEY BAR ASSEMBLY SHOULD BE FLUSH AGAINST THE INSIDE FACE OF THE MONKEY BAR MOUNT.
  • Page 162 STEP 94: ATTACHING THE MONKEY BAR FILLER BOARD 1: FIND ONE 2 X 4 X 28" MONKEY BAR FILLER BOARD AND ATTACH IT TO THE MONKEY BAR ASSEMBLY USING 5/16" X 2-1/2" LAG SCREWS AND 5/16" WASHERS THROUGH THE FILLER BOARD COUNTERSUNK HOLES INTO THE MONKEY BAR RUNNERS (LEFT &...
  • Page 163 STEP 95: MOUNTING THE MONKEY BARS TO THE FORT 1: CENTER THE MONKEY BAR ASSEMBLY MONKEY BAR MOUNT BETWEEN THE LOWER LEVEL CORNER POST AND THE CONNECTOR POST. 2: LEVEL THE MONKEY BAR ASSEMBLY TO THE FORT AND VERIFY THE THE MONKEY BAR MOUNT IS PARALLEL TO THE TOP PANEL BOARD FROM UNDERNEATH.
  • Page 164 STEP 95A: MONKEY BAR FILLER BOARD 1: MEASURE THE GAP BETWEEN THE MONKEY BAR MOUNT AND THE TOP PANEL BOARD (RAILING). IF THE DISTANCE IS 3-1/2" OR MORE THEN USE THE 2 X 4 X 35.5" TOP PANEL BOARD (FILLER BOARD) TO CLOSE UP THE OPENING. ATTACH IT TO THE LOWER LEVEL CORNER POST AND CONNECTOR POST WITH 5/16"...
  • Page 165 STEP 96: ATTACHING THE SAFETY HANDLES 1: LOCATE THE TWO GREEN SAFETY HANDLES, FOUR #14 X 1-1/4" PAN HEAD SCREWS AND FOUR 1/4" FLAT WASHERS. 2: ATTACHING EACH SAFETY HANDLE TO THE LADDER SIDE WITH TWO #14 X 1-1/4" PAN HEAD SCREWS AND TWO 1/4"...

  • Page 166: Ground Stakes

    STEP 97: GROUND STAKES 1: HAMMER A GROUND STAKE INTO THE EARTH NEXT TO EACH SWING LEG AT AN ANGLE. DO NOT HOLD THE UPPER PORTION OF THE STAKE AFTER THE FIRST COUPLE OF HITS OR IT MAY VIBRATE HARSHLY AGAINST YOUR HAND. IF THE TOP PART OF THE STAKE TWISTS WHEN IT ENCOUNTERS A ROCK OR ROOT YOU MAY HAVE TO BEND THE TOP PORTION OF THE STAKE AGAINST THE SWING LEG.
  • Page 167 STEP 98: TIC TAC TOE ASSEMBLY 1: LOCATE THE TIC TAC TOE BOX. 2: FOLLOW THE INSTRUCTIONS IN THE BOX TO ASSEMBLE THE TIC TAC TOE OMITTING STEPS 6 AND 7. 3: LOCATE TWO 5/4 X 3 X 17-1/2" TIC TAC TOE MOUNTS. 4: USE THE SCREWS INCLUDED WITH THE TIC TAC TOE TO ATTACH THE GREEN BRACKETS TO THE TIC TAC TOE MOUNTS.
  • Page 168 STEP 99: TIC TAC TOE INSTALLATION 1: PLACE THE TIC TAC TOE AGAINST THE PANEL SLATS AT THE RIGHT SIDE OF THE PLAYSET (SWING BEAM SIDE) ON THE INSIDE OF MAIN LEVEL. THE TIC TAC TOE MOUNT SHOULD BE APPROXIMATELY 4" OFF THE DECK. 2: ATTACH THE TIC TAC TOE MOUNTS TO THE PANEL SLATS WITH #8 X 1-3/4"...

  • Page 169: Rock Wall Rope

    STEP 100: INSTALLING THE ROCK WALL ROPE 1: USE A 1" PADDLE BIT TO DRILL A HOLE IN THE CENTER OF THE TOP PANEL BOARD. THIS IS THE ONLY TIME YOU WILL NEED THIS DRILL BIT IN THE ASSEMBLY. YOU MAY PUT IT AWAY AFTER DRILLING THE HOLE.

  • Page 170: Telescope

    STEP 101: TELESCOPE 1: WITH THE 1-1/4" WOOD SCREWS PROVIDED IN THE TELESCOPE BAG, FASTEN ONE OF THE SQUARE TELESCOPE BRACKETS TO THE TOP PANEL BOARD ON THE ROCK WALL SIDE OF THE MAIN LEVEL. 2: PLACE THE TELESCOPE STAND AND TELESCOPE INTO THE SLOT OF THE TELESCOPE BRACKET. 3: FASTEN THE REMAINING TELESCOPE BRACKET TO THE OPPOSITE SIDE THAT THE FIRST TELESCOPE BRACKET WAS INSTALLED ON WITH 1-1/4"...

  • Page 171: Steering Wheel

    STEP 102: STEERING WHEEL 1: GO TO THE REAR CENTER POST ON THE DECK (UPPER LEVEL). 2: DRILL A 3/16" PILOT HOLE 1" BELOW THE CENTER OF THE T-NUT. DRILL THE HOLE 2" DEEP. 3: PLACE THE STEERING WHEEL INSERT INSIDE THE STEERING WHEEL. 4: USE THE 2-1/2"...

  • Page 172: Super Scoop Slide

    STEP 103: ATTACHING SUPER SCOOP SLIDE 1: PLACE THE SUPER SCOOP SLIDE IN THE OPENING AT THE LEFT SIDE OF UPPER LEVEL OF THE FORT. LAY THE SLIDE ON THE DECK WITH THE LIP EXTENDING ONTO THE DECK. 2: ATTACH THE SLIDE TO THE DECK WITH #14 X 3" PAN HEAD SCREWS. **DO NOT OVER TIGHTEN** #14 X 3"...

  • Page 173: Lower Level Front Center Post

    STEP 104: LOWER LEVEL FRONT CENTER POST 1: LOCATE THE 2 X 4 X 28-9/16" CENTER POST. PLACE THE 2 X 4 X 28-9/16" CENTER POST CENTERED BEHIND THE HOLE IN THE FRONT TOP PANEL BOARD. 2: HAMMER A T-NUT INTO THE HOLE IN THE BACK SIDE OF THE CENTER POST. FASTEN THE CENTER POST TO THE FRONT TOP PANEL BOARD WITH A 5/16"...

  • Page 174: Safety Handles

    STEP 105: SAFETY HANDLES(UPPER/MAIN/LOWER) LEVEL 1: LOCATE THE SAFETY HANDLE BAGS. 2: ADJUST THE SAFETY HANDLES UP OR DOWN TO SUIT THE NEEDS OF YOUR CHILD. 3: ATTACH EACH SAFETY HANDLE TO THE PANEL SLAT, CENTER POSTS AND CORNER POSTS WITH TWO PAN HEAD SCREWS AND TWO WASHERS PROVIDED WITH THE SAFETY HANDLES.

  • Page 175: Sun Support

    STEP 106: SUN SUPPORT 1: PLACE THE 2 X 4 X 29.5" SUN SUPPORT UNDERNEATH THE LOWER LEVEL FRONT ROOF SUPPORTS. MAKE SURE THE SUN SUPPORT IS LEVEL. ATTACH THE SUN SUPPORT THROUGH THE PRE-DRILLED HOLES IN THE BOTTOM TO THE ROOF SUPPORTS WITH 2-1/2" WOOD SCREWS. 2 X 4 X 29.5"...

  • Page 176: Wall Panel Boards

    STEP 107: WALL PANEL BOARDS 1: MOUNT THE 1 X 4 X 26" WINDOW PANEL BOARD ABOVE THE LOWER LEVEL CENTER POST. THE END WITH TWO PRE- DRILLED HOLES SHOULD BE OFFSET TO THE TOP. MAKE SURE IT IS STRAIGHT VERTICALLY AND FASTEN IT TO THE SUN SUPPORT USING TWO #8 X 1-1/2"...

  • Page 177: Window And Crowns

    STEP 108: WINDOW AND CROWNS 1: PLACE EACH PLASTIC WINDOW INTO THE FRONT OPENINGS, WITH THE 1" WIDE SECTION OF THE WINDOW FRAME AT THE TOP. ATTACH EACH WINDOW WITH FOUR #8 X 1-1/4" WOOD SCREWS. 2: CENTER THE WINDOW CROWN OVER THE TOP OF THE PLASTIC WINDOW AND ATTACH THE CROWN TO THE TOP WINDOW PANEL BOARDS WITH #8 X 1"...

  • Page 178: Wall Panel Boards

    STEP 109: WALL PANEL BOARDS 1: MOUNT THE 1 X 4 X 24" WINDOW PANEL BOARD NEXT TO THE 1 X 4 X 27" WINDOW PANEL BOARD INSTALLED ON PREVIOUS STEPS. LEAVE A 1/4" GAP BETWEEN THEM. THE ANGLED END MUST BE OFFSET UP AND PARALLEL TO THE ROOF SUPPORT.FASTEN IT USING FOUR #8 X 1-1/2"...

  • Page 179: Solar Wall Light

    STEP 110: SOLAR WALL LIGHTS 1: WITH A PENCIL MAKE A CENTER MARK ON THE OUTSIDE FACE OF THE 1 X 4 X 21" WINDOW PANEL BOARD, MEASURE 8-5/8" HORIZONTALLY FROM THE OUTSIDE EDGE OF THE CORNER POST TOWARDS THE CENTER OF THE WALL PANEL BOARD AND 10" FROM THE TOP EDGE OF THE FRONT TOP PANEL BOARD UP TOWARDS THE CENTER OF THE WALL PANEL BOARD AS SHOWN IN THE DIAGRAM BELOW.
  • Page 180 STEP 111: MOUNTING THE SLIDE 1: PLACE THE SLIDE IN THE OPENING AT THE FRONT RIGHT OF THE LOWER LEVEL. LAY THE SLIDE ON THE DECK WITH THE LIP EXTENDING ONTO THE DECK. 2: PREDRILL 1/8" HOLES INTO THE DECK BOARDS AT THE SCREW LOCATIONS. 3: ATTACH THE SLIDE TO THE DECK BOARDS WITH #14 X 1-1/4"...
  • Page 181 APPENDIX...
  • Page 182 1529 HARDWARE #8 X 1-1/4" PAGE 1 OF 1 WOOD SCREW QTY: 22 1/16/2015 S.O. #8 X 1-1/2" WOOD SCREW QTY: 34 #8 X 1-3/4" WOOD SCREW QTY: 8 #8 X 2" WOOD SCREW QTY: 6 #8 X 2-1/2" WOOD SCREW QTY: 4 #2 SQUARE DRIVE BIT...
  • Page 183 PICTURE DESCRIPTION QTY. DORMER SUNRAY ASSEMBLY 2-10-1355-DS DORMER ROOF PANEL ASSEMBLY 2-13-1828-DRPA DORMER SIDE RIGHT ASSEMBLY 2-17-1850-DSRA DORMER SIDE LEFT ASSEMBLY 2-17-1850-DSLA DORMER MOUNT 2-3-1150-DM CHIMNEY FRONT ASSEMBLY 2-8-1500-CFA CHIMNEY RIGHT SIDE ASSEMBLY 2-10-1500-CRS...
  • Page 184 PICTURE DESCRIPTION QTY. CHIMNEY LEFT SIDE ASSEMBLY 2-10-1500-CLS CHIMNEY REAR ASSEMBLY 2-8-0700-CRA CHIMNEY MOUNTING BLOCK 2-3-0675-CMB...
  • Page 185 STEP 1: DORMER SUNRAYS AND SIDES 1: FIND ONE DORMER SIDE LEFT ASSEMBLY AND ONE DORMER SIDE RIGHT ASSEMBLY. 2: FIND TWO DORMER SUNRAY ASSEMBLIES. 3: PLACE THE TWO DORMER SUNRAY ASSEMBLIES BETWEEN THE DORMER SIDE LEFT ASSEMBLY AND DORMER SIDE RIGHT ASSEMBLY. ONE DORMER SUNRAY ASSEMBLY FLUSH TO THE FRONT FLAT END OF THE DORMER SIDE ASSEMBLIES AND THE OTHER DORMER SUNRAY ASSEMBLY FLUSH TO THE REAR FLAT END OF THE DORMER SIDE ASSEMBLIES AS SHOWN BELOW.
  • Page 186 STEP 2: DORMER WINDOW 1: MOUNT THE DORMER WINDOW IN THE FRONT OF THE DORMER, THE WINDOW SHOULD FIT IN BETWEEN THE DORMER SIDES AND THE DORMER SUNRAY. THE BACK FACE OF THE WINDOW MUST BE RESTING AGAINST THE DORMER SIDES BATTENS. 2: MAKE SURE THE HOLES ON THE DORMER WINDOW ARE CENTERED WITH THE DORMER SIDES BATTENS AND THE DORMER SIDES ARE FLUSH TO THE SIDE EDGES OF THE DORMER WINDOW AND FASTEN WITH #8 X 1-1/2"...
  • Page 187 STEP 3: DORMER ROOF PANELS 1: FIND TWO DORMER ROOF PANEL ASSEMBLIES. 2: PLACE ONE DORMER ROOF PANEL ASSEMBLY ON TOP OF THE DORMER SUNRAY ASSEMBLIES, THE ROOF PANEL BOARDS MUST OVERHANG EQUALLY OFF THE FRONT AND BACK, MAKE SURE THE PRE-DRILLED HOLES ON THE ROOF PANEL ARE CENTERED WITH THE TOP FACE OF THE DORMER SUNRAY ASSEMBLES.
  • Page 188 STEP 4: CHIMNEY 1: FIND THE FRONT AND LEFT SIDE OF THE CHIMNEY. 2: ATTACH THE FRONT AND LEFT SIDES OF THE CHIMNEY WITH A 2" WOOD SCREW. USE A 2" WOOD SCREW IN THIS LOCATION CHIMNEY FRONT CHIMNEY LEFT SIDE 1: FIND THE REAR AND RIGHT SIDE OF THE CHIMNEY.
  • Page 189 STEP 5: CHIMNEY 1: ATTACH THE CHIMNEY SIDES FROM THE PREVIOUS SIDES TO FORM THE CHIMNEY WITH 2" AND 1-1/4" WOOD SCREWS. USE A 2" WOOD SCREW IN THIS LOCATION (EACH SIDE) USE 1-1/4" WOOD SCREWS IN THIS LOCATION (EACH SIDE)
  • Page 190 STEP 6: CHIMNEY 1: FASTEN THE 5/4 X 3 X 6-3/4" CHIMNEY MOUNTING BLOCK TO THE ROOF WITH 1-1/2" WOOD SCREWS. YOU CAN PLACE THE BLOCK AT ANY DESIRED PLACE ON THE ROOF. USE THE DIAGRAM BELOW AS A GUIDE AS TO WHERE YOU MIGHT INSTALL YOUR CHIMNEY.
  • Page 191 Jumbo Binoculars (07-0003) 1: Attach the Binocular Base to the top of the wood railing on your play set. Fasten with one 5/16" x 1-1/4" lag screw and one 8mm washers included with the Binoculars. 2: Place the bottom side of the Binoculars with the hole in it inside the Binocular Base. Line up the holes in the Binocular Base with the hole on the bottom side of the Binoculars.
  • Page 192 Chalkboard (07-0018) 1. Chalkboard may be mounted with the checkerboard "horizontal" or "vertical". 2. Attach Chalkboard to wood slats or plywood with four of the 3/4" (20mm)long pan head screws provided. Please note: Chalkboard comes with a magnetic chalk holder which will stick to the chalkboard.
  • Page 193 PICTURE DESCRIPTION QTY. 1537 DORMERS PLASTIC DORMER SUNBURST (07-0031) DORMER RIGHT SIDE ASSEMBLY DORMER LEFT SIDE ASSEMBLY...
  • Page 194 STEP 1: DORMER 1: OVERLAP THE LEFT DORMER SIDE ONTO THE PEAK SUPPORT OF THE RIGHT DORMER SIDE. 2: MAKE SURE THE FRONT ROOF EDGES ARE FLUSH TO ONE ANOTHER 3: FASTEN THE LEFT DORMER SIDE TO THE PEAK SUPPORT WITH #8 X 1-1/2" WOOD SCREWS. REPEAT SUBSTEPS 1-3 TO CONSTRUCT ANOTHER ROOF ASSEMBLY.
  • Page 195 STEP 2: DORMER 1: PLACE THE PLASTIC DORMER SUNBURST AGAINST THE FRONT FACE SUPPORT ON THE LEFT AND RIGHT ROOF SIDES. 2: PREDRILL 7/64" PILOT HOLES BY 1/2" DEEP INTO THE ROOF SIDES AT EACH HOLE LOCATION. 3: INSTALL #8 X 1/2" PAN HEAD SCREWS TO FASTEN THE SUNBURST TO THE ROOF SIDES. REPEAT SUBSTEPS 1 THROUGH 3 TO CONSTRUCT THE SECOND DORMER.
  • Page 196 STEP 3: DORMER 1: PLACE THE DORMER ASSEMBLY ON THE ROOF AS SHOWN. 2: LINE UP THE BOTTOM EDGE OF THE PLASTIC SUNBURST WITH THE LOWER EDGE OF THE 6TH ROOF BOARD AS SHOWN IN YOUR MANUAL ON STEP 81. 3: CENTER THE DORMER FROM SIDE TO SIDE ON TOP OF THE ROOF.
