Good Earth Lighting SE1303-WH3-00LFW-G Manual

Diffuser
Diffuseur
Difusor
Wall plate
Plaque murale
Placa de pared
SHUT OFF POWER AT THE CIRCUIT BREAKER OR FUSE PANEL BEFORE REMOVING
THE OLD FIXTURE OR INSTALLING THE NEW ONE.
1. This fixture can only be installed over a recessed electrical box, OR a UL Listed
surface mount electrical box rated for wet locations. Surface mount electrical
boxes require the use of the foam gasket (included), to prevent water seeping into
the electrical box.
2. Do not look directly at LEDs for extended period of time. Can cause eye damage.
3. LEDs can be damaged by electrostatic discharge shock. Before installation,
discharge yourself by touching a grounded bare metal surface to remove this
hazard.
READ ENTIRE INSTALLATION PROCEDURE BEFORE YOU BEGIN!
WALL MOUNT EAVE MOUNT
Recommended Mounting Height: 7-15 ft.
Minimum Mounting Height: 7 ft.
NOTE: Mounting the fixture above the 7-15 ft. range
can result in a decrease in the sensor detection range.
WARNING!
Installation FOR ROUND SURFACE
1 SURFACE
MOUNT ELECTRICAL BOXES
AA/BB
x2
EE x1
DD x1
Pull supply wires out of the junction box (j-box). With the side marked "FRONT" facing out, attach the mounting strap (DD) to the j-box with
1 SURFACE
machine screws (AA or BB). Remove the protective liner from adhesive side of the gasket (EE). Guide the j-box wires through the gasket
opening. Aligning the center holes of the gasket and mounting strap and apply the gasket to the outer edge of round edge of the j-box.
1 RECESSED
Pull supply wires out of the junction box (j-box). With the side marked "FRONT" facing out, attach the mounting strap (DD) to the j-box with
machine screws (AA or BB).
2
FF
x1
Light head
Tête de la lampe
Cabeza de luz
Electrical disconnect plug
Fiche de déconnexion électrique
Enchufe de desconexión eléctrica
Motion Sensor (PIR) Head
Tête du détecteur de mouvement
passif à infrarouge (PIR)
Cabeza del sensor de movimiento (PIR)
* Actual hardware may differ from illustration/ * Les éléments de fixation réels peuvent être différents de ceux de l'illustration./ * Es posible que los herrajes reales difieran de los de la ilustración.

WARNINGS AND CAUTIONS

HOW TO CHOOSE A LOCATION SITE

IMPORTANT!! READ BEFORE YOU BEGIN!
BOX MOUNT
Select a location that allows the sensor to perform to its highest level.
The fixture can be mounted three distinct ways: WALL MOUNT, EAVE MOUNT or BOX
MOUNT.
This security light uses passive infrared (PIR) technology to automatically turn on the light.
Passive infrared does not detect motion, but sensing differences in ambient temperatures,
versus warmer objects in its field of view. As such, the sensor can be set off by a variety of
other sources, including dryer vents, hot tubs, and the like. The PIR sensor cannot detect
motion through plexiglass or glass barriers. Select an installation location carefully. Do not
aim the PIR towards areas having frequent pedestrian or motorized traffic, and/or other
objects that generate areas of warmer air. All of these may trigger the motion sensor security
light and maybe disruptive to the intended operation of the light.
Do NOT install near other sources of light, which can fool the built-in light sensor into thinking
it is daylight, and may prevent the proper operation of the light.

INSTALLATION

SHUT OFF POWER BEFORE REMOVING OR INSTALLING ANY FIXTURE.
The fixture can be mounted to a round surface mount or a recessed electrical box.
RED WHITE BLACK
GROUND NEUTRAL LIVE
LAMPE DE SÉCURITÉ INTELLIGENTE À DEL POUR L'EXTÉRIEUR (Page 3)
LUZ DE SEGURIDAD LED INTELIGENTE PARA EXTERIORES (Página 6)
Model / Model / Modelo #: SE1303-WH3-00LFW-G, SE1303-BP2-00LFW-G
Lower Motion Sensor
Détecteur de mouvement inférieur
Sensor de movimiento inferior
Pairing Button
Bouton d'appariement
Botón de emparejamiento
4. Minimum 90°C supply conductors. For fixture electrical ratings, see fixture label.
5. If unsure if the electrical box is properly grounded, or the box is plastic and has
no ground wire, or are unfamiliar with the methods of properly grounding fixture,
consult a qualified electrician.
6. Do NOT use this fixture with dimmers.
7. Fixture will reliably operate between temperatures from -20°F to 122°F.
(At temperatures above 92°F, the PIR may not detect body heat.)
AA/BB
x2
DD x1
Push the ends of the house wires from the J-box into the contact holes of
the electrical disconnect-plug from the hardware kit (FF), carefully match
the color of the black and white wires corresponding to the color coded
surface of the connector. Insert the house ground wire into the hole marked
by the red surface. Verify the wires are secure.

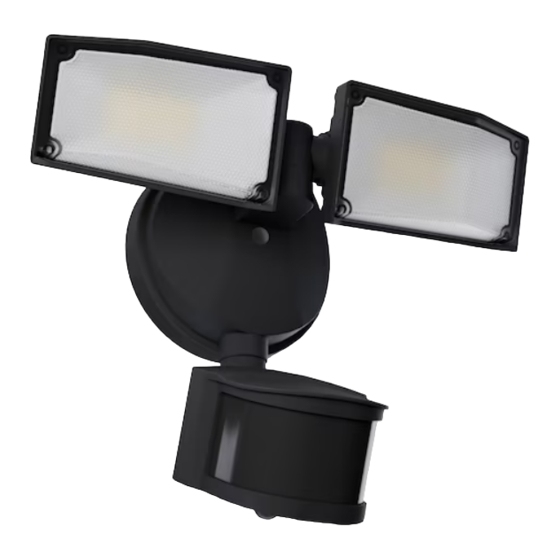

OUTDOOR LED SMART SECURITY LIGHT (Page 1)
Hardware kit* / Kit de petit
matériel de fixation*/
Kit de aditamentos*
AA BB CC
x2 x2 x1
DD
x1
GND
FRON T
EE
x1
FF
x1
INSTALLATION FOR RECESSED
ELECTRICAL BOXES
Required/
Nécessaire/
Se necesita
1
