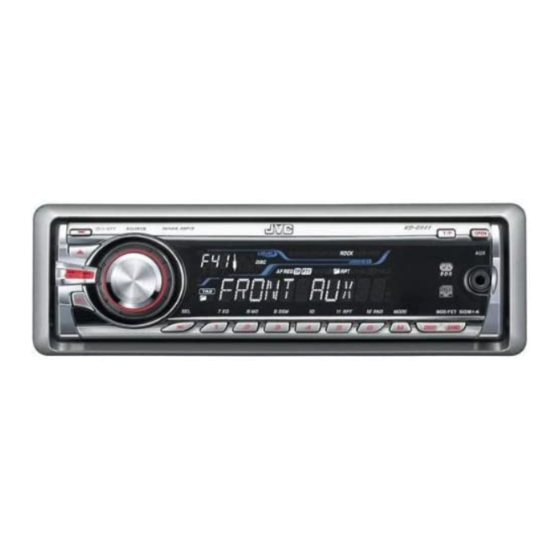

- Page 1 All manuals and user guides at all-guides.com CD RECEIVER KD-G541 For canceling the display demonstration, see page 5. For installation and connections, refer to the separate manual. INSTRUCTIONS GET0495-003A [EX/EU]...
- Page 2 All manuals and user guides at all-guides.com Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. IMPORTANT FOR LASER PRODUCTS 1.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com How to reset your unit CONTENTS Control panel ........4 Getting started ........ 5 Basic operations ........... 5 Radio operations ......6 • Your preset adjustments will also be erased (except the FM RDS operations ......7 registered Bluetooth device, see page 16). -
Page 4: Control Panel
All manuals and user guides at all-guides.com Control panel Parts identification Display window ¢ buttons BAND button (standby/on/attenuator) button Remote sensor ∞ (up)/ (down) buttons • You can control this unit with an optionally Source button / Control dial purchased remote controller. For details, see Display window pages 24 and 25. -
Page 5: Getting Started
All manuals and user guides at all-guides.com Sound mode (iEQ: intelligent equalizer) • For DAB tuner indicators—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER EQ (equalizer) indicator ⁄ Bluetooth indicator Adjust the volume. Disc information indicators— TAG (Tag information), (folder), (track/file) Playback source indicators—... -
Page 6: Radio Operations
All manuals and user guides at all-guides.com To tune in to a station manually Finish the procedure. In step ! on the left column... To check the current clock time while the power is turned off Clock time is shown on the display for about 5 seconds. -
Page 7: Fm Rds Operations
All manuals and user guides at all-guides.com FM RDS operations What you can do with RDS RDS (Radio Data System) allows FM stations to send an “SSM” flashes, then disappears when automatic additional signal along with their regular programme presetting is over. signals. - Page 8 All manuals and user guides at all-guides.com Using the standby receptions Start searching for your favorite programme. TA Standby Reception TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any If there is a station broadcasting a programme source other than AM.
-
Page 9: Disc Operations
All manuals and user guides at all-guides.com To deactivate the PTY Standby Reception, select To check the current clock time while “OFF” for the PTY code (see page 14). The PTY indicator listening to an FM RDS station goes off. Station name (PS) Station Frequency... -
Page 10: Playing Discs In The Cd Changer
(for MP3 or WMA discs) directly To select a number from 01 – 06: About the CD changer It is recommended to use a JVC MP3-compatible CD changer with your unit. To select a number from 07 – 12: • You can also connect MP3-incompatible CD changers. - Page 11 Other main functions Changing the display information Skipping tracks quickly during play While playing an audio CD or CD Text Only possible on JVC MP3-compatible CD changer Disc title/performer * Track • For MP3 or WMA discs, you can skip tracks within the...
-
Page 12: Sound Adjustments
All manuals and user guides at all-guides.com Sound adjustments Selecting the playback modes You can use only one of the following playback modes You can select a preset sound mode suitable to the at a time. music genre (iEQ: intelligent equalizer). Select your desired playback mode. -
Page 13: General Settings - Psm
All manuals and user guides at all-guides.com Indication, [Range] General settings — PSM BASS * , [–06 to +06] You can change PSM (Preferred Setting Mode) items Adjust the bass. listed in the table on pages 14 and 15. MIDDLE * (mid-range), [–06 to +06] Adjust the mid-range frequencies sound level. - Page 14 All manuals and user guides at all-guides.com Indications Item Selectable settings, [reference page] ( : Initial) DEMO • DEMO ON : The display demonstration will be activated automatically if no Display demonstration operation is done for about 20 seconds, [5]. •...
- Page 15 : Frequencies lower than 180 Hz are sent to the subwoofer. EXT INPUT * • CHANGER : To use a JVC CD changer, [10], an Apple iPod, [22]. External input • EXT INPUT : To use any other external component, [23, 24].
-
Page 16: Using The Bluetooth ® Devices
All manuals and user guides at all-guides.com Registering using “OPEN” Using the Bluetooth ® Preparation: devices Operate the device to turn on its Bluetooth function. For Bluetooth operations, it is required to connect the Select “BT-PHONE” or “BT-AUDIO.” Bluetooth Adapter (KS-BTA200) to the CD changer jack on the rear of this unit. -
Page 17: Using The Bluetooth Cellular Phone
All manuals and user guides at all-guides.com Connecting/disconnecting/deleting a Use the Bluetooth device to search and registered device connect. On the device to be connected, enter the same Select “BT-PHONE” or “BT-AUDIO.” PIN code you have just entered for this unit. “CONNECTED”... - Page 18 When a text message comes in..If the cellular phone is compatible with text message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTOMATIC” (see pages 19 and 20), the unit rings to inform you of the message arrival.
-
Page 19: Using The Bluetooth Audio Player
Bluetooth audio player to start playback. connected and it is compatible with text message • If playback does not pause when you change the (notified through JVC Bluetooth adapter). source, operate the Bluetooth audio player to pause Bluetooth Audio: Shows only “VERSION.”... -
Page 20: Dab Tuner Operations
The Bluetooth software and hardware versions are shown. Start searching for an ensemble. Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc-victor.co.jp/english/car/>. When an ensemble is received, searching stops. To stop searching, press the same button again. - Page 21 All manuals and user guides at all-guides.com ⁄ Tuning in to a preset DAB service Select a service (either primary or secondary) to listen to. Select the preset DAB service (primary) number (1 – 6) you want. To tune in to an ensemble manually Start searching for an ensemble, as in step ! on page 20...
-
Page 22: Ipod Operations
All manuals and user guides at all-guides.com iPod operations Selecting a track from the menu This unit is ready for operating an Apple iPod. Enter the main menu. Before operating, connect the Interface adapter for iPod, KS-PD100 (separately purchased) to the CD ∞... -
Page 23: Other External Component Operations
All manuals and user guides at all-guides.com Other external component Selecting the playback modes operations You can connect an external component to... • CD changer jack on the rear using the Line Input Select your desired playback mode. Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied) Repeat play •... -
Page 24: Remote Controller
All manuals and user guides at all-guides.com Ÿ Remote controller — Turn on the connected component and RM-RK50 start playing the source. This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We Adjust the volume. recommend that you use remote controller RM-RK50 with your unit. - Page 25 All manuals and user guides at all-guides.com ∞ / SOURCE buttons Main elements and features • For Bluetooth cellular phone: – Answers calls if pressed briefly. – Rejects calls if pressed and held. buttons • Searches for stations (or DAB services) if pressed briefly.
-
Page 26: Maintenance
All manuals and user guides at all-guides.com To keep discs clean Maintenance A dirty disc may not play correctly. If a disc does become dirty, wipe it with How to clean the connectors a soft cloth in a straight line from center Frequent detachment will deteriorate the connectors. -
Page 27: More About This Unit
All manuals and user guides at all-guides.com • If you want to know more about RDS, visit More about this unit <http://www.rds.org.uk>. Basic operations Disc operations Turning on the power Caution for DualDisc playback • By pressing SOURCE on the unit, you can also turn on •... - Page 28 All manuals and user guides at all-guides.com • CD-RWs may require a longer readout time since the • This unit can play back files recorded in VBR (variable reflectance of CD-RWs is lower than that of regular bit rate). CDs. Files recorded in VBR have a discrepancy in the •...
- Page 29 Bluetooth function. If the message does be performed correctly or as intended. In this case, not disappear, turn off and turn on the visit the following JVC web site:<http://www.jvc. unit, then connect the device again (or co.jp/english/car/support/ks-pd100/index.html> reset the unit).
- Page 30 • The Bluetooth word mark and logos are owned by “VOLUME 30.” the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
-
Page 31: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms Remedies/Causes • Sound cannot be heard from the speakers. • Adjust the volume to the optimum level. •... - Page 32 All manuals and user guides at all-guides.com Symptoms Remedies/Causes • Tracks are not played back in the order you The playback order is determined when the files are have intended. recorded. • The elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the tracks are recorded on the disc.
- Page 33 All manuals and user guides at all-guides.com Symptoms Remedies/Causes • “NO DISC” appears on the display. Insert a disc into the magazine. • “NO MAGAZINE” appears on the display. Insert the magazine. • “RESET 8” appears on the display. Connect this unit and the CD changer correctly and press the reset button of the CD changer.
-
Page 34: Specifications
All manuals and user guides at all-guides.com Specifications AUDIO AMPLIFIER SECTION Maximum Power Output: Front and Rear: 50 W per channel Continuous Power Output (RMS): Front and Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. - Page 35 All manuals and user guides at all-guides.com CD PLAYER SECTION Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio 98 dB Wow and Flutter:...
- Page 36 This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited JVC Technology Centre Europe GmbH Postfach 10 05 52 61145 Friedberg Germany © 2007 Victor Company of Japan, Limited...
