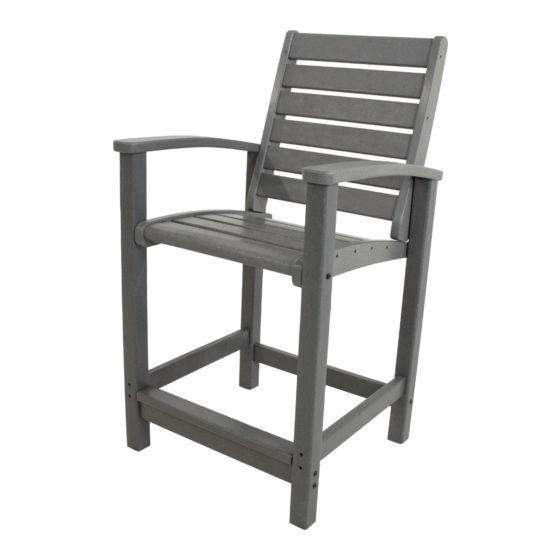

Polywood 1911 Quick Start Manual

MODEL: 1911 - 1912
- (2) Side frames RH/LH
- (1) Seat assembly
- (1) Back assembly
- (1) Medallion brace
- (1) Foot rest
- (1) Hardware pack
Tools Needed
4MM HEX KEY, ALLEN, T-HANDLE
(INCLUDED)
QTY DESCRIPTION
A - 1/4-20 X 1-3/4 WAFER SHCS
6
B - .27 X 3 SOCKET WAFER "A"
8

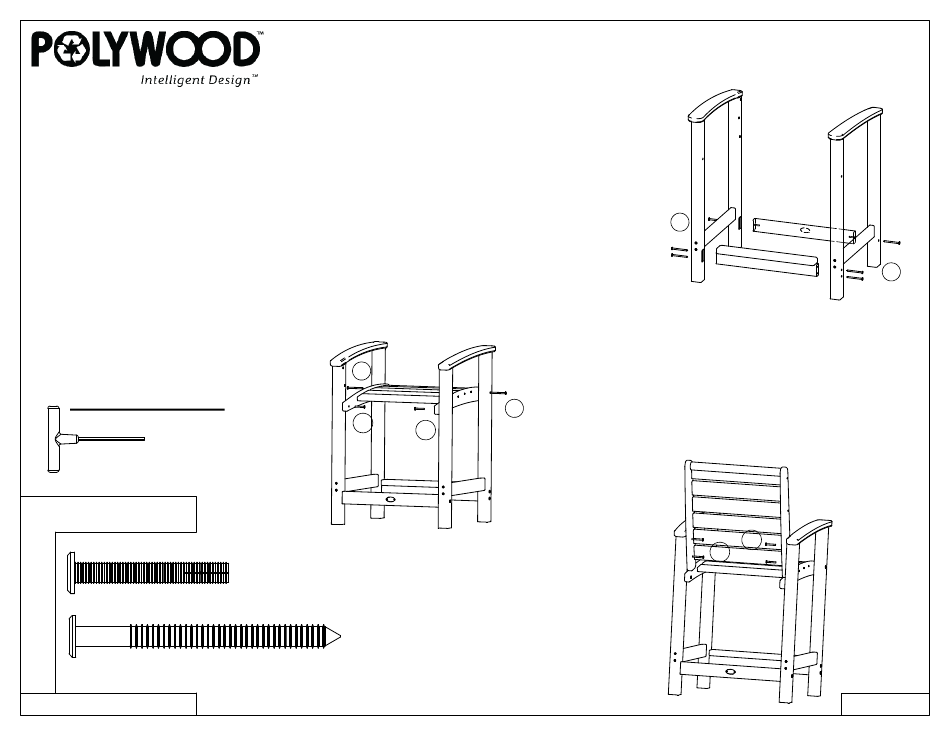

ASSEMBLY INSTRUCTIONS
Step 1
Attach brace and foot rest into pockets on side frames using (6) 3" screws.
Do not tighten screws until last step.
Step 2
Attach seat to side frames using (2) 3" screws for front leg
and (2) 1-3/4 bolts for back leg.
B
A
A
Back
ALL HARDWARE IS STAINLESS STEEL
B
Step 3
Attach back assembly to side frames
using (4) 1-3/4 bolts.
B
Tighten all screws.
B
Front
A
A
9/12/2012
