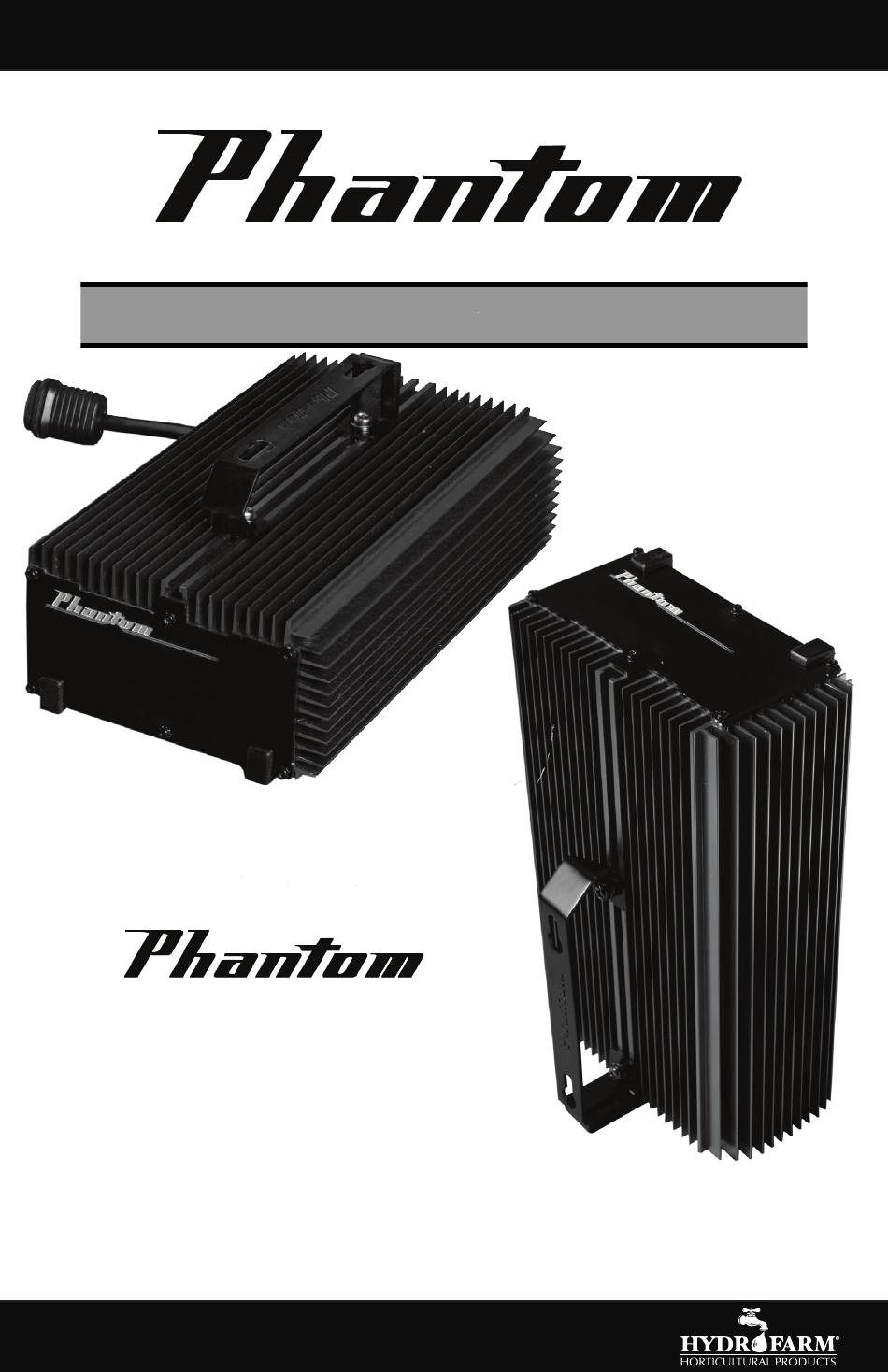

- Page 1 INSTRUCTION MANUAL DIGITAL BALLASTS Power and Versatility Use horizontally, vertically, or mounted on the wall.
- Page 2 READ AND SAVE INSTRUCTIONS he Phantom Digital Ballast features state-of-the-art microproces- sor technology, an extruded aluminum body with cooling fins, handle and rubber feet, and optional vertical positioning or hanging for even more efficient cooling of the internal components. D-Models in- corporate a dimming button with LED indicators to provide for energy - saving dimmability with both HPS &...
- Page 3 About your ballast Performance (see back page for definition of terms) MODEL Main Watts Amps Amps 100% Amps 75% Amps 60% Power Working Ignitor Voltage (Imax) Power Power Power Factor Voltage Voltage PHE1THD 120/240 1060 9.2/4.6 8.8 - 120v 6.9 - 120v 5.3 - 120v >...
- Page 4 Lock & Seal lamp cord is securely connected to the ballast. 3. Only use Hydrofarm provided power cables to connect the ballast to input power. 4. Lamps with auto-ignitors will not work with this ballast. Not for use with external ignitors.
- Page 5 Installation (cont.) 5. Slide ballast onto screws. (Figs. D & E) Fig. D Fig. E NOTE: When operating in a vertical position (and not mounted on the wall), the handle must be positioned flush with the bottom of the unit for maximum support (Fig. F). Fig.
- Page 6 Phantom Dimmable The following applies only to Phantom Dimmable models: Operation: 1. When starting a cool lamp, the ballast will apply 100% power for 15 minutes to properly heat the gasses in the lamp. The dimming feature will not operate during this initial start-up period, but you can preset the dimming ratio during this time without impacting the warm up.
- Page 7 Definition of Terms Main Voltage – Rated input voltage for the ballast Watts – Input power Amps – Input current, or draw Power Factor – A measurement of how effectively the ballast con- verts electrical current to useful power output, in this case, output to the lamp.
- Page 8 3 years full/2 years prorated beginning on the date of purchase. Misuse, abuse, or failure to follow instructions are not covered under this warranty. Hydrofarm will, at our discretion, repair or replace the ballast covered under this warranty if it is returned to the original place of purchase.
