- Page 1 Norselight Suez Canal Searchlight SH510 User manual This manual belongs to the product: Type: ______________ Voltage / Power: ______________ Serie no.: ______________ Controlled by: ______________ Date: ______________ Page 1 of 12...
- Page 2 Svenska Eesti Anslut inte armaturen till tillfällig byggström. Ära kasuta ajutist toiteahelat. See võib Detta kan skada elektroniken. põhjustada vigastusi elektroonikale. Deutsch Nederlands English Nicht an unsauberes Netz (Baustrom) Sluit niet aan op een tijdelijke Do not connect to a temporary electricity anschliessen.
- Page 3 Svenska Eesti För övriga installation och underhålls Lisainformatsiooni saamiseks vaata palun uppgifter, var vänlig se vårt dokument “Installation and maintenance manual”, mis “Installation and maintenance manual” on kaasas valgustiga ning leitav ka meie bifogat med er produkt, eller på vår koduleheküljelt.
- Page 4 Glamox Marine and Offshore GmbH Linzer Str. 9a 28359 Bremen Germany Tel.: +49 421 48 93 – 0 E-Mail: info.productiongermany@glamox.com Internet: www.glamox.com/gmo We would also like to use this opportunity to thank you for choosing Glamox products. Page 4 of 12...
- Page 5 Guarantee: Regarding the bulb, please look at the guarantee papers following the bulb. This must be filled in and returned to Glamox Marine and Offshore GmbH. Regarding the complete searchlight, Glamox Marine and Offshore GmbH cover a normal guarantee regarding production faults. Glamox Marine and Offshore GmbH do not guaranty damage during transportation, damage due to disregard of this technical Manual or adverse external effects.

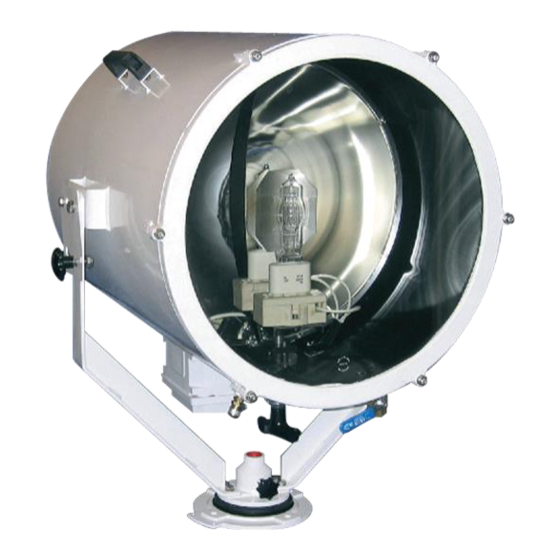

- Page 6 1. General description Suez Canal Searchlight consisting of: 1. The searchlight is made of seawater resistant aluminium, welded and finished with white silicon topcoat. The lamp housing consists of: A hardened, temperature resistant frontglass. A controllable split reflector of precision ground aluminium, giving either a single light beam or two separate light beams each of 5 degrees in the horizontal level with a dark middle sector between 0 and 10 degrees.
- Page 7 3. Installation 3.1. Mechanical installation The searchlight must be mounted on a horizontal surface using 4 stainless screws. 3.2. Electric installation Power supplied to the searchlight can be 230V AC or 115V AC according to drawing E-suez-01. 4. Operation 4.1. Start up procedure (Look at drawing D-Suez-04) ...
- Page 8 5. Spare parts Spare Part Type Spare part no. Pos no. Lamp 2000W 230V/115V AC 1009202 / 1009311 Lamp 3000W 230V/115V AC 1009208 / 1009367 Lamp holder Gy-16 cpl. 2000W 230V/115V AC 1009511 Lamp holder G-38 cpl. 3000W 230V/115V AC 1009510 1009149 Front ring cpl.
- Page 9 Page 9 of 12...
- Page 10 Page 10 of 12...
- Page 11 Page 11 of 12...
- Page 12 Notes: Glamox Marine and Offshore GmbH Linzer Str. 9a 28359 Bremen Germany E-Mail: info.productiongermany@glamox.com Internet: www.glamox.com/gmo Page 12 of 12...
