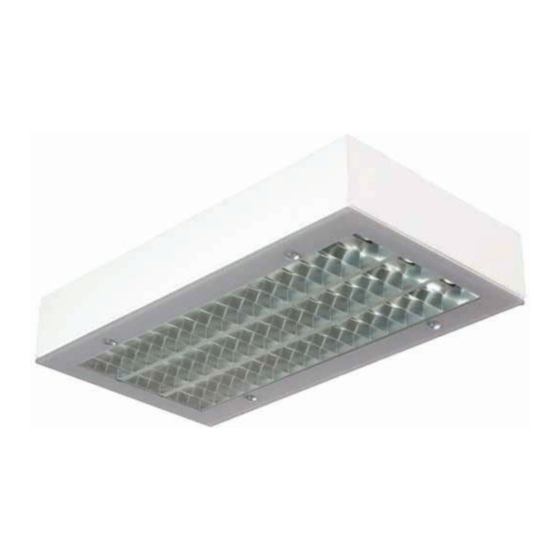

Glamox aqua signal TX20 Series Service Manual
  1. Manuals
  2. Brands
  3. Glamox Manuals
  4. Marine Lighting
  5. aqua signal TX20 Series
  6. Service manual

Glamox aqua signal TX20 Series Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
TX20
- effective solutions for Ex Zones

Advertisement

loading
Need help?

Need help?

Do you have a question about the aqua signal TX20 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Glamox aqua signal TX20 Series

Summary of Contents for Glamox aqua signal TX20 Series

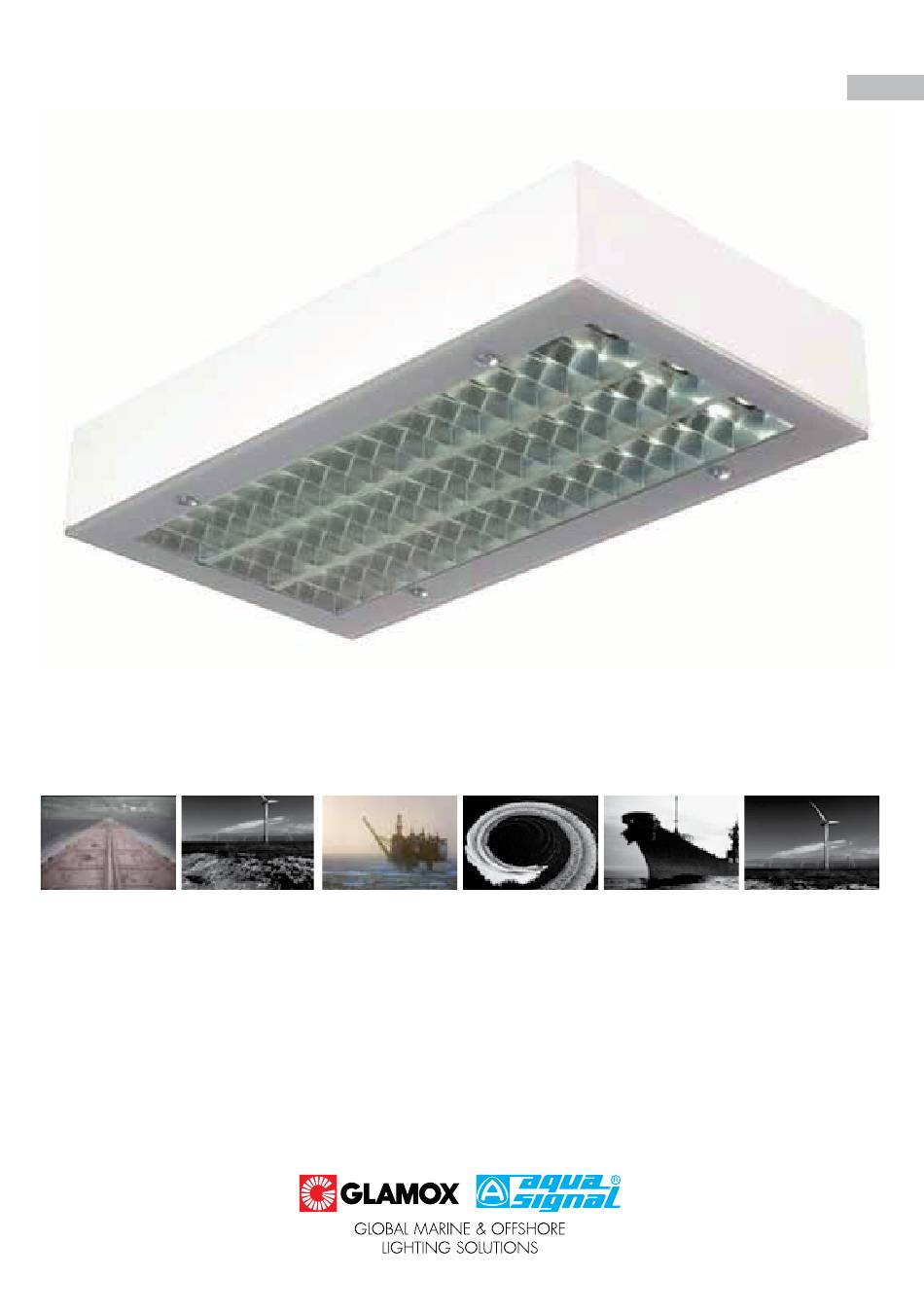

  • Page 1 SERVICE MANUAL TX20 - effective solutions for Ex Zones...

  • Page 2: Waste Handling

    Älä kytke väliaikaiseen virtalähteeseen. a disposal for this type of products. Tämä voi vioittaa elektroniikkaa. Glamox ASA er medlem i RENAS som administrerer en innsamlings- og behandlingsordning for Nicht an unsauberes Netz (Baustrom) næringselektroavfall. Produktet leveres kostnadsfritt til anschliessen.
  • Page 3 TX20-R CE0470 II 2G Ex demb IIC T4 NEMKO 09ATEX1224X IECEx NEM 090011X Description: Recessed mounting Ex luminaire with or without Emergency light for Zone 1 Temperature limits (ta): 214: - 25ºC to + 45ºC 314: - 25ºC to + 40ºC 228: - 25ºC to + 40ºC Protection: IP65...
  • Page 4 TX20-R PART NO. C60052395...
  • Page 5 TX20-R...
  • Page 6 TX20-R alternative suspension 0 - 70 mm 70 - 130 mm...
  • Page 7 TX20-R...
  • Page 8 TX20-R...
  • Page 9 TX20-R CLICK!
  • Page 10 LEXAN 500 R colour RAL9016 Cable MPRX 3 x 1.5 mm 1.4 m Ø128 Cable entry: BRASS GLAND M20 Ex e 8-13 Ø126 Temperature limits (ta): - 30ºC to + 50ºC Protection: IP65 Other markings: Spare battery: TX20062324 Glamox, part no.:TX20062321 (8.4V) or (4.8V).
  • Page 11 TX20-R ceiling Easy mounting The TX20-R version consist of a standard modular housing that fits into recessed mounting frames. These frames are made to fit the most common ceiling types for marine and offshore installations. The terms we have used in the item description for the different ceilings are: RS3 = Shadow, panel ceiling.

  • Page 12: Declaration Of Conformity

    Declaration of Conformity (Directive 2006/95/EEC and EMC directive 2004/108/EEC and ATEX directive 94/9/EEC) Manufacturer: Glamox ASA Adress: Birger Hatlebakksveg15 N-6405 Molde NORWAY Product: Recessed Ex Luminaires for fluorescent lamps Product name: TX20-R series and TX20-R -E series II2G Ex e d mb IIC T4 We declare under sole responsibility that above listed products confirms with the standards listed.
  • Page 13 TX20-S CE0470 II 2G Ex demb IIC T4 NEMKO 09ATEX1224X IECEx NEM 090011X Description: Surface mounted Ex luminaire with or without Emergency light for Zone 1 Temperature limits (ta): - 25ºC to + 45ºC Protection: IP65 Line voltage: 110 - 127V or 220 - 250V / 0 - 50 - 60 Hz Supplied current (mains mode230): 0.14A (2 x 14W), 0.21A (3 x 14W) or 0.27A (2 x 28W) 0.14A (2 x 14W E), 0.22A (3 x 14W E) or...
  • Page 14 TX20-S...
  • Page 15 TX20-S CLICK!
  • Page 16 Declaration of Conformity (Directive 2006/95/EEC and EMC directive 2004/108/EEC and ATEX directive 94/9/EEC) Manufacturer: Glamox ASA Adress: Birger Hatlebakksveg15 N-6405 Molde NORWAY Product: Ex Luminaires for fluorescent lamps Product name: TX20-S series and TX20-S -E series II2G Ex e d mb IIC T4 We declare under sole responsibility that above listed products confirms with the standards listed.
  • Page 17 TX20-R/S Accessories 46500175 TX20 GLASS SUCTION PAD Part no. C60052395 TX20 MNT CEILING (4 pcs) Part no. TX20-R SUSPENSION ROD 79000020 (1 pcs.) 0,3 - 0,6 m Part no. TX20-R SUSPENSION ROD 79000030 (1 pcs.) 0,6 - 1,0 m Part no. External battery 214 - E1.5 TX20062324...
  • Page 18 TX20 installation Battery connection see page 8. Earthing the luminaire 3 2 L1 L4 TX20 must be earthed in the terminal block. It can also be earthed exter- nally, to the contact on the luminaire house. The shielded cable must be earthed as in figure: 1.
  • Page 20 TX20 operation Cables Relamping Mains supply cable must be approved for fixed installation. The front cover is locked by springs, and has to be opened by The external diameter should be 8 13 mm (M20 gland) or using a suction pad (Part. no 46500175) see also page 9. 12 19 mm (M25 gland).

  • Page 21: Troubleshooting

    1) Check that the mains voltage is in the voltage range battery after 4 to 6 years (in order to maintain the specified of the luminaire. lighting time). The only batteries to be used are Glamox. 2) Check that the cover is mounted properly. See page 17 for battery.
  • Page 22 Cleaning kan vaskes med etnøytralt Puhdistus tvättmedel (pH 6-9). vaskemiddel (pH 6.9). All luminaires from Glamox may Kaikki Glamox loistevalaisimet Reinigung be cleaned with a neutral washing voidaan puhdistaa neutraalilla Alle Leuchten von Glamox können Tvättmedlet blandas i ljummet...
  • Page 23 HF-info Stadig flere armaturer blir Idag är de flesta lysrörsarmaturer Valaisimissa käytetään yhä More and more luminaires Mehr und mehr Leuchten werden i dag bestykket med HF- bestyckade med HF-don som heute mit EVG´s geliefert. Das enemmän elektronista HF- are today equipt with HF forkobling som driver driver lysrören med hög frekvens.
  • Page 24 Fax +1 713 690 8387 Fax +49 421 48 93-210 sales@mariteamusa.com Singapore info@aquasignal.de www.mariteam.com www.aquasignal.de Glamox Far East Pte. Ltd Tel +65 6748 1977 Korea Fax +65 6742 9711 Glamox Korea Co., Ltd. gfe1026@singnet.com.sg Tel +82 (0) 51 971 7200 www.glamox.com...
