GE JTP25SHSS Dimensions And Installation Information

GE Appliances

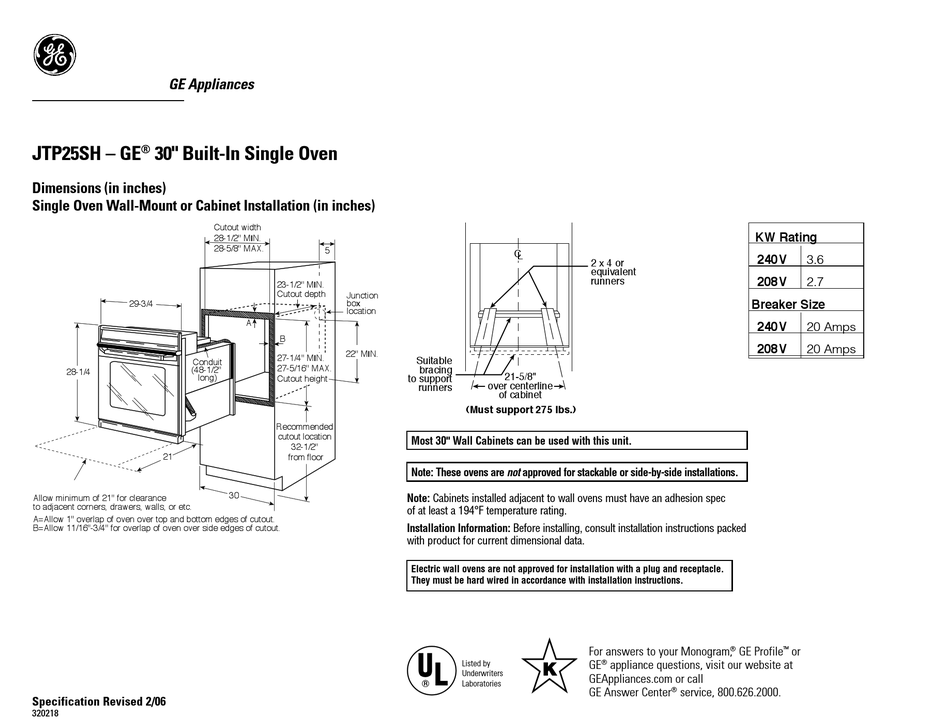

JTP25SH – GE 30" Built-In Single Oven
®
Dimensions (in inches)
Single Oven Wall-Mount or Cabinet Installation (in inches)
29-3/4
Conduit
(48-1/2"
28-1/4
long)
21
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
Specification Revised 2/06
320218
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
5
23-1/2'' MIN.
Cutout depth
Junction
box
location
A
B
22'' MIN.
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
Recommended
cutout location
32-1/2"
from floor
30
C L
Suitable
bracing
21-5/8"
to support
over centerline
runners
of cabinet
(Must Support 275 LBS.)
(Must support 275 lbs.)
Most 30" Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable or side-by-side installations.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation instructions packed
with product for current dimensional data.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
Listed by
Underwriters
R Laboratories
KW Rating
240V
2 x 4 or
equivalent
208V
runners
Breaker Size
240V
208V
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center service, 800.626.2000.
®
3.6
2.7
20 Amps
20 Amps
or
™
