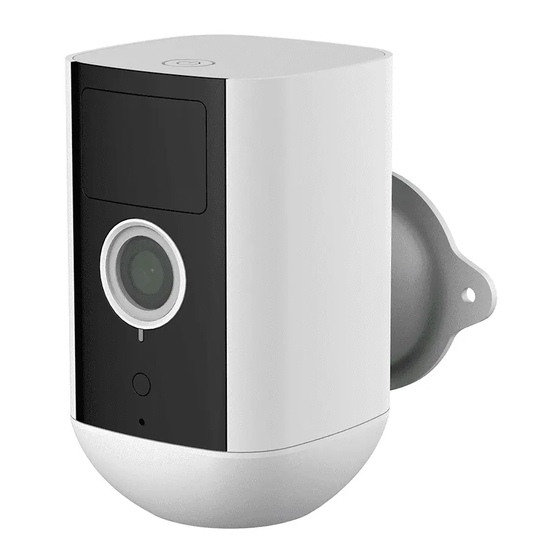

- Page 1 Snap 6S BATTERY CAM ORIGINALITY DESIGN SMART - AND BEAUTIFUL QUICK GUIDE...
-
Page 2: What's In The Box
What's in the box Please consult this checklist for all parts. Power adapter USB cable Snap 6S Bracket(A) Screws(2 kinds)x2 Manual Bracket(B) - Page 3 Description Speaker PIR Sensor Lens Status light Reset Photosensitive Micro USB Charging indicator Microphone SD card slot Power Port DC 5V±10% Power on/off Press the button for 3 seconds to turn on/off the camera Status light Red light solids on: the camera network is abnormal Red light blinks: awaiting WiFi connection, or currently connecting (faster blinking) Blue light solids on: camera running correctly...
- Page 4 Install Mode 1 Bracket (A) Installation 1.Fix the bracket on the wall with screws 2.Bring the camera closer to the bracket Mode 2 Bracket (B) Installation 0~360° 0~90° After ajusting your camera angle, please lock this screw 1.Fix the bracket on the wall 2.Install the camera in the bracket and lock it with the screw...
- Page 5 Connect Download Smart Life is available for both iOS and Android OS. Rearch the name 'Smart Life'in App Store or Android Market, or scan the QR-Code to download the App. ·Support Android Download App(IOS&android) Set up router The router supports the 2.4GHz WiFi (doesn't support the 5GHz).Before connecting to the WiFi network,please set the parameters of the router, and record the SSID and password of your WiFi.
- Page 6 Connect Registration process Step 1 Open the Smart Life App, click "Register", read the "Privacy Policy" and click "Agree" . Step 2 Input a legal and valid Mobile number or Email address and click "Continue". Input Verification Code, then log in the app.
- Page 7 QR Code Configuration Open the Smart Life App, click "Create family", and you can customize the Family name and related settings . Continue to click "Security & Sensor" >> "Smart Camera",and then choose"Add Device" or "+",ready to add camera.
- Page 8 QR Code Configuration In "Add Device" this interface,continue to click "next step",and then you should input your WiFi's passwords. Note: 1) Camera only supports 2.4GHz WiFi network. 2) The number of bits in the ssid and passwords of the router should not exceed 24 digits.
- Page 9 QR Code Configuration In this interface,you should scan the QR code in your phone with the camera,when the camera comes out "dong dong dong". And you can complete the configuration about 30s.
- Page 10 QR Code Configuration When connecting,you should make sure your router,mobile,and camera are as close as possible.When camera added successffully,click " " you could also DIY the camera's name.
- Page 11 Settings In "Smart Camera" interface,click " ",you can set the camera common functions.
- Page 12 Q: The device cannot be previewed properly? A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again. Q: Why is it still in the list of devices after reseting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App.
- Page 13 Functions Remote wake-up The camera will be in a sleep mode to save power; you can have a preview in App. Full-duplex audio You can see and hear the vistor in your App from the camera. When the camera detects someone stopping by, it sends an alarm message to your cell phone.
- Page 14 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
