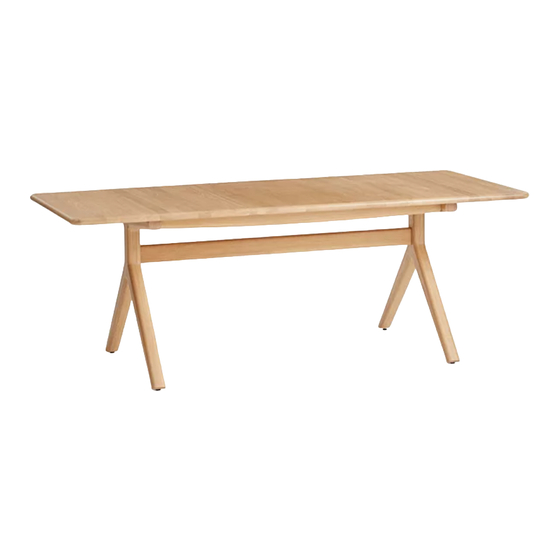

- Page 1 Poise Small Extending Table Stock Number: 83606801 YNG TAL 14 / PMT3 D: 30.01.2020 / RN001 H75 W160 D90cm...
-
Page 2: Tools Required
Thank you for purchasing the Poise Small Extending Table. Please read the instructions and warnings carefully before use, to ensure safe and satisfactory operation of this product. At John Lewis, we are committed to making great products possible. From our in-house Design Team, to our Buyers, we work together to bring great design to life. -
Page 3: Important Safety Information
Important safety information Warnings The product should only be used on firm, level ground. Keep small parts ot of reach of children. Ensure the product is fully assembled as illustrated before use. Do's Check the pack and make sure you have all the parts listed. Check all screws or bolts are tightened and inspect regularly. - Page 4 Your Dining Table Description Dimensions Top Panel H9.5 W160 D90cm Leg Frame H72 W83 D6cm Connection Rail H8 W131 D3cm Dimensions Dining table original size: H75 W160 D90cm Dining table extended size: H75 W210 D90cm...
-
Page 5: Fixtures And Fittings
Fixtures and fittings Fixtures and fittings supplied (actual size) Description Dimensions Allen Head Bolt (Chrome) 8mm x 50mm Allen Head Bolt (Chrome) 6mm x 45mm Wooden Dowel 8mm x 35mm Fixtures and fittings supplied (not actual size) Description Dimensions Allen Head Bolt (Chrome) 8mm x 90mm Allen Key Allen Key... -
Page 6: Product Assembly
Product assembly Poise Small Extending Table 83606801 Step 1 Parts, fittings and tools Step 2 Parts, fittings and tools... - Page 7 Poise Small Extending Table 83606801 Step 3 Parts, fittings and tools Step 4 Parts, fittings and tools...
- Page 8 Poise Small Extending Table 83606801 Step 5 Parts, fittings and tools Step 6 Parts, fittings and tools RELEASED LOCKED Warning! The position of the pins must be exactly as shown. Otherwise the table top can’t be opened and the extensions can’t be used.
- Page 9 Poise Small Extending Table 83606801 Step 7 Parts, fittings and tools Step 8 Parts, fittings and tools...
- Page 10 Your feedback is very important to us and we would love to hear your comments on your new furniture. Please visit our website to leave a review. Thank you. Retain these instructions for future reference. John Lewis Partnership 171 Victoria Street London SW1E 5NN...
