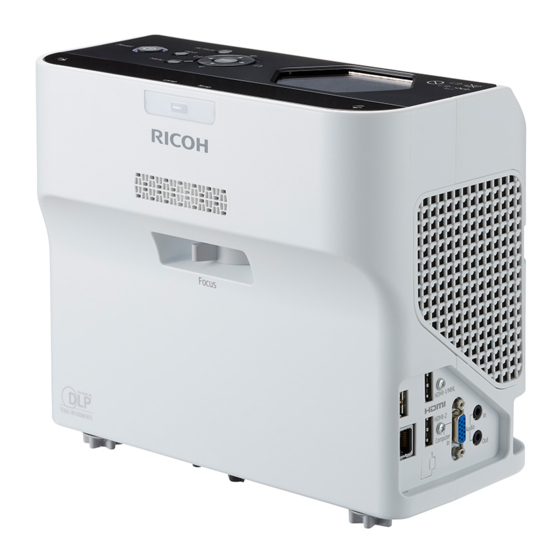

Ricoh PJ WX4153N Manual

Hide thumbs Also See for PJ WX4153N:
Table of Contents

Advertisement

Quick Links

Download this manual
Safety Information
Safety Information for This Machine
Information for This Machine
For information not found in this manual,
see the online manuals available on our
web site (https://www.ricoh.com/).
Read this manual carefully before you use this machine and keep
it handy for future reference. For safe and correct use, be sure to
read the Safety Information in this manual before using the
machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ WX4153N and is the answer not in the manual?

Questions and answers

Related Manuals for Ricoh PJ WX4153N

Summary of Contents for Ricoh PJ WX4153N

  • Page 1 For information not found in this manual, see the online manuals available on our web site (https://www.ricoh.com/). Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in this manual before using the machine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS How to Read This Manual ..........................2 Introduction..............................2 Disclaimer................................2 Notes................................2 1. Safety Information for This Machine Safety Symbols for This Machine........................3 Safety Information...............................4 Safety During Operation..........................4 Safety Precautions to Be Followed........................4 Safety Labels of This Machine.........................15 Positions of Power Rating Labels and Other Labels or Indications............

  • Page 4: How To Read This Manual

    How to Read This Manual Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.

  • Page 5: Safety Information For This Machine

    1. Safety Information for This Machine This chapter describes safety information for this machine. Safety Symbols for This Machine The meanings of the safety symbols for this machine are as follows: Caution Do not touch Caution, hot surface Caution, risk of electric shock...

  • Page 6: Safety Information

    1. Safety Information for This Machine Safety Information Safety During Operation In this manual, the following important symbols are used: Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.
  • Page 7 Safety Information • Do not place the machine in a humid or dusty environment. Doing so can result in fire or electric shock. • Do not place heavy objects on the machine. Doing so can cause the machine to fall or topple over, possibly resulting in injury.
  • Page 8 1. Safety Information for This Machine • Install the machine so that the power cord and cables do not get tangled or caught. If the cables get caught, they may become damaged, resulting in fire or electric shock. • Use only genuine accessories or accessories recommended by the manufacturer to mount the main unit.
  • Page 9 Safety Information • To prevent fire or electric shock, disconnect the plug and the power cord from the wall outlet at least once a year and check them. If any of the following conditions exist, do not use the plug and the power cord continuously, and consult your dealer or service representative.
  • Page 10 1. Safety Information for This Machine 220–240 V, 1.8A or more, 50/60Hz Please be sure to connect the power cord to a power source as above. For users in Norway, this product is also designed for an IT power distribution system with phase- to-phase voltage of 230V.
  • Page 11 Safety Information • The machine may be very hot after it is turned off, especially the vents and the lower part of the unit where the lamp is located. Avoid touching these areas. Doing so may result in burns. • Do not place the machine on other equipment or vice versa. Doing so may cause heat buildup inside the machine or cause the other equipment to malfunction.
  • Page 12 1. Safety Information for This Machine • Do not user projector in oil-mist or smoke environment. Doing so may cause the projector case to crack and fall from its ceiling mount. This may cause serious injury. • If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a machine on a wall or ceiling.
  • Page 13 Safety Information • For safe operation, follow the warnings below regarding the batteries. If you use the batteries incorrectly, it may result in fire or injury due to batteries leaking or exploding. • Do not use batteries other than the ones specified. •...
  • Page 14 1. Safety Information for This Machine • Do not look into the projection window or vent when the machine is on. The bright light may damage your eyes. Be especially careful in an environment with children. • Do not stare at operating lamp. May be harmful to the eyes. •...
  • Page 15 Safety Information What to do if a lamp has exploded • If the lamp explodes, remove the power cord from the projector, leave the room while making sure it is thoroughly ventilated. • If the lamp explodes and you think that you have gotten glass particles or mercury vapor in your eyes or have inhaled either, contact a doctor immediately.
  • Page 16 1. Safety Information for This Machine Handling RGB cable • The supplied RGB cable is for use with this machine only. It cannot be used for appliances other than this machine. Also, do not use RGB cables other than the one supplied with this machine.

  • Page 17: Safety Labels Of This Machine

    Safety Labels of This Machine Safety Labels of This Machine Positions of Power Rating Labels and Other Labels or Indications This machine has a power rating label and other labels or indications at the position (1) shown below. Y0E5IX0115 Positions of WARNING and CAUTION Labels This machine has labels for WARNING and CAUTION at the positions shown below.
  • Page 18 1. Safety Information for This Machine Y0E5IX0068 "As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015" This product is classified into "Risk Group 2" of the photobiological safety of lamps and lamp systems specified in IEC 62471-5. "Risk Group 2" indicates a "moderate biogenic risk" and does not pose any risk due to aversion such as blinking eyes against a strong visual stimulus or heat based discomfort.
  • Page 19 Safety Labels of This Machine Y0E5IX0117 When replacing the lamp, be careful of broken glass because the lamp may be broken. To replace the lamp, first unplug the power cord then wait for more than 1 hour.

  • Page 20: Power Switch Symbols

    1. Safety Information for This Machine Y0E5IX0118 Y0E5IX0119 The surface of the lamp unit is hot, so do not touch it except when having to replace the lamp. To replace the lamp, first unplug the power cord then wait for more than 1 hour. When replacing the lamp, never touch the surface on or around the lamp unit, including its handle, for at least one hour.

  • Page 21: Information For This Machine

    Manufacturer: Ricoh Co., Ltd. 3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555, Japan Importer: Ricoh Europe SCM B.V. Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands Notice to Users in EEA Countries Declaration of Conformity Notice to Users in EEA Countries This product complies with the essential Requirements and provisions of Directive 2014/53/EU.

  • Page 22: Overseas Affiliates And Noise Emission Information

    Overseas Affiliates and Noise Emission Information In accordance with “UL-EU Symbol” requirements, details of the EU office or representative company are given below. Overseas Affiliates Ricoh Europe SCM B.V. Blankenweg 24, 4612 RC Bergen op Zoom, The Netherlands Noise Emission Maschinenlärminformations-Verordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779...

  • Page 23: Note For The Battery And/Or Accumulator Symbol (For Eu Countries Only)

    Laws and Regulations Note for the Battery and/or Accumulator Symbol (For EU countries only) In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste.
  • Page 24 MEMO...
  • Page 25 MEMO...
  • Page 26 MEMO Y0E5-7511A...
  • Page 27 © 2020 Ricoh Co., Ltd.
  • Page 28 Y0E5-7511A...
