alphatronics UNii Installation Manual
Hide thumbs
Also See for UNii:
- Quick start and installation manual (24 pages) ,
- User manual (34 pages)
Subscribe to Our Youtube Channel
Related Manuals for alphatronics UNii
Summary of Contents for alphatronics UNii
- Page 1 UNii keypad Installation manual UNii keypad installatie handleiding English page 3 Nederlands pagina 7...
- Page 2 Table of contents UNii Keypad ................................3 Connections ................................. 3 Inputs (optional) ..............................3 Removal protection (only for grade 3) ......................3 Mounting ................................3 Mounting ................................4 Service ................................... 5 Safety ..................................5 Specifications ............................... 5...

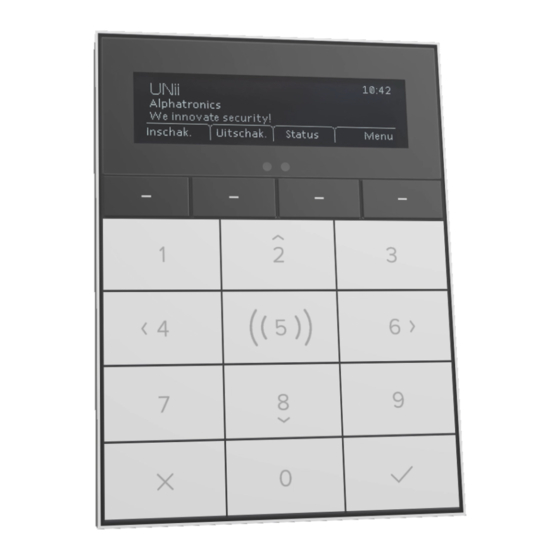

- Page 3 UNii Keypad The UNii keypad is used to operate the UNii control panel. Connections 1. Inputs 2. RS485 bus connection 3. Tamper switch 4. Display connector Attention ! On an older pcb version (1.2) of the keypad the RS-485 connections are...
- Page 4 Mounting The backplate should be mounted with 4 screws (4,2 x 20mm) and eventual matching plugs on a flat surface. When the backplate is mounted on a surface other than brick, the appropriate screws (and plugs) for that particular surface must be used. The screw holes are located at the bottom left- and right and top left- and right of the housing.
-
Page 5: Specifications
(in consultation with the support desk). Safety For proper use of the Mifare DESFire reader in the UNii keypad (UNii KPR), it must be mounted on a non-metallic surface. The keypad is only suitable for indoor use and must not be used outside the specified temperature and humidity. - Page 6 UNii keypad Installation manual UNii keypad installatie handleiding English page 3 Nederlands pagina 7...
- Page 7 Inhoudsopgave UNii Keypad ................................8 Aansluitingen ................................ 8 Ingangen ................................8 Afneem beveiliging (alleen voor Grade 3) ....................... 8 Montage ................................9 Service ................................. 10 Specificaties ............................... 10...
- Page 8 UNii Keypad Het UNii keypad wordt gebruikt voor de bediening van de UNii centrale. Aansluitingen 5. Ingangen 6. RS-485 aansluiting 7. Sabotage schakelaar 8. Display connector Let op ! Bij een oudere print versie (1.2) van de keypad zitten de RS-485...
-
Page 9: Montage
Montage De achterplaat van de behuizing dient met behulp van 4 schroeven (4,2 x 20mm) en eventueel bijpassende pluggen degelijk bevestigd te worden op een vlakke ondergrond. Bij andere ondergronden dan steen dienen de daarvoor geschikte schroeven en pluggen gebruikt te worden. De schroefgaten bevinden zich links- en rechtsonder en bovenin de behuizing. - Page 10 Service Het UNii keypad kent geen ‘servicable parts’ of afregelpunten. Bij geconstateerde defecten dient (in overleg) het volledige keypad vervangen te worden. Specificaties Voeding: 9,5 – 14,8 VDC 55mA in standby Bus: RS485 bus, maximaal 1200m. Behuizing: Kast; 131mm x 97mm x 21mm (H x B x D). Gewicht: 160 gr...
- Page 11 WEEE-declaration This Alphatronics product is manufactured with the most modern technology and consists of high quality components. Most of the components used can be recycled. The symbol means that this product should be recycled separately and not put in the normal waste bin together with normal household waste.
