Summary of Contents for Habitat JAK 939/7305
- Page 1 Spare Parts Customer Support 0345 640 2020 www.argos-support.co.uk Help@ClickSpares.co.uk 0370 112 1928 Issue 1 - 16/09/20...

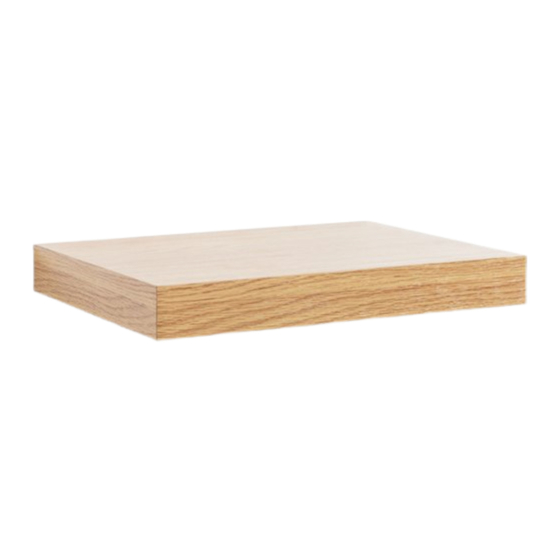

- Page 2 Safety and Care Advice Product Details HAB JAK Floating Shelf 30cm 939/7305 Oak IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY. Keep children and animals Assemble the item as close We do not away from the work area, small recommend the parts could choke if swallowed.
- Page 3 Fittings (Shown to scale) Bag 1 4 x 30mm Screw x 2 4 x 40mm Screw x 4 Wall Plug x 4 Hardware Bracket (152 x 148mm) (Pre-fixed In The Shelf)
- Page 4 Tools required Phillips screwdriver Ruler/tape (small & medium) measure Phillips screwdriver Eye protection (small & medium) (when using a hammer or glue) Small hammer Power Drill Large hammer Pencil Drill Heads Mallet Set Square Spirit Level...
- Page 5 Panels 1 Shelf (300 x 235mm)
- Page 6 4 x 40mm Screw x 4 4 x 30mm Screw x 2 Wall Plug x 4 Bracket (152 x 148mm) x 1 Repeat Note: Wall plugs supplied are for solid wall only. The correct type of fixing must be used for your wall, seek professional advice if in doubt.
- Page 7 4 x 30mm Screw x 2...
- Page 8 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
