iiNet BizPhone Premium Quick Start Up Manual

iiNet BizPhone Premium Handset Quick Startup Guide

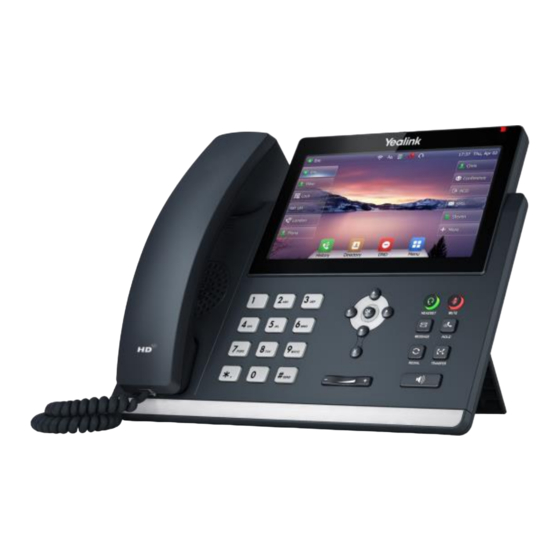

BizPhone Premium Handset
Quick Startup Guide
P a g e | 1 of 2
Confidential
Packaging Contents
The following contents are included in your T48U package:
Assembling the Phone
1. Attach the stand, as shown below.
2. Connect the handset and optional headset, as shown below.
Note: Headsets are to be purchased separately.
3. Connect the USB flash drive (if required), as shown below.
Note: The USB ports can also be used to connect other
USB devices, such as EXP43, USB headset and so on. We
recommend you connect Bluetooth USB dongle or Wi-Fi
USB dongle (purchased separately) to the upper USB port,
and connect EXP43 (purchased separately) to the lower
USB port.
4. Connect the network and power, as shown below.
Note: You have two Power Options – AC or PoE. If PoE is
provided, you do not need to connect to the Power Adapter.
Startup the Phone
After the IP Phone is connected to
the network and supplied with power,
it automatically begins the initialisation
process. After startup, the phone is
ready to use (pre-configured).
