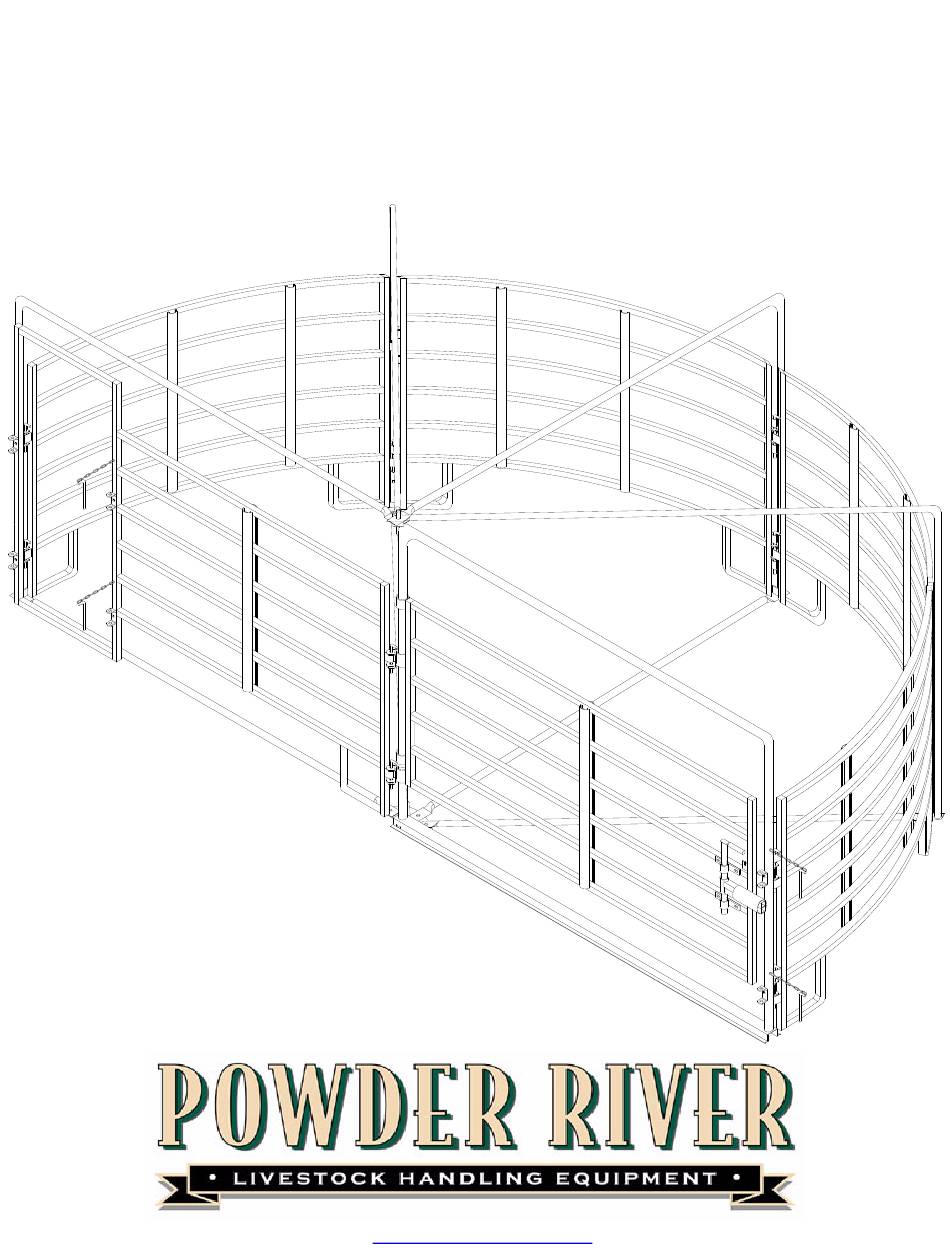

- Page 1 PORTABLE SWEEP TUB ASSEMBLY INSTRUCTIONS #005-00180 www.powderriver.com 1-800-453-5318...
- Page 2 005-00180 PORTABLE SWEEP TUB ASSEMBLY INSTRUCTIONS STEP 1: Pace the hinge side of the Sweep Bow Gate where the center of the sweep will be located. Then take the four Bottom Braces and raise the end opposite of the Bottom Brace Plate in the air, until the...
- Page 3 005-00180 PORTABLE SWEEP TUB ASSEMBLY INSTRUCTIONS STEP 3: Place the Top Braces one at a time onto the Connector Pegs and through the Top Brace Pin. Secure the Top Braces by inserting the Hairpin through the Brace Pin, as shown in figure 3.
- Page 4 005-00180 PORTABLE SWEEP TUB ASSEMBLY INSTRUCTIONS STEP 5: : Slide the 10’ Panel With Bow into place. Secure it to the Bow Gate by placing the pins through the panel clips Slide the 10’ Panel With Bow into place. Secure it to the Bow Gate by placing the pins through the panel clips and clevises.
