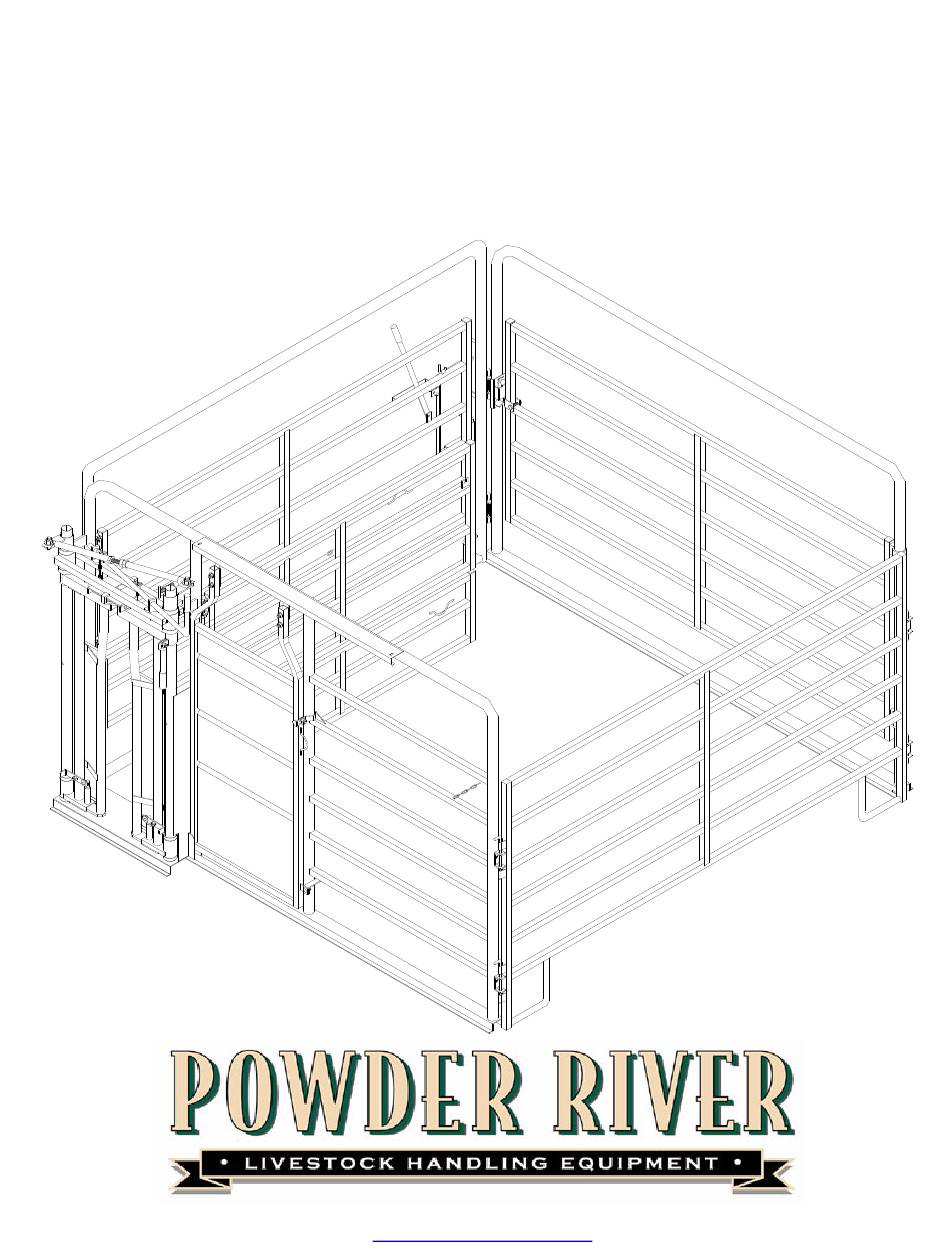

- Page 1 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS #008-00100 www.powderriver.com 1-800-453-5318...
- Page 2 008-00100 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS CALVING PEN ASSEMBLY CAUTION! GATES AND PANELS ARE HEAVY AND WILL FALL OVER IF NOT PROPERLY SUPPORTED WHILE BEING INSTALLED. IT IS BEST TO USE A FORKLIFT OR TRACTOR TO LIFT THE HEAVY ITEMS! STEP 1: Locate and place the Calving Pen Front Section at the desired location.
- Page 3 008-00100 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS STEP 2: Place the Calving Pen Side Split Bow Gate next to the Front Section and secure them together using the two pins located on the Front Section as shown in figure 2.
- Page 4 008-00100 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS STEP 3: Secure the Bow Gate with Sure-Latch to both the Side Split Bow Gate and Side Panel as shown in figure 3. Page 4 4/21/03 www.powderriver.com 1-800-453-5318...
- Page 5 008-00100 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS CALVING PEN OPERATION AND WORKING PARTS The Calving Pen is designed to help provide safety and accessibility during the calving process. As part of the design there are two split gates located on the side and center of the Pen as shown in figure 4.
- Page 6 008-00100 CALVING PEN ASSEMBLY AND OPERATIONS INSTRUCTIONS To catch the animal in the headgate, push the Trip Handle back, then using the Stanchion Side Hand rotate the stanchion cover into the entry position as shown in figure 6. You adjust this opening by tightening or loosening the bolt on the top linkage arm as shown.
