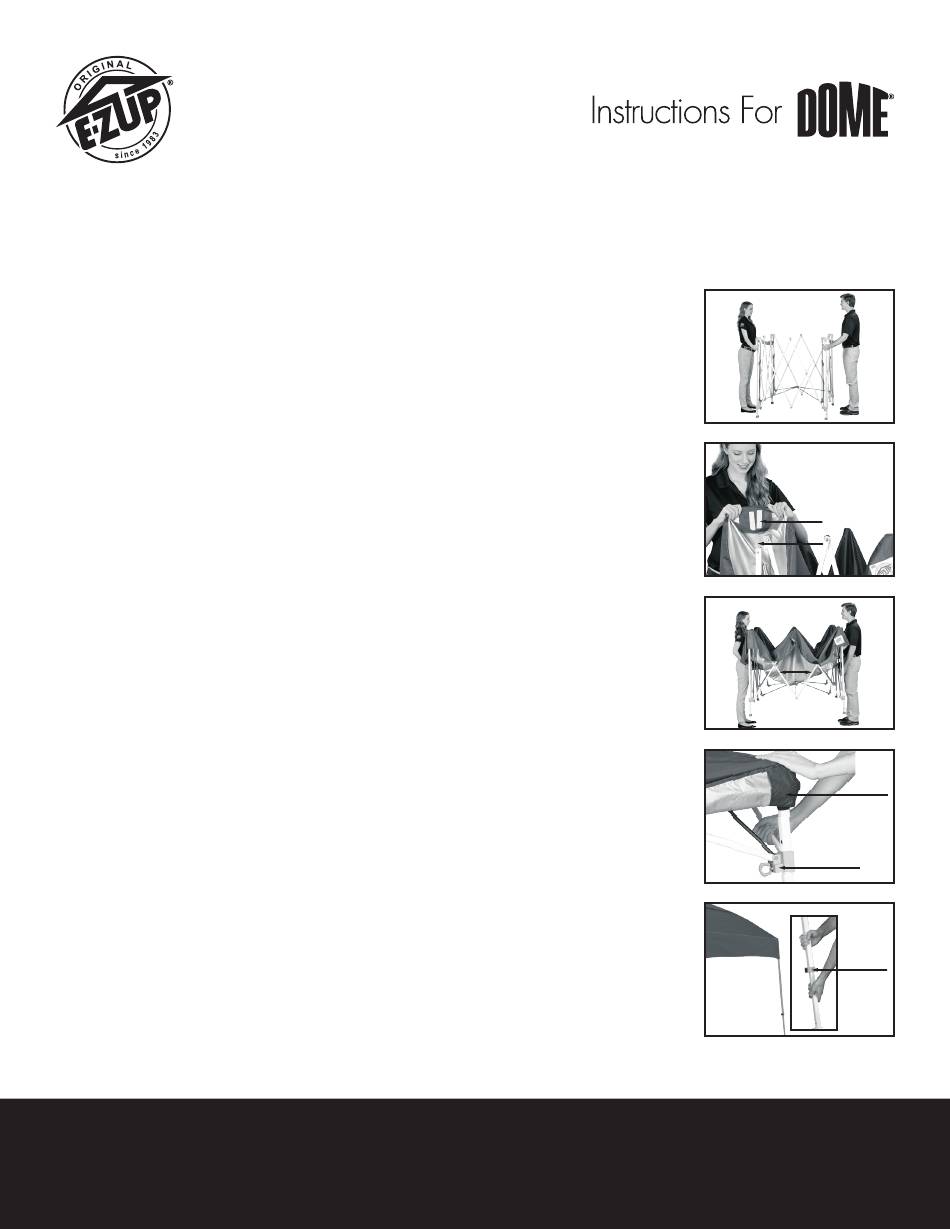

E-Z UP Dome Instructions

Dome Box Includes:
TM

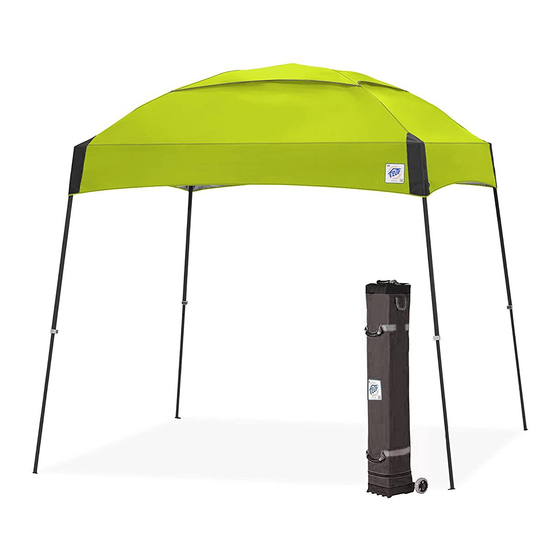

(1) 10' Dome Frame, (1) Recreational Grade Top, (1) 4-Piece Spike Kit and (1) Wide-Trax
™

ONE-TIME TOP INSTALLATION

Unpack and Open
1. Place your E-Z UP Frame in the center of the area to be sheltered.
®
2. With a partner on the opposite side of the Frame, grasp two outer legs, lift the Frame slightly off the ground, and step
backward while pulling the Frame to open.
3. Stop when the Frame is approximately 3/4 of its fully-opened size. (Fig A)
4. Set the Frame back on the ground.
Attach Fabric Top
5. Gently unfold the Fabric Top, and place it over the semi-opened Frame.
6. Attach the Fabric Top to the E-Z UP
®
corners with the Hook and Loop Strips on each Frame corner. (Fig B)
7. Pull the Fabric Top down over the Frame corners—pushing the Hook and Loop Strips firmly together.
SET UP
Open E-Z UP Shelter
®
1. With a partner on the opposite side, grasp the bottom of the diamond-shaped area of Outer Trusses near the "OPEN
HERE" sticker. (Fig C)
2. Lift the Frame up slightly and step backward until the shelter is almost fully opened. Gently shake the shelter while
opening. Be careful not to pinch fingers!
Secure Auto-Slider Pull Pin
®
3. Fold up the Fabric Top corner to expose the Auto-Slider
4. Lift shelter corner slightly off the ground and engage the Auto-Slider
with one hand while holding down the top of the Frame Leg with the other hand. The pins will auto-engage when
aligned with the holes on the Frame Legs.
5. After the Auto-Slider Pull Pin has locked into place, pull the Fabric Top down over the Frame Leg, making sure to
®
align and secure the hook and loop strips on the Fabric Top to the Frame.
6. Repeat on all remaining corners.
Extend Frame Legs
7. With a partner, lift the two adjacent outer legs up off the ground simultaneously to about waist height.
8. Slide the lower/inner legs out until the Leg Adjustment Toggle buttons lock at selected height on each leg. (Fig E)
Note: There are 2 adjustment settings on each leg.
9. Repeat on the remaining legs.
Note: It is recommended that you use genuine E-Z UP
secure your shelter.
Your E-Z UP shelter setup is now complete!
®
INTERNATIONAL E-Z UP, INC.
1900 Second St., Norco, California 92860
800-45-SHADE
Frame by matching the Hook and Loop Strips on the inside of the Fabric Top
Pull Pin. (Fig D)
®
Pull Pin by pushing up on the Frame side trusses
®
Deluxe Weight Bags and/or Heavy-Duty Stake Kits to
®
Roller Bag
™
The #1 Instant Shelter
Fig. A
Fig. B
Loop
Hook
Fig. C
Outer Trusses
Fig. D
Fabric Top Corner
Auto-Slider ® Pull Pin
Fig. E
Leg Adjustment
Toggle Button
