Gree Livo Gen 3 Owner's Manual

High-wall ductless air conditioning & heating system
Hide thumbs Also See for Livo Gen 3:
Table of Contents

Advertisement

Quick Links

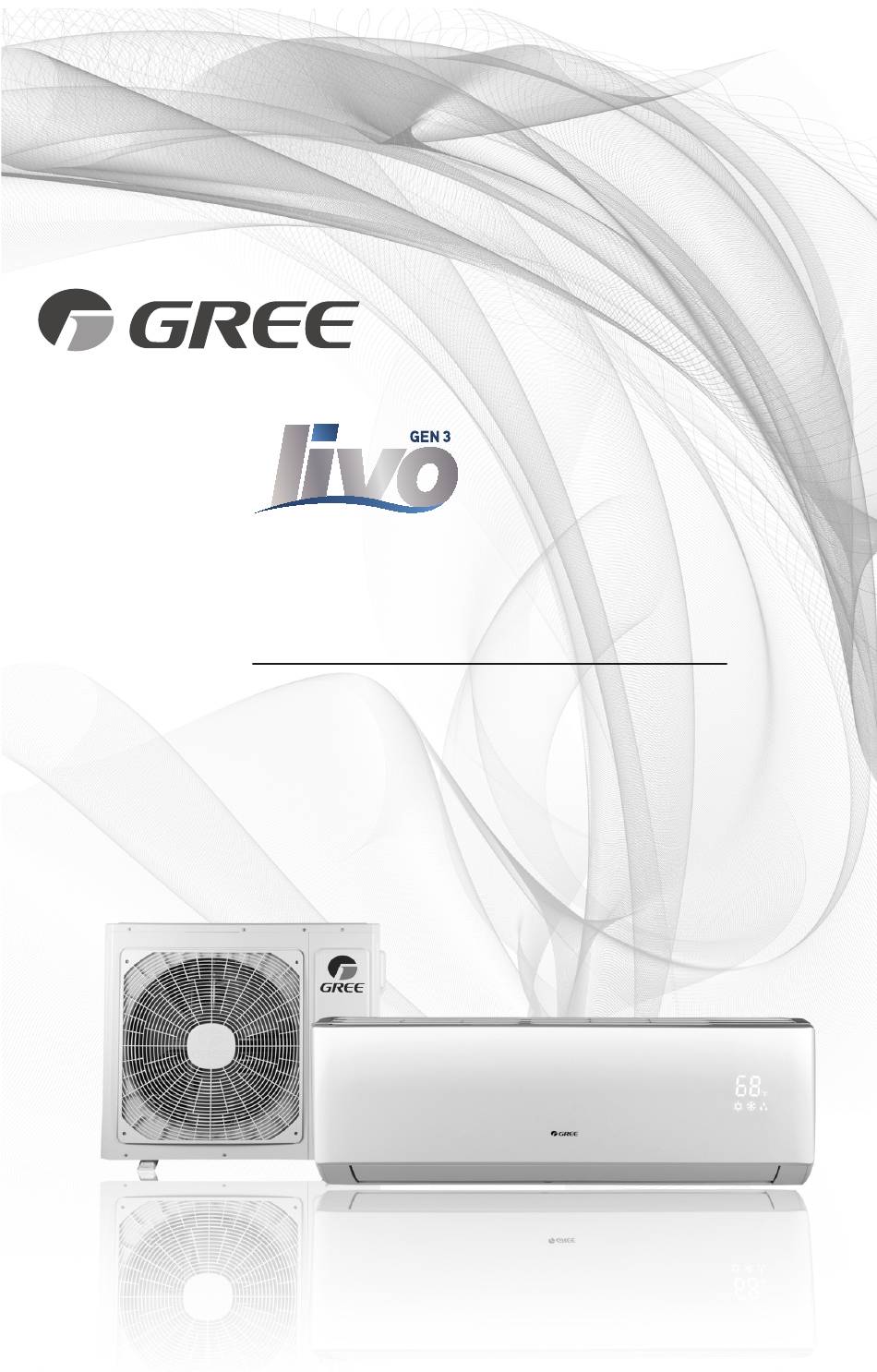

HIGH-WALL DUCTLESS
AIR CONDITIONING & HEATING SYSTEM
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Livo Gen 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Gree Livo Gen 3

Summary of Contents for Gree Livo Gen 3

  • Page 1 HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM OWNER’S MANUAL...
  • Page 3 LIVV09HP115V1AH LIVV12HP115V1AH...

  • Page 4: Table Of Contents

    CONTENTS Safety precautions ..................Parts name ....................OPERATION OF WIRELESS REMOTE CONTROLLER ......... Clean and maintenance ................Checked items before maintenance ............. Installation notice ..................Installation of indoor unit ................Test and operation ..................Configuration of connection pipe ..............
  • Page 5 Explanation of Symbols WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage to CAUTION property. Indicates important but not hazard-related information, used NOTICE to indicate risk of property damage. Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.
  • Page 6 FCC WARNING WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC STATEMENT This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation.
  • Page 7 IC STATEMENT This equipment complies with FCC’s and IC’s RF radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must be installed and operated to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

  • Page 8: Safety Precautions

    Safety precautions WARNING Installation Installation or maintenance The grounding resistance must be performed by qua- should comply with nation- lified professionals. al electric safety regula- The appliance shall be in- tions. stalled in accordance with Air Conditioner should be national wiring regulations. properly grounded.
  • Page 9 Safety precautions CAUTION Installation Instructions for installation For the air conditioner with- and use of this product are out plug, a circuit breaker provided by the manufac- must be installed in the turer. line. Select a location which is The yellow-green wire in out of reach for children air conditioner is ground- and far away from animals...
  • Page 10 Safety precautions WARNING Operation and Maintenance tioner to multi-purpose soc- This appliance can be used ket. Otherwise, it may cau- by children aged from 8 se fire hazard. years and above and per- Do disconnect power supp- sons with reduced physi- ly when cleaning air condi- cal, sensory or mental ca- tioner.
  • Page 11 Safety precautions CAUTION Operation and Maintenance frequently. Do not spill water on the re- Air conditioner gives off mote controller, otherwise burning smell. the remote controller may Indoor unit is leaking. be broken. Do not use fire or hair dry- er to dry the filter to avoid deformation or fire hazard.

  • Page 12: Parts Name

    Parts name Indoor Unit If remote controller is lost or damaged, please use aux. button to turn on or turn off the air conditioner. The operation in details is as below: As shown in the figure, open panel and press aux. button to turn off the air conditioner. When the air conditioner is turned on, it will operate under auto mode.

  • Page 13: Operation Of Wireless Remote Controller

    OPERATION OF WIRELESS REMOTE CONTROLLER Remote Controller ON/OFF button MODE button FAN button SWING button TURBO button MODE ▲/ button SWING TURBO SLEEP button TEMP SLEEP TEMP button WiFi CLOCK LIGHT WiFi button TIMER TIMER LIGHT button CLOCK button TIMER ON / TIMER OFF button Introduction for icons on display screen Set fan speed...
  • Page 14 OPERATION OF WIRELESS REMOTE CONTROLLER Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
  • Page 15 OPERATION OF WIRELESS REMOTE CONTROLLER ● When selecting fan mode, the air conditioner will only blow fan, no cooling and no heating. Press "FAN" button to adjust fan speed. Press "SWING" button to adjust fan blowing angle. ● When selecting heating mode, the air conditioner operates under heat mode. Heat indicator on indoor unit is ON(This indicator is not available for some models).
  • Page 16 OPERATION OF WIRELESS REMOTE CONTROLLER ● When selecting " ", air conditioner is blowing fan automatically. Horizontal louver will automatically swing up & down at maximum angle. ● When selecting " 、 、 、 、 ● When selecting " 、 、 ●...
  • Page 17 OPERATION OF WIRELESS REMOTE CONTROLLER ● When selecting " " or no display with remote controller, temperature indicator on indoor unit displays set temperature. ● When selecting " " with remote controller, temperature indicator on indoor unit displays indoor ambient temperature. ●...
  • Page 18 OPERATION OF WIRELESS REMOTE CONTROLLER ● TIMER ON button "TIMER ON" button can set the time for timer on. After pressing this button, " " icon disappears and the word "ON" on remote controller blinks. Press "▲" or " "button to adjust TIMER ON setting. After each pressing "▲" or " "...
  • Page 19 OPERATION OF WIRELESS REMOTE CONTROLLER Auto clean function Under unit off status, hold "MODE" and "FAN" buttons simultaneously for 5s to turn on or turn off the internal clean function. When the internal clean function is turned on, indoor unit displays “CL”. (This function is applicable for some models) During the self-cleaning process of evaporator, the unit will perform fast cooling or fast heating.
  • Page 20 OPERATION OF WIRELESS REMOTE CONTROLLER will automatically adjust the indoor temperature according to the detected tempera- ture. Press this two buttons simultaneously again to close I FEEL function and " " will disappear. ● Please put the remote controller near user when this function is set. Do not put the remote controller near the object of high temperature o r low temperature in order to avoid detecting inaccurate ambient temperature.When I FEEL function is turned on, the remote controller should be put within the area where indoor...

  • Page 21: Clean And Maintenance

    Clean and maintenance WARNING ■ The filter should be cleaned every three months . If there is much dust in the operation environme- WARNING nt, clean frequency can be increased. ■ Turn off the air conditioner and disconnect the ■ After removing the filter, do not touch fins to power before cleaning the air conditioner to av- avoid injury.

  • Page 22: Checked Items Before Maintenance

    Checked items before maintenance Phenomenon Solution Check items Whether there’s od- General phenomenon analysis Eliminate the odour Odours are our source, such as source. Clean the Please check below ite ms before asking for furniture and cigare- emitted filter. maintenance. If the malfunction still can’t be tte, etc.

  • Page 23: Installation Notice

    Installation notice WARNING sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power.
  • Page 24 Selection of installation location Requirements for electric connection Basic requirement 7.If the supply cord is damaged, it must be repla- Installing the unit in the following places may cau- ced by the manufacturer, its service agent or se malfunction. If it is unavoidable, please consu- similarly qualified persons in order to avoid a lt the local dealer: hazard .

  • Page 25: Installation Of Indoor Unit

    Installation of indoor unit NOTE Indoor outdoor ● Pay attention to dust prevention Step 1: sures when opening the hole. Choose installation location Φ55 5-10 Φ70 Recommend the installation location to the client and then confirm it with the client. Step 2: Step 4: Install wall-mounting frame...
  • Page 26 Tightening torque (N . m) drain hose Hex nut diameter 1/4'' 15~20 3/8'' 30~40 1/2'' 45~55 insulating pipe 5/8'' 60~65 NOTE 3/4'' 70~75 ● Add insulating pipe in the indoor drain hose in order to prevent condensation. ● The plastic expansion particles are not provided. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and then wrap it Step 7:...
  • Page 27 drain hose connection pipe Remove the wire clip; connect the power conn- band ection wire to the wiring terminal according to the color; tighten the screw and then fix the po- wer connection wire with wire clip. indoor power cord Bind them evenly.

  • Page 28: Test And Operation

    Test and operation Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been The unit may drop, shake or installed firmly? emit noise. It may cause insufficient Have you done the refri- cooling(heating) capacity.

  • Page 29: Configuration Of Connection Pipe

    Configuration of connection pipe Additional refrigerant charging amount for R22, R407C, R410A and R134a Standard length of connection pipe: 5m, 7.5m, Min. length of connection pipe is 3m. Max. length of connection pipe is shown as below. Max. length of connection pipe Max.
  • Page 30 B: Remove the burrs smooth surface Remove the burrs with shaper and prevent the ● burrs from getting into the pipe. improper expanding pipe shaper leaning damaged crack uneven surface thickness downwards the length is equal Working temperature range For some models: C: Put on suitable insulating pipe Outdoor side Indoor side...
  • Page 32 Phone No. / E-mail GREE distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows. All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture.

This manual is also suitable for:

Livv09hp115v1ahLivv12hp115v1ah
