ETS NORD NORDcanopy OZ 3.0 Installation Manual

Ozone cleaning system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NORDcanopy
OZ 3.0 Ozone Cleaning System Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORDcanopy OZ 3.0 and is the answer not in the manual?

Questions and answers

Related Manuals for ETS NORD NORDcanopy OZ 3.0

Summary of Contents for ETS NORD NORDcanopy OZ 3.0

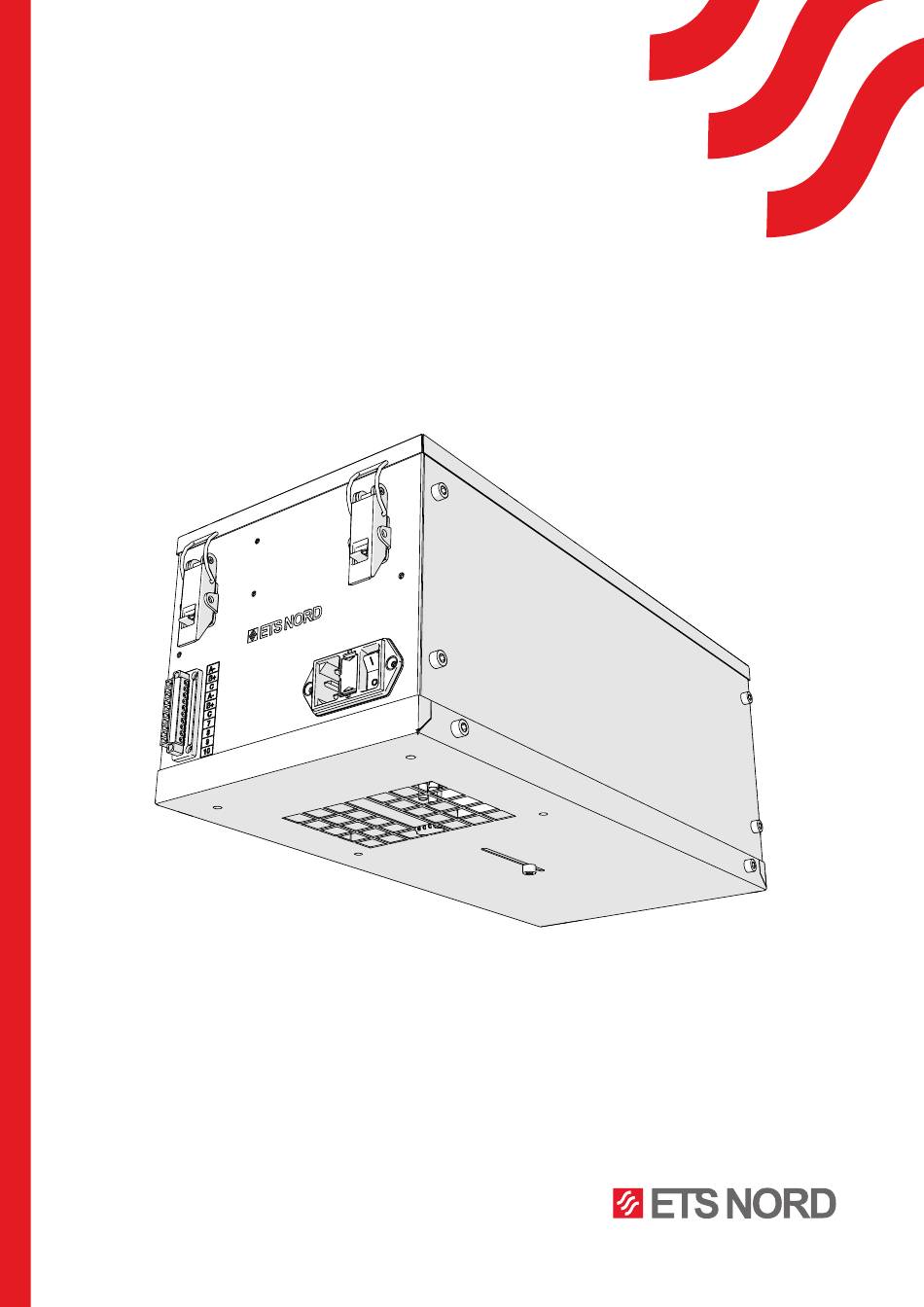

  • Page 1 NORDcanopy OZ 3.0 Ozone Cleaning System Installation Guide...

  • Page 2: Table Of Contents

    ® NORDcanopy | OZ 3.0 Installation Guide Table of contents Safety notes Installation flowchart 1. Check the product shipment 2. System overview 3. Prepare the Ozone Modules 3.1 Set the device addresses 4. Installation 4.1 General information 4.2 Connect the pressure measurement hoses 4.3 Mount the Control Panel 5.

  • Page 3: Safety Notes

    • The Ozone Cleaning System uses high voltage to create an electric charge that generates ozone (O ). Ozone significantly reduces odor, grease, mold and bacteria. ETS NORD AS disclaims any liability in the case that the product is not used in accordance with the manufacturer’s instructions contained in this manual.

  • Page 4: Check The Product Shipment

    ® NORDcanopy | OZ 3.0 Installation Guide Check the product shipment Check that the parcel contains all components listed below and that there is no visible damage. Notify both the freight forwarder and supplier immediately of any damage or missing components. Before installing the device read through the entire instruction material.

  • Page 5: Prepare The Ozone Modules

    ® NORDcanopy | OZ 3.0 Installation Guide NOTE! Installation may only be carried out by ETS NORD trained and authorized persons in accordance with local, regional, national standards and regulations. Prepare the Ozone Modules 3.1 Set the device addresses Each OZ module must be set to a unique device address A flashlight and a long, narrow 2mm flat-head screwdriver will be needed for this procedure.

  • Page 6: Installation

    ® NORDcanopy | OZ 3.0 Installation Guide Installation 4.1 General information Ozone is drawn into the grease chamber through the ozone duct, which is located on the ceiling of the canopy. The ducting and bends necessary for connection are included with the canopy. Always install the ozone ducting according to the manufacturer’s drawings.

  • Page 7: Connect The Pressure Measurement Hoses

    ® NORDcanopy | OZ 3.0 Installation Guide 4.2 Connect the pressure measurement hoses For an Ozone Module to operate properly its two pressure measurement hoses must be connected. NOTE! There are two hoses that need to be connected to each module. - Two hoses, one long and one short, are provided in the shipping carton.

  • Page 8: Mount The Control Panel

    ® NORDcanopy | OZ 3.0 Installation Guide 4.3 Mount the Control Panel Choose a visible and easily accessible location in the kitchen suitable for the Control Panel. Avoid positioning it near any sources of moisture or heat. The housing must be disassembled into three parts. Remove the two fixing screws on the sides of the case.

  • Page 9: Electrical Installation

    ® NORDcanopy | OZ 3.0 Installation Guide Electrical Installation NOTE! Electrical installation must be performed by an authorized electrician and follow local, regional and national standards and regulations. The ozone generator system must be interlocked with the exhaust system, so that when the exhaust ventilation is not running, no electrical power is supplied to the ozone system.

  • Page 10: Connect The Main Electrical Supply

    ® NORDcanopy | OZ 3.0 Installation Guide 5.1 Connect the main electrical supply Each ozone generator has its own power supply connection: - A maximum of 4 ozone generators and one alarm panel may be connected a single 10A low-speed circuit breaker.

  • Page 11: Control Panel And The Ozone Modules Data Wiring

    ® NORDcanopy | OZ 3.0 Installation Guide 5.2 Control Panel and the Ozone Modules data wiring Three cables are connected to the Control Panel. Data cable (3x0,25mm2) for communication between Control Panel and EOZ unit, I/O cable (5x0,5mm2) for connecting to the building automation and LAN cable to access the Control Panel via internet.
  • Page 12 I/O cable COM+ For more technical information, please read the ”OZ 3.0 Ozone Cleaning System Automation Guide” or contact your ETS NORD representative. Rout the other end to a junction box that is situated near or on top to the canopy.
  • Page 13 ® NORDcanopy | OZ 3.0 Installation Guide Finally, if it is desired to connect the system to the local area network, connect the LAN cable to the Control Panel by unplugging the existing short LAN jumper cable inside and connect your LAN cable straight to the port on the board as seen below.

  • Page 14: Facts About Ozone

    • The new device is covered by a 2-year warranty against defects and manufacturing defects, if: - the initial commissioning of the device has been performed by an authorized partner of ETS NORD AS - the equipment is serviced every 12 months after commissioning - specified components (eg ozone generating equipment) have been replaced as required •...
  • Page 15 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
