dipo INDUCTION BKUW Series Quick Start Manual

#503, Hanam Venture Center, Geomdansan-ro 239, Hanam-si, Gyeonggi-do, 13023 / Tel : +82-31-793-5895 / FAX : +82-31-793-5862
COPYRIGHT©2010 DIPO INDUCTION CO., LTD ALL RIGHTS RESERVED.

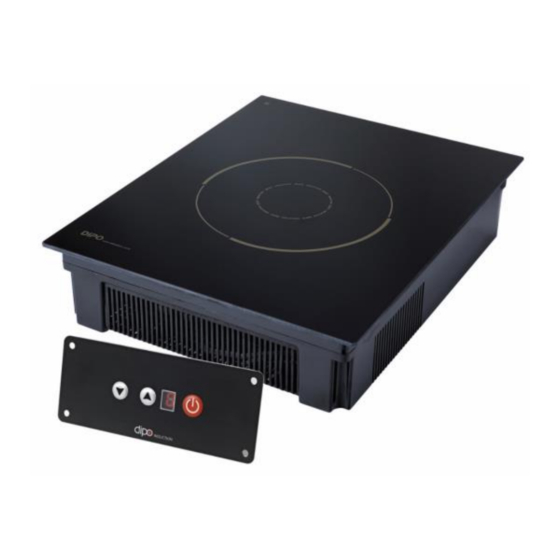

Under-counter Warmer
BKUW
BKUW
BKUW-A
Electricity
BKUW-E
BKUW-CE1
BKUW-J
Power Connection
Conversion to Calory
7 Warming Steps
(1-7)
Dimension / Weight
Controller
Power Cable
Cookware Diameter
Recommendation
Features
&
Functions
Warranty
DIPO INDUCTION RANGE / www.dipoinduction.com
Specification
220V, 60Hz, 1PH
208~240V, 50/60Hz, 1PH
Power
220~240V, 50/60Hz, 1PH
Consumption
220~240V, 60Hz, 1PH
200V, 50/60Hz, 1PH
Max Current
Plug type
345.6 Kcal/h
1 2 3 4
35 40 50 60
℃ ℃ ℃ ℃
Product: 296 X 370 X 80 (mm) / 4kg
Package: 490 X 360 X 180 (mm) / 4.8kg
Capacitive Button
(separated from the unit)
660 mm Controller Cable
min :
Ø130mm
Loadable Weight
max : Ø240mm
Buffet, Warmer
▣ Safety
- No vessel : "U" flashing
- Over current indication : "1" flashing
- Over voltage indication : "2" ( Above 265V ) flashing
- Low voltage : "3" ( Below 180V ) flashing
- Over heated product indication : "4" (IGBT heat sink temperature above 85℃) flashing
- Top surface overheated (empty vessel)
: "6" ( Top surface temperature above 260℃) flashing
- Unstable power indication: "7" flashing
- Defective PCB indication : "8" flashing
- Defective Working Coil indication : "9" flashing
▣ Under Range
- Recognize cookware up to 4cm from top glass
- Cognition Area is more wide than other products
- Install the product under the table without perforated
1 year (to be charged in case of user's negligence)
BKUW
BKUW-A
BKUW-E 500 W
BKUW-CE1
BKUW-J
2.5 A
5 6 7
(1L Water,
using
chafer)
70 80 90
℃ ℃ ℃
660 mm
30 Kg
