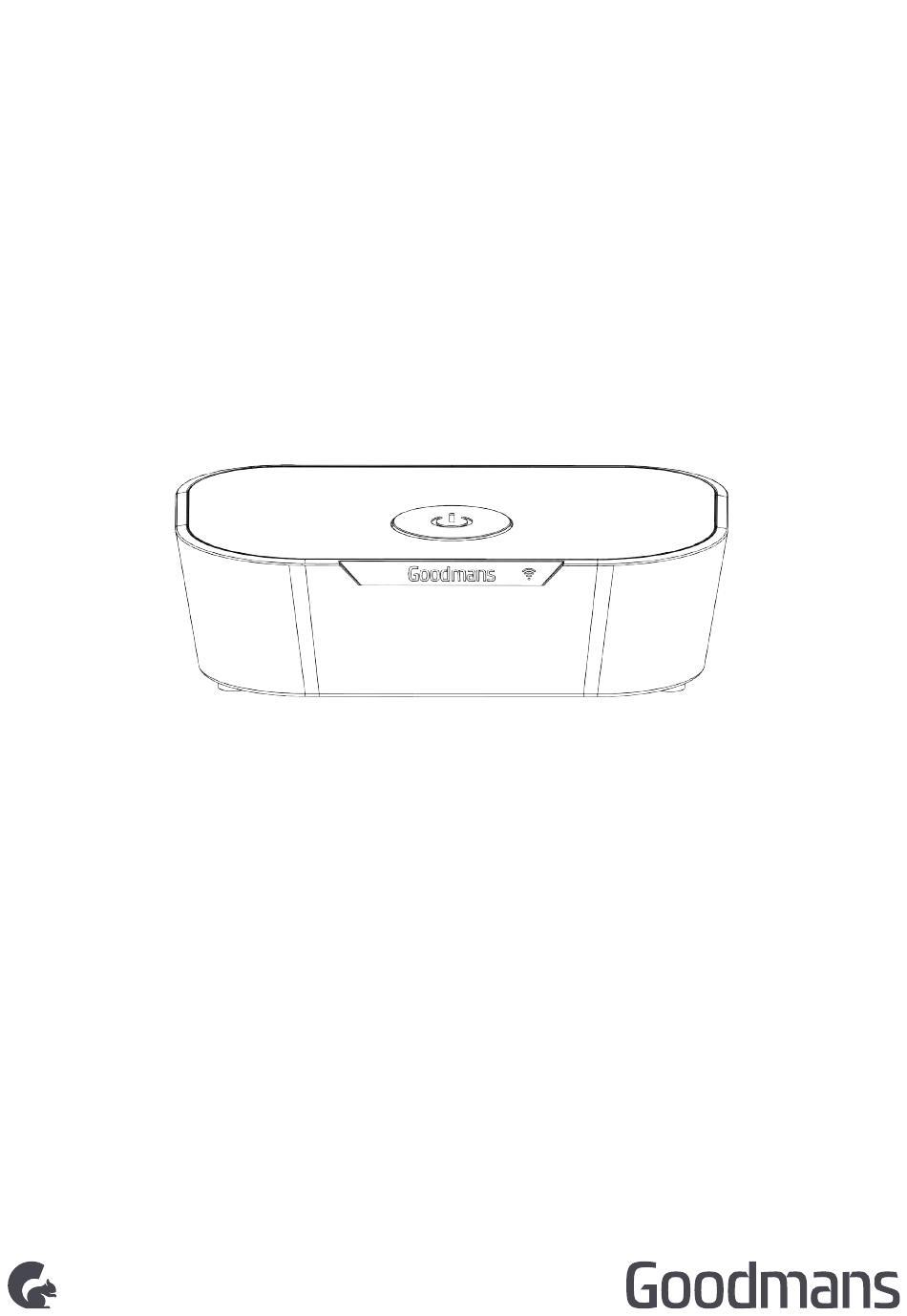

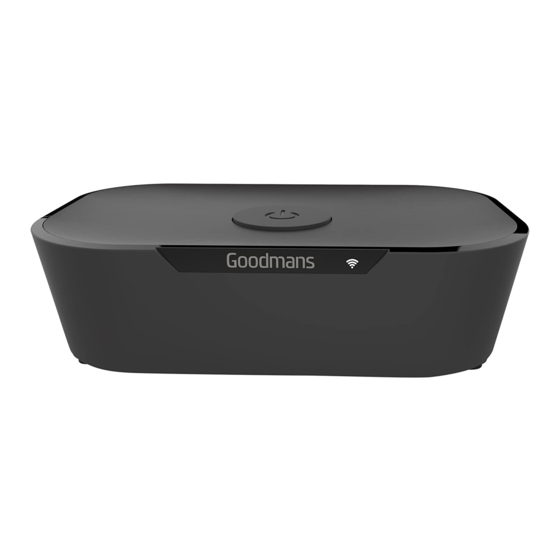

- Page 1 AllPlay MODULE MODEL: MODULE Multi-Room Audio Streaming Adaptor USER MANUAL...
-
Page 2: Quick Setup
Welcome Your Adaptor 2.1 In The Box 2.2 Front View 2.3 Rear view Quick Setup 3.1 Minimum requirements 3.2 Download and Install the AllPlay Jukebox App to your mobile phone 3.3 Mains Power Operating From your mobile phone/tablet Multi-control Multi zones 4.4 Multi-room operation (Party mode, or stereo) 4.5 Settings 4.6 Direct mode (Access Point mode) - Page 3 Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British people for 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new MODULE...
-
Page 4: Front View
Front View Power button Power On/Off the unit Multi-Function LED indicator Red: Stand-by mode: Flashing Yellow: System is booting. The LED flashes for around one minute while Module starts up. Slow Flashing White: Waiting for Network Connection. Fast Flashing White: Connecting to Network. - Page 5 Rear view DC IN Connect to supplied Power Adaptor Important: Only use the supplied adaptor! ANALOG AUDIO OUTPUT 3.5mm Stereo Jack to connect to your audio system. WLAN For easy connection to your home Wi-Fi network. Press this key and the WPS key of the router simultaneously for automatic Wi-Fi pairing.
-
Page 6: Quick Start
Quick start Minimum requirements Android Phone (4.1 minimum) or iPhone (from iPhone 4 with IOS 7.0 and later). Router WiFi 802.11n, with WPA2-PSK encryption (AES) ADSL or Optical Internet connection For Multi-room or High Resolution playing, a 5 GHz multimedia router (speed> 600 Mbps) is highly recommended. - Page 7 3.3.2 Connect your device using a browser: Open the Wi-Fi settings on your Smartphone / Tablet. Connect to the Access Point network of your Module: Module ######_AJ (###### is the last 6 digits of the MAC code) iOS devices will automatically redirect to the network set up page. On an Android device you will need to swipe down your notifications to set up the network connection.
-
Page 8: Operation
Operation Play music Please make sure your mobile devices and audio devices (Audio adaptor, Speakers) are connected to the same Wi-Fi network. From your mobile phone/ tablet: A Open the AllPlay Jukebox app on your mobile phone/tablet and wait your unit to be displayed (Display "Module_xxxxxx-AJ"... - Page 9 F After selection you can choose to play immediately (Now), after the song currently playing (Next) or at the end of the list (Last). Press clear deletes the play list. G Use the button up/right as toggle function between the play list and the playing song. H Use the controls as per described below.
- Page 10 Multi-control If you have several mobile devices connected to your home network running the AllPlay Jukebox APP ,you can build a common play list from your different mobile devices. Multi zones: If several audio devices (AllPlay speakers, audio adaptors) are connected simultaneously on your home Wi-Fi network, you can play a song on speaker 1 and another song on the speaker 2 from any mobile device connected to the network.
- Page 11 A Press the devices banner on the top of the screen to display the devices list: B Press the "group button", and select the audio devices you want to group. Then press the button "Done". C Select the group and operate as a single speaker. D When touch the volume control a new screen appears allowing to adjust the volume of the speakers independently.
- Page 12 Rename your device: A. Press the “Device name” on the top of the screen. B. Delete the current name and input the new one, then press OK. Direct mode (Access Point mode) Press the DIR.MODE/RESET button at the rear of the unit (one press around one second). MODULE...
- Page 13 The LED indicator is flashing few times then light then becomes permanent white: the unit becomes detectable as a Wi-Fi access point. Browse your LAN list on your mobile device and select “Goodmans Module” or your device name if you already gave a name to your device, then connect your PC to the audio adapter.
-
Page 14: Troubleshooting
Troubleshooting Problem What to do Cannot 1. Please make sure to wait at least one minute after POWER-ON connect my before try to connect your audio device to a router. device to my 2. Reset your device (Press the RESET key at the back more than 5 router seconds, see page 4) wait one minute, and try again. -
Page 15: Main Features
• Operation: 1 keys on top with Multi-color LED indicator; 2 keys on back • Power input: 5V DC - 1A (micro USB connector) • Power consumption in ON mode : < 5 W Customer Support Our customer service team is available for technical or guarantee support. Visit www.goodmans.co.uk/support www.goodmans.co.uk MODULE...
