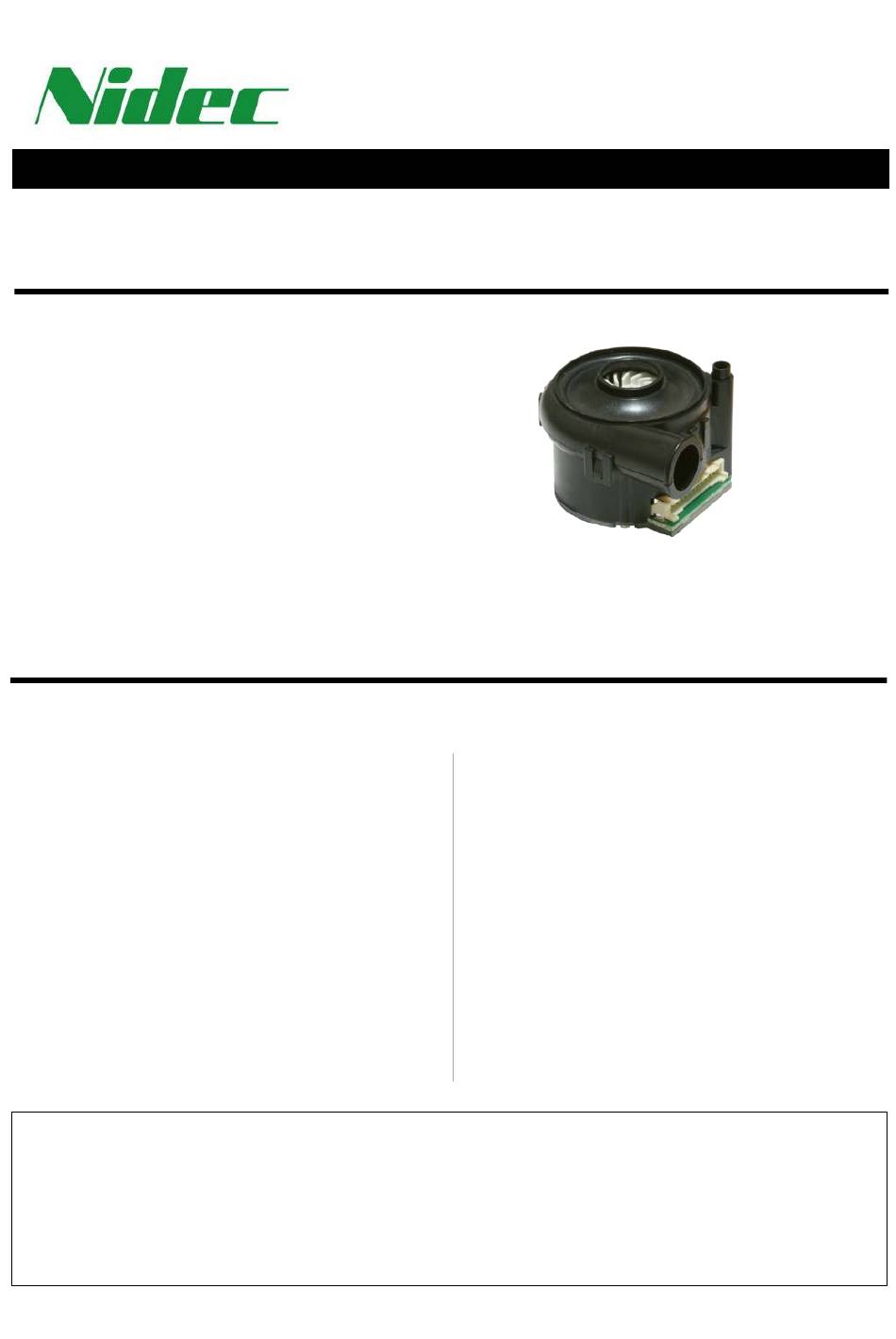

8SEFB-0031①(2)
Micro Blower
TF037E-2000-F
Part No
TF037C-2100-F
TF037C-2000-F
TF037F-2000-F
AERO DYNAMIC BEARING TECHNOLOGY
TF037 series Micro Blower. The results are super low vibration, super long bearing's
。
lifetime and no high temperature degradation characteristics, which enable to maximize
efficiency and performance and gain high power even on small size FAN.
BEFORE USE OF THIS PRODUCT, CAREFULLY READ THE SECTION OF HANDLING
PRECAUTION, AND INSTALL AND USE PRODUCT ACCORDING TO THE SPECIFIC
MECHANICAL ELECTRONICAL PROPERTIES REQUIRED BY PRODUCT.
THIS PRODUCT IS DESIGNED ONLY FOR VENTILATION PURPOSE, FOR REQUEST TO
USE PORDUCT FOR OTHER PURPOSE, PLEASE CONTACT SALES REPRESENTATIVE
Nidec COPAL Electronics Corporation
TABLE OF CONTENTS
2
2
3
3
3
4
5
6
SPECIFICATION
, our proprietary technology, is used to
Packaging Information
PN: TF037C-2000-F
7
8～10
11
12
12
13
13
14
Advertisement
Table of Contents
Related Manuals for Nidec TF037 Series
Summary of Contents for Nidec TF037 Series
-
Page 1: Table Of Contents
TF037F-2000-F AERO DYNAMIC BEARING TECHNOLOGY , our proprietary technology, is used to TF037 series Micro Blower. The results are super low vibration, super long bearing’s 。 lifetime and no high temperature degradation characteristics, which enable to maximize efficiency and performance and gain high power even on small size FAN. -
Page 2: Product Overview
*1) Do not use to any corrosive gas. *2) Avoid vibration and shock while the product is operating. It may damage product *3) Rotation Speed = Hole Sensor Frequency×15 *4) Condensation may cause damage to product Copy right 2019, Nidec Copal Electronics Corporation... -
Page 3: Mechanical Specification
*2) *3) *1) Ambient Temperature 60℃ with the recommended Mounting Direction *2)＠3.0 kPa 100L/min Temperature：23±５℃, Humidity：45～85%RH, Air Pressure：101.3kPa *3)Measured 1 m away from the intake vent ( Including dark noise as 15 dB ) Copy right 2019, Nidec Copal Electronics Corporation... -
Page 4: Interface
VH = (VH+)-(VH-) at 10mA in Input current ・Equivalent of ASAHI KASEI Electronics HW-105A THERMISTOR CHARACTERISTIC Reference Resistance 25℃ 10kΩ Operating Current 25℃ 0.31 mA B Constant[25/85℃] 4,100 K 86 ℃ (Thermistor Resistance： 0.97kΩ) Maximum Temperature ・Equivalent of TDK NTCG164BH103JT Copy right 2019, Nidec Copal Electronics Corporation... -
Page 5: Timing Chart
8SEFB-0031①(2) TF037 Series SPECIFICATION ■TIMING CHART 60 120 180 240 300 360 Electrical Angle [deg] 電気角 [deg] 機械角 Mechanical Angle Copy right 2019, Nidec Copal Electronics Corporation... -
Page 6: Operating Range In P-Q & Q-I Rating
The characteristics below are measured with our company’s driver at axis vertical position. 24V P-Q/Q-I Characteristic 12V P-Q/Q-I Characteristic Ambient Temperature：25℃,Barometric Pressure: 101.3kPa Ambient Temperature：25℃,Barometric Pressure: 101.3kPa 24V P-Q/Q-I Characteristic 12V P-Q/Q-I Characteristic Ambient Temperature：60℃,Barometric Pressure: 101.3kPa Ambient Temperature：60℃,Barometric Pressure: 101.3kPa Copy right 2019, Nidec Copal Electronics Corporation... -
Page 7: Reliability Test
The test result shall meet the ratings of Power supply current, Power consumption and Noise level listed in this specification. *1) The condition in the dust test is made for just measuring the limit. Do not put the product into such a severe condition Copy right 2019, Nidec Copal Electronics Corporation... - Page 8 Contents Material Remark TF037E-2000-F One tray ：4×4 = 16 set Lid of Tray PET(Polyethylene terephthalate) Tray PET(Polyethylene terephthalate) Inner bag PE(Polyethylene) Desiccant Outer box Cardboard Size 485(L)×460(W)×245(H) Adhesive tape Unspecified Contents List Paper Copy right 2019, Nidec Copal Electronics Corporation...
- Page 9 One tray： 4×6 = 24 pcs Lid of Tray PET(Polyethylene terephthalate) Tray PET(Polyethylene terephthalate) Partition Cardboard Sponge Sponge Sponge Inner Bag PE(Polyethylene) Desiccant Outer Box Cardboard Size 540(L)×310(W)×161(H) Adhesive tape Unspecified Contents List Paper Copy right 2019, Nidec Copal Electronics Corporation...
- Page 10 One tray：4×6 = 24 pcs Lid of Tray PET(Polyethylene terephthalate) Tray PET(Polyethylene terephthalate) Partition Cardboard Sponge Sponge Sponge Inner Bag PE(Polyethylene) Desiccant Outer Box Cardboard Size 540(L)×310(W)×110(H) Adhesive tape Unspecified Contents List Paper Copy right 2019, Nidec Copal Electronics Corporation...
-
Page 11: Product Label Information
TF037E-2000-F, TF037F-2000-F Lot No. Year (Last two digit of year) Month (Table 1) Day (Table2) Control Number (A to Z) Serial No. Index by LOT [ Table 1 ] [ Table 2 ] Copy right 2019, Nidec Copal Electronics Corporation... -
Page 12: Warranty
Warranty period of the Product is one year from delivery. In case, defect has been found in the Product during the warranty period and it was found that Nidec Copal Electronics (here in after referred as NCE) is responsible and liable for the defect, NCE shall either repair or replace the defected Product free of... -
Page 13: Environmental/Safety Regulation
Product operates without problems. NCE is not liable for losses, damages, claims or demands which are claimed to have arisen as a result of and caused directly or indirectly by Product’s defect, out of order, failure and malfunction. Copy right 2019, Nidec Copal Electronics Corporation... -
Page 14: Revision History
15-Oct-19 English edition 23-Apr-21 Chinese edition 8SEFB-0031① → 8SEFB-0031①(2) 6-Dec-21 English edition Headquarter Address: NIDEC COPAL ELECTRONICS CORPORATION Nishi-Shinjuku Prime Square Bldg., 7-5-25 Nishi-Shinjuku, Shinjuku-Ku, Tokyo JAPAN. TEL: +81-3-3364-7071 FAX: +81-3-3364-7091 URL. https://www.nidec-copal-electronics.com Copy right 2019, Nidec Copal Electronics Corporation... - Page 15 8SEFB-0031①(2)
- Page 16 8SEFB-0031①(2)
- Page 17 8SEFB-0031①(2)
- Page 18 8SEFB-0031①(2)
- Page 19 8SEFB-0031①(2)
- Page 20 8SEFB-0031①(2)
- Page 21 8SEFB-0031①(2)
