hyfire HFI-EBS-06 Manual

HFI-EBS-06
HFI-EBSB-23W-06
HFI-EBSB-23R-06
HFI-ABS-06
HFI-ABSB-23W-06
HFI-ABSB-23R-06

Products compatibility and general description

These products are to be used in conjunction with the following Altair, Altair Lite and Altair Plus detectors:
A1000
(AT5910CPR)
A2000
(AT5910CPR)
A3500
(AT5910CPR)
A1000L
(AT5010CPR)
A2000L
(AT5010CPR)
A3500L
(AT5010CPR)
A1000+
(AT5910CPR)
A2000+
(AT5910CPR)
A3500+
(AT5910CPR)
(In brackets, DOP reference)
These products are compatible only with control panels that use the Vega protocol.
In order to work, these sounder bases require a suitable host detector.
Following the triggering of an alarm condition on the host detector, the Altair Flexiplus base sounder activates its acoustic output, previously
selected through its selector; similarly, Altair Plus Flexiplus base sounders activate the acoustic output, but in this case its pattern is previously
selected from the control panel.
Base sounders equipped with VAD (Visual Alarm Device), in conjunction with the acoustic signal, also emit an alarm visual signal; specifically:
- for HFI-EBSB-23W-06 and HFI-ABSB-23W-06 white optical alarm signal
- for HFI-EBSB-23R-06 and HFI-ABSB-23R-06 red optical alarm signal.
Product parts
Ceiling mounting bracket (picture 1)
1. Sound diffuser cone.
2. Loop cables passage.
3. Pre-cut holes for screwing the bracket to the ceiling.
4. Fixing pins.

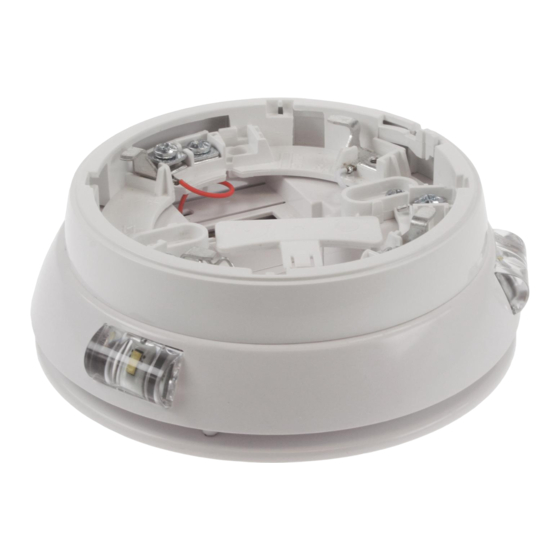

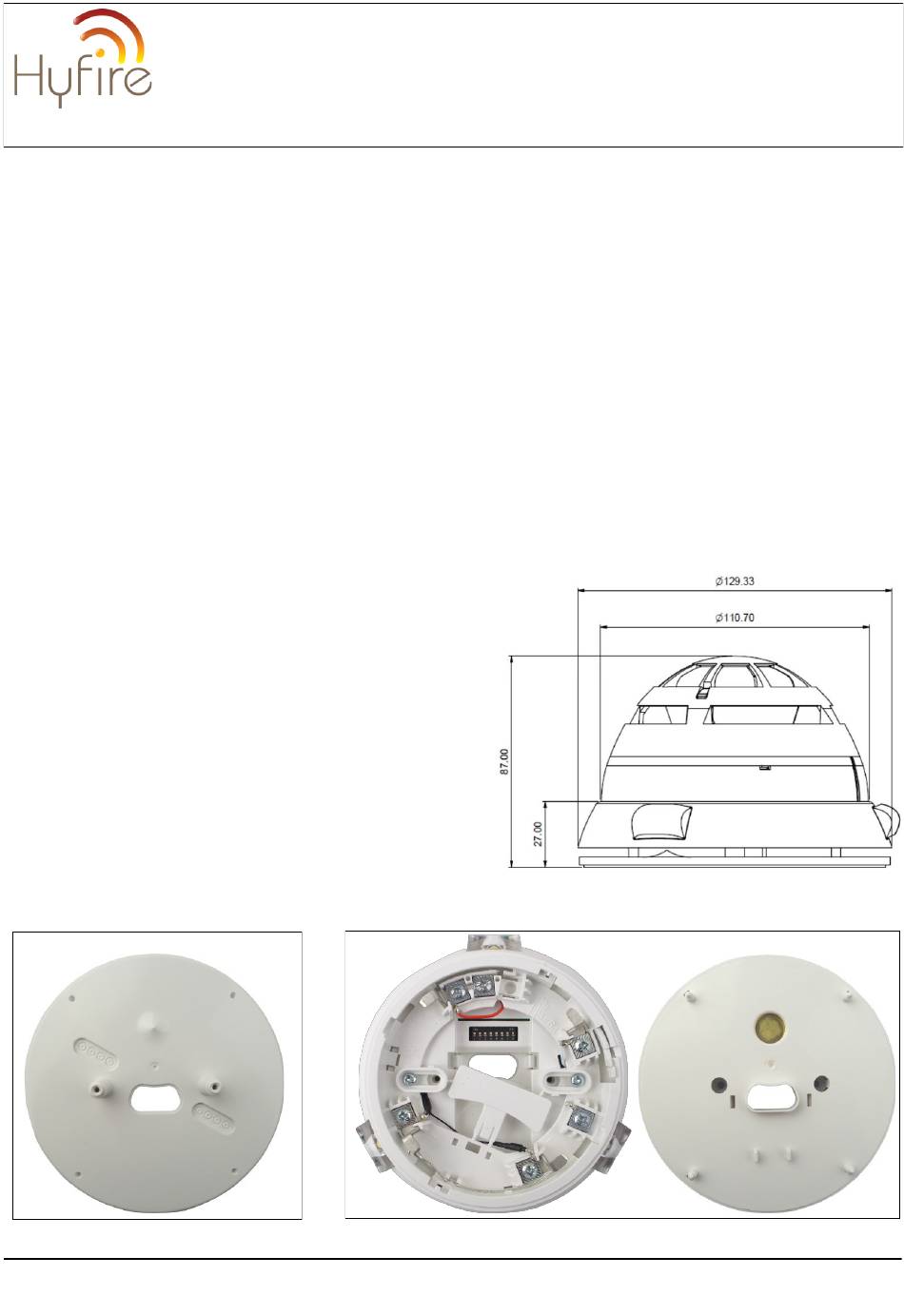

Base sounder (picture 2)
1. Adaptor base for the host detector.
2. Loop cables passage.
3. Selector for the acoustic tone, volume and VAD output intensity (Altair
Flexiplus only).
4. Bracket-base sounder screw fixing location.
5. VAD output.
6. Acoustic alarm signal outlet.
7. Bracket's pins hosting holes.
Picture 1
1
3
2
4
