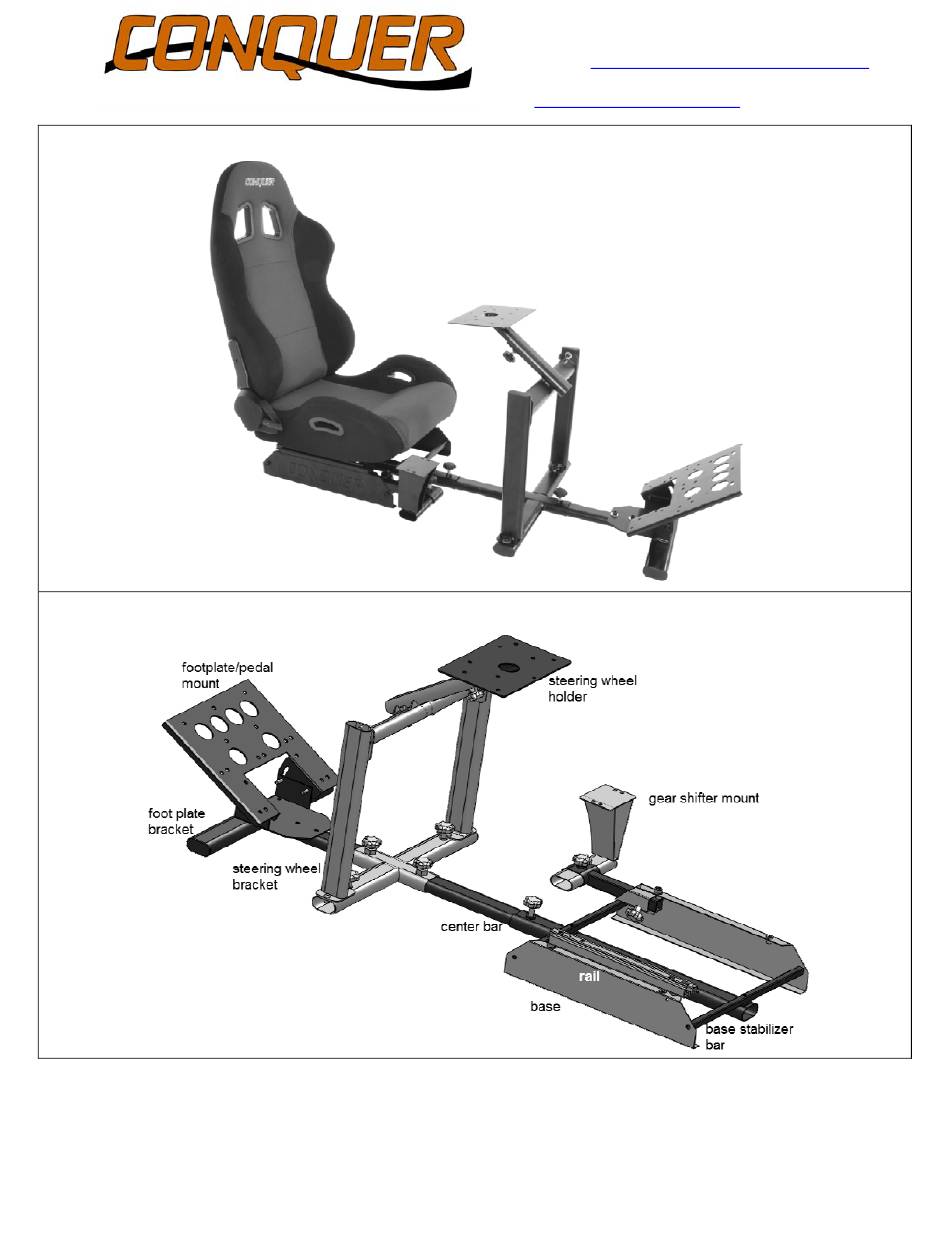

Product name: Conquer Racing Simulator Seat
SKU: 355-RACESIM3
EMAIL:
customercare@conquerequipment.com
TEL: 855-349-4327
help.ConquerEquipment.com
Thank you for your purchase of a Conquer Racing Simulator Seat!
EMAIL: customercare@conquerequipment.com
WEB: help.conquerequipment.com
TEL: 855-349-4327
Advertisement
Summary of Contents for Conquer 355-RACESIM3
- Page 1 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Thank you for your purchase of a Conquer Racing Simulator Seat! EMAIL: customercare@conquerequipment.com WEB: help.conquerequipment.com TEL: 855-349-4327...
- Page 2 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Small hardware: 1. Allen wrench/hex keys 2. Star knobs 3. 4 M8 x 20mm bolts 4. 2 M6 x 20mm bolts 5. 18 M8 x 15mm bolts 6.
- Page 3 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 1: First, attach the rails to the base pieces with 4 M8 x 20mm bolts and Allen wrench. The right side base has shifter mount near front (fig. 1), the right side rail is the one without the seat adjuster handle.
- Page 4 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 2: Find small bag of M8x20mm bolts and spacers. Line up right base with holes on right side seat bottom (be sure shifter mount is toward front). Attach right side base to seat bottom with bolts and spacers (put spacer between base and seat).
- Page 5 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 3: Use 4 M8x15mm bolts and washers to attach base stabilizer bars to bases. Ensure holes in base stabilizer bars are perpendicular to floor (fig. 11). Thread each bolt, tighten incrementally until snug (fig.
- Page 6 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 4: Get behind the seat bottom as it rests on base. For shipping purposes, the seat back incline bracket is too far forward (fig. 15) to install the seat back to the seat bottom.
- Page 7 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 5: Line up seat back with brackets on either side. Use adjustable wrench to reinstall bolt through bracket on left side (fig. 19) to attach the seat back to seat bottom (left side).
- Page 8 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 6: Assemble steering column bracket (4 pieces). Attach side pieces to base first, using 4 M8 x 15mm bolts and washers. Then attach top piece-steering bracket with 4 M8 x 15mm bolts.
- Page 9 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 7: Slide steering column bracket onto center bar (fig. 27). Slide center bar into the other part of the center bar (fig. 28). Use star knobs to adjust center bar to desired length.
- Page 10 Product name: Conquer Racing Simulator Seat SKU: 355-RACESIM3 EMAIL: customercare@conquerequipment.com TEL: 855-349-4327 help.ConquerEquipment.com Step 7, continued: Slide shifter arm tube into shifter mount on base piece. Slide shifter mount (the part with the platform) into shifter arm. Use star knobs to attach and adjust (fig.
