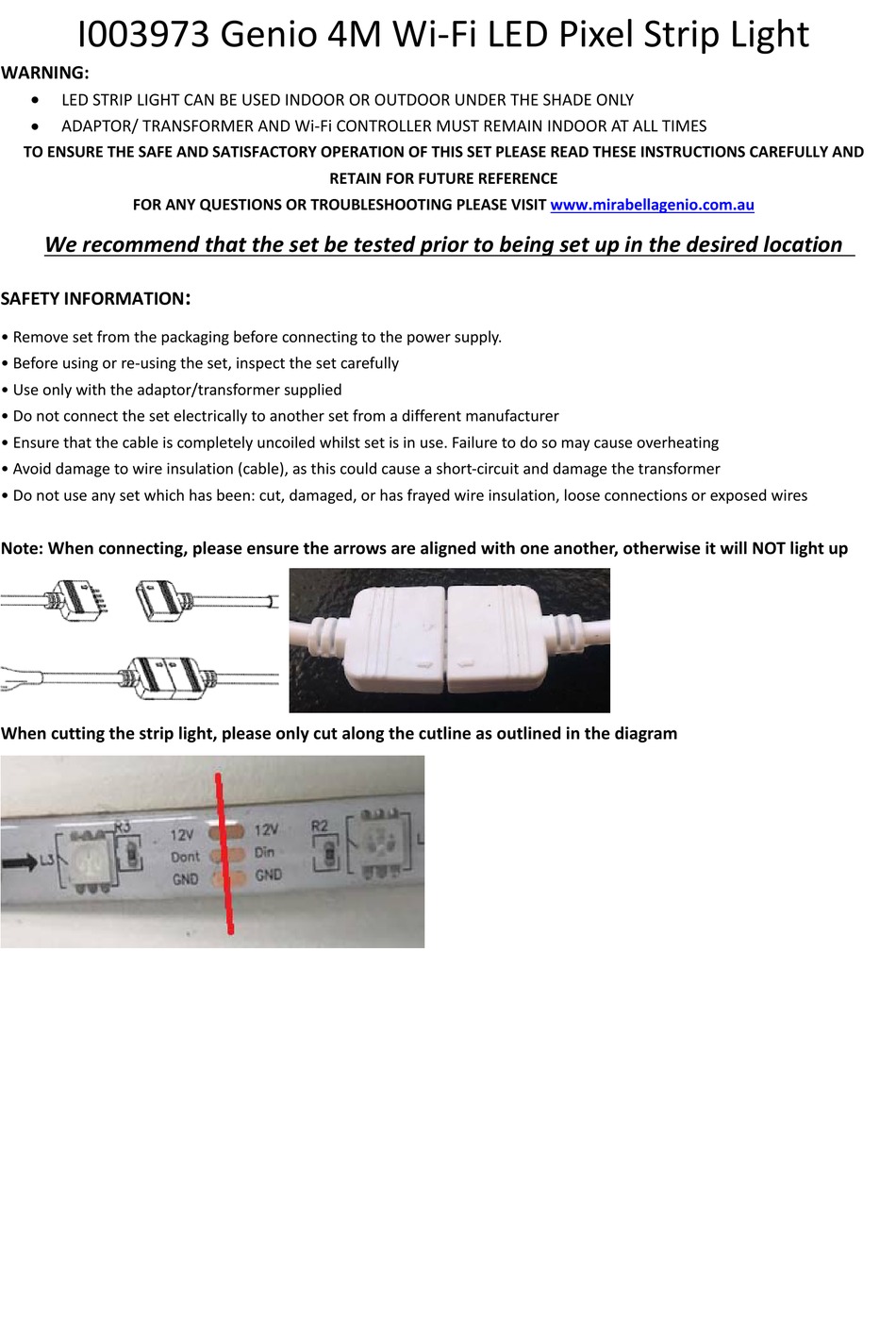

I003973 Genio 4M Wi‐Fi LED Pixel Strip Light
WARNING:
LED STRIP LIGHT CAN BE USED INDOOR OR OUTDOOR UNDER THE SHADE ONLY
ADAPTOR/ TRANSFORMER AND Wi‐Fi CONTROLLER MUST REMAIN INDOOR AT ALL TIMES
TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY AND
FOR ANY QUESTIONS OR TROUBLESHOOTING PLEASE VISIT www.mirabellagenio.com.au
We recommend that the set be tested prior to being set up in the desired location
SAFETY INFORMATION
• Remove set from the packaging before connecting to the power supply.
• Before using or re‐using the set, inspect the set carefully
• Use only with the adaptor/transformer supplied
• Do not connect the set electrically to another set from a different manufacturer
• Ensure that the cable is completely uncoiled whilst set is in use. Failure to do so may cause overheating
• Avoid damage to wire insulation (cable), as this could cause a short‐circuit and damage the transformer
• Do not use any set which has been: cut, damaged, or has frayed wire insulation, loose connections or exposed wires
Note: When connecting, please ensure the arrows are aligned with one another, otherwise it will NOT light up
When cutting the strip light, please only cut along the cutline as outlined in the diagram
RETAIN FOR FUTURE REFERENCE
:
Advertisement
Table of Contents
Related Manuals for Mirabella International I003973 Genio 4M
Summary of Contents for Mirabella International I003973 Genio 4M
- Page 1 I003973 Genio 4M Wi‐Fi LED Pixel Strip Light WARNING: LED STRIP LIGHT CAN BE USED INDOOR OR OUTDOOR UNDER THE SHADE ONLY ADAPTOR/ TRANSFORMER AND Wi‐Fi CONTROLLER MUST REMAIN INDOOR AT ALL TIMES TO ENSURE THE SAFE AND SATISFACTORY OPERATION OF THIS SET PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE FOR ANY QUESTIONS OR TROUBLESHOOTING PLEASE VISIT www.mirabellagenio.com.au We recommend that the set be tested prior to being set up in the desired location : SAFETY INFORMATION • Remove set from the packaging before connecting to the power supply. • Before using or re‐using the set, inspect the set carefully • Use only with the adaptor/transformer supplied • Do not connect the set electrically to another set from a different manufacturer • Ensure that the cable is completely uncoiled whilst set is in use. Failure to do so may cause overheating • Avoid damage to wire insulation (cable), as this could cause a short‐circuit and damage the transformer • Do not use any set which has been: cut, damaged, or has frayed wire insulation, loose connections or exposed wires Note: When connecting, please ensure the arrows are aligned with one another, otherwise it will NOT light up When cutting the strip light, please only cut along the cutline as outlined in the diagram ...
- Page 2 1. Connection Preparation Your phone must be connected to 2.4Ghz Wi‐Fi and not the 5GHz, To verify your mobile phone is connected a 2.4Ghz Wi‐Fi network, Navigate to the Setting menu and click on Wi‐ Fi. In this menu you will see all detectable networks in your area. Locate the SSID for your network, select a Wi‐Fi SSID that doesn’t end with 5GHz. Check you have a strong Wi‐Fi signal (at least two bars) in the location where the smart device is installed. If you don’t have at least two bars signal on your phone, then you may need to reconsider the location or getting a Wi‐Fi extender to boost the Wi‐Fi signal strength. If you have dual band router but you don’t see two Wi‐Fi name SSID’s, one with 5G and one without 5G, you MUST log into the router and manually disable the 5Ghz Wi‐Fi signal if you’re having connection issues. Please contact your internet provider on how to disable 5Ghz Wi‐ Fi for your router or check our website;s FAQ for some common router settings. Install the APP and register Account For the best experience, download the "Mirabella Genio" APP to your smartphone from the App Store or Google Play, the APP icon will be displayed after it’s installed successfully ...
- Page 3 if the fast‐blinking method (EZ method, mentioned above) doesn’t work, please try the slow blinking (AP method) below. While the strip light is rapidly blinking, press and hold the pairing button on the Wi‐Fi controller again and then wait for the light to start blinking slowly (1 blink per every 2 seconds) open up the Mirabella genio APP, tap on + , add Manually then choose genio strip light from the list 1. Entre your 2.4Ghz Wi‐Fi name and password, (make sure the Wi‐Fi name doesn’t end with ‐5G) then in reset the device first screen tap on EZ mode in the Top right hand corner just below the battery image , select AP Mode (refer to the 1st and 2nd image below) Now Confirm indicator slowly blinking (refer to image 3), hit Next, then Go to connect and connect to Wi‐Fi named SmartLife_XXXX Note: If you fail to see Wi‐Fi name beginning with the word SmartLife_XXXX, then mean the device is not slowly blinking, please reset and make it slowly blinking ...
- Page 4 2 . After connected to SmartLife_XXXX, return back to Mirabella Genio, APP will commence adding device Please pay attention to this screen please check our online FAQ page to determent the cause of the and ensure time‐out error If the light never stops blinking, 1. You enter the correct 2.4Ghz Wi‐ there could be an issue with your Fi name and password phone setting, if you are using IOS 14, please ensure local network 2.Wi‐Fi controller is in a location permission is turned on for Genio with good Wi‐Fi coverage, try move APP it closer to the router for the pairing process if light stopped blinking, but unable to progress to “register on cloud” it 3. 5Ghz Wi‐Fi signal is turned off on indicates a communication error the router (5Ghz can be turn on ...
