WWX-RGB-RS
Single Zone RGB Controller
OWNER's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WWX-RGB-RS and is the answer not in the manual?

Questions and answers

Summary of Contents for Wet Sounds WWX-RGB-RS

  • Page 1 WWX-RGB-RS Single Zone RGB Controller OWNER’s Manual...
  • Page 2 THANK YOU FOR CHOOSING WET SOUNDS FOR YOU HIGH PERFORMANCE AUDIO SYSTEM The WWX-RGB-RS is and easy to operate, single zone RGB lighting controller that ts in a standard Carling style opening. Please take a moment to read the instruction manual &...

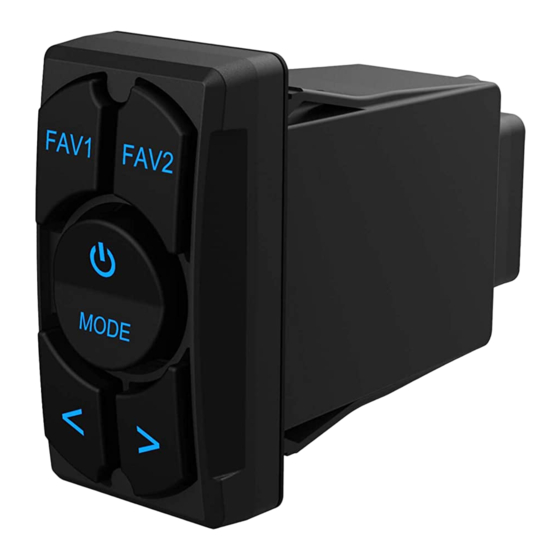

  • Page 3 FEATURES RGB control for a single zone Standard Carling style mounting Solid color, music and fade modes 2 programmable presets Backlit buttons Sealed Construction designed for Marine Applications DIMENSIONS 0.56" 1.00" 1.93" 2.03"...
  • Page 4 MOUNTING INSTRUCTIONS STEP 1: Locate desired location. Please refer to dimensions and check for clearance prior to cutting or drilling. STEP 2: Cut hole using the supplied cut out dimensions. STEP 3: Route wires through hole and snap in place. TIP: It is good practice to cut the hole smaller than needed, then enlarge using a le as needed.
  • Page 5 OPERATING INSTRUCTIONS POWER BUTTON Press and hold to power unit On/Off MODE BUTTON Selects between solid mode, music mode and fade mode. ADJUSTMENT BUTTONS Solid color mode: Button skips to the next color. Button goes to the previous color. Music mode: Button increases the sensitivity of the music response.
  • Page 6 WIRING DIAGRAM SWITCHED +12V (RED) GROUND (BLACK) RGB + (BLACK) RED - (RED) GREEN - (GREEN) BLUE - (GREEN)
  • Page 7 In the event repair is not possible, Wet Sounds will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price is that model is no longer available.
  • Page 8 Internet Warning Wet Sounds, Inc. products sold on any non- authorized web site or internet auction site are void of any and all manufacturer’s warranty. Please contact Wet Sounds (877-938-7757) or visit our web site (www.wetsounds.com) for a list of authorized online sellers or to...
