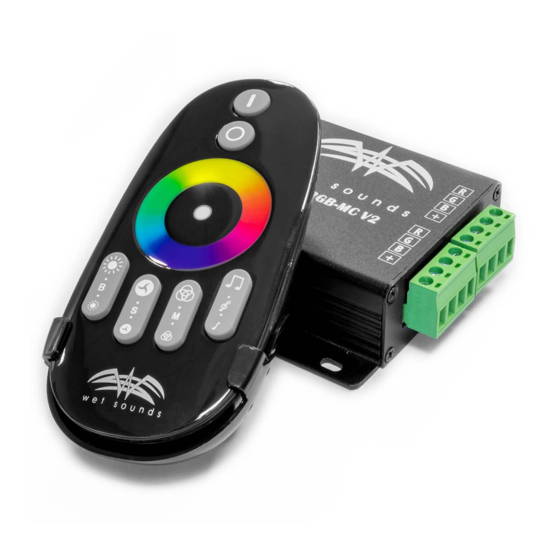

Rf rgb music controller

Advertisement

Quick Links

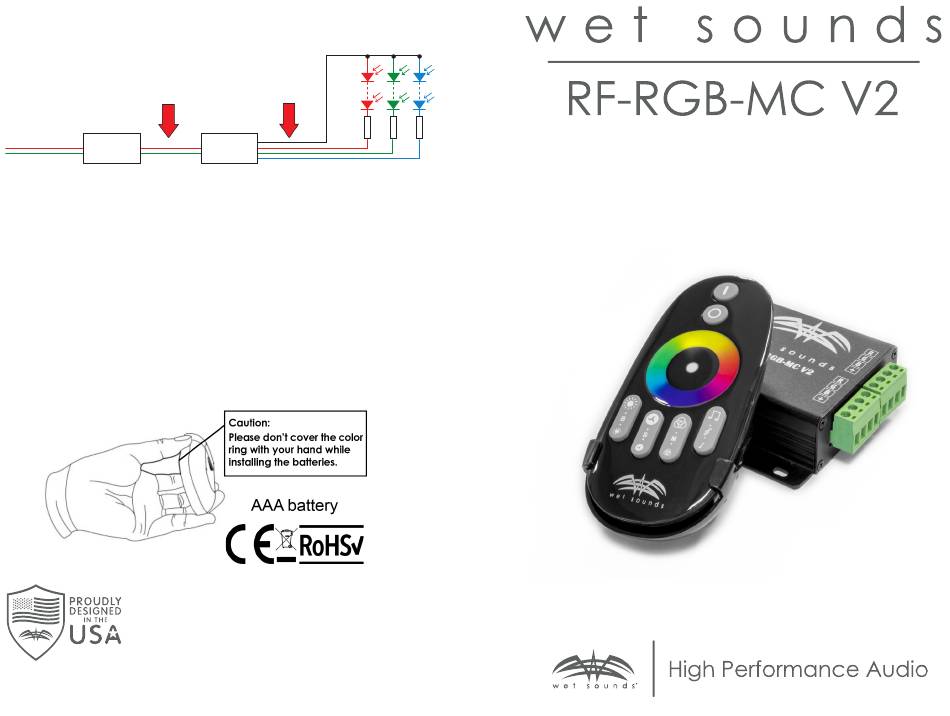

Circuit diagram

Connections: R (red), G (green), B
7.5 Amp Fuse
On 12V + Power
Power Supply
12/24VDC
+
_
100VAC~240VAC

Technical data:

• The controller will keep the last mode in memory by power switch ON/OFF
• Operating temperature: -20°C to + 45°C
• Working voltage: 12/24VDC
• Output: 2 channels (RGB)
• Control variant: common anode
• Sound control: >60 dB
• Output current: max. 12A
• Wireless frequency: 433.92MHz
• Receiving range: 65' - 98' (20-30m)
• Maximum output power (for 12V input): 144W
• Maximum output power (for 24V input): 288W
• RF remote control
• For control of RGB LED RGB strips with 12/24VDC operating voltage
© 2021 Wet Sounds, Inc. All Rights Reserved. WET SOUNDS and associated logos where
applicable are registered trademarks of Wet Sounds Corporation in the United States and/or
other countries. All other trademarks are the property of their respective owners.
(blue)
and BL (Black) +12VDC
RGB Application
3 Amp Fuse
On 12V + LED
Output
R
+
Controller
WET SOUNDS INC.
www.wetsounds.com
877-938-7757
10621 S Sam Houston Pkwy W • Suite 100
Houston, Texas 77071 USA
G
B
RF RGB Music Controller Owner's Manual
