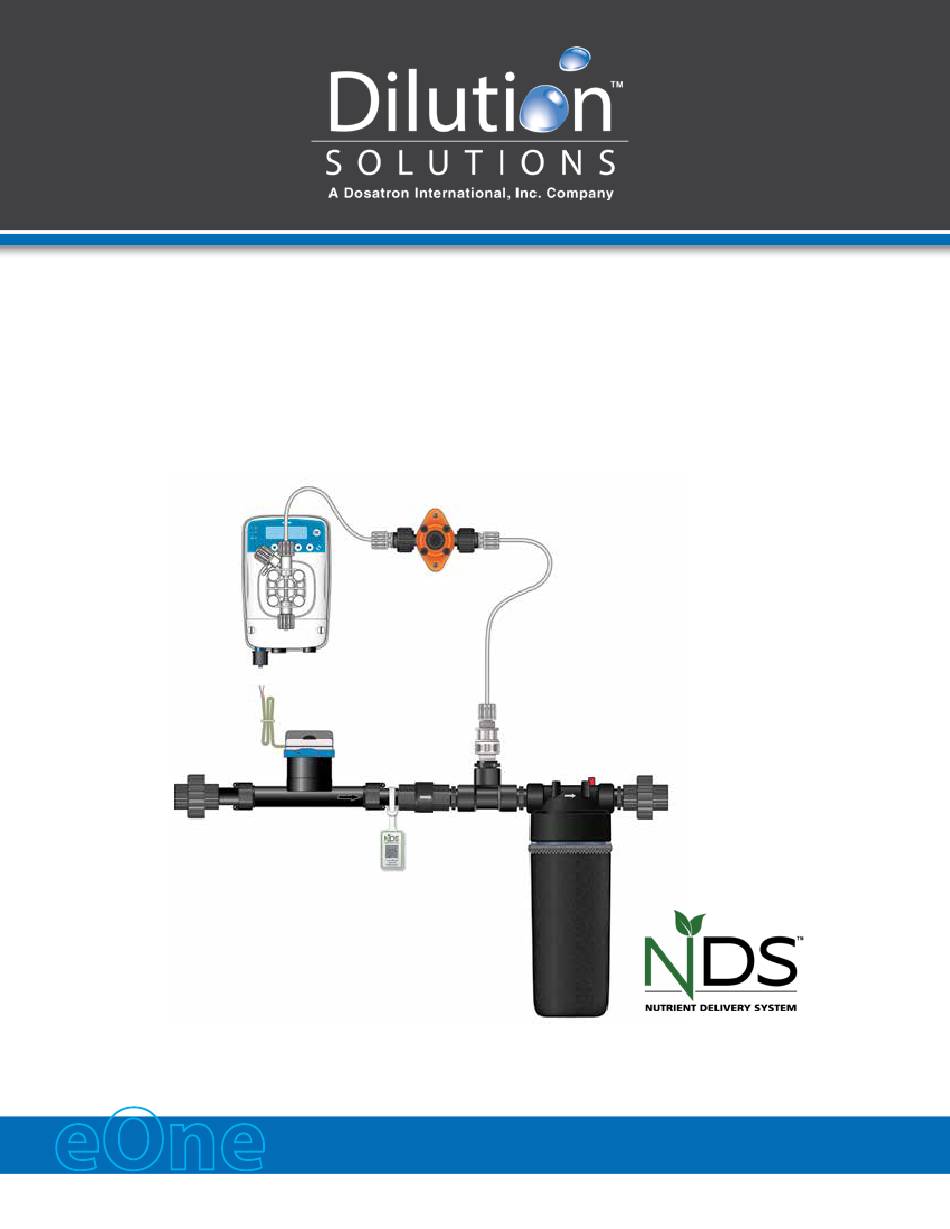

- Page 1 3/4” Micro-Doser Kit Manual Part #: MDE0110MF.75KIT NOTE: Installation illustrations are to be used as a reference guide only.
- Page 2 ¾” Micro-Doser Kit Contents Included in the MicroDoser ¾” Kit: PACK Part Part Number Part Image gaskets nuts Water Meter with Adapters WM34-1PPG (1 pulse per 1 gallon) adapters water meter PACK Part Part Number Part Image ¾” Threaded Union BK034-U ¾”...
- Page 3 PACK Part Part Number Part Image Pressure Relief Valve (PRV) AVA0010101 PRV Bracket ASU0000101 hose tube nuts o-rings nozzles PRV Adapter Kit KRA0005311 locking collars adapters PACK Part Part Number Part Image eOne MF 0110 PEU483891MEA tubing kit One pump PACK Part Part Number...
- Page 4 ¾” Micro-Doser Kit Step-by-Step Assembly Instructions INSTRUCTION TO ASSEMBLE THE MICRO-DOSER KIT PLUMBING SECTION Remove the white clear caps from the ends of the To attach the Adapters to the ends of the Water Water Meter, and discard. Meter, slide the Adapter through the Nut. Place the Gasket between the Adapter and the Water Meter threads, as indicated in the image.
- Page 5 ¾” Micro-Doser Kit Step-by-Step Assembly Instructions Attach the Tee to the Nipple and attach a second Thread the Reducer Bushing into the top opening Nipple to the opposite end of the Tee. of the Tee. Attach the Mixing Chamber to the Close Nipple. Insert the third Close Nipple in the outlet of the Make sure the arrow on the Mixing Chamber Mixing Chamber, and attach the last Union to the...
- Page 6 Assembly & Connection of the PRV to the Etatron Pump For these steps you will need the PRV, PRV Bracket, PRV Adapter Kit from your Micro-Doser Kit & the *Etatron eOne MF Pump Attach the PRV Bracket to the bottom of the PRV. Place the Small O-rings in the grooves of the Use the nut and washer (included) to ensure the Adapter, and the Large O-rings in the threads of...
- Page 7 Grab the other end of the ORPDT on the inlet side Mount the PRV to the wall or surface using 1/4” of the PRV, and attach it to the Discharge Valve of screws/bolts. Make sure the tube runs with no the pump’s head.
- Page 8 Tubing Connection - Water Meter Wiring Attaching the Foot Filter and Priming Tubing Grab the Clear Attach the end of one of flexible PVC Tube the sections to the included with your pump. Suction Valve and the Cut the Tube in half, other end to the Foot one piece for the Priming Filter, following...
- Page 9 Pump Priming Priming the Pump Plug in the pump, Push the START/STOP button twice. Screen shows the display will read OPERATING MODE/ MANUAL MODE. SETUP FW01 VFT. Press the arrow to the right to reach FW03 MF. Loosen the air Once the chemical bleed nut.
- Page 10 Pump Programming Pulse/Stroke Volume is calculated in relation to Push the right arrow until the display reads OPERATING MODE/ 1 x N (M) MODE. the pressure in the irrigation line. Use the values below to determine volume. Please see page 9 for detailed instructions to PUMP Single Pulse Maximum...
- Page 11 Pump Calculations Follow these steps to calculate the Number of Pulses Per Signal (N) to reach a desired Injection Rate. 1. Identify operating pressure of system (Dynamic PSI). 2. Specify the volume of concentrate to be injected, per gallon. 3. Identify single pulse volume at the operating pressure identified in Step 1. 4.
-
Page 12: Standby Mode
Volumetric Testing Procedure To adjust the Single Pulse Volume with the Pressure Relief Valve (PRV), follow these steps: Remove the Black Protection Cap from the PRV. Loosen the Counter Nut from the Adjustment Screw. Black Adjustment Protection Screw Counter Turn Adjustment Screw clockwise to increase Back Pressure, and reduce Single Pulse Volume. -
Page 13: Manual Mode
Place the suction strainer (Foot Filter) in the Using buttons, set the pump to graduated cylinder. MANUAL MODE. The suction strainer will displace ~50 mL. Note the volume in the graduated cylinder with the suction strainer. 250 mL Press button to enter the Mode Settings. Press button, the screen should read PULSES / MINUTE - PULSES NUM: 300... - Page 14 Press the START / STOP button again to return Close the Test/Dump Port to stop water. pump to STANDBY MODE CLOSED The system should be flushed before entering / returning to Operational Modes. Note volume in graduated cylinder. DIVIDE: SUBTRACT: Total Volume drawn in 100 Pulses Volume...
- Page 15 Add the QR Code Tag and Sunshade to your MicroDoser ¾” Kit After you complete priming, calculations, and programming of your Etatron pump, slide the Sunshade sleeve onto the mixing chamber. The Mixing Chamber Sunshade sleeve prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber.
- Page 16 Dilution Solutions • 2090 Sunnydale Blvd. • Clearwater, FL, USA 1-800-451-6628 • 727-451-1198 • www.dilutionsolutions.com...
