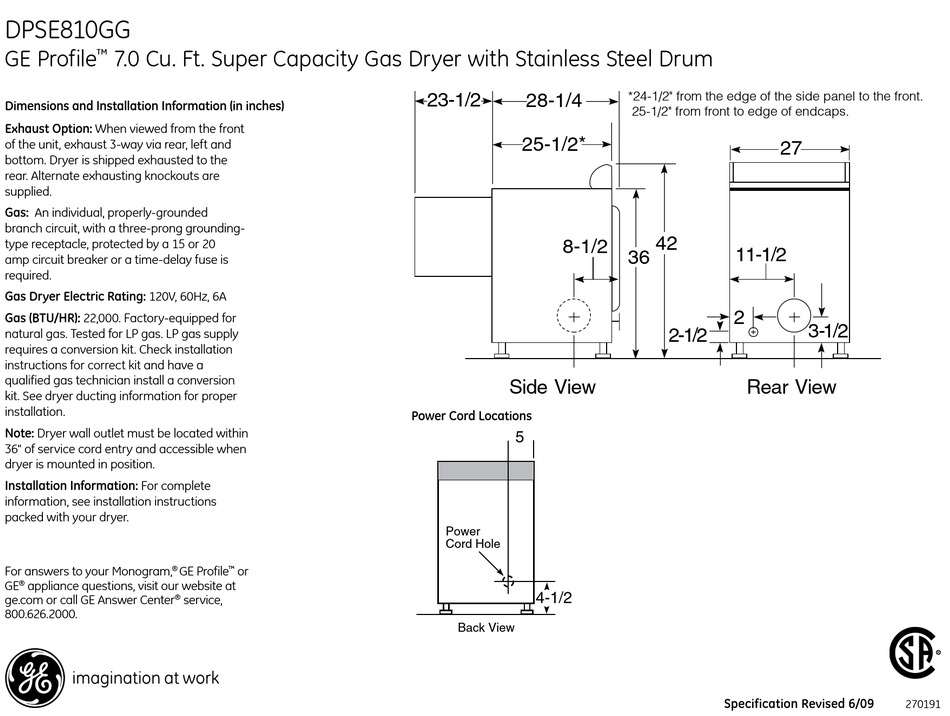

GE Profile DPSE810GG Dimensions And Installation Information

DPSE810GG
GE Profile 7.0 Cu. Ft. Super Capacity Gas Dryer with Stainless Steel Drum
™
Dimensions and Installation Information (in inches)
Exhaust Option: When viewed from the front
of the unit, exhaust 3-way via rear, left and
bottom. Dryer is shipped exhausted to the
rear. Alternate exhausting knockouts are
supplied.
Gas: An individual, properly-grounded
branch circuit, with a three-prong grounding-
type receptacle, protected by a 15 or 20
amp circuit breaker or a time-delay fuse is
required.
Gas Dryer Electric Rating: 120V, 60Hz, 6A
Gas (BTU/HR): 22,000. Factory-equipped for
natural gas. Tested for LP gas. LP gas supply
requires a conversion kit. Check installation
instructions for correct kit and have a
qualified gas technician install a conversion
kit. See dryer ducting information for proper
installation.
Note: Dryer wall outlet must be located within
36" of service cord entry and accessible when
dryer is mounted in position.
Installation Information: For complete
information, see installation instructions
packed with your dryer.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
5.7 cu. ft. Dryers
2
Power
Cord Hole
30-1/2
or
™
service,
Back View
23-1/2
28-1/4
25-1/2*
8-1/2
Side View
5.8, 6.0 and 7.0 cu. ft. Dryers
Power Cord Locations
5
Washer/Dryers SC QSart
Power
Cord Hole
4-1/2
Back View
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of endcaps.
27
42
11-1/2
36
2
2-1/2
Rear View
Specification Revised 6/09
3-1/2
270191
